42948A7 Mercury Throttle Cam Assy | Genuine Used Part
42948A7 Mercury Throttle Cam Assy | Genuine Used Part
🔥 50% off all Used Parts - Limited Time 🔥
Low stock: 1 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

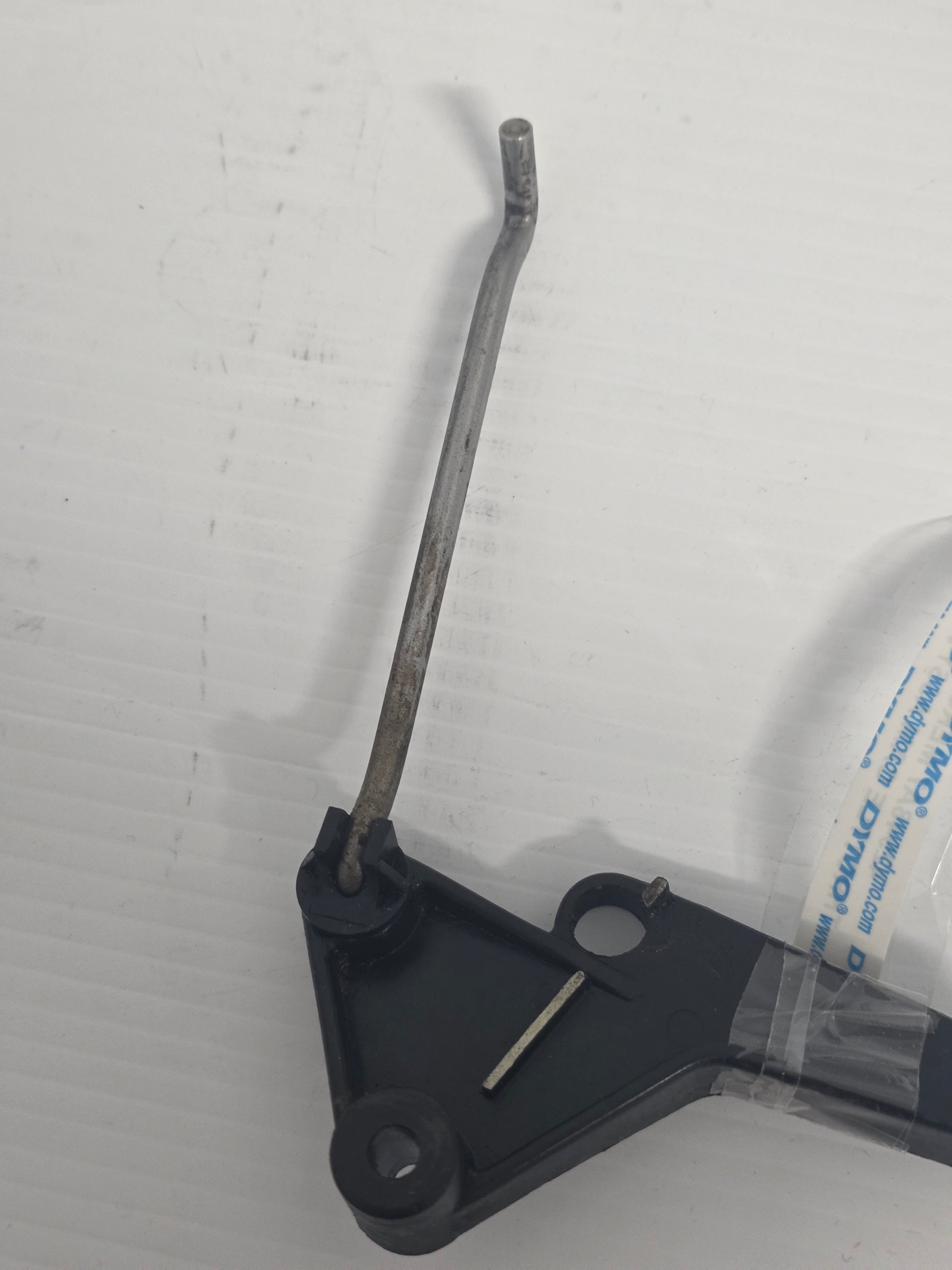

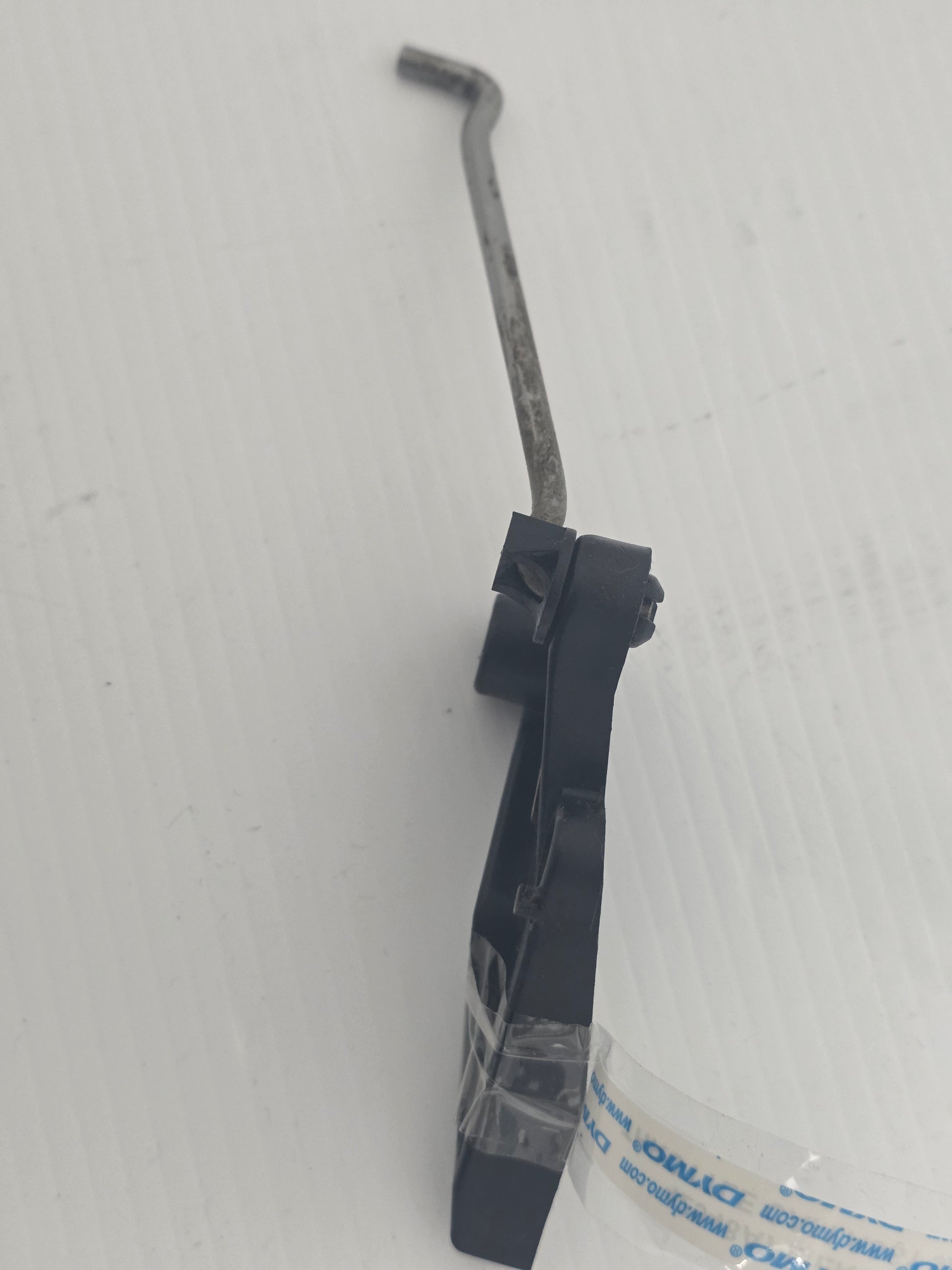

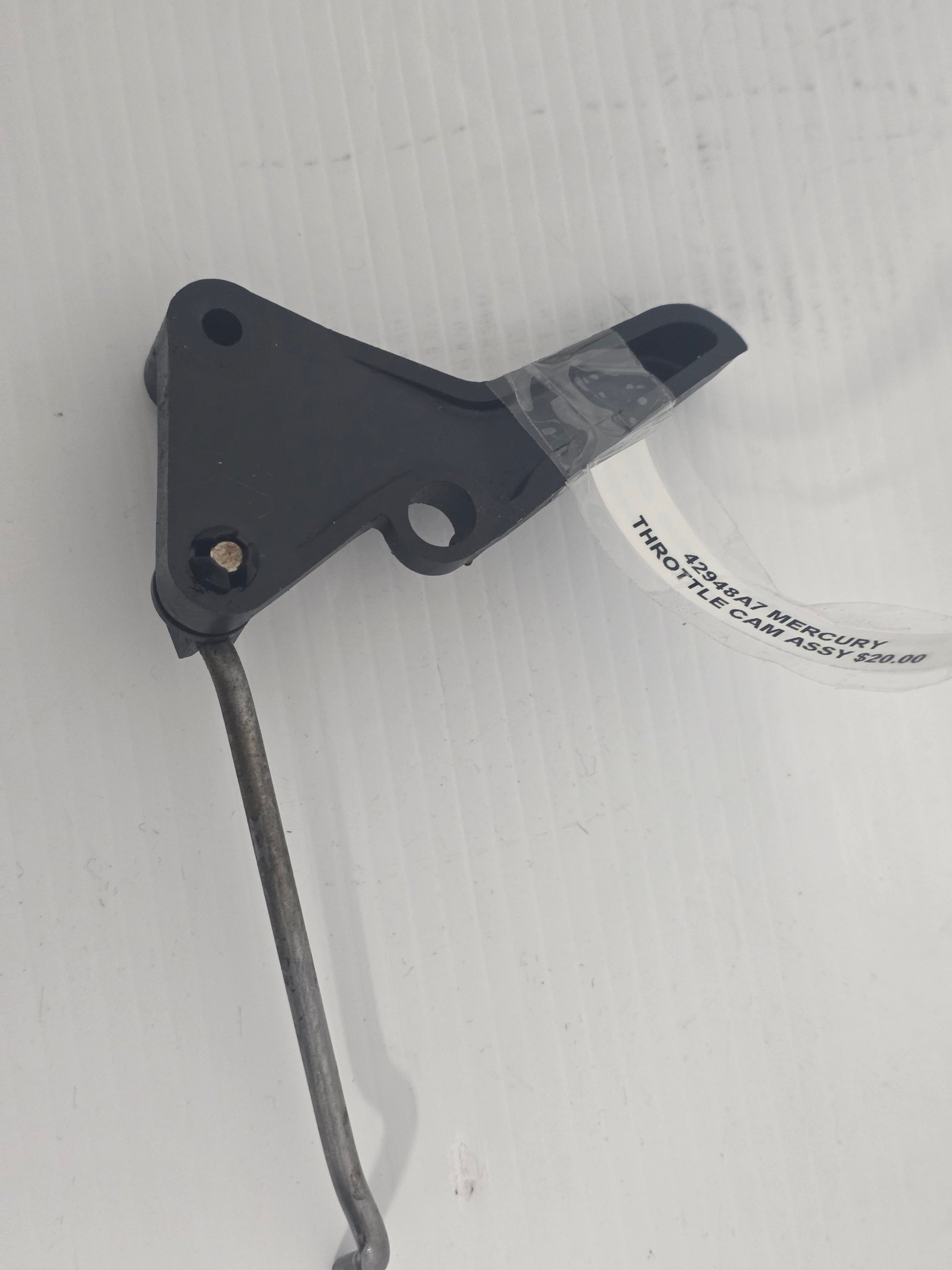

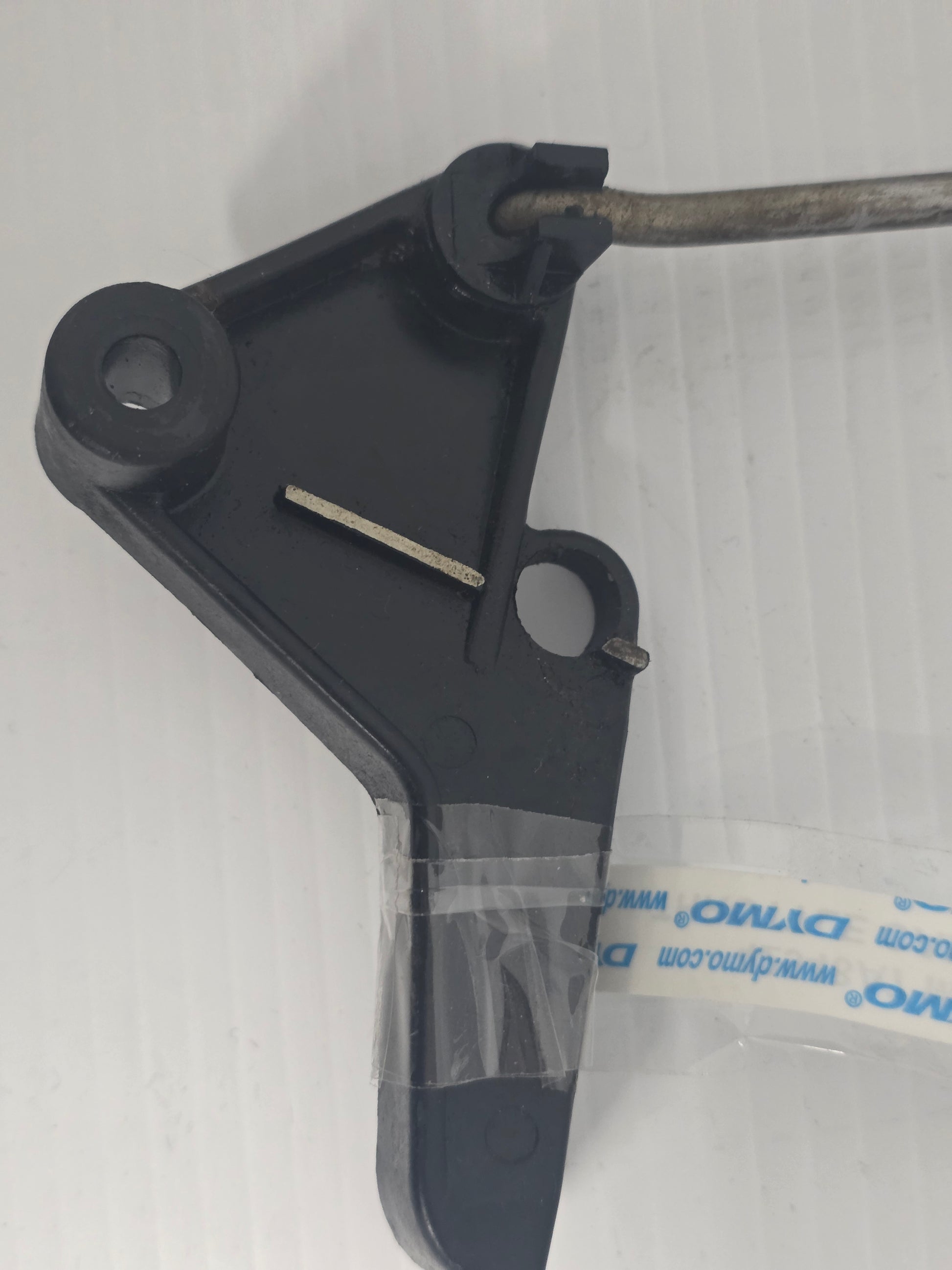

Genuine Mercury Mariner Throttle Cam Assembly - Part Number: 42948A7
A genuine used Mercury Mariner throttle-cam assembly for selected three-cylinder two-stroke outboards.
The shaped cam coordinates carburettor throttle opening with movement of the spark-advance linkage. Its profile is critical to the factory link-and-synchronisation sequence.
⚙️ Key Features
- Genuine Mercury Marine OEM throttle-cam assembly
- Correct current Mercury part number 42948A7
- Supersedes earlier 42948T and 42948C2 references
- Used on 65 Jet and 70HP to 90HP three-cylinder engines
- Controls the relationship between throttle opening and ignition advance
🚤 Compatibility
Commonly used on
- Mercury and Mariner three-cylinder throttle-lever and linkage assemblies
- 65 Jet plus 70HP, 75HP, 80HP and 90HP two-stroke outboards
Typically suits
- Engine models:
- Mercury / Mariner 65 Jet - US serial 0D283222 through 1B000001 and above across the applicable groups
- Mercury / Mariner 65 Jet - Belgium serial 9793577 to 0P325499
- Mercury / Mariner 70HP three-cylinder - US serial 0A996142 to 0C221999
- Mercury / Mariner 70HP three-cylinder - Belgium serial 9483121 to 9589038
- Mercury / Mariner 75HP three-cylinder - US serial 0A996142 to 1B000001 and above
- Mercury / Mariner 75HP three-cylinder - Belgium serial 0P325500 and above
- Mercury / Mariner 80HP three-cylinder - US serial 0A996142 to 0C221999
- Mercury / Mariner 80HP three-cylinder - Belgium serial 9483121 to 9589038
- Mercury / Mariner 90HP three-cylinder - US serial 0A996142 to 1B000001 and above
- Mercury / Mariner 90HP three-cylinder - Belgium serial 0P017000 and above
- HP Range: 65 Jet / 70HP - 90HP
- Engine Type: Mercury / Mariner three-cylinder two-stroke outboard
- Year Range: Approximately mid-1980s - 2000s
🔌 Function
The cam converts control-lever movement into a programmed sequence of carburettor opening and spark advance. Its profile ensures the ignition and throttle systems remain synchronised through idle, acceleration and full-throttle operation.
⚠️ Common Signs of Failure
- Cam surface is worn, cracked or damaged
- Roller does not track smoothly over the cam profile
- Throttle opens too early or too late in relation to ignition advance
- Engine hesitates during acceleration
- Link-and-sync adjustment cannot be set correctly
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 42948A7 → Supersedes 42948T
- 42948T → Supersedes / relates to 42948C2
- 42948C2 earlier cam reference
OEM / Related Numbers
- 42948A7
- 42948T
- 42948C2
- 42947 1 related spark-advance lever
- 24-55162 related spring
- 24-14159 related cam-return spring
- 745061148994
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
