435548 Aftermarket Bombardier OMC Trim/Tilt Motor | Sawley's Select Marine Parts

🔧 Product Description

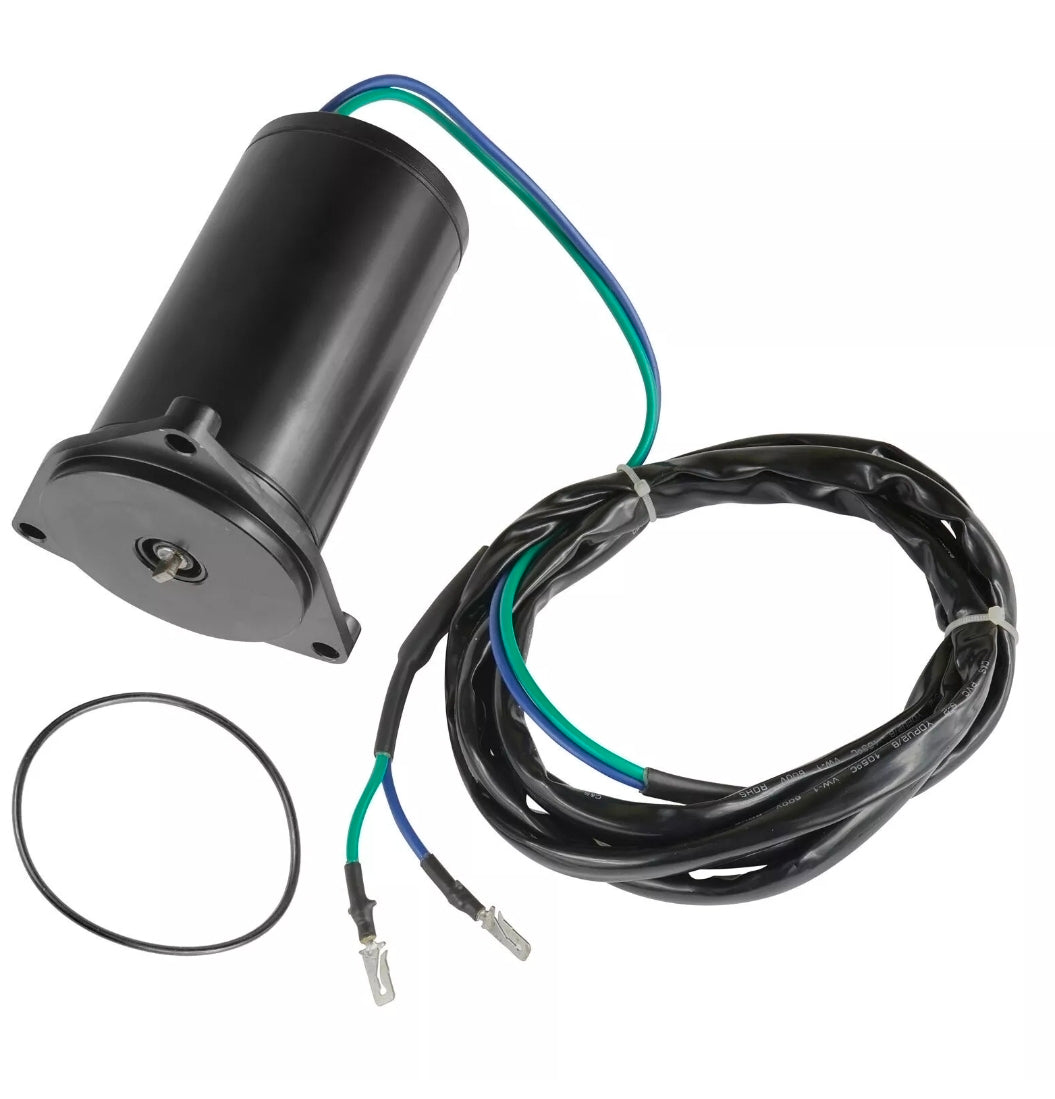

Aftermarket replacement Two-Wire Power Trim & Tilt Motor - Replaces Part Number: 435548

New aftermarket reversible trim motor replacing OMC 435548/0435548. It is the two-wire, three-bolt motor used on selected V6 commercial and V8 Johnson/Evinrude trim systems.

⚙️ Key Features

• Direct replacement for OMC 435548

• 12-volt reversible two-wire motor

• Three-bolt mounting flange

• Marine sealed motor housing and ring-terminal leads

• Designed for the matching OMC hydraulic pump drive

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 435548

• 1 × Integrated two-wire electrical lead set

• 1 × Motor-to-pump seal - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0435548 / 435548 (OMC OEM reference)

OEM / Related Numbers:

• ARCO 6244

• Sierra 18-6277

• Mallory 9-18107

• API PT301NM

• J&N 430-22149

Aftermarket / Verified Equivalents:

• ARCO: 6244

• Sierra: 18-6277

• Mallory: 9-18107

• API Marine: PT301NM

• J&N: 430-22149

🚤 Compatibility

Commonly used on:

• Johnson/Evinrude V6 commercial and V8 outboard trim systems

Typically suits:

• Engine / Drive models:

• V6 commercial outboards from approximately 1993 onward using 435548

• V8 Johnson/Evinrude outboards whose parts catalogue specifies 435548

• HP / Drive Range: Engine-model dependent V6 commercial and V8 applications

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: Principally 1993 onward; model-code dependent

• Serial / Component Identification: Confirm two wires, three mounting bolts, pump-drive style and OEM 435548.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Pump works only after the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
