43750-88L22-0EP 43750-88L21-0EP Suzuki DF60A Steering Bracket | Genuine Used Part
43750-88L22-0EP 43750-88L21-0EP Suzuki DF60A Steering Bracket | Genuine Used Part
🔥 50% off all Used Parts - Limited Time 🔥
Low stock: 1 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

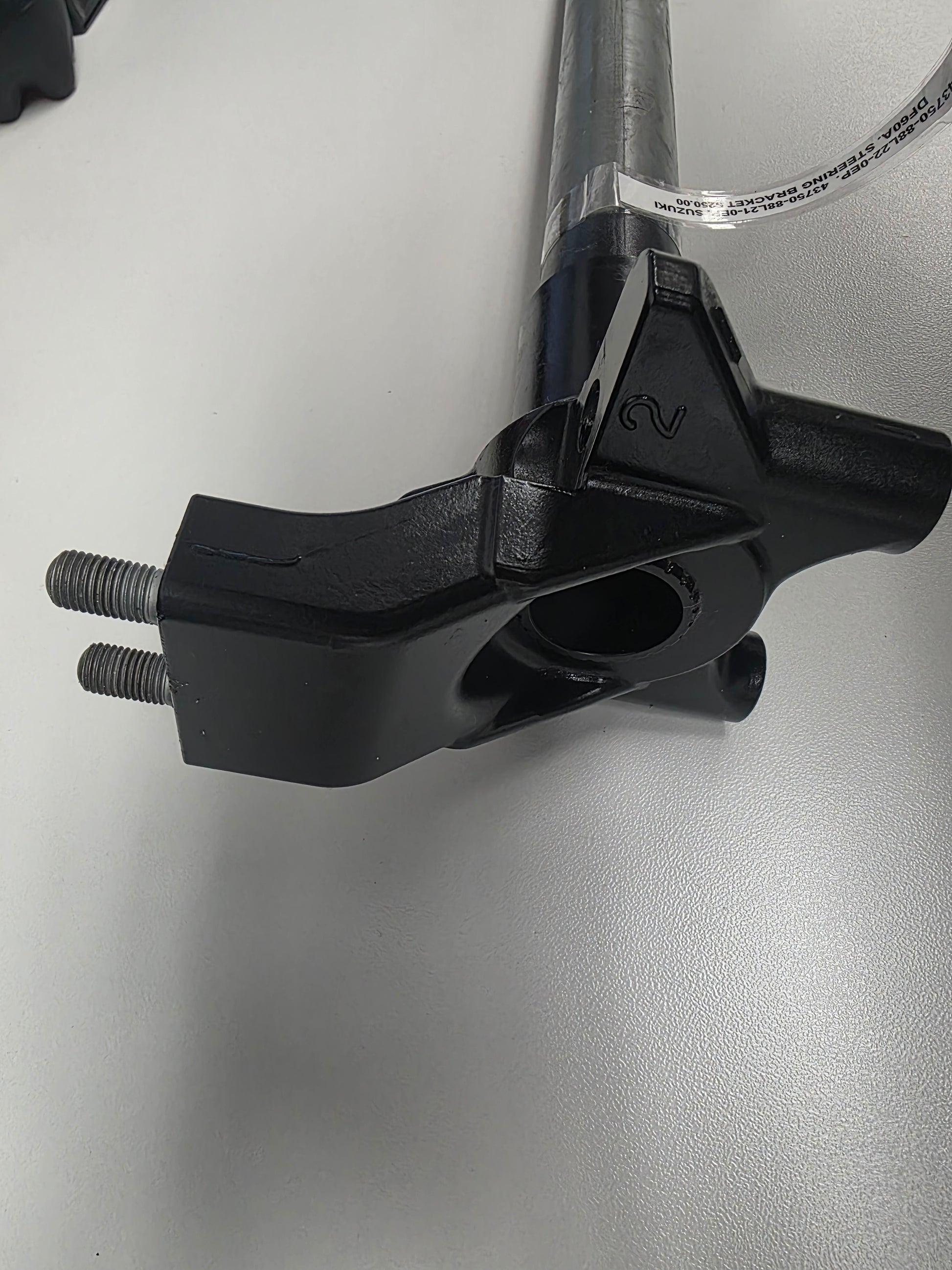

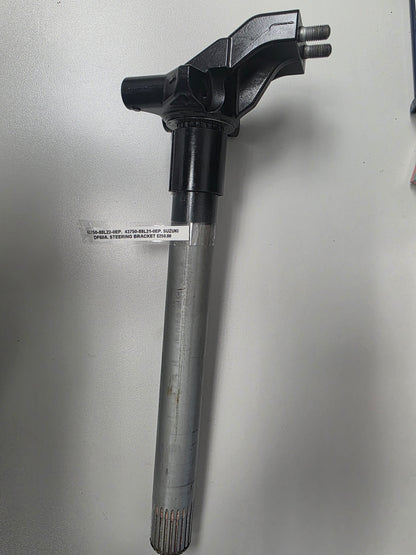

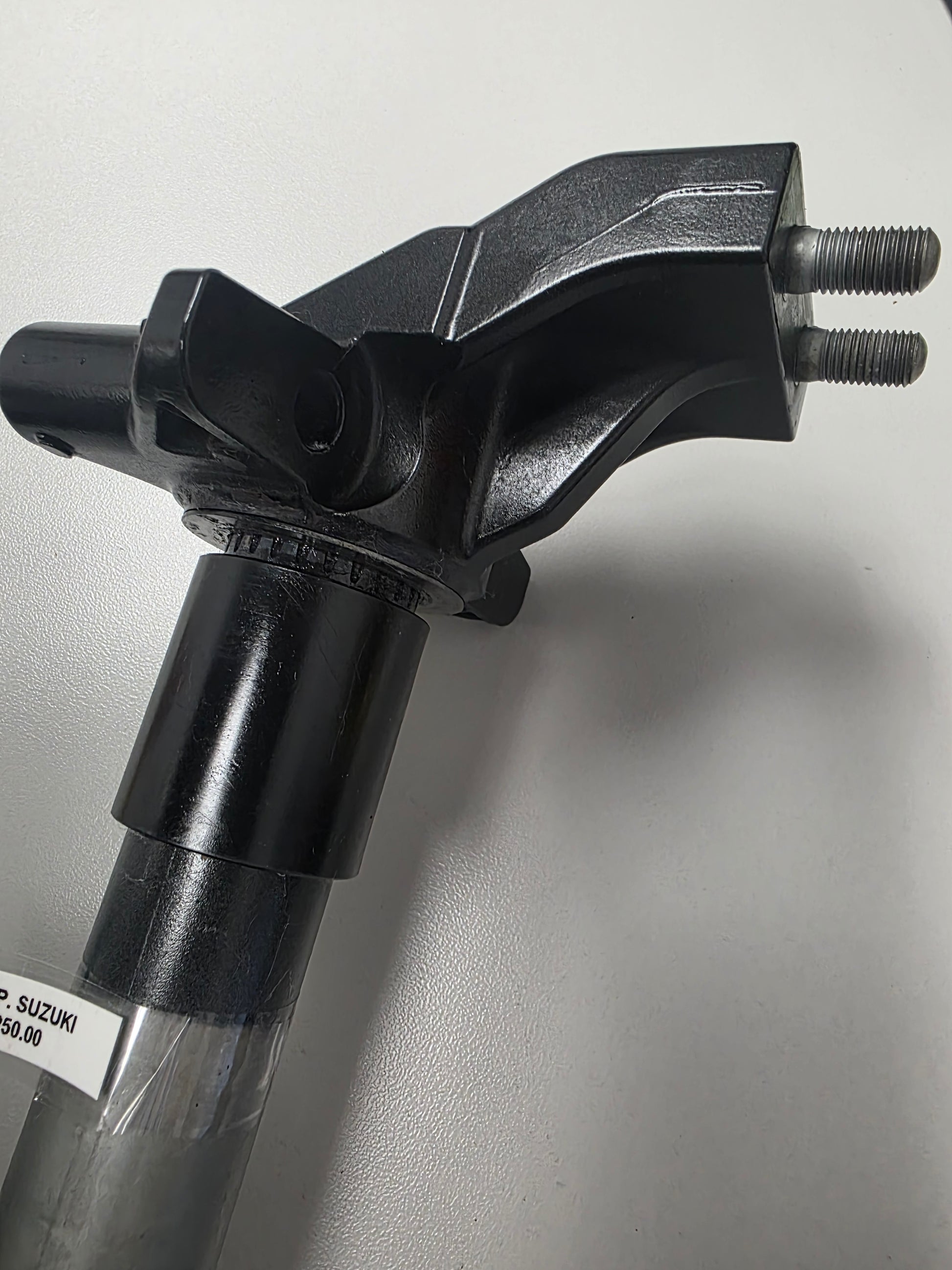

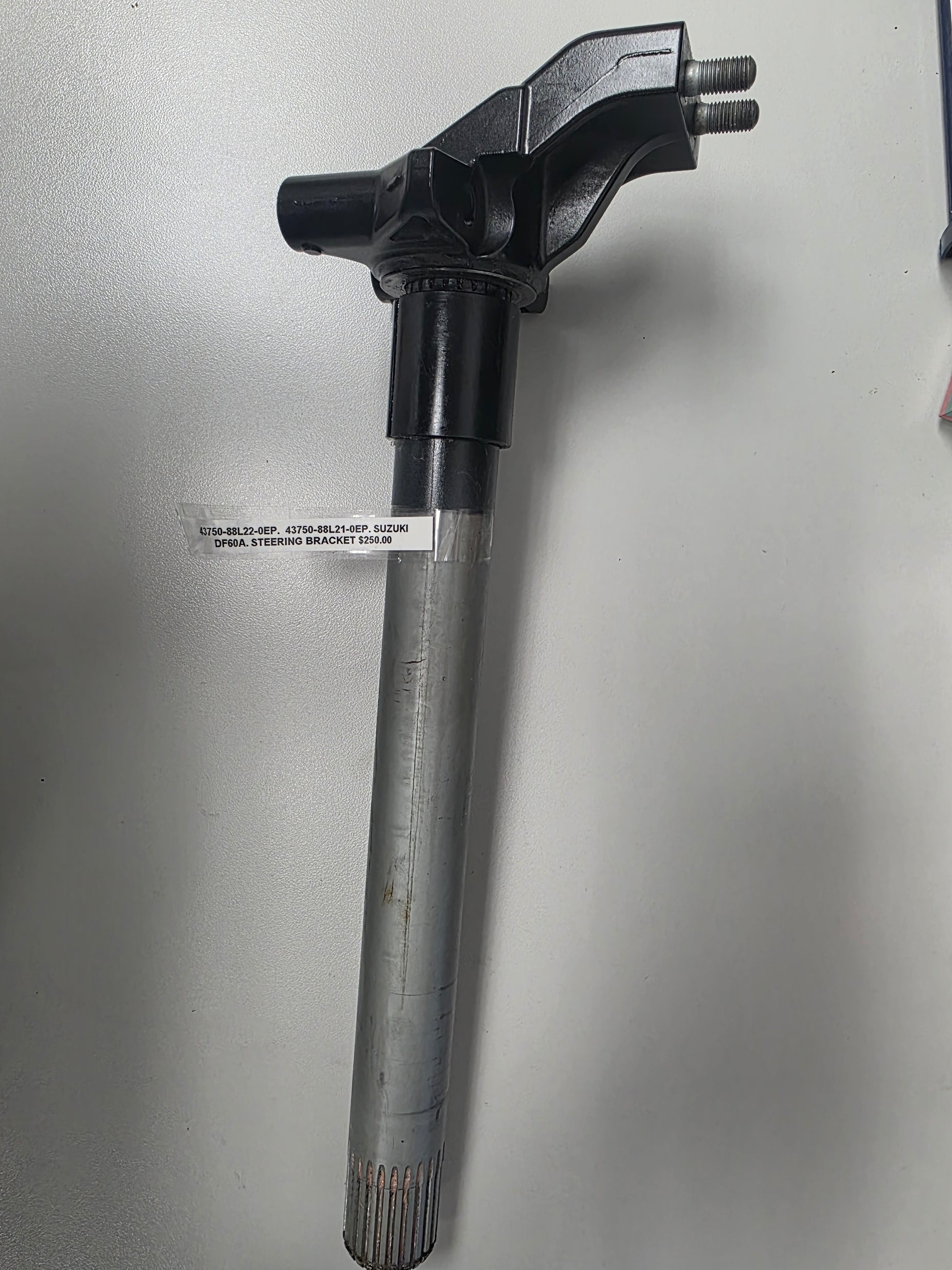

Genuine Suzuki Long / Extra-Long Steering Bracket - Part Number: 43750-88L22-0EP
A genuine Suzuki black steering bracket for selected DF40A, DF50A and DF60A four-stroke outboards fitted with long or extra-long transom assemblies. The bracket connects the steering linkage to the swivel assembly and supports controlled port-to-starboard movement of the engine.
⚙️ Key Features
- Genuine Suzuki OEM steering bracket
- Current black-finish number 43750-88L22-0EP
- Supersedes 43750-88L21-0EP
- Used with long and extra-long transom assemblies
- Fits DF40A, DF50A and DF60A platform families where specified
🚤 Compatibility
Commonly used on
- Suzuki DF40A, DF50A and DF60A swivel-bracket assemblies
- Long and extra-long transom models with mechanical or tiller steering
Typically suits
- Engine models:
- Suzuki DF40ATL
- Suzuki DF40ATHL
- Suzuki DF40AQHL
- Suzuki DF50ATL
- Suzuki DF50ATHL
- Suzuki DF50AVTL
- Suzuki DF60ATL
- Suzuki DF60ATHL
- Suzuki DF60AQHL
- Suzuki DF60AVTL
- DF40A / DF50A production from representative serial family 05003F-510001
- DF60A production from representative serial family 06002F-210001
- DF60A production from representative serial family 06002F-410001
- DF60A production from representative serial family 06003F-610001
- HP Range: 40HP - 60HP
- Engine Type: Suzuki inline three-cylinder four-stroke outboard
- Shaft Length: Long and extra-long transom applications
- Year Range: Approximately 2010 onward
🔌 Function
The steering bracket provides the connection point between the engine steering linkage and the swivel assembly. It transfers steering force while maintaining alignment through the engine's full turning range.
⚠️ Common Signs of Failure
- Excessive steering play
- Worn steering bushes or bracket bore
- Corrosion around the shaft and mounting points
- Cracking or distortion at the steering-link connection
- Binding during port-to-starboard movement
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 43750-88L22-0EP → Supersedes 43750-88L21-0EP
- 43750-88L21-0EP earlier black steering-bracket reference
OEM / Related Numbers
- 43750-88L22-0EP
- 43750-88L21-0EP
- 43750-88L22-Y5S white-finish equivalent
- 43750-88L21-Y5S earlier white-finish reference
- 43750-88L32-0EP short-shaft black steering bracket
- 43750-88L31-0EP earlier short-shaft black reference
- 43111-88L40-0EP related swivel bracket
- 43711-97E01 steering bush
- 43711-97E11 steering bush
Aftermarket / Verified Equivalents
- Suzuki: 43750-88L22-Y5S white-finish equivalent for corresponding long / extra-long installations
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
