43755-88L00 43755-88L00-0EP Suzuki DF60A Steering Bracket Attachment | Genuine Used Part

🔧 Product Description

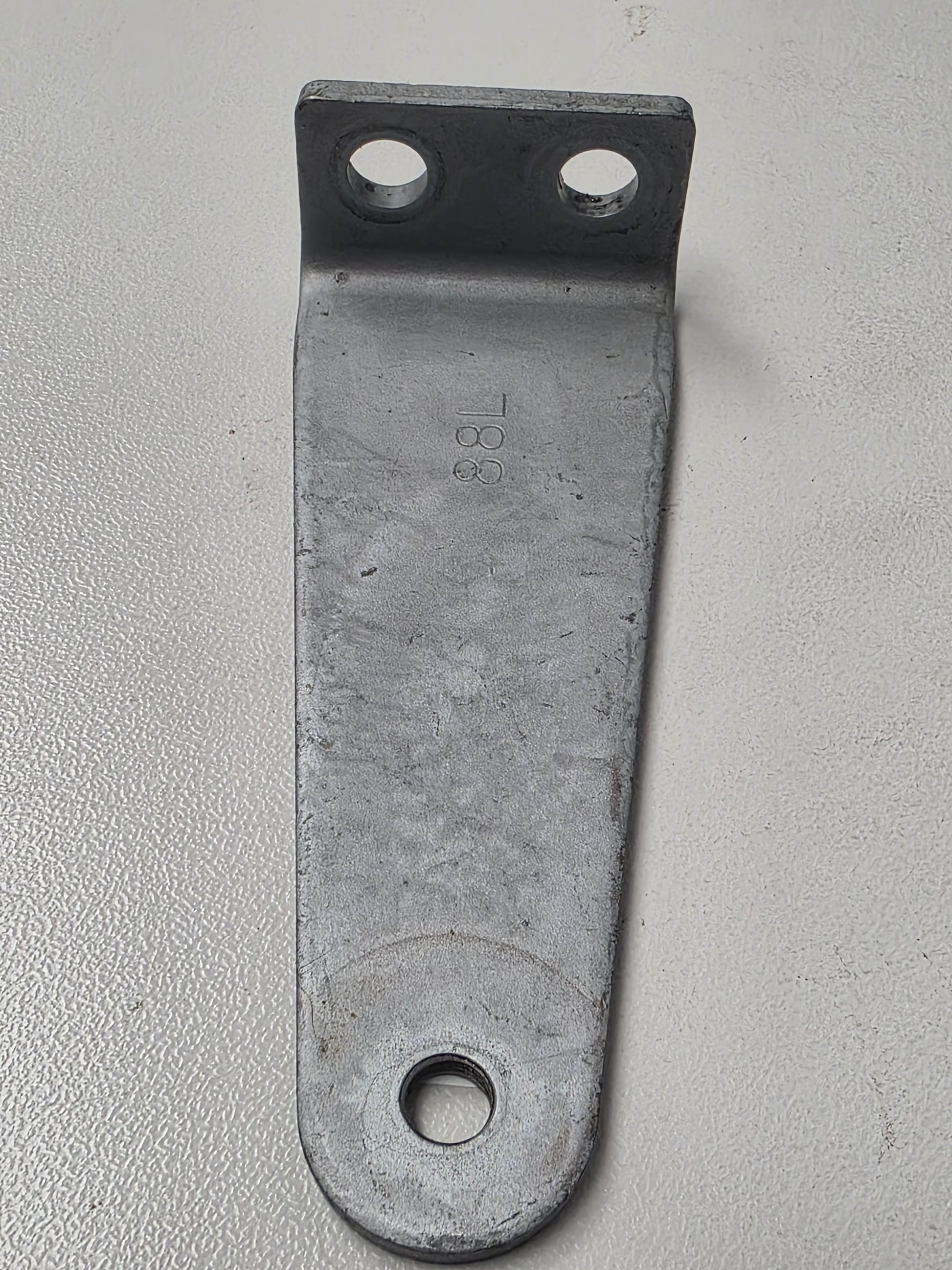

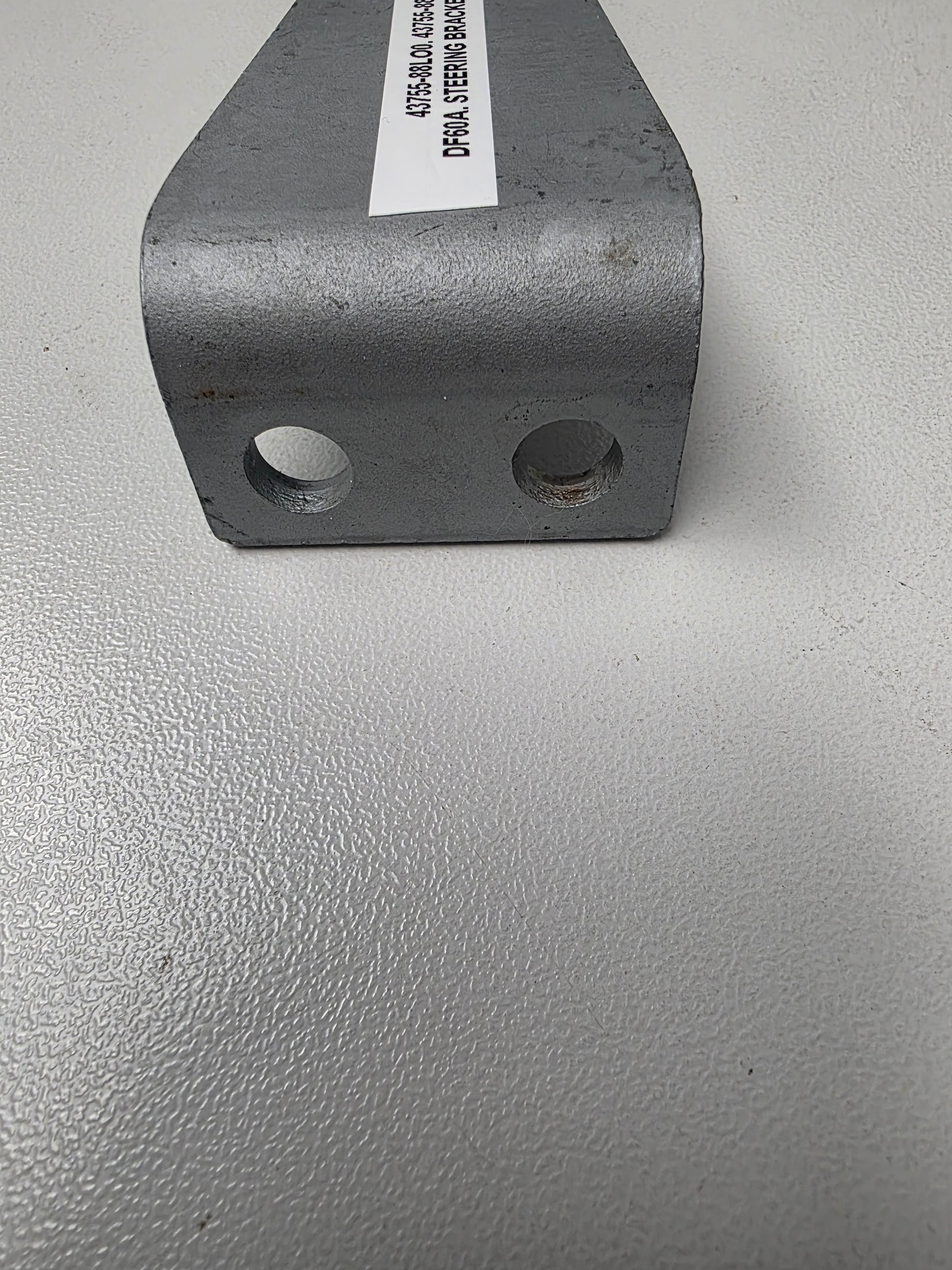

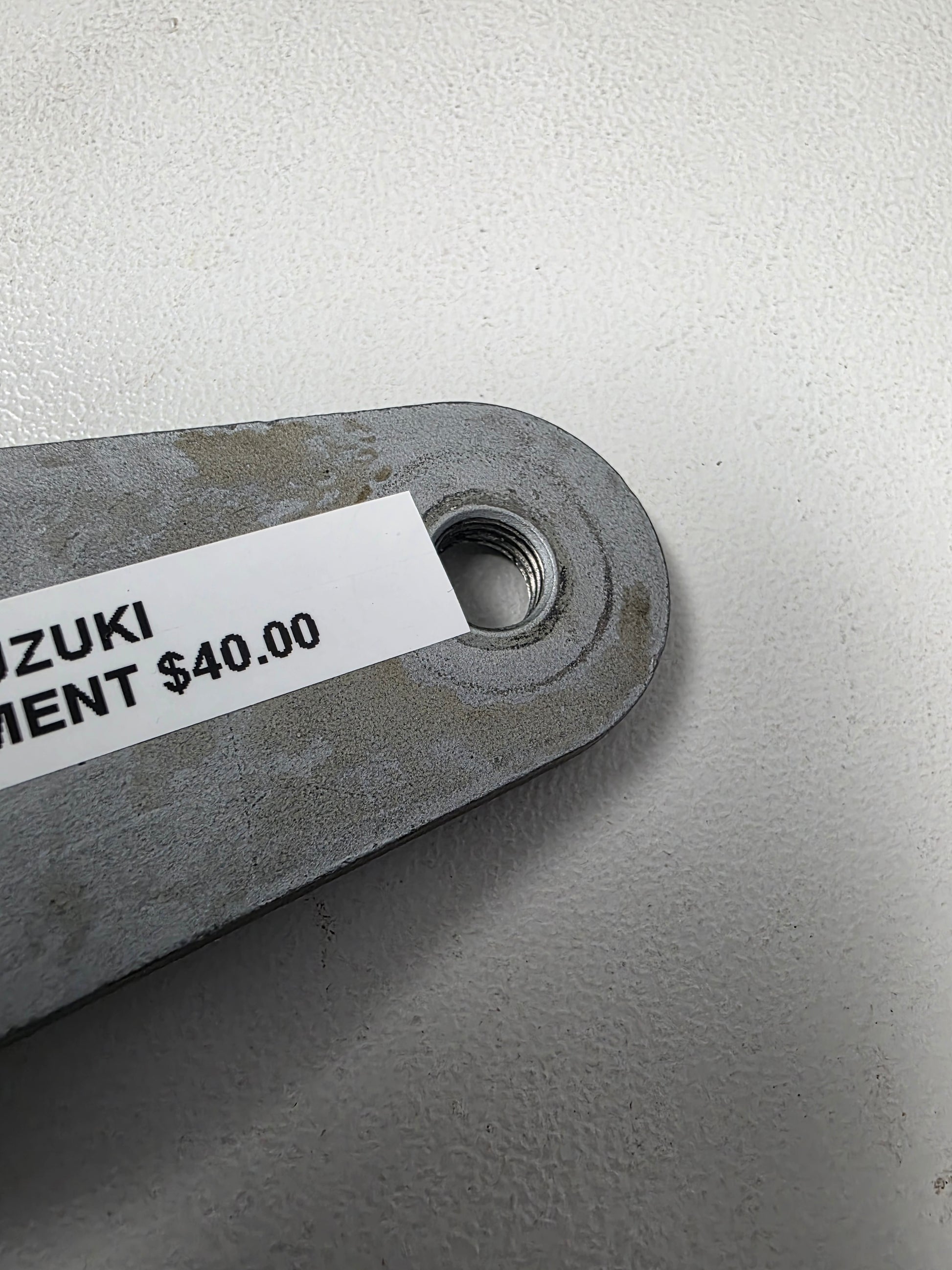

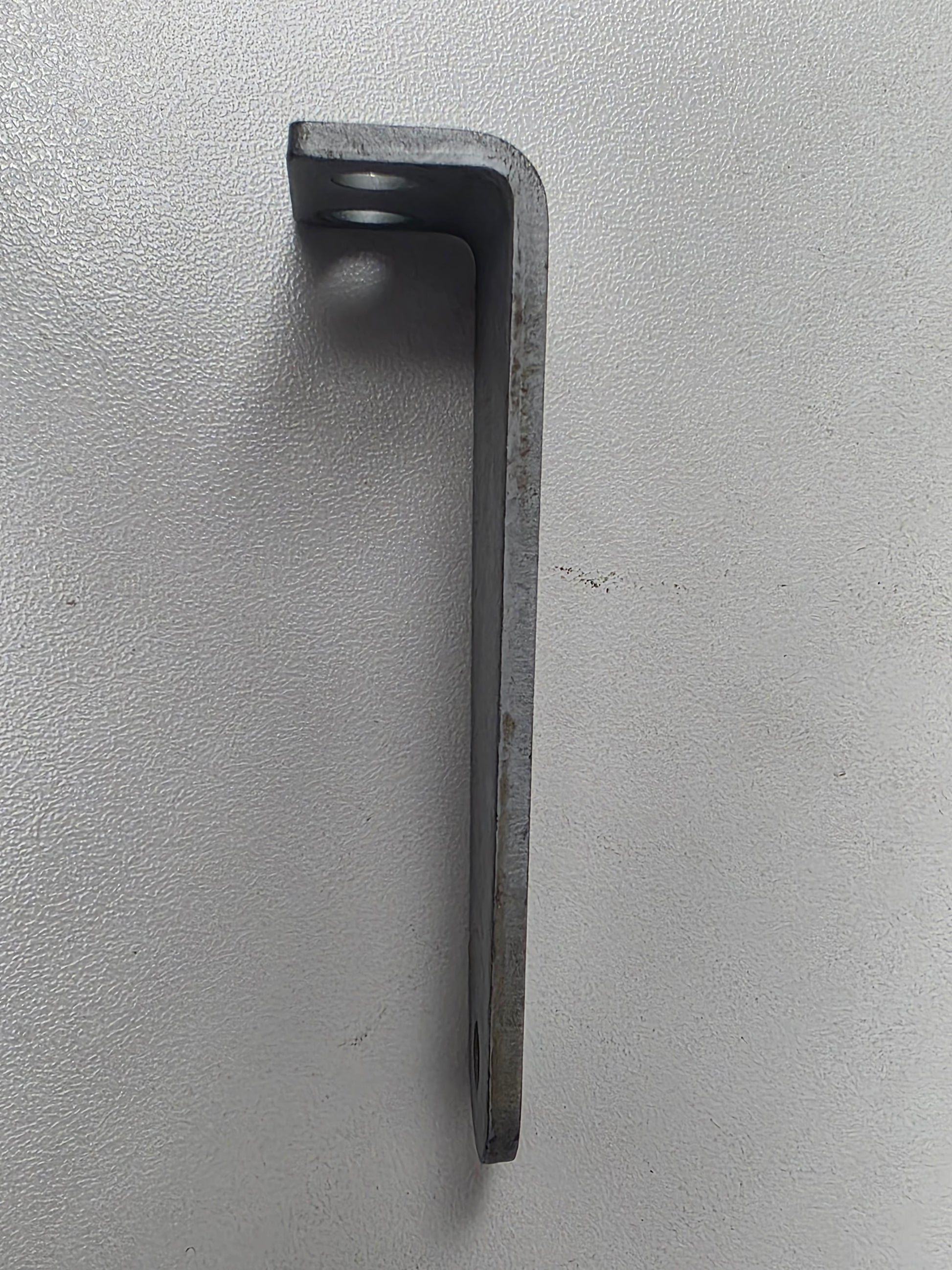

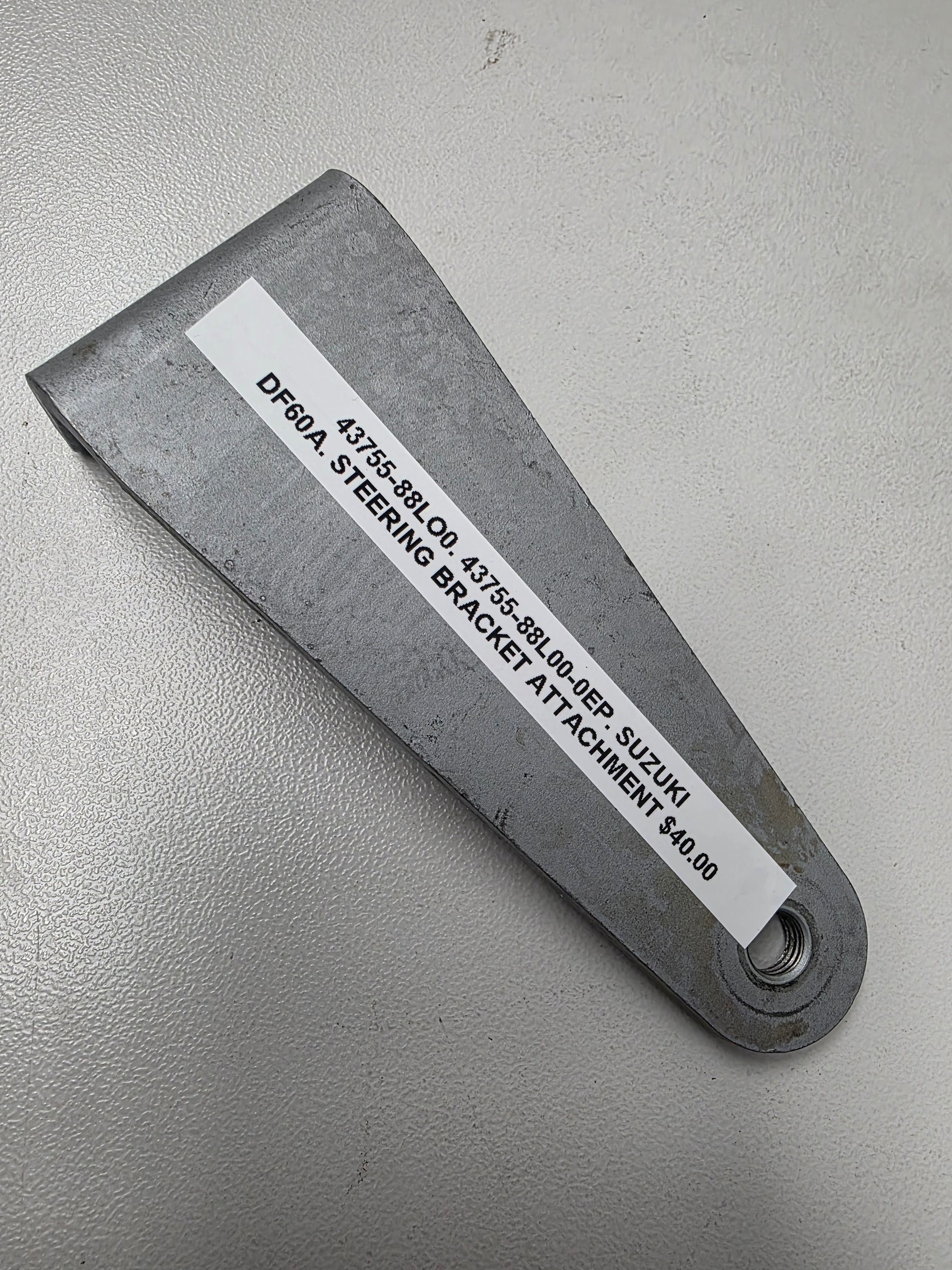

Genuine Suzuki DF40A / DF50A / DF60A Steering-Bracket Attachment - Part Number: 43755-88L00

A genuine used Suzuki steering-bracket attachment installed on the swivel-bracket assembly of selected DF40A, DF50A and DF60A four-stroke outboards.

The attachment provides the mounting interface for the steering linkage at the front of the swivel bracket. Suzuki lists 43755-88L00 as replacing colour-coded black part 43755-88L00-0EP.

⚙️ Key Features

• Genuine Suzuki steering-bracket attachment
• Correct current reference 43755-88L00
• Replaces black colour-coded number 43755-88L00-0EP
• Bolts to the swivel-bracket assembly
• Provides a secure steering-link connection point

🚤 Compatibility

Commonly used on

• Suzuki DF40A swivel brackets
• Suzuki DF50A swivel brackets
• Suzuki DF60A swivel brackets
• Mechanical-steering linkage installations

Typically suits selected

• Suzuki DF40A
• Suzuki DF40AST
• Suzuki DF50A
• Suzuki DF60A
• Suzuki DF60AT and related trim-and-tilt variants
• Engines in the 88L swivel-bracket family
• HP Range: 40HP - 60HP
• Engine Type: Inline three-cylinder four-stroke EFI outboard
• Year Range: Approximately 2010 onward, model controlled

🔌 Function

The attachment transfers steering-link movement into the swivel bracket so the complete engine rotates around the steering axis.

⚠️ Common Signs of Failure

• Steering linkage has excessive free play
• Attachment is bent
• Stud threads are damaged
• Corrosion weakens the bracket
• Steering link does not sit squarely
• Mounting fasteners loosen
• Bracket contacts surrounding swivel components
• Steering becomes inconsistent or noisy

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 43755-88L00 → Replaces 43755-88L00-0EP
• 43755-88L00-0EP original shadow-black metallic version

OEM / Related Numbers

• 43755-88L00
• 43755-88L00-000
• 43755-88L00-0000
• 43755-88L00-0EP
• Stud bolt: 09108-10161
• Retaining nut: 09159-10050
• Steering bushing: 43711-97E11
• Swivel bush bracket: 43211-88L00
• Swivel-to-clamp washers: 09160-39002 and 09160-39003

Aftermarket / Verified Equivalents

• No aftermarket equivalent
• Genuine Suzuki number 43755-88L00 is the replacement for the colour-coded 0EP version

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
