438559 Aftermarket Bombardier/Evinrude Fuel Pump (1997-2005) | Sawley's Select Marine Parts

🔧 Product Description

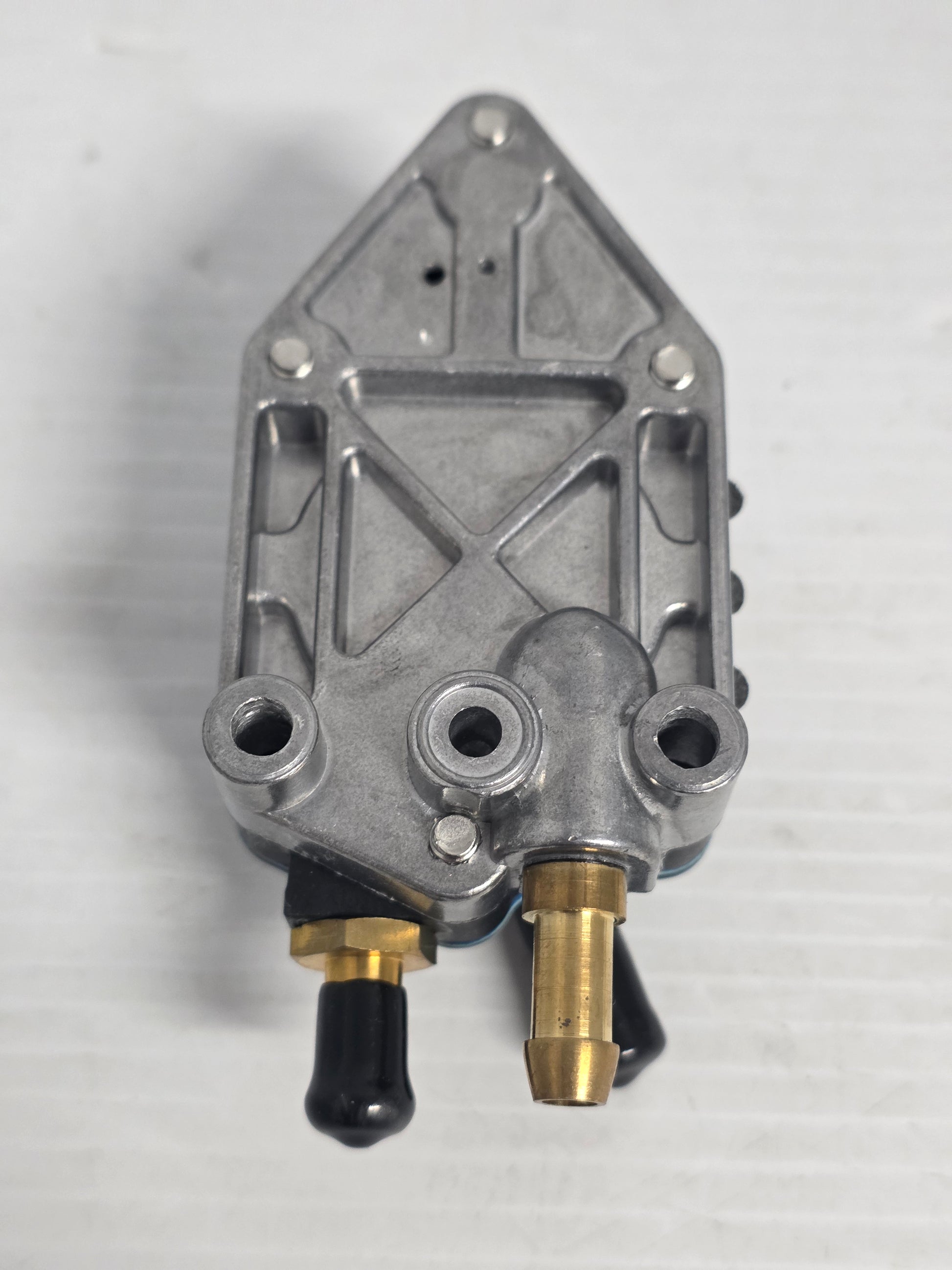

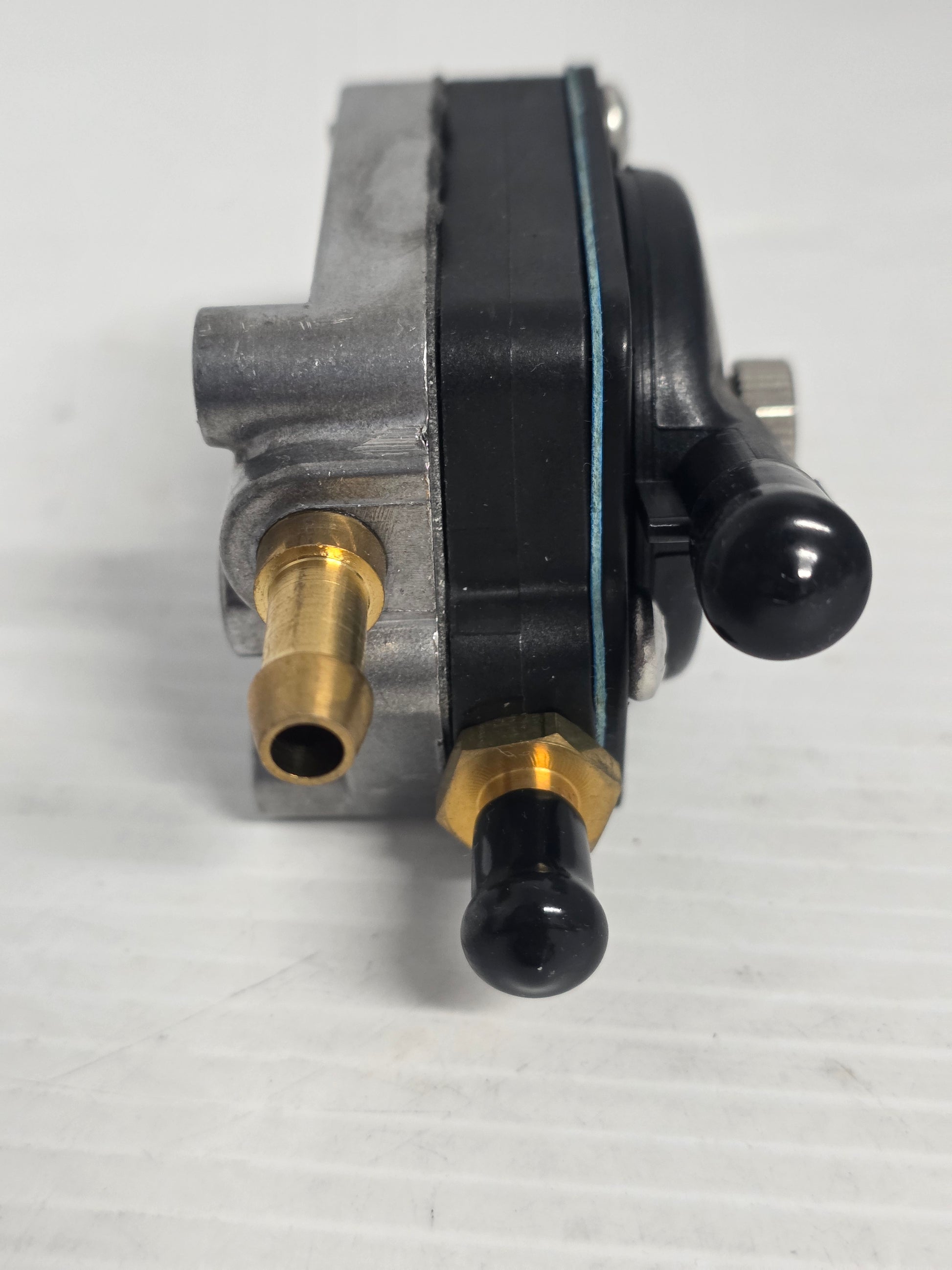

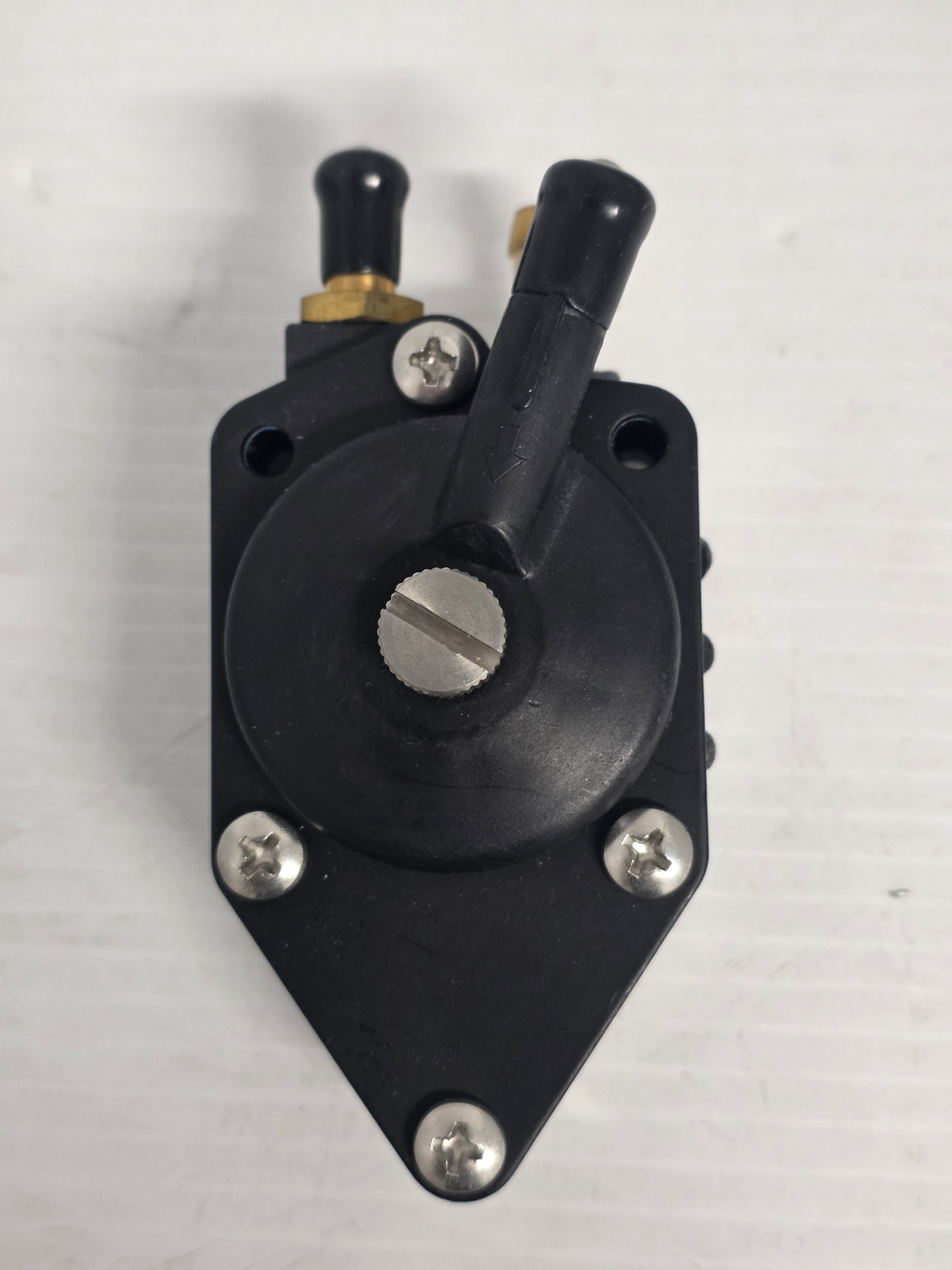

Aftermarket replacement Pulse-Operated Fuel Pump - Replaces Part Number: 438559

New aftermarket mechanical/pulse-operated fuel pump replacing 438559. It is configured for 25HP-70HP carburetted two-stroke outboards, 75HP-140HP carburetted V4/V6 applications using 438559, Selected Suzuki-built 9.9HP/15HP four-stroke OMC models where specified. The exact engine model, serial range, fuel pressure and connection layout must match the original installation.

⚙️ Key Features

• Direct replacement for the 438559 service family

• Designed for Johnson/Evinrude carburetted outboards

• Pulse- or engine-driven low-pressure fuel delivery

• Marine fuel-resistant diaphragm and valve materials

• Confirm the engine serial, pump pressure and port orientation before installation

🧰 Kit / Assembly Contents

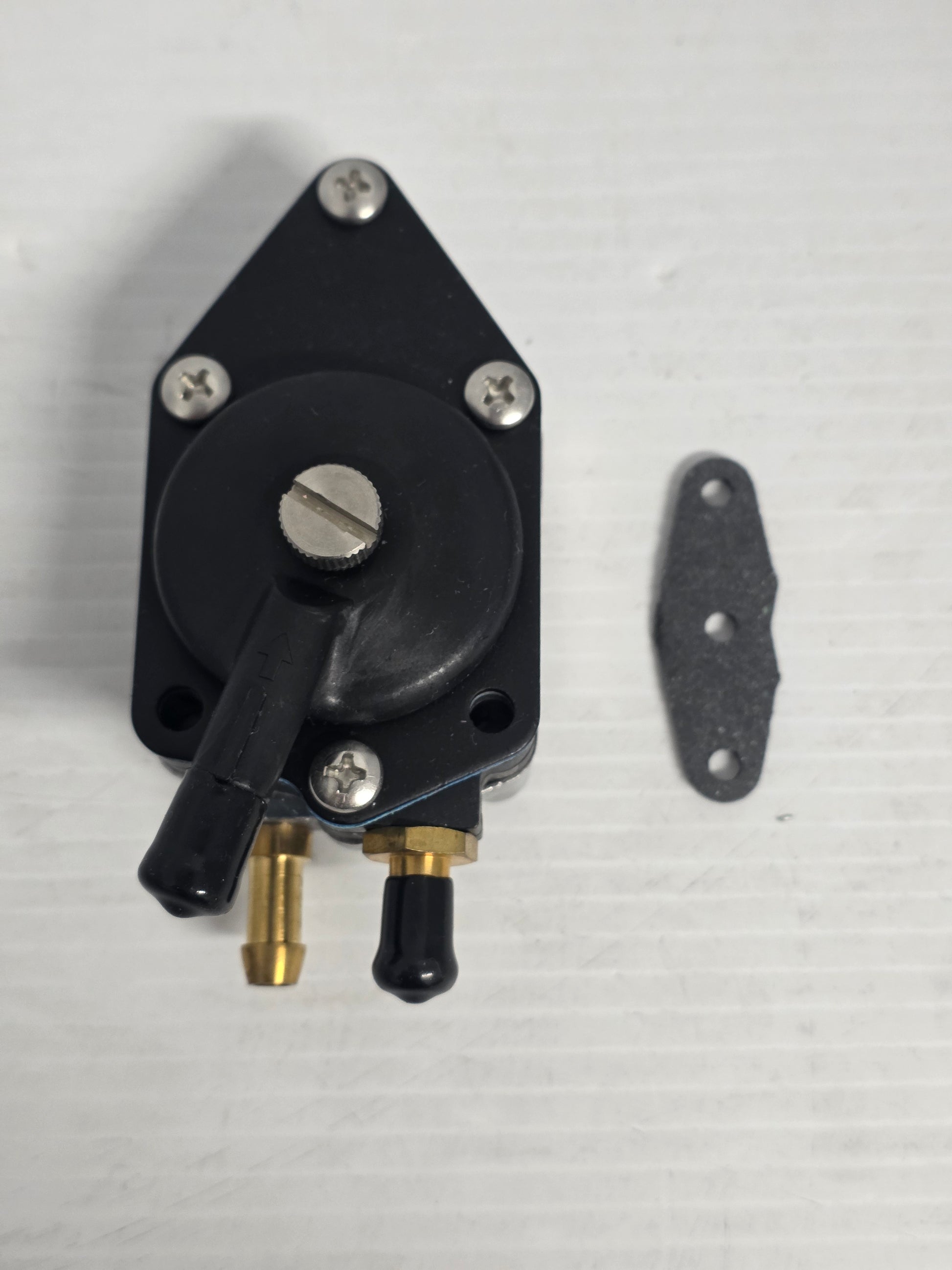

• 1 × Complete mechanical/pulse fuel-pump assembly - Part Number: 438559

• 1 × Integrated diaphragm and check-valve assembly

• 1 × Pump-to-engine mounting gasket - supplied where included by the selected manufacturer

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 438559 (OMC/BRP OEM reference)

OEM / Related Numbers:

• 0438559

Aftermarket / Verified Equivalents:

• Sierra: 18-7352 on specified applications

• SeaSierra/EMP replacement for 438559

• Recmar: REC438559

🚤 Compatibility

Commonly used on:

• Johnson/Evinrude carburetted outboards

Typically suits:

• Engine models:

• 25HP-70HP carburetted two-stroke outboards

• 75HP-140HP carburetted V4/V6 applications using 438559

• Selected Suzuki-built 9.9HP/15HP four-stroke OMC models where specified

• HP / Output Range: 25HP - 140HP on the documented OMC family

• Engine / System Type: Johnson/Evinrude carburetted outboards

• Year Range: Approximately 1968 - 2001; model-specific

• Serial / Pump Identification: Match P/N 438559 to the model-specific parts diagram and verify pressure, electrical connector, inlet/outlet orientation and mounting before ordering.

🔌 Function

The engine-driven diaphragm pump uses crankcase pulses or a cam-operated lever to draw fuel from the tank and deliver a regulated low-pressure supply to the carburettor, vapour separator or downstream high-pressure pump.

Common signs of failure:

• Hard starting after the engine has been standing

• Fuel starvation, hesitation or loss of power under load

• Failure to fill the carburettor bowls or vapour separator

• Fuel leaking from the pump body or ruptured diaphragm

• Engine-oil dilution or fuel entering the pulse passage on a failed pump

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
