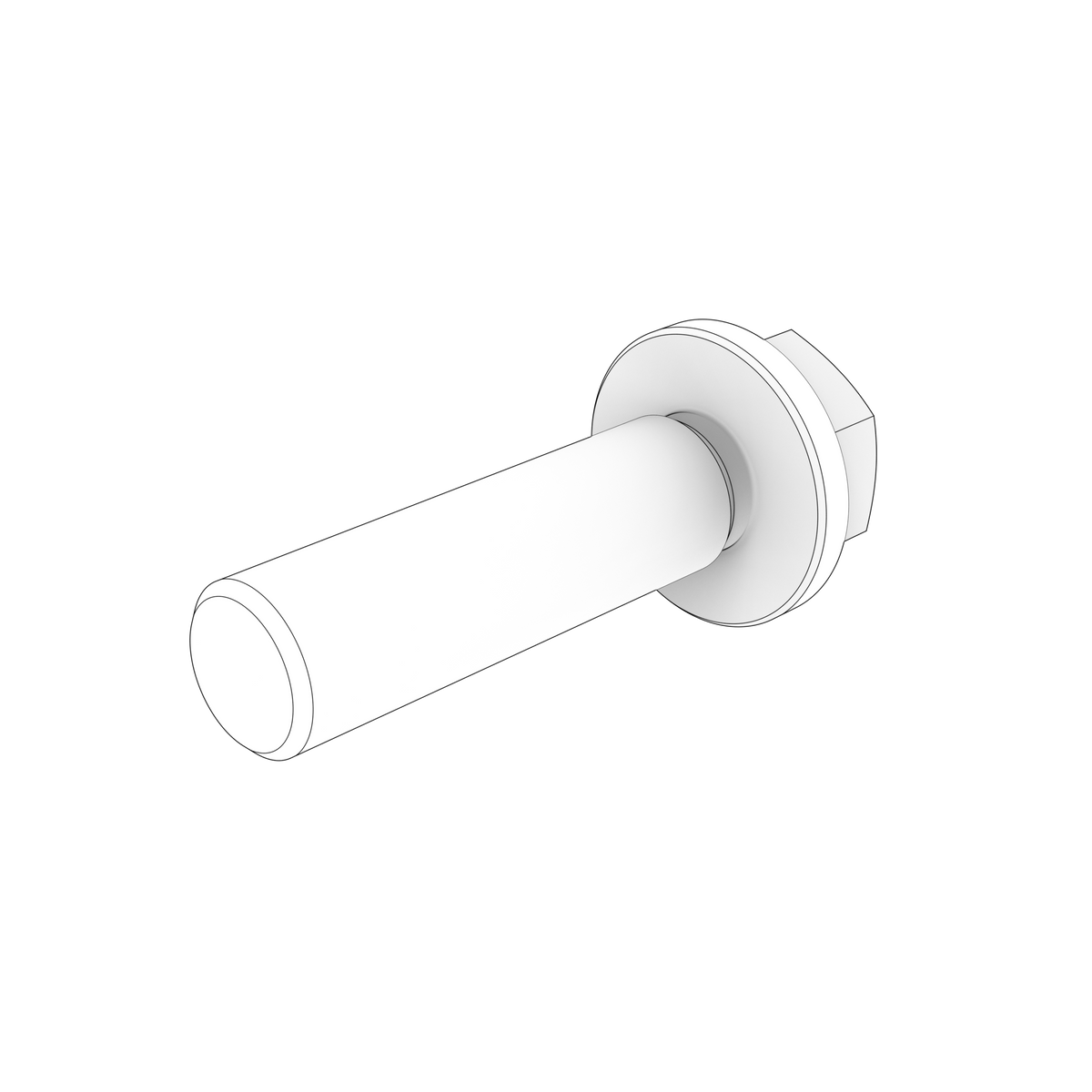

465826 Flange Screw | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta flange screw 50 mm long, used when spacer 862298 or 865084 is installed, weighing 0.086 kg and listed for 78 applications across the DPH, D, IPS, DPI and DPR series. It replaces four earlier numbers, 3825180, 3825178, 3825744 and 848640, three of which were catalogued as flywheels, so an older list calling up a flywheel now supplies only this screw.

🚤 Compatibility

• Engine Family: DPH, D, IPS, DPI, DPR
• HP Range: 150-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 50 mm long
• For use when spacer 862298 or 865084 is installed
• Replaces 3825180, 3825178, 3825744 and 848640, three of which were listed as flywheels
• 78 applications across the DPH, D, IPS, DPI and DPR series
• L=50mm (Volvo assembly listing)
• Quantity varies by assembly, most commonly 9
• Also supersedes Volvo part number 848486

🔌 Function

Clamps a joint through its flanged head at a length that suits the extra thickness of a fitted spacer.

⚠️ Common Signs of Failure

• Screw found slack, or the joint fretting where clamp load has been lost
• Thread stretched or galled from repeated use
• Wrong length fitted, so the screw bottoms out or has too little thread engaged
• Flange head marked, dished or pulled into the component

🛠️ Service Notes

• Only use this 50 mm length where spacer 862298 or 865084 is actually fitted, and use the shorter screw otherwise
• If you are ordering against one of the old numbers expecting a flywheel, stop and check, because this number supplies a screw
• Treat highly stressed screws as single use where the manual says so, and tighten to the specified figure

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 465826 → Supersedes 3825180 → Supersedes 862766

OEM / Related Numbers

• 3825744 earlier number superseded by this part
• 848640 earlier number superseded by this part
• 3825180 earlier number superseded by this part
• 862766 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330A-F, D6-370A-F, D6-330A-C, D6-370A-D, D6-330A-E, D6-370A-E, D6-280I-D, D6-310I-D, D6-300A-F, D6-330I-C, D6-330I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-280I-C, D6-310I-C, D6-280A-A, D6-280A-B, D6-300A-G, D6-340A-G, D6-380A-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-400A-E, D6-400A-F, D6-330A-B, D6-370A-B, D6-480A-G
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-225I-C, D4-225I-D, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-225A-E, D4-225A-F, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta DPH-D1, DPH-E, DPH-A, DPH-C
• Volvo Penta DPR-A, DPR-C, DPR-D, DPR-B
• Volvo Penta IPS10-A, IPS10-B
• Volvo Penta DPI-A
