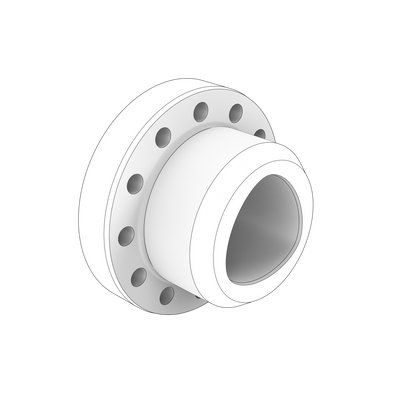

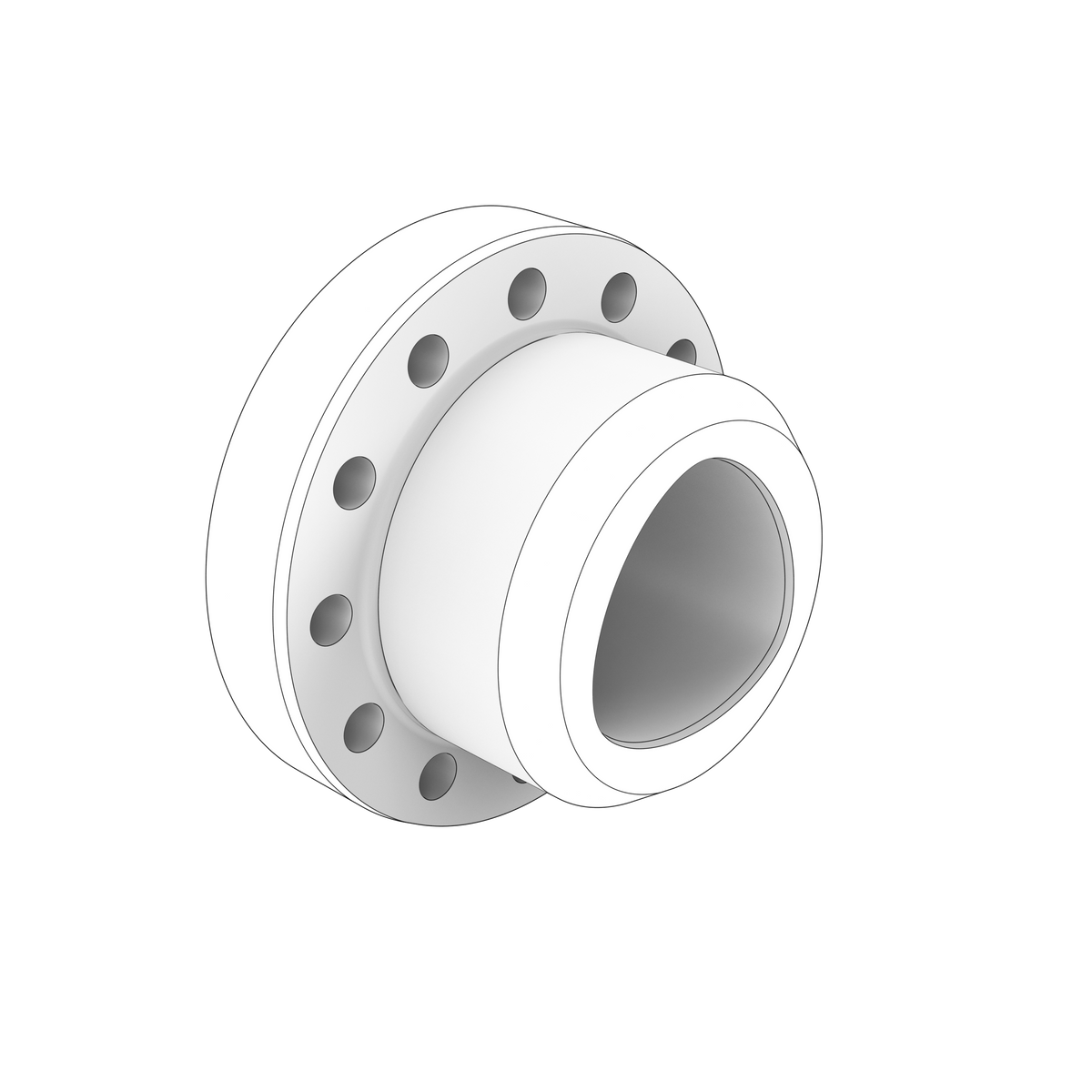

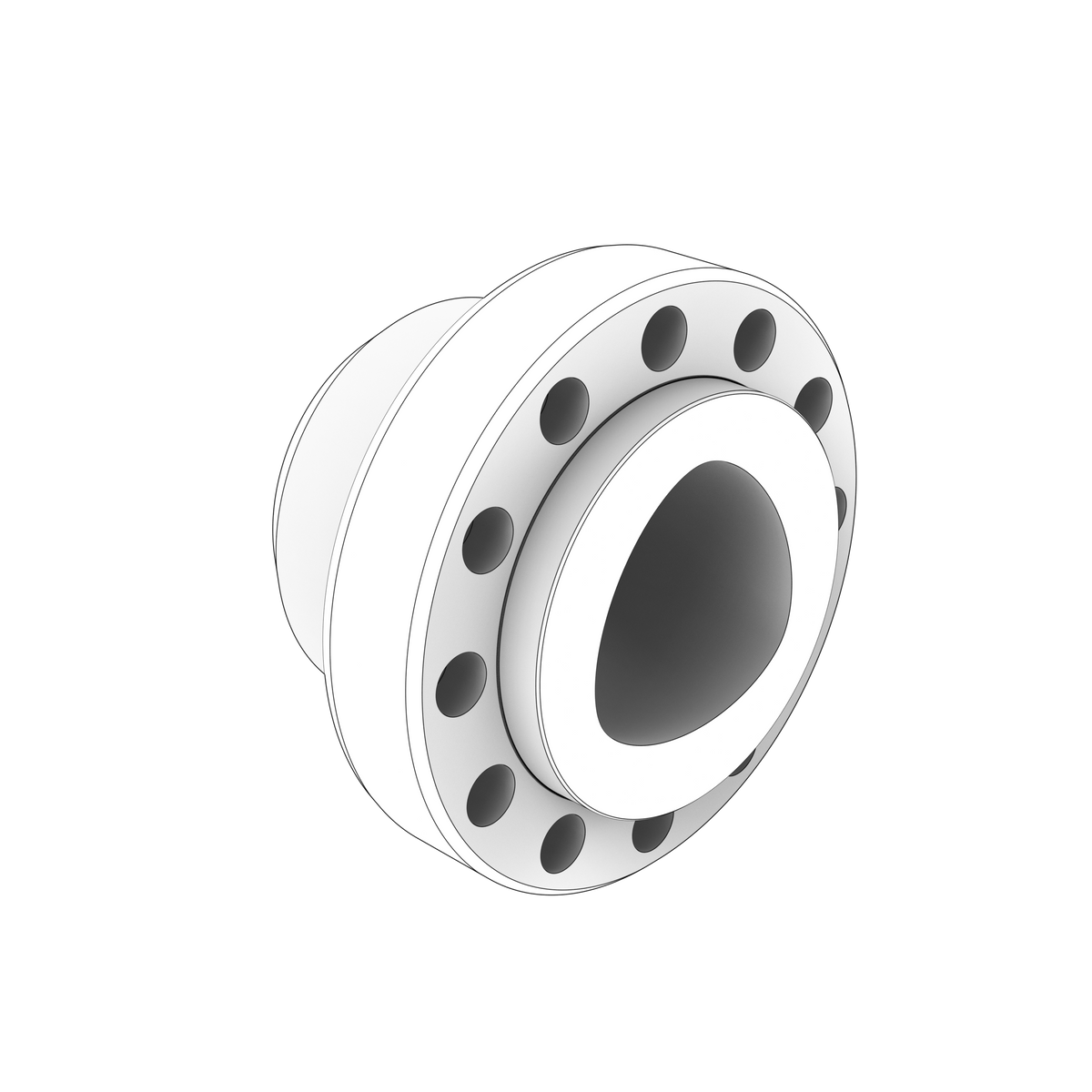

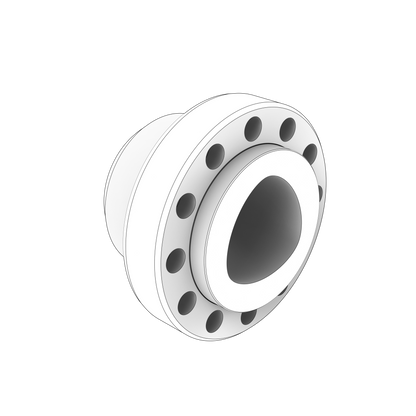

470595 Hub | Genuine Volvo Penta Part

470595 Hub | Genuine Volvo Penta Part

$1,554.66 AUD
$1,554.66 AUD
Sale Sold out
Shipping calculated at checkout.

Available on request — contact us

As an authorised Volvo Penta dealer we can source parts through channels not shown online, and check supersession and used options for you

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Genuine Volvo Penta hub from the Engine group, weighing 3.121 kg and listed for 67 applications across AQ, TD, TWD, TMD, BB and TID series engines. It consolidates part numbers 422123 and 469489.

🚤 Compatibility

  • Engine Family: AQ, TD, TWD, TMD, BB, TID, B, TAMD, TAD, MD, MB, AQD

Full model list at the end of this description.

⚙️ Key Features

  • 3.121 kg
  • Consolidates 422123 and 469489
  • 67 applications across six engine series including AQ and BB
  • Engine group hub

🔌 Function

Carries the rotating component mounted on it and transmits drive between the shaft and that component.

⚠️ Common Signs of Failure

  • Vibration or wobble that changes with engine speed
  • Bore or keyway worn, so the hub moves on its shaft
  • Cracks around the bolt holes or the hub centre
  • Run-out visible when the hub is turned against a gauge
  • Fixings repeatedly working loose

🛠️ Service Notes

  • This one number now covers two older hub numbers, so it is the single current answer for a wide spread including petrol AQ and BB installations as well as the diesel series
  • Check the shaft and key for matching wear before fitting, and tighten the hub fixings in stages

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 470595 → Supersedes 422123

OEM / Related Numbers

  • 469489 earlier number superseded by this part
  • 422123 earlier number superseded by this part
  • 423080 referenced in the part notes

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

  • Volvo Penta TD100G-85, TD100CHC, TD100G, TD100GG, TD100GGP, TD100HP, TD100HPB, TD100GG-85, TD100GP, TD100GP-85, TD100CRC
  • Volvo Penta TID100KG, TID100K, TID100K-87, TID100KGP-87, TID100KP, TID100KP-87, TID100KPB-87
  • Volvo Penta TAMD122A, TAMD122A/C, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
  • Volvo Penta AQ130C, AQ130D, AQ130A, AQ130B
  • Volvo Penta AQ170B, AQ170C, AQ170A
  • Volvo Penta BB115A, BB115B, BB115C
  • Volvo Penta BB170B, BB170C, BB170A
  • Volvo Penta MB20A, MB20B, MB20C
  • Volvo Penta AQ115A, AQ115B
  • Volvo Penta 100S, 110S
  • Volvo Penta TAD1030V, TAD1030VE
  • Volvo Penta TAMD102A, TAMD102D
  • Volvo Penta TD121CHC, TD121CRC
  • Volvo Penta AQ165A
  • Volvo Penta AQD21A
  • Volvo Penta B20
  • Volvo Penta BB165A
  • Volvo Penta MD21A
  • Volvo Penta TAD121CHC
  • Volvo Penta TAMD103A
  • Volvo Penta TAMD121D
  • Volvo Penta TD1010G
  • Volvo Penta TD1030VE
  • Volvo Penta TMD100C
  • Volvo Penta TMD102A
  • Volvo Penta TMD121C
  • Volvo Penta TMD122A
  • Volvo Penta TWD1010G
  • Volvo Penta TWD1030ME
  • Volvo Penta TWD1031VE
