47608A1 Mercruiser Drive Plate | Genuine Used Part

🔧 Product Description

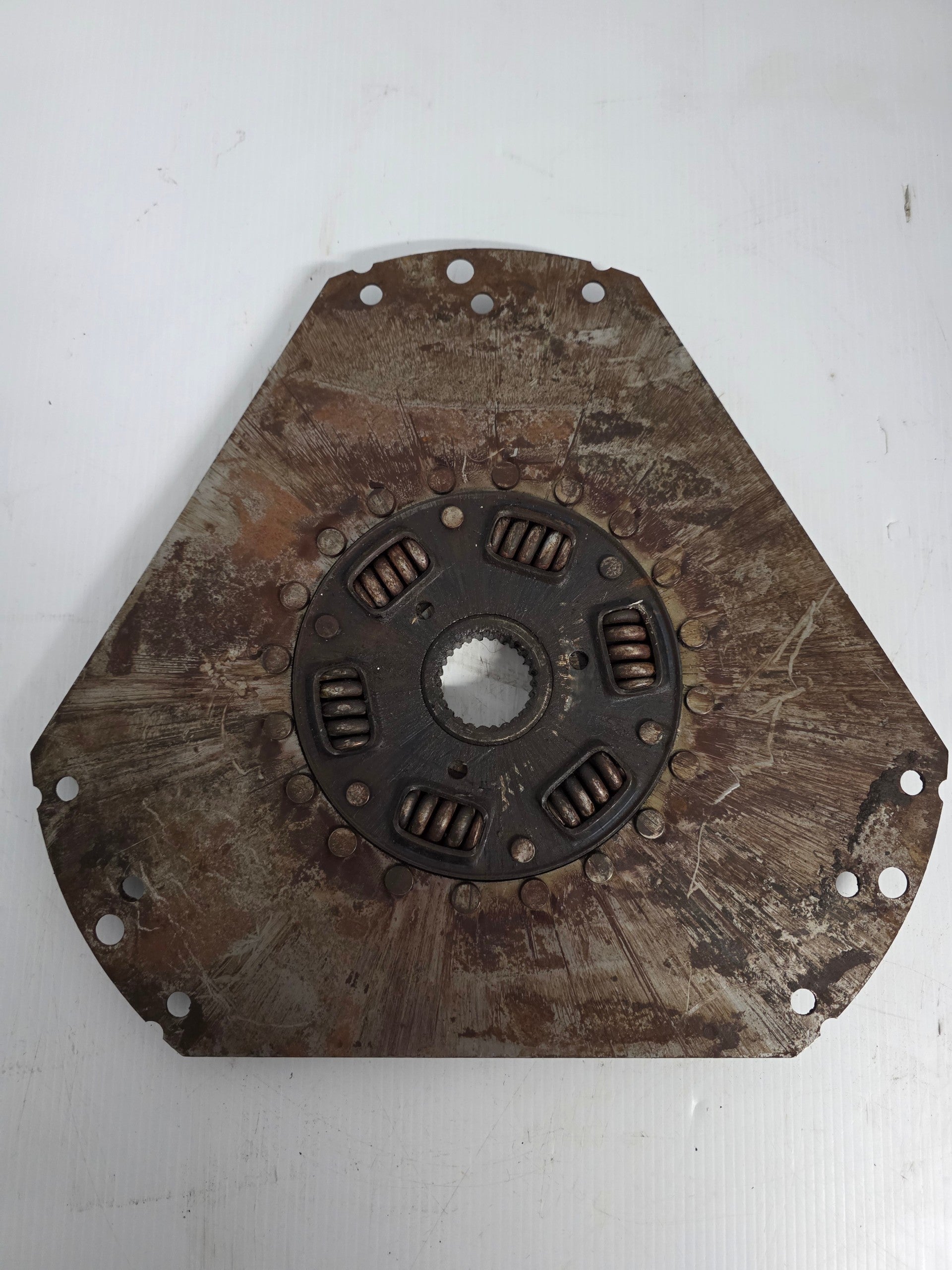

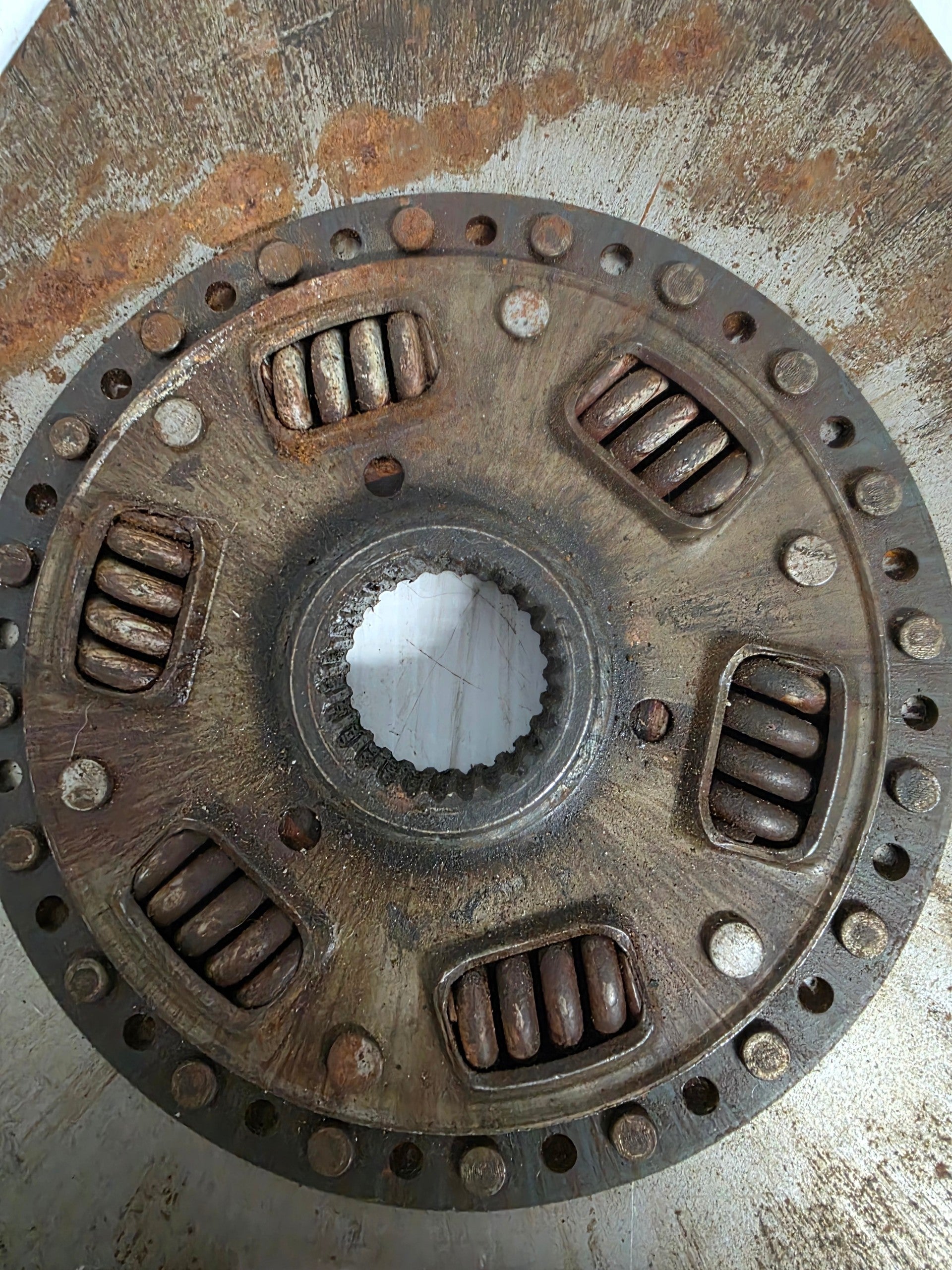

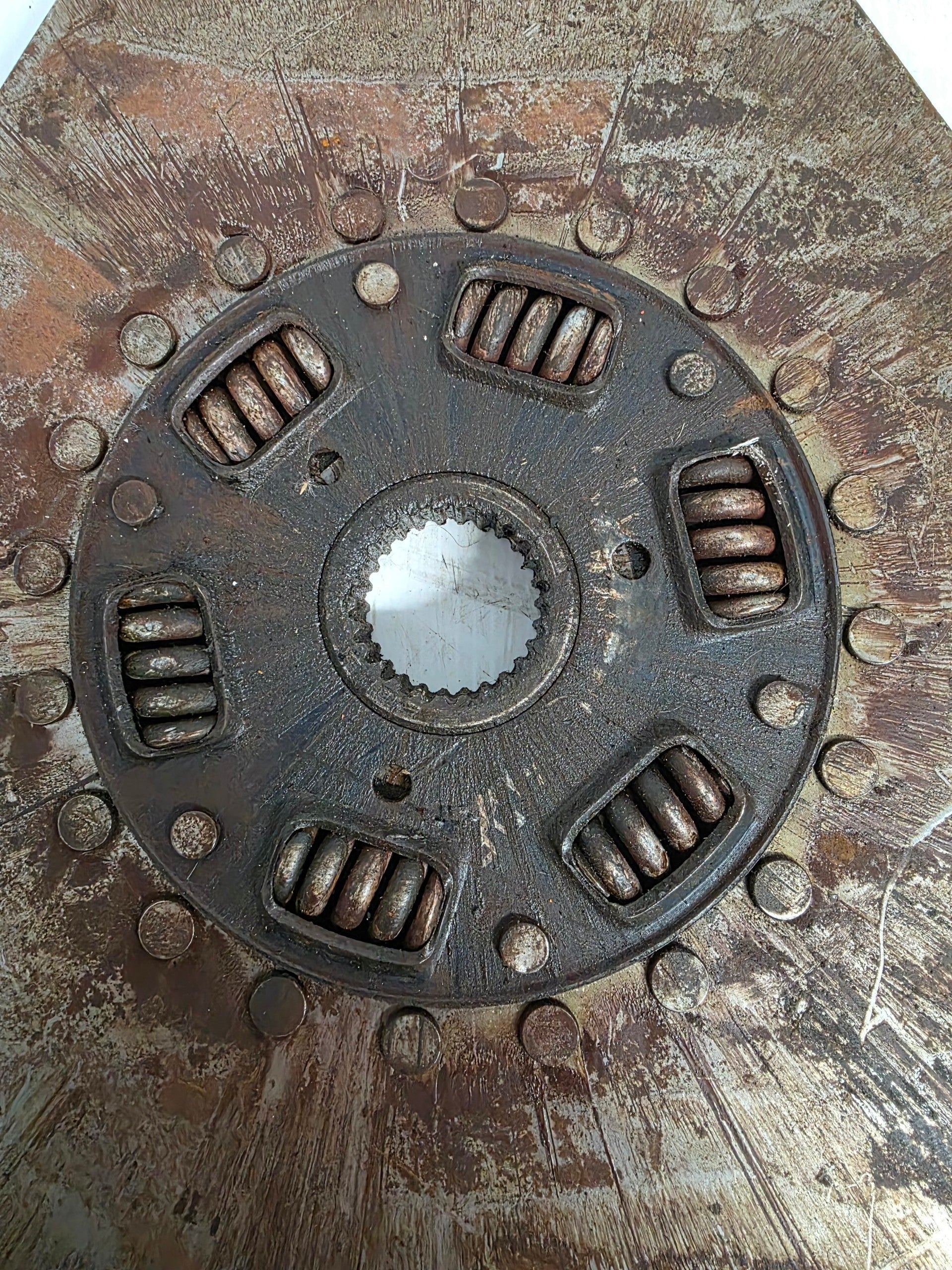

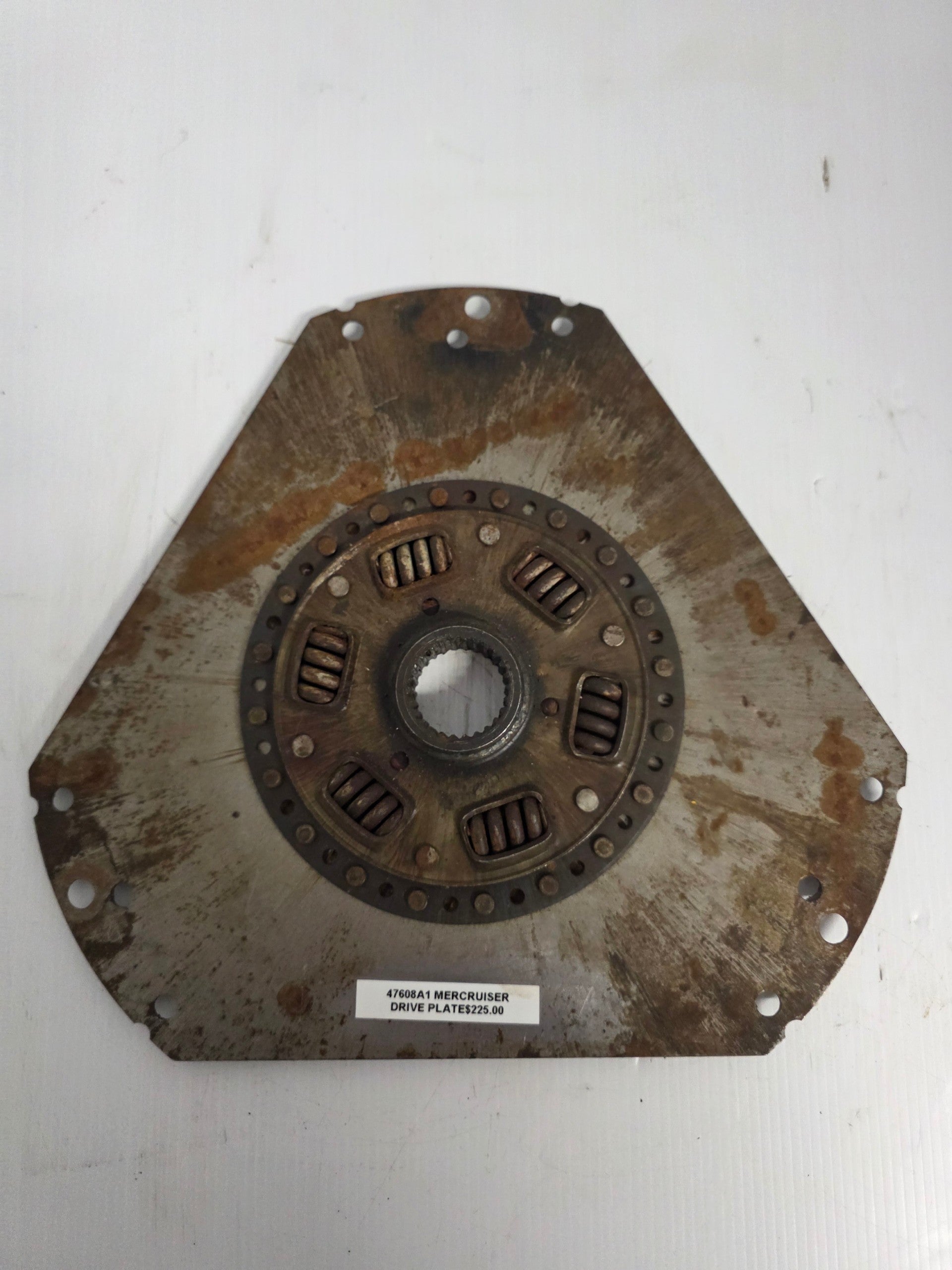

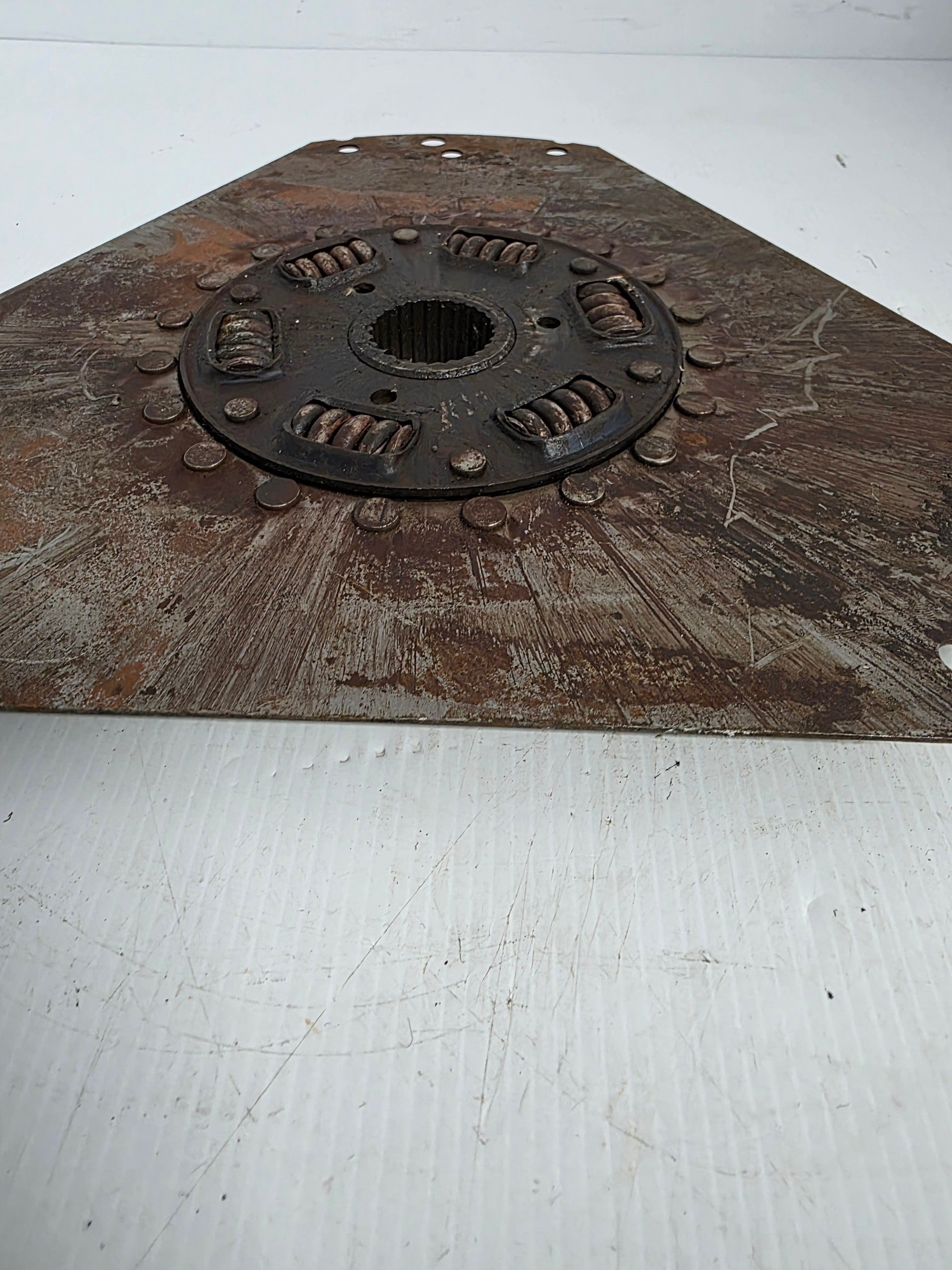

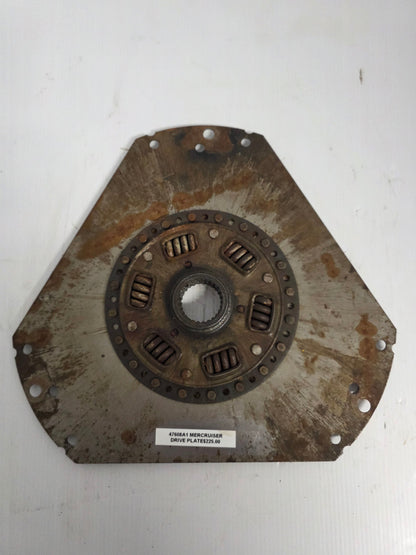

Genuine Used Mercury MerCruiser Flywheel Drive and Damper Plate Assembly - Part Number: 47608A1

A genuine pre-owned Mercury MerCruiser flywheel-mounted drive plate for selected GM-based V8 inboard and sterndrive marine engines.

The assembly bolts to the engine flywheel and transfers crankshaft torque to the transmission or drive input shaft. Its sprung or flexible centre helps absorb torsional vibration and driveline shock.

Mercury identifies 47608A1 as a flywheel drive-plate assembly.

⚙️ Key Features

• Genuine Mercury MerCruiser used drive plate

• Correct OEM part number 47608A1

• Flywheel-mounted marine damper plate

• 26-tooth or 26-spline centre application

• Suitable for selected 228HP, 230HP and 260HP engine packages

• Helps isolate driveline torsional vibration

• Obsolete Mercury Marine component

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• No verified direct Mercury supersession identified

• 47608A1 is listed as no longer manufactured

OEM / Related Numbers:

• 47608A1

• 47608

• OEM Description: Drive Plate Assembly

• Alternate Description: Flywheel Plate Assembly

• Alternate Description: Marine Damper Plate

• Centre Configuration: 26-tooth / 26-spline application

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

Aftermarket fitment note:

• Universal marine damper plates are available, but no direct replacement should be selected without matching the flywheel bolt pattern, outside diameter, spline count, spline diameter and installed offset.

🚤 Compatibility

Commonly used on selected:

• MerCruiser 228 engine packages

• MerCruiser 230 engine packages

• MerCruiser 260 engine packages

• GM-based 5.0-litre and 5.7-litre marine V8 engines

• Inboard transmission installations

• Selected 1983-1986 marine driveline packages

Important fitment note:

• Confirm the 26-tooth centre and flywheel bolt pattern.

• Similar-looking plates may use different spline counts or offsets.

• Check the input shaft for wear before installing another plate.

• The flywheel, transmission coupler and mounting bolts are included only when shown or described.

🔌 Function

The drive plate transfers engine torque while allowing limited movement in its flexible or spring-loaded centre.

Common signs of failure:

• Rattle at idle

• Clunk when selecting gear

• Engine runs but the propeller does not turn

• Centre spline strips

• Springs become loose or break

• Plate cracks around the flywheel bolts

• Excessive torsional vibration

• Transmission input shaft has red dust or spline wear

• Metallic noise between the engine and transmission

Recommended checks before installation:

• Count and measure the centre splines

• Compare bolt-hole spacing and plate offset

• Inspect all springs or flexible elements

• Check for cracks around mounting holes

• Inspect the flywheel face

• Check transmission input-shaft alignment

• Replace damaged mounting bolts

• Torque fasteners evenly to the correct specification

• Confirm engine-to-transmission alignment after installation

📦 Condition

• Genuine Mercury MerCruiser used part

• Pre-owned driveline component

• Surface corrosion, marks and spline wear may be present

• Inspect the centre, springs and mounting holes before installation

• Supplied components are limited to those shown or described

• Supplied in protective or equivalent packaging
