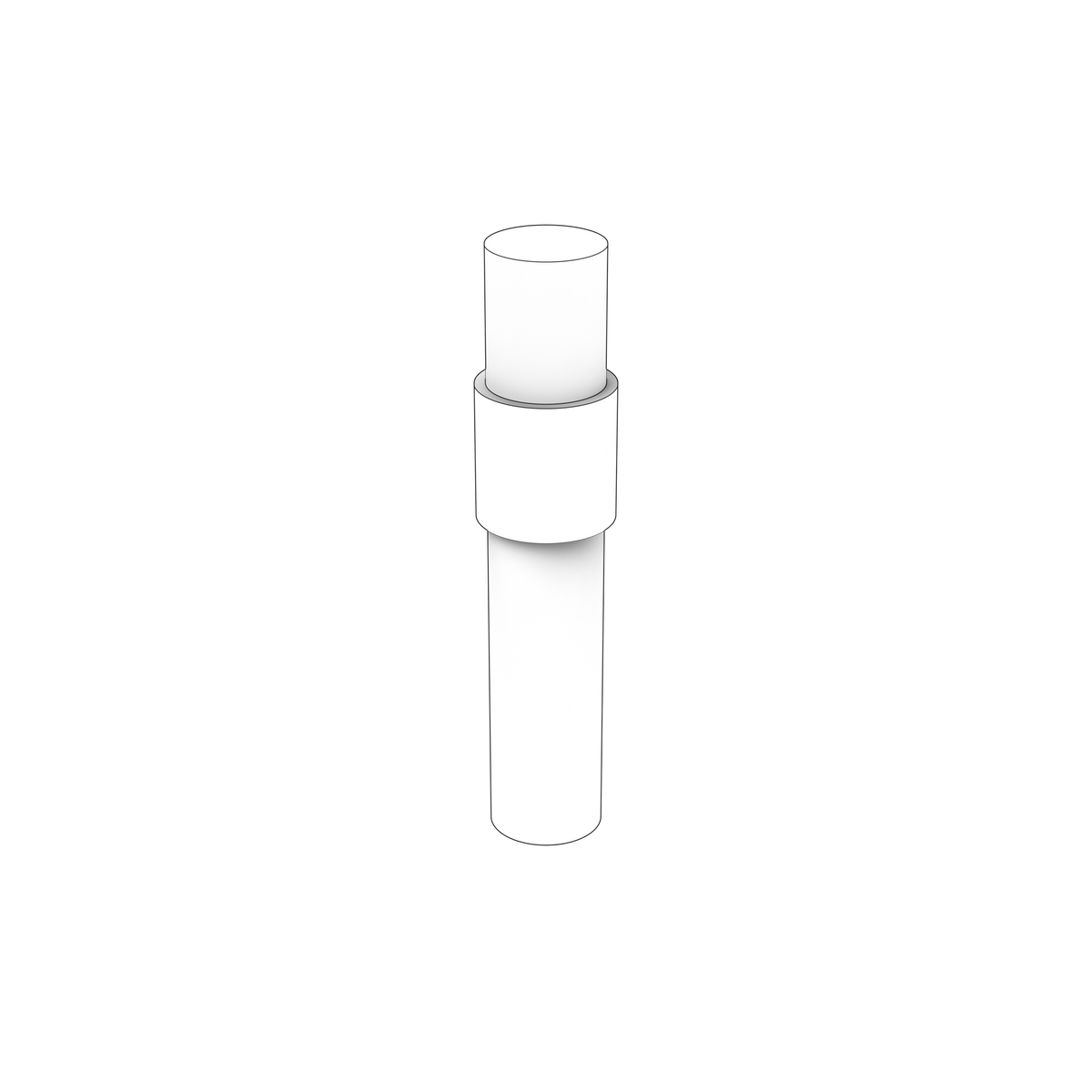

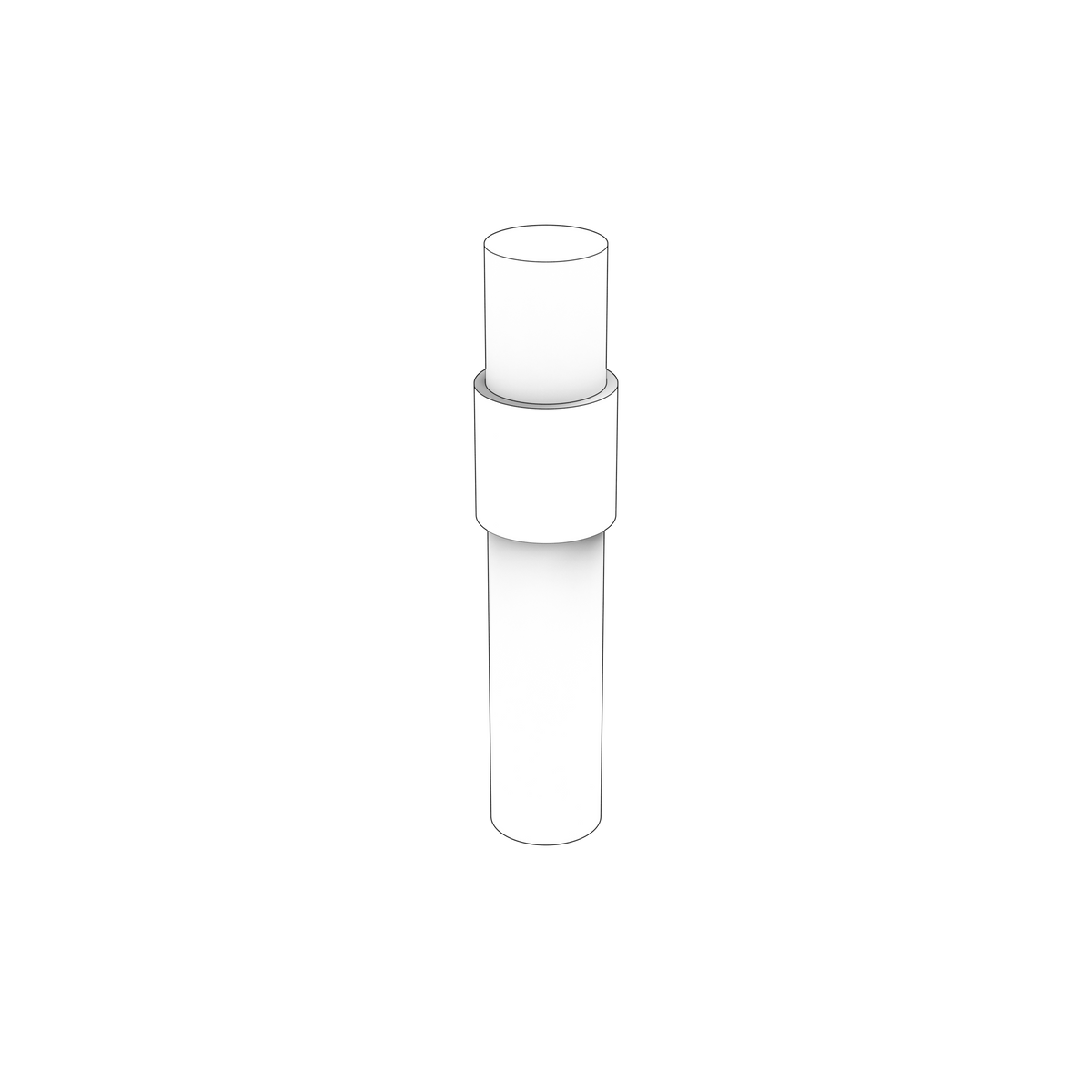

479972 Stud | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta stud with an M10 x 45 mm thread, weighing 0.016 kg and listed for 138 applications across D, TAMD, AD, TWD, TID and TMD series engines. It supersedes part number 924079.

🚤 Compatibility

• Engine Family: D, TAMD, AD, TWD, TID, TMD, TD, TAD, KAD, KAMD

Full model list at the end of this description.

⚙️ Key Features

• M10 x 45 mm
• 0.016 kg
• 138 applications across six engine series
• Supersedes 924079
• L=45mm (Volvo assembly listing)
• Quantity varies by assembly, most commonly four

🔌 Function

Screws permanently into a casting to give a fixed threaded post, so a component can be located and clamped with a nut instead of a bolt.

⚠️ Common Signs of Failure

• Nut will not pull up because the exposed thread is stretched or damaged
• Stud turning in the casting instead of holding
• Rust jacking or seizure where the stud passes through a joint face
• Stud snapped off flush with the casting on removal

🛠️ Service Notes

• Stud 479973 is the 80 mm long version at 0.029 kg, so measure the stud out of the casting before ordering
• Clean the tapped hole and check the thread in the casting before fitting a new stud
• Fit studs to the correct standing height so the nut has full thread engagement

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 479972 → Supersedes 924079 → Supersedes 17032

OEM / Related Numbers

• 924079 earlier number superseded by this part
• 17032 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta D11C1-A MP, D11C3-A MP, D11B3-A MP, D11A-A, D11A-B, D11A-C, D11A-E, D11A-C MP, D11A-D MP, D11A-C (IPS), D11B1-A MP
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A
• Volvo Penta TWD610G, TWD610P, TWD610PB, TWD610V
• Volvo Penta TWD710G, TWD710P, TWD710PB, TWD710V
• Volvo Penta AD41D, AD41L-A, AD41P-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TAMD72A, TAMD72P-A, TAMD72WJ-A
• Volvo Penta TD610G, TD610M, TD610V
• Volvo Penta D41D, D41L-A
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAD43P-B, KAD43P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD31P, TAMD31P-A
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta TD630ME, TD630VE
• Volvo Penta TD730ME, TD730VE
• Volvo Penta TMD41D, TMD41L-A
• Volvo Penta TWD630ME, TWD630VE
• Volvo Penta TWD740GE, TWD740VE
• Volvo Penta AD31P-A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAMD300-A
• Volvo Penta TAD730P
• Volvo Penta TAD740GE
• Volvo Penta TAD741GE
• Volvo Penta TAMD103A
• Volvo Penta TAMD121D
• Volvo Penta TAMD42WJ-A
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD75P-A
• Volvo Penta TD640VE
• Volvo Penta TD71A
• Volvo Penta TD710G
• Volvo Penta TID71A
• Volvo Penta TMD121C
• Volvo Penta TWD730ME
• Volvo Penta TWD731VE
