48-16315A4 48-16315A46 Mercury Vengeance 14 1/2 x 17 LH Stainless Steel Propeller – 15 Spline | Genuine Used Part

🔧 Product Description

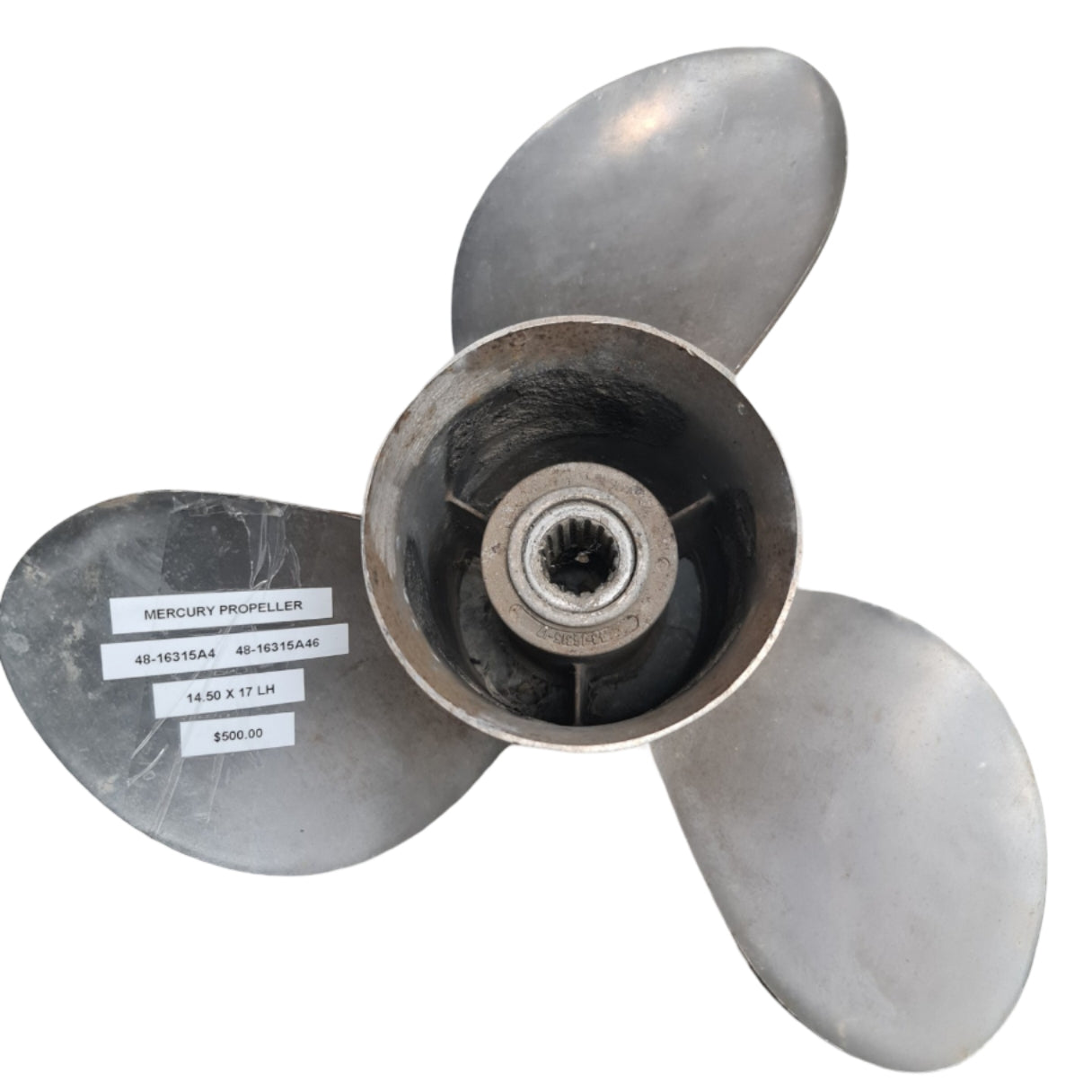

Genuine Mercury Vengeance 14 1/2 x 17 Left-Hand Stainless Steel Propeller - Part Number: 48-16315A4 / 48-16315A46

A genuine used Mercury Vengeance three-blade counter-rotation stainless-steel propeller for Mercury, Mariner and compatible MerCruiser 15-spline large gearcases.

This is the left-hand version of the Vengeance 17-pitch family and is intended for the port drive in a correctly configured twin-engine or counter-rotation installation. It must not be fitted to a standard right-hand gearcase.

⚙️ Key Features

• Genuine Mercury Marine Vengeance propeller
• 14 1/2-inch diameter x 17-inch pitch
• Three-blade stainless-steel construction
• Left-hand / counter-clockwise rotation
• Large 4 3/4-inch gearcase and 15-tooth propeller-shaft application

🚤 Compatibility

Commonly used on

• Mercury and Mariner counter-rotation outboard gearcases
• MerCruiser Alpha One and Bravo One left-hand sterndrives

Typically suits

• Engine models:
• Mercury / Mariner 90HP and 115HP Command Thrust models using the 4 3/4-inch 15-spline gearcase
• Mercury / Mariner 135HP, 150HP, 175HP and 200HP V6 two-stroke, EFI, OptiMax and Pro XS outboards
• Mercury / Mariner 225HP, 250HP and 300HP V6 outboards
• Mercury Verado and Pro XS models using the compatible 15-spline large gearcase and specified hub kit
• MerCruiser Alpha One sterndrives using the compatible 15-spline propeller shaft
• MerCruiser Bravo One sterndrives using the compatible 15-spline propeller shaft
• Counter-rotation propellers must only be fitted to the corresponding left-hand drive
• HP Range: 90HP Command Thrust through 300HP, plus compatible MerCruiser sterndrives
• Engine Type: Mercury / Mariner large-gearcase outboard or MerCruiser sterndrive configured for left-hand rotation
• Year Range: Approximately 1978 onward, drive rotation and hub-kit controlled

🔌 Function

The propeller converts engine torque into counter-clockwise thrust. In a twin installation, the opposite propeller rotations reduce steering torque and improve tracking, handling and manoeuvrability.

⚠️ Common Signs of Failure

• Blades are bent, chipped, cracked or out of track
• The rubber hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage
• Hub splines, thrust faces or retaining surfaces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 48-8M0151404 → Supersedes 48-16315A46
• 48-16315A46 → Replaces 48-16315A45, 48-16315A5 and 48-16315A4

OEM / Related Numbers

• 48-16315A4
• 48-16315A5
• 48-16315A45
• 48-16315A46
• 48-8M0151404
• 48-16314A46 related right-hand 14 1/2 x 17 propeller
• 48-8M0151405 current related right-hand service propeller

Aftermarket / Verified Equivalents

• Quicksilver Silverado: QS5058X - 14 1/2 x 17 left-hand stainless-steel equivalent
• Michigan Wheel Apollo: 993053 - 14 1/4 x 17 left-hand stainless-steel modular-hub alternative
• Signature / Hill Marine and Turning Point 17-pitch left-hand stainless-steel alternatives with the correct Mercury hub

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
