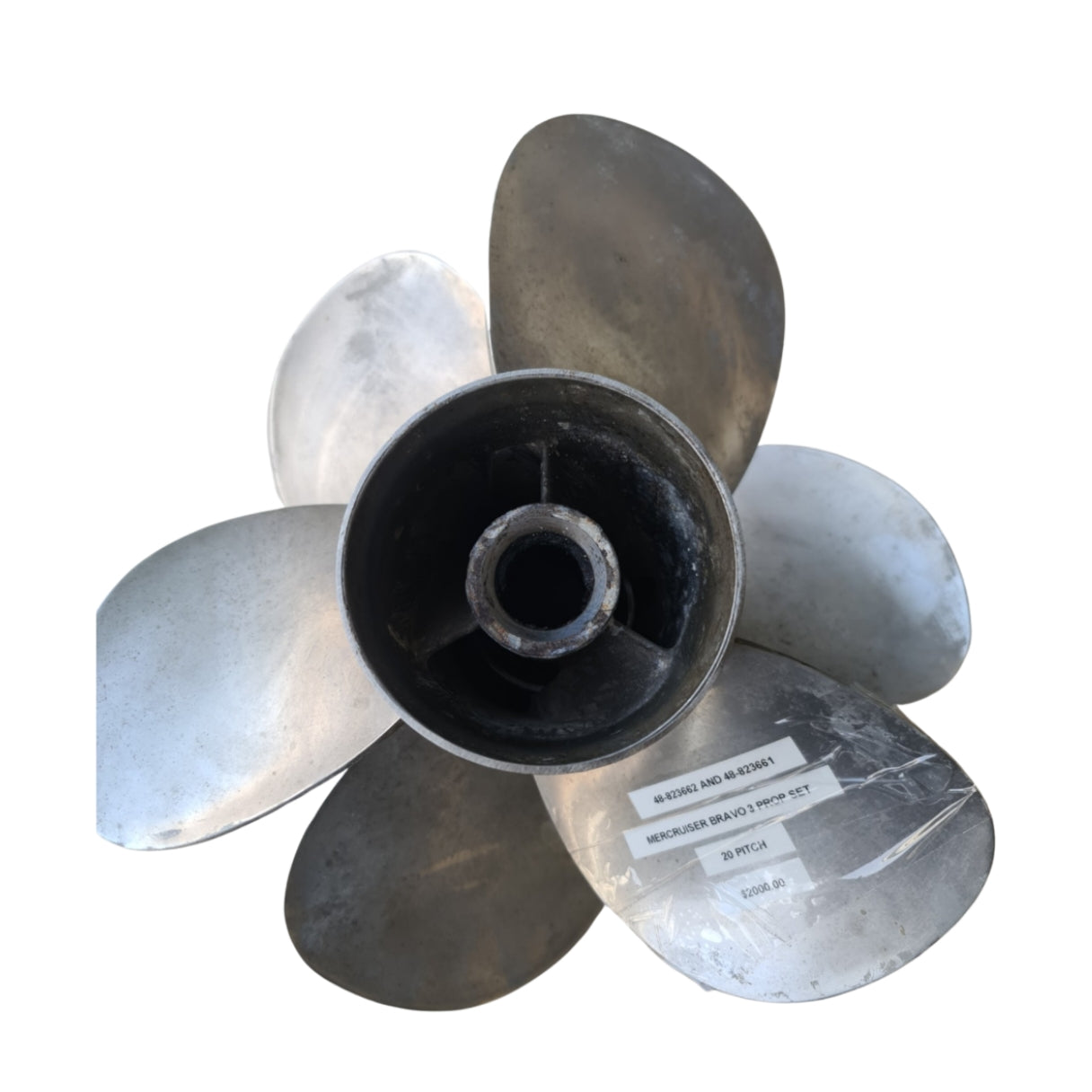

48-823661 48-823662 MerCruiser Bravo Three Classic 20P Stainless Steel Propeller Set – 3+3 Blade | Genuine Used Part

🔧 Product Description

Genuine MerCruiser Bravo Three Classic 20-Pitch Stainless Steel Propeller Set - Part Number: 48-823661 / 48-823662

A genuine used matched MerCruiser Bravo Three pre-2008 stainless-steel propeller set with a three-blade left-hand front propeller and three-blade right-hand rear propeller.

The original 20-pitch set uses front propeller 48-823661 and rear propeller 48-823662. The suffix and cup condition must be checked because the matte A60 pair and cupped L pair convert to different current-generation pitches. Old 3+3 propellers should not be mixed with the later 4+3 generation.

⚙️ Key Features

• Genuine Mercury MerCruiser Bravo Three propeller pair
• 20-inch nominal pitch
• Front: approximately 16 x 20, three blades, left-hand rotation
• Rear: approximately 14 3/8 x 20, three blades, right-hand rotation
• Matched stainless-steel counter-rotating set for Bravo Three drives

🚤 Compatibility

Commonly used on

• MerCruiser Bravo Three counter-rotating sterndrive systems
• Legacy three-blade-front / three-blade-rear Bravo Three installations

Typically suits

• Engine models:
• MerCruiser Bravo Three sterndrive - serial 0F730000 to 0M100000
• MerCruiser Bravo Three sterndrive - serial 0M100001 to 0W249999
• MerCruiser Bravo Three sterndrive - serial 0W250000 and above where the legacy 3+3 propeller geometry is retained
• MerCruiser 4.3L and 4.3L EFI petrol engine packages
• MerCruiser 5.0L, 5.7L, 5.7LX EFI Gen+ and 350 MAG MPI packages
• MerCruiser 7.4L MPI, 454 MAG MPI and 502 MAG MPI packages
• MerCruiser 2.8L D-Tronic, D3.6L, D4.2L D-Tronic and D7.3L D-Tronic diesel packages
• Bravo Three X and related performance drives where the original 3-blade front / 3-blade rear hardware and selected pitch are specified
• Pitch selection is controlled by hull weight, drive ratio, engine RPM and achieved wide-open-throttle performance
• HP Range: Not fixed by horsepower; Bravo Three drive, ratio, hull and WOT RPM controlled
• Engine Type: MerCruiser Bravo Three counter-rotating sterndrive
• Year Range: Approximately 1990s - 2008 for the original Classic 3+3 design

🔌 Function

The two propellers rotate in opposite directions to recover swirl energy and generate straight thrust. The matched 20-pitch set provides strong acceleration, low-speed control and manoeuvrability for heavier or lower-speed Bravo Three applications.

⚠️ Common Signs of Failure

• Front or rear blades are bent, cracked or cavitation-damaged
• Front and rear propellers are mismatched by pitch, cup or generation
• Propeller splines or thrust faces are worn
• Vibration develops after impact damage
• Old 3+3 and new 4+3 propeller generations have been mixed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 48-823661A60 / 48-823662A60 → 48-8M8022360 / 48-8M8022370 current 20P Gen II 4+3 conversion
• 48-823661L / 48-823662L cupped set → 48-8M8022380 / 48-8M8022390 current 21P Gen II conversion

OEM / Related Numbers

• 48-823661
• 48-823661A60
• 48-823661L
• 48-823662
• 48-823662A60
• 48-823662L
• 805101T forward thrust washer
• 805100T aft thrust washer
• 11-805092T forward propeller nut
• 11-805093 aft propeller nut
• 805457T1 inner propeller-nut wrench

Aftermarket / Verified Equivalents

• Hill Marine Signature B3 Four by Three 20P stainless-steel set
• Hill Marine Signature Four by 4 20P twin four-blade stainless-steel set
• PowerTech BRT 20P Bravo Three 4+3 stainless-steel set
• Mercury 8M8022360 / 8M8022370 current 20P 4+3 replacement pair

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
