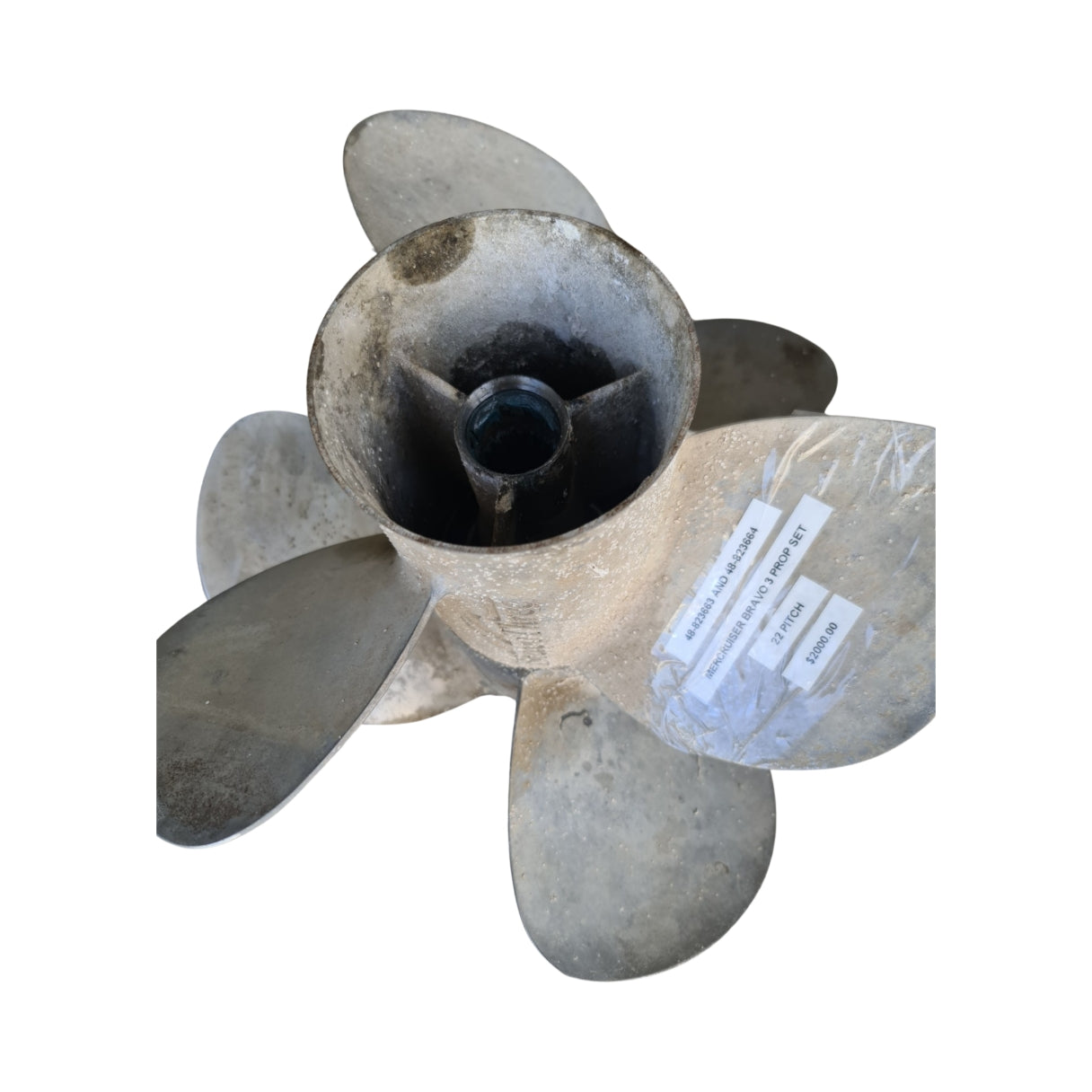

48-823663 48-823664 MerCruiser Bravo Three Classic 22P Stainless Steel Propeller Set – 3+3 Blade | Genuine Used Part

🔧 Product Description

Genuine MerCruiser Bravo Three Classic 22-Pitch Stainless Steel Propeller Set - Part Number: 48-823663 / 48-823664

A genuine used matched MerCruiser Bravo Three pre-2008 stainless-steel propeller set with a three-blade left-hand front propeller and three-blade right-hand rear propeller.

The original set uses a 15 3/4 x 22 front propeller and 14 1/4 x 22 rear propeller. The A60 matte and L cupped suffixes have different Mercury conversion recommendations, so the exact markings on both used propellers must be checked before replacement.

⚙️ Key Features

• Genuine Mercury MerCruiser Bravo Three propeller pair
• 22-inch nominal pitch
• Front: approximately 15 3/4 x 22, three blades, left-hand rotation
• Rear: approximately 14 1/4 x 22, three blades, right-hand rotation
• Matched stainless-steel counter-rotating set

🚤 Compatibility

Commonly used on

• MerCruiser Bravo Three counter-rotating sterndrive systems
• Legacy three-blade-front / three-blade-rear Bravo Three installations

Typically suits

• Engine models:
• MerCruiser Bravo Three sterndrive - serial 0F730000 to 0M100000
• MerCruiser Bravo Three sterndrive - serial 0M100001 to 0W249999
• MerCruiser Bravo Three sterndrive - serial 0W250000 and above where the legacy 3+3 propeller geometry is retained
• MerCruiser 4.3L and 4.3L EFI petrol engine packages
• MerCruiser 5.0L, 5.7L, 5.7LX EFI Gen+ and 350 MAG MPI packages
• MerCruiser 7.4L MPI, 454 MAG MPI and 502 MAG MPI packages
• MerCruiser 2.8L D-Tronic, D3.6L, D4.2L D-Tronic and D7.3L D-Tronic diesel packages
• Bravo Three X and related performance drives where the original 3-blade front / 3-blade rear hardware and selected pitch are specified
• Pitch selection is controlled by hull weight, drive ratio, engine RPM and achieved wide-open-throttle performance
• HP Range: Not fixed by horsepower; Bravo Three drive, ratio, hull and WOT RPM controlled
• Engine Type: MerCruiser Bravo Three counter-rotating sterndrive
• Year Range: Approximately 1990s - 2008 for the original Classic 3+3 design

🔌 Function

The matched propellers convert drive torque into straight, efficient thrust. The 22-pitch set is generally used on boats capable of carrying more pitch than the 20P set while remaining within the engine's full-throttle RPM range.

⚠️ Common Signs of Failure

• Front or rear blades are bent, cracked or cavitation-damaged
• Front and rear propellers are mismatched by pitch, cup or generation
• Propeller splines or thrust faces are worn
• Vibration develops after impact damage
• Old 3+3 and new 4+3 propeller generations have been mixed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 48-823663A60 / 48-823664A60 → 48-8M8022380 / 48-8M8022390 current 21P Gen II 4+3 conversion
• 48-823663L / 48-823664L cupped set → 48-8M8022400 / 48-8M8022410 current 22.5P Gen II conversion

OEM / Related Numbers

• 48-823663
• 48-823663A60
• 48-823663L
• 48-823664
• 48-823664A60
• 48-823664L
• 805101T forward thrust washer
• 805100T aft thrust washer
• 11-805092T forward propeller nut
• 11-805093 aft propeller nut
• 805457T1 inner propeller-nut wrench

Aftermarket / Verified Equivalents

• Hill Marine Signature B3 Four by Three 22P stainless-steel set
• Hill Marine Signature Four by 4 22P twin four-blade stainless-steel set
• PowerTech BRT 22P Bravo Three 4+3 stainless-steel set
• Mercury 8M8022380 / 8M8022390 21P or 8M8022400 / 8M8022410 22.5P conversion pair, selected by original cup suffix

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
