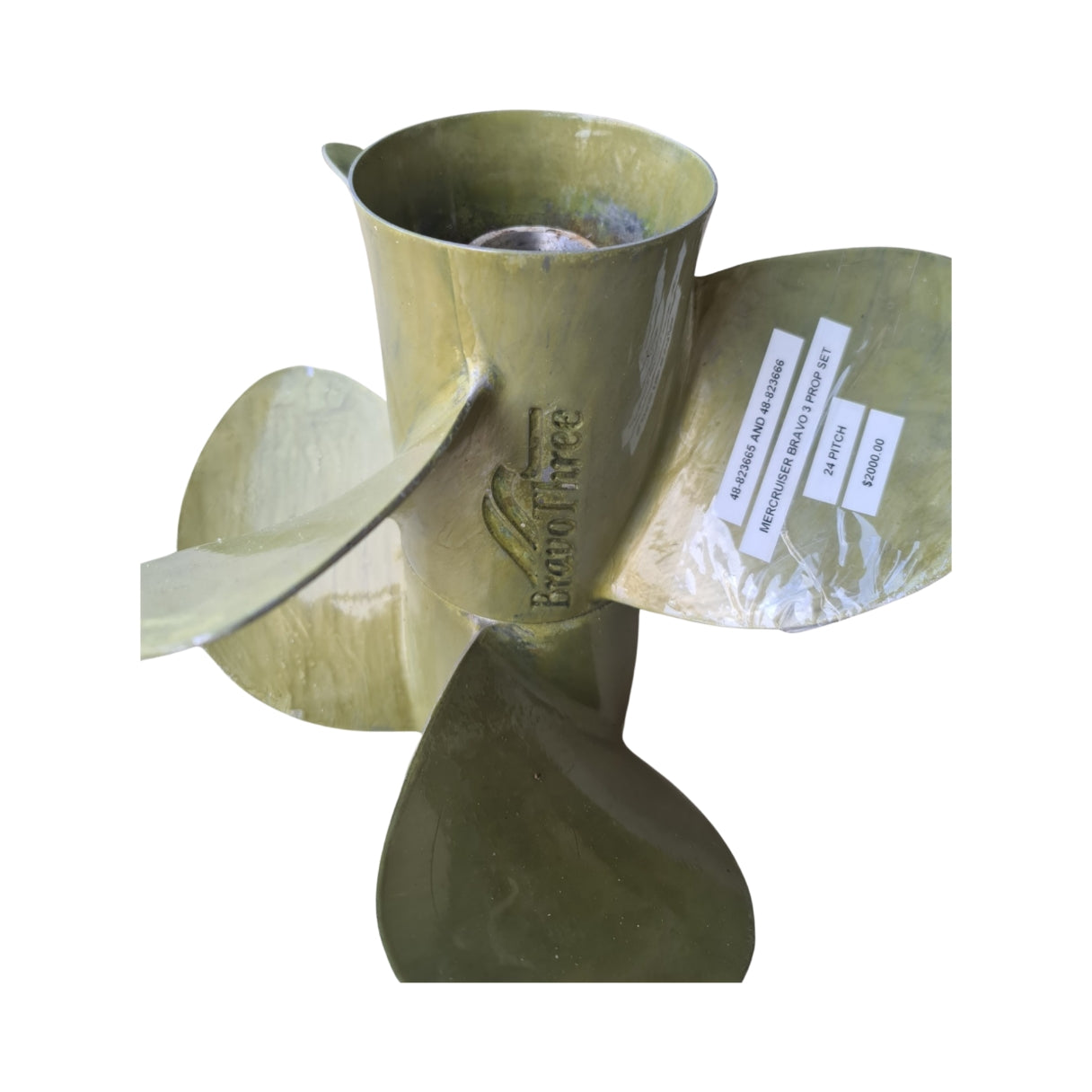

48-823665 48-823666 MerCruiser Bravo Three Classic 24P Stainless Steel Propeller Set – 3+3 Blade | Genuine Used Part

🔧 Product Description

Genuine MerCruiser Bravo Three Classic 24-Pitch Stainless Steel Propeller Set - Part Number: 48-823665 / 48-823666

A genuine used matched MerCruiser Bravo Three pre-2008 stainless-steel propeller set with a three-blade left-hand front propeller and three-blade right-hand rear propeller.

The original matte 24-pitch set uses a 15 1/2 x 24 front propeller and 14 1/4 x 24 rear propeller. Cupped L-suffix versions convert to a different current pitch, so both propeller markings must be verified before replacing only one member of the pair.

⚙️ Key Features

• Genuine Mercury MerCruiser Bravo Three propeller pair
• 24-inch nominal pitch
• Front: approximately 15 1/2 x 24, three blades, left-hand rotation
• Rear: approximately 14 1/4 x 24, three blades, right-hand rotation
• Matched stainless-steel counter-rotating set

🚤 Compatibility

Commonly used on

• MerCruiser Bravo Three counter-rotating sterndrive systems
• Legacy three-blade-front / three-blade-rear Bravo Three installations

Typically suits

• Engine models:
• MerCruiser Bravo Three sterndrive - serial 0F730000 to 0M100000
• MerCruiser Bravo Three sterndrive - serial 0M100001 to 0W249999
• MerCruiser Bravo Three sterndrive - serial 0W250000 and above where the legacy 3+3 propeller geometry is retained
• MerCruiser 4.3L and 4.3L EFI petrol engine packages
• MerCruiser 5.0L, 5.7L, 5.7LX EFI Gen+ and 350 MAG MPI packages
• MerCruiser 7.4L MPI, 454 MAG MPI and 502 MAG MPI packages
• MerCruiser 2.8L D-Tronic, D3.6L, D4.2L D-Tronic and D7.3L D-Tronic diesel packages
• Bravo Three X and related performance drives where the original 3-blade front / 3-blade rear hardware and selected pitch are specified
• Pitch selection is controlled by hull weight, drive ratio, engine RPM and achieved wide-open-throttle performance
• HP Range: Not fixed by horsepower; Bravo Three drive, ratio, hull and WOT RPM controlled
• Engine Type: MerCruiser Bravo Three counter-rotating sterndrive
• Year Range: Approximately 1990s - 2008 for the original Classic 3+3 design

🔌 Function

The matched propellers produce straight thrust with reduced rotational loss. The 24-pitch set suits faster or lighter Bravo Three-powered boats capable of carrying the additional pitch without reducing engine RPM below specification.

⚠️ Common Signs of Failure

• Front or rear blades are bent, cracked or cavitation-damaged
• Front and rear propellers are mismatched by pitch, cup or generation
• Propeller splines or thrust faces are worn
• Vibration develops after impact damage
• Old 3+3 and new 4+3 propeller generations have been mixed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 48-823665A60 / 48-823666A60 → 48-8M8022420 / 48-8M8022430 current 24P Gen II 4+3 conversion
• 48-823665L / 48-823666L cupped set → 48-8M8022440 / 48-8M8022450 current 26P Gen II conversion

OEM / Related Numbers

• 48-823665
• 48-823665A60
• 48-823665L
• 48-823666
• 48-823666A60
• 48-823666L
• 805101T forward thrust washer
• 805100T aft thrust washer
• 11-805092T forward propeller nut
• 11-805093 aft propeller nut
• 805457T1 inner propeller-nut wrench

Aftermarket / Verified Equivalents

• Hill Marine Signature B3 Four by Three 24P stainless-steel set
• Hill Marine Signature Four by 4 24P twin four-blade stainless-steel set
• PowerTech BRT 24P Bravo Three 4+3 stainless-steel set
• Mercury 8M8022420 / 8M8022430 current 24P 4+3 replacement pair

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
