48000-88L30 48000-88L10 Suzuki DF60A Power Trim Assy System | Genuine Used Part

🔧 Product Description

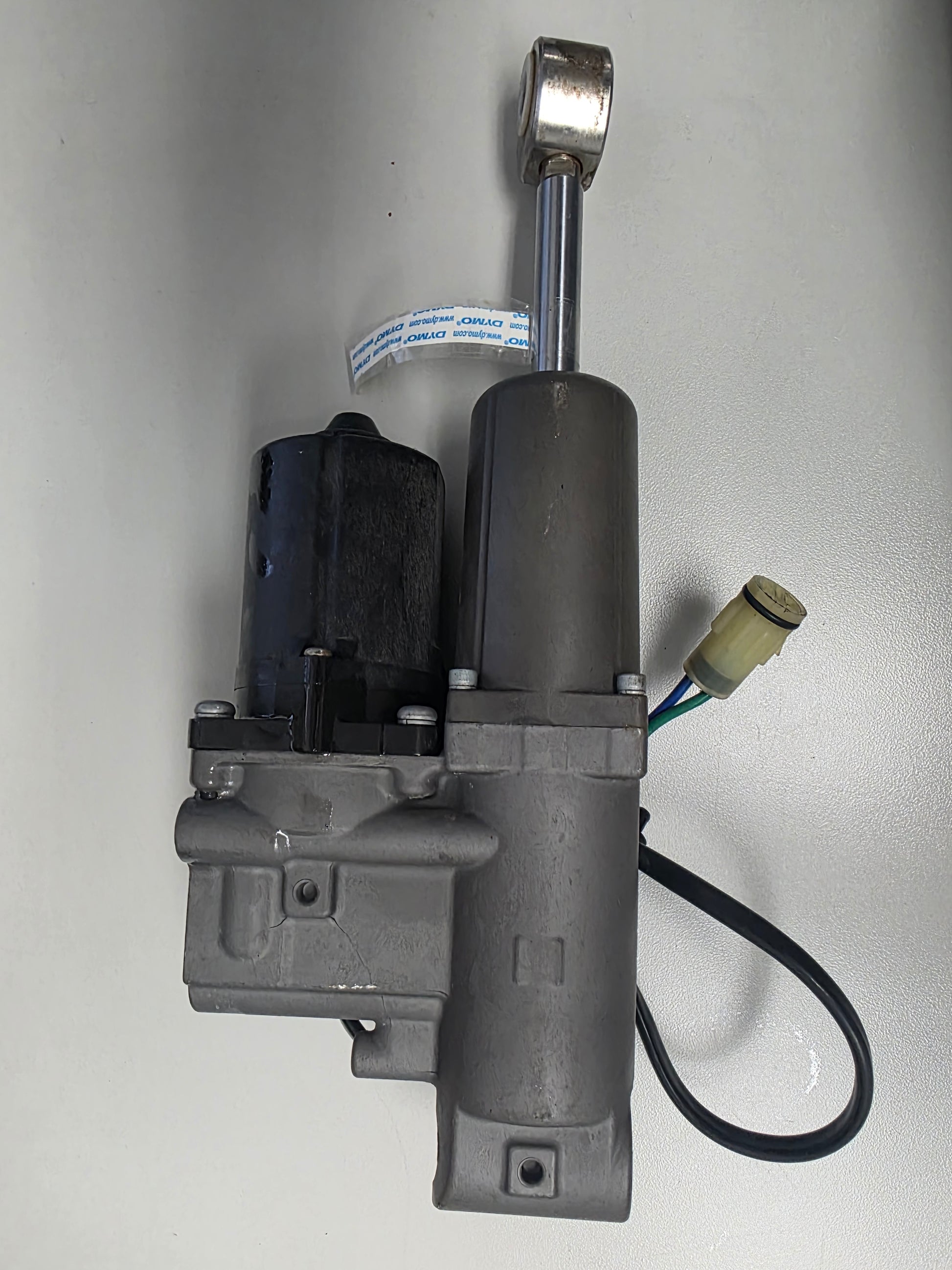

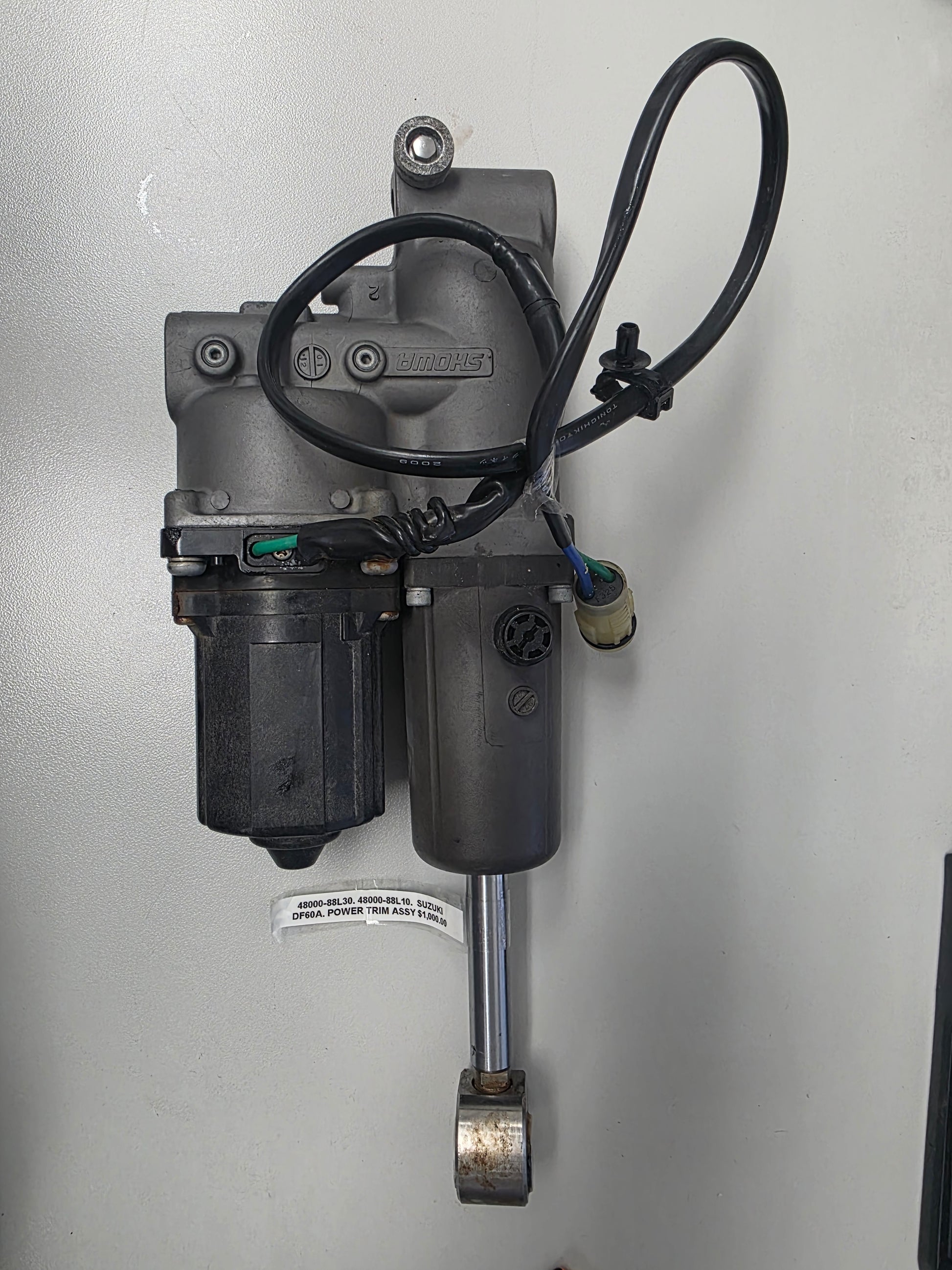

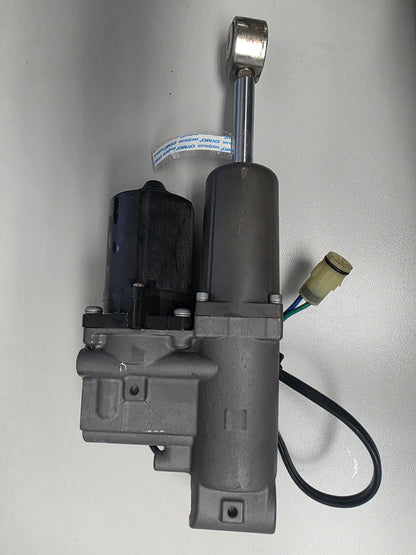

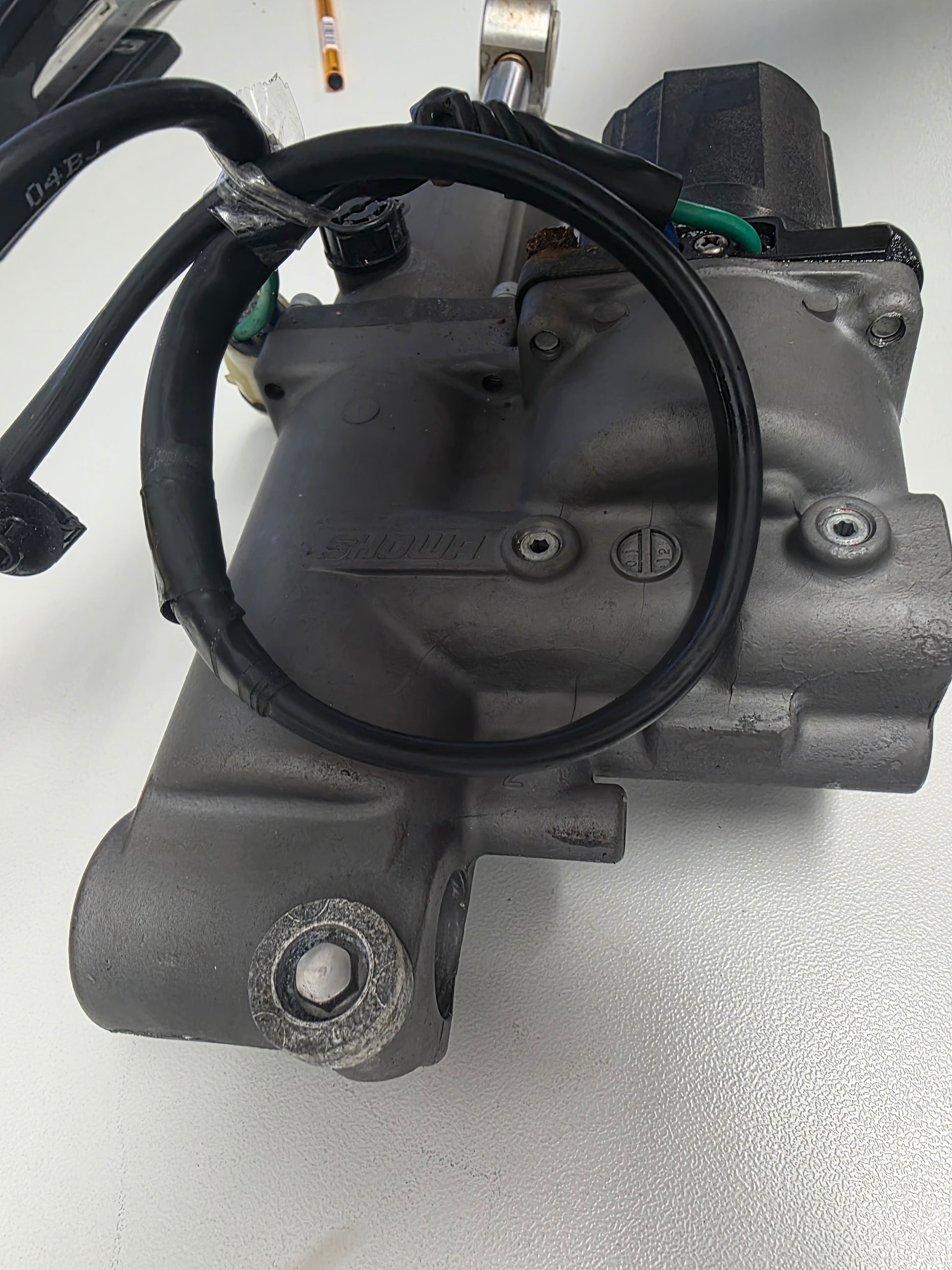

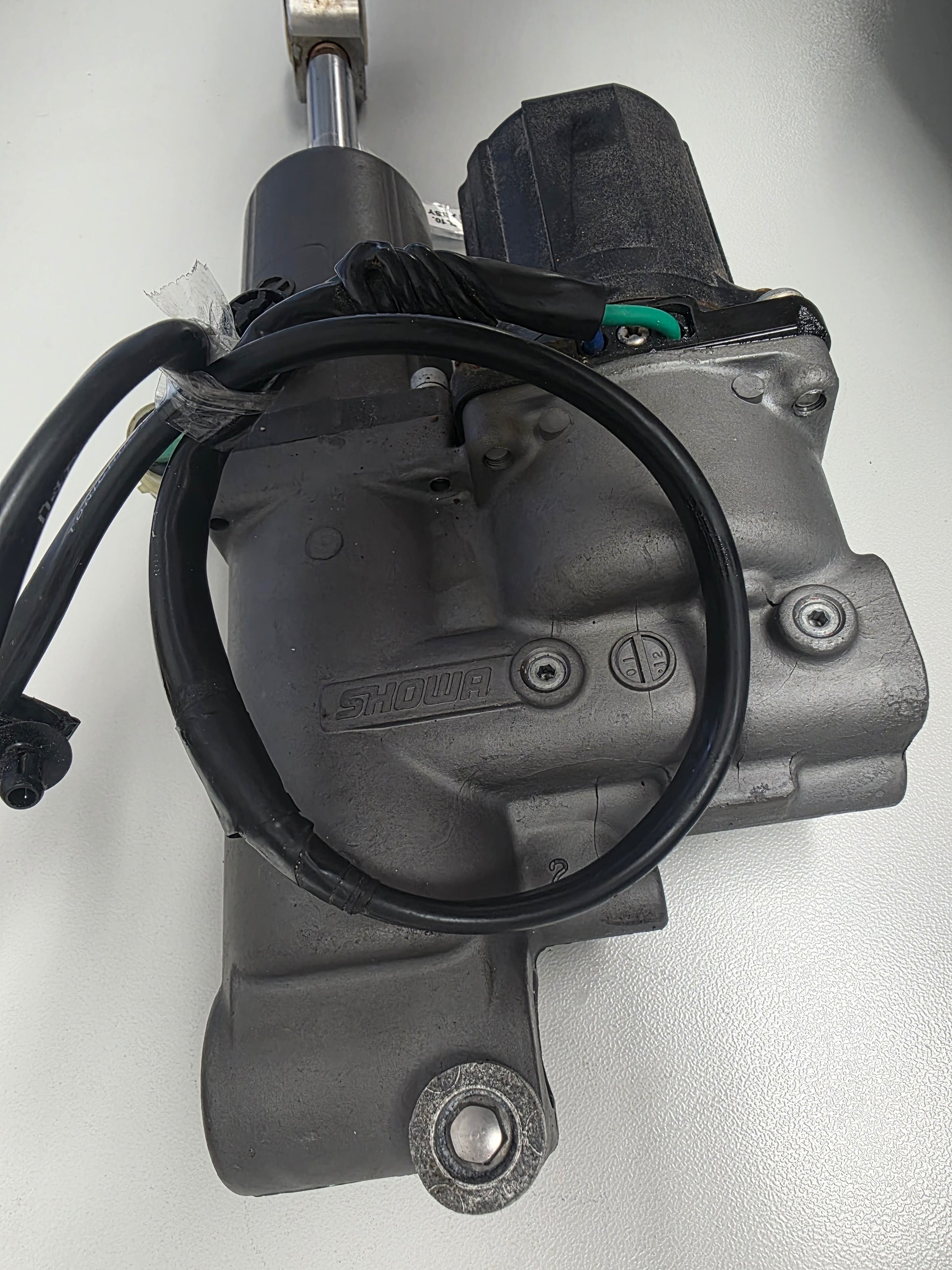

Genuine Suzuki DF40A / DF50A / DF60A Power Trim and Tilt Assembly - Current Part Number: 48000-88L30

A genuine Suzuki complete power trim and tilt assembly for standard DF40A, DF50A and DF60A four-stroke outboards. Current service number 48000-88L30 replaces early assembly 48000-88L10 and later related standard-model revisions. It includes the hydraulic cylinder, electric motor, pump, reservoir and mounting structure.

⚙️ Key Features

• Genuine Suzuki complete trim-and-tilt assembly
• Current part number 48000-88L30
• Supersedes 48000-88L10
• Used on standard DF40A, DF50A and DF60A engines

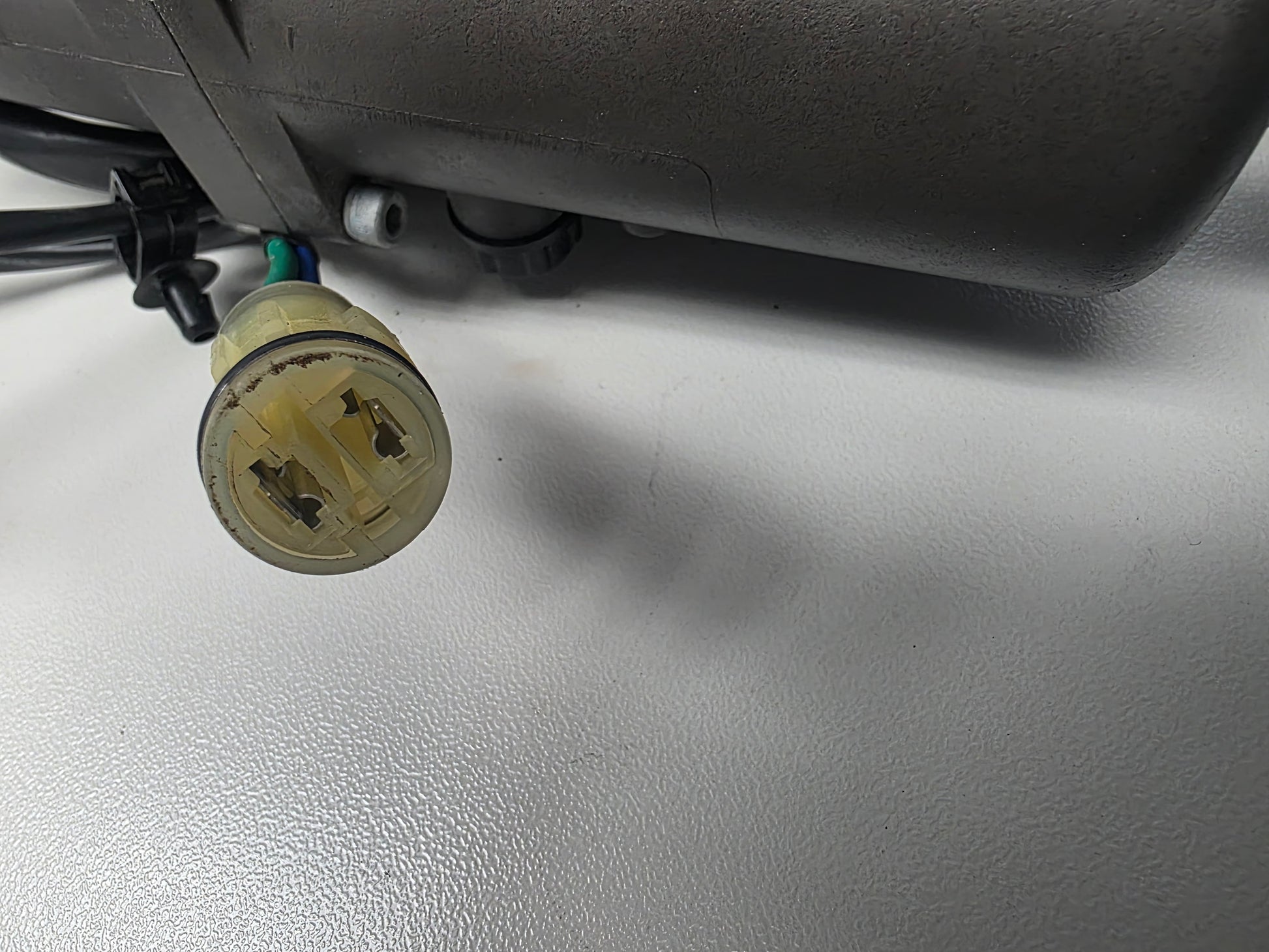

• Integrated two-wire motor and hydraulic cylinder

🚤 Compatibility

• Suzuki DF40A standard model families
• Suzuki DF50A standard model families
• Suzuki DF60A standard T, TH, QH, WT and WQH model families where 88L30 is listed
• Early documented VIN starts include DF40A 04003F-110001, DF50A 05003F-110001 and DF60A 06002F-010001 / 110001
• Standard-model catalogues from 2010 through 2022 and later service support
• Excludes DF50AV / DF60AV high-thrust installations unless the specific model catalogue lists 48000-88L30

🔌 Function

The assembly changes the engine's running trim angle and raises or lowers the outboard for shallow water, trailering and service.

⚠️ Common Signs of Failure

• Motor runs but engine does not move
• Trim works in only one direction
• Hydraulic fluid leaks
• Engine drifts down

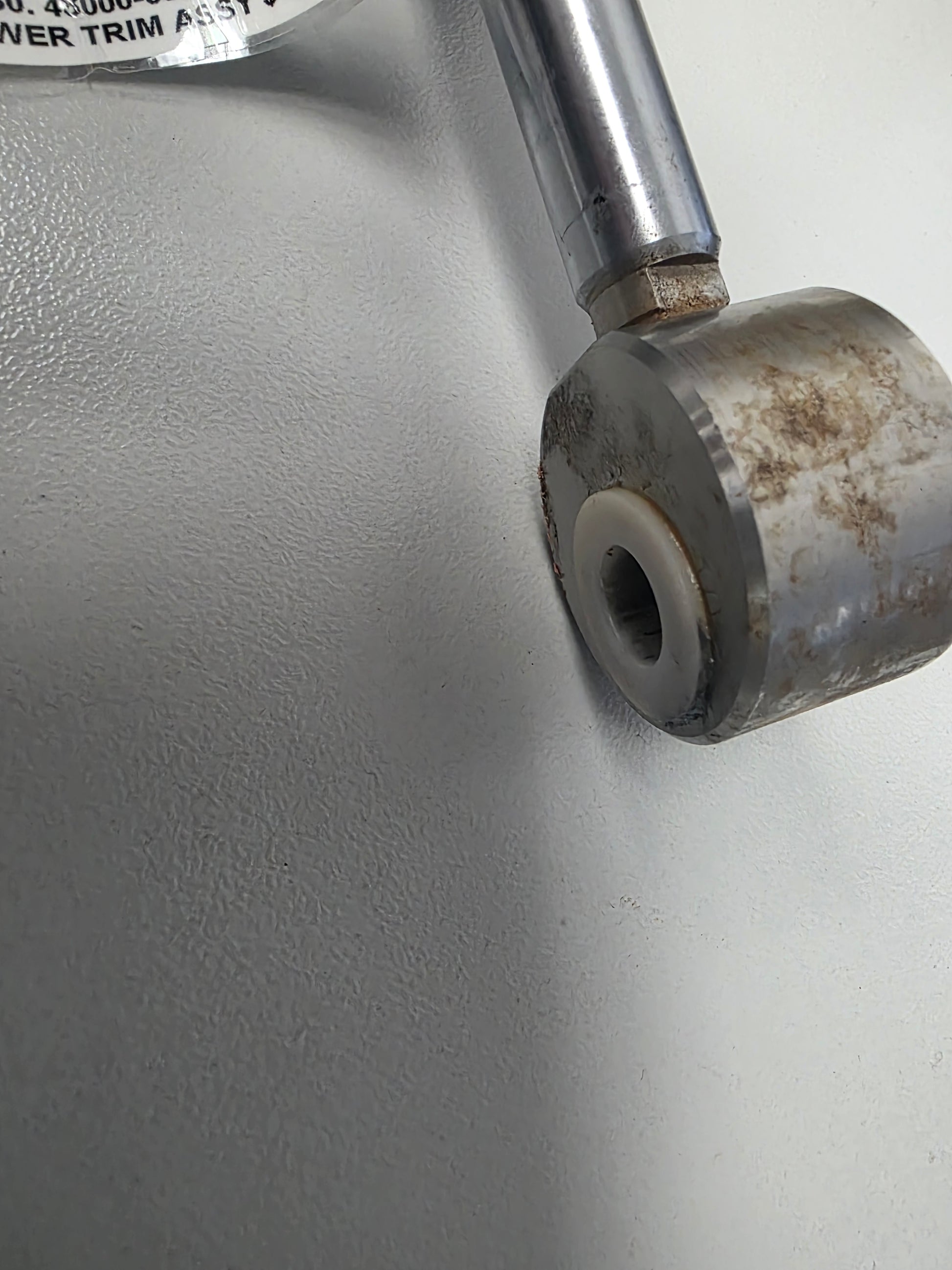

• Cylinder rod is pitted
• Wrong standard or high-thrust assembly is installed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 48000-88L30 → Services and replaces 48000-88L10
• Related standard-model revisions include 48000-88L00, 48000-88L15, 48000-88L16, 48000-88L17 and 48000-88L18
• 48000-88L30 is equal to or replaces 48000-88L18 in applicable catalogues
• High-thrust DF50AV / DF60AV systems use separate 48000-88L20, 88L21 and 88L22 families

OEM / Related Numbers

• 48000-88L30
• 48000-88L10
• 48000-88L00
• 48000-88L15
• 48000-88L16
• 48000-88L17
• 48000-88L18
• 48000-88L20 / 21 / 22 high-thrust alternatives

Aftermarket / Verified Equivalents

• Fab Heavy Parts replacement assembly cross-referenced to 48000-88L18 / 88L30
• Other marine aftermarket complete trim assemblies sold for standard DF40A / DF50A / DF60A applications
• Aftermarket trim motors, relay assemblies and seal kits are available separately
• High-thrust replacement units are not equivalent to the standard 88L30 assembly

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
