48000-90J39 Suzuki/Johnson Trim Assemble Showa | Genuine Used Part

🔧 Product Description

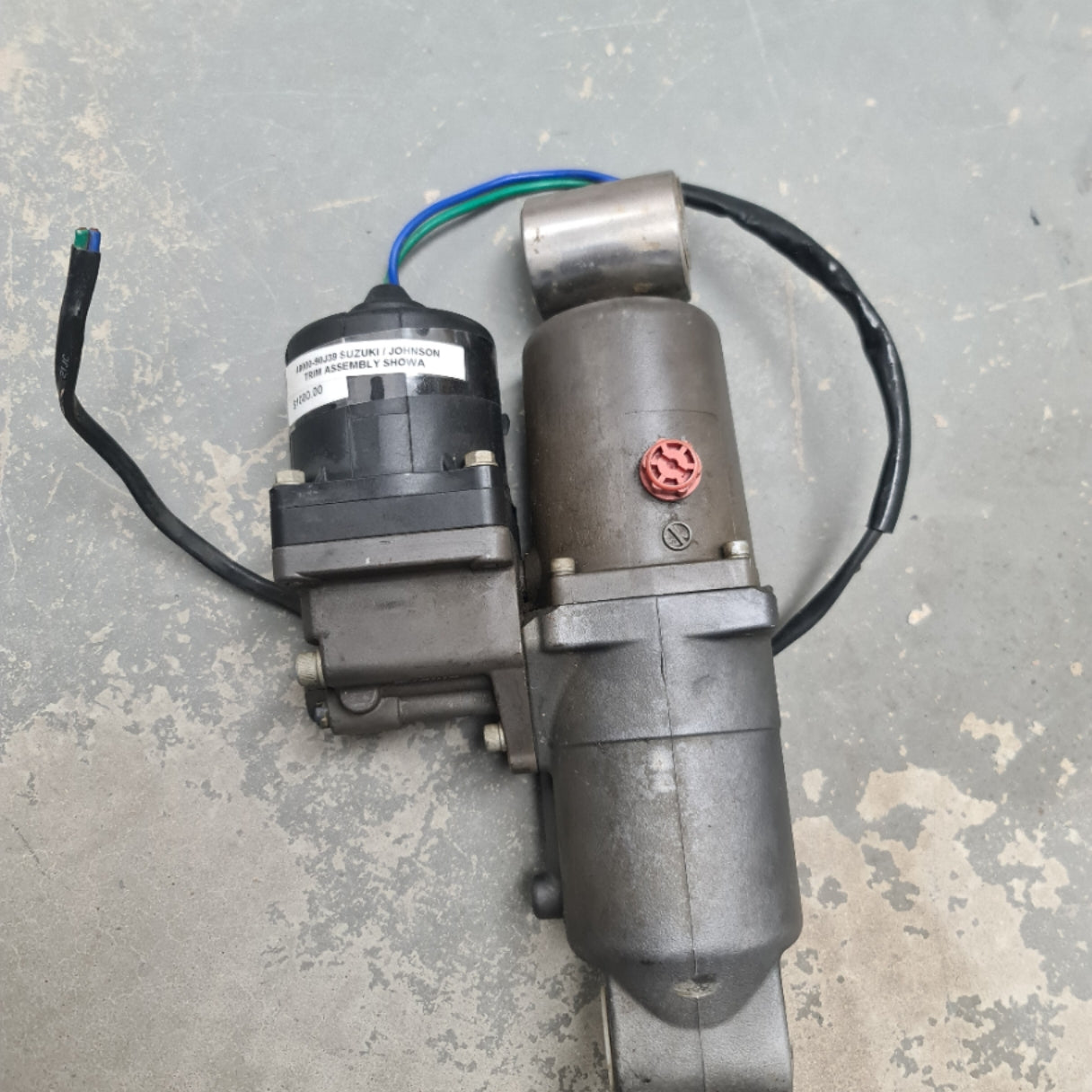

Genuine Suzuki Showa Power Tilt and Trim Assembly - Part Number: 48000-90J39

A genuine Suzuki Showa hydraulic power tilt and trim assembly for selected DF100A, DF115A, DF115B, DF140A and DF140B four-stroke outboards. The unit combines the electric PTT motor, hydraulic pump, manifold, reservoir, centre tilt ram and twin running-trim rams. Earlier 90J35 and 90J37 assemblies use the same service family, but connectors, pump revisions and bracket geometry must be matched to the engine serial-numbered diagram.

⚙️ Key Features

• Genuine Suzuki OEM Showa trim and tilt assembly
• Current service reference 48000-90J39
• Later development of the 48000-90J35 and 48000-90J37 assembly family
• Three-ram hydraulic design for tilt, trailering and running trim
• Used on selected DF100A, DF115A/B and DF140A/B outboards

🚤 Compatibility

Commonly used on

• Suzuki four-stroke outboard transom and clamp-bracket assemblies
• Showa three-ram power trim systems using the 90J hydraulic family

Typically suits

• Engine models:
• Suzuki DF100A / DF100AT / DF100AZ
• Suzuki DF100B and DF100C applications whose trim-cylinder diagram specifies 48000-90J39
• Suzuki DF115A / DF115AT / DF115AZ
• Suzuki DF115B / DF115BT / DF115BZ
• Suzuki DF140A / DF140AT / DF140AZ
• Suzuki DF140B / DF140BT / DF140BZ
• DF100A / DF115A E11 trim-cylinder families from representative serial 10003F-610001 and 11503F-610001
• DF115B / DF140B later-production families from representative serial 11504F-440001 and 14004F-440001
• HP Range: 100HP - 140HP
• Engine Type: Suzuki inline four-cylinder EFI four-stroke outboard
• Year Range: Approximately 2013 onward, dependent on model and serial number

🔌 Function

The electric motor drives the hydraulic pump to extend or retract the centre tilt ram and twin trim rams. The assembly raises the engine for trailering and shallow-water use, controls running trim under propeller thrust and hydraulically holds the selected position.

⚠️ Common Signs of Failure

• Engine will not raise or lower
• Trim motor runs but the hydraulic unit does not move
• Engine slowly settles after trimming
• Hydraulic fluid leaking from ram seals, manifold or reservoir
• Slow or uneven ram movement
• Trim works in only one direction
• Corroded motor wiring or pitted piston rods

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 48000-90J39 → Supersedes 48000-90J37
• 48000-90J37 → Supersedes 48000-90J35
• 48000-90J35 earlier OEM power-trim assembly
• 48000-90J34 and 48000-90J36 related production revisions

OEM / Related Numbers

• 48000-90J39
• 48000-90J39-0000
• 48000-90J37
• 48000-90J35
• 48000-90J36
• 48000-90J34
• 48502-90J13 PTT pump assembly
• 48400-90J03 trim-cylinder manifold assembly
• 38100-92J13 PTT motor assembly

Aftermarket / Verified Equivalents

• Marine Spare Parts: complete hydraulic trim replacement for 48000-90J39
• Baltic Motors: reconditioned 48000-90J35 / 48000-90J37 / 48000-90J39 unit
• Professional Showa hydraulic rebuild service for the 90J-series assembly

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
