48000-98J06 S9307-00-SA-1 Suzuki Trim Assembly | Genuine Used Part

🔧 Product Description

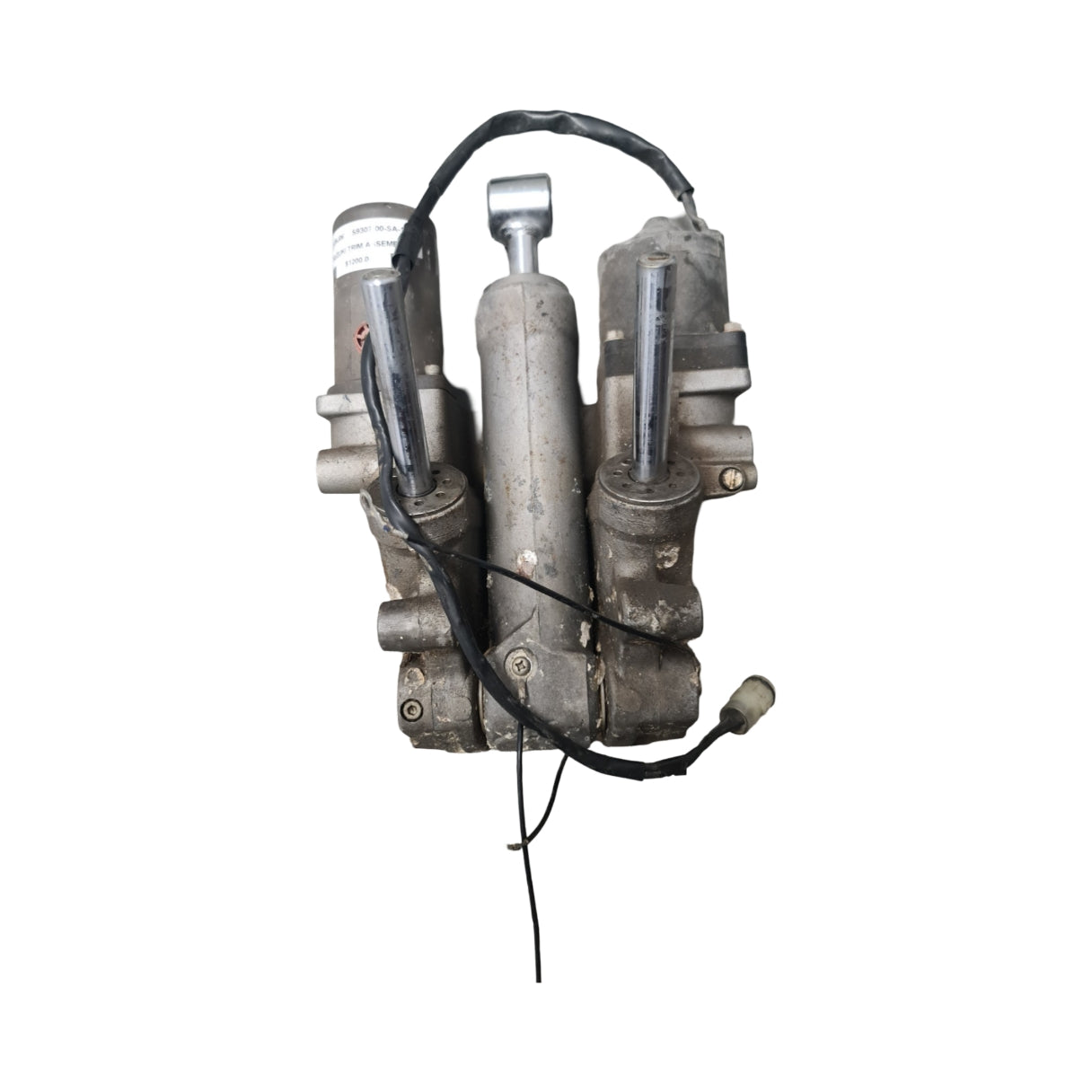

Genuine Suzuki Showa V6 Power Tilt and Trim Assembly - Part Number: 48000-98J06

A genuine Suzuki Showa power tilt and trim assembly for large-displacement DF200, DF225, DF250 and selected DF300 V6 four-stroke outboards. S9307-00-SA-1 is the Showa production or casting identifier found on the hydraulic unit. Suzuki issued several later revisions through the 98J14 service assembly.

⚙️ Key Features

• Genuine Suzuki OEM Showa V6 trim assembly
• Original Suzuki service number 48000-98J06
• Showa identifier S9307-00-SA-1
• Three-ram hydraulic unit for large V6 four-stroke outboards
• Cross-references with the complete 48000-98J06 through 48000-98J14 service family

🚤 Compatibility

Commonly used on

• Suzuki large-V6 four-stroke outboard transom assemblies
• Showa hydraulic trim systems fitted to DF200 through DF300 platforms

Typically suits

• Engine models:
• Suzuki DF200 / DF200T / DF200Z
• Suzuki DF225 / DF225T / DF225Z
• Suzuki DF250 / DF250T / DF250Z
• Suzuki DF300 early-production applications using the 98J trim family
• DF200 / DF225 / DF250 model years approximately 2004-2010
• DF300 model years approximately 2007-2010 where 48000-98J06 or a later 98J supersession is specified
• HP Range: 200HP - 300HP
• Engine Type: Suzuki large-displacement V6 EFI four-stroke outboard
• Year Range: Approximately 2004-2010 for the principal 98J06 applications

🔌 Function

The assembly converts electrical trim-switch commands into hydraulic movement. Its centre ram provides rapid tilt travel while the two outer rams support precise running trim under high engine thrust.

⚠️ Common Signs of Failure

• Hydraulic unit will not lift the engine
• Motor operates but rams do not extend
• Engine drops from the selected trim angle
• Oil leakage around the piston rods or reservoir
• Unequal trim-ram extension
• Motor corrosion or excessive current draw
• Manual-release valve will not seal

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 48000-98J14 → Supersedes 48000-98J13
• 48000-98J13 → Supersedes 48000-98J11
• 48000-98J11 → Supersedes 48000-98J10
• 48000-98J10 → Supersedes 48000-98J09
• 48000-98J09 → Supersedes 48000-98J08
• 48000-98J08 → Supersedes 48000-98J07
• 48000-98J07 → Supersedes 48000-98J06
• 48000-98J06 earlier OEM Showa assembly

OEM / Related Numbers

• 48000-98J06
• 48000-98J07
• 48000-98J08
• 48000-98J09
• 48000-98J10
• 48000-98J11
• 48000-98J13
• 48000-98J14
• S9307-00-SA-1
• 38100-93J-series related PTT motor
• 48502-98J-series related hydraulic pump

Aftermarket / Verified Equivalents

• Baltic Motors: reconditioned DF200 / DF225 / DF250 / DF300 Showa trim assembly
• Professional Showa rebuild service for 48000-98J06 through 48000-98J14
• Aftermarket V6 Suzuki PTT motors and complete seal kits for the corresponding Showa unit

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
