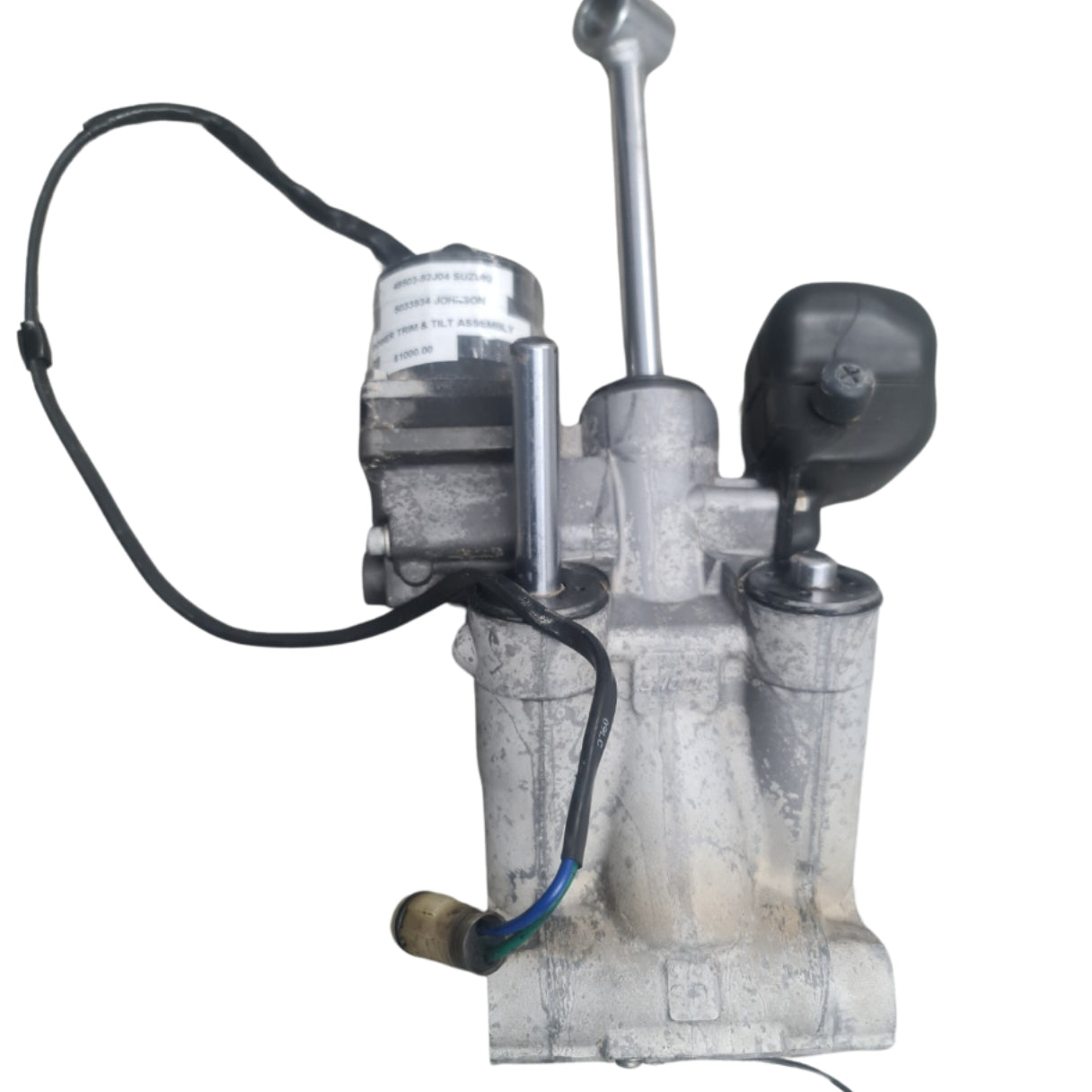

48503-92J04 Suzuki 5033934 Johnson Power Trim & Tilt Assembly | Genuine Used Part

🔧 Product Description

Genuine Suzuki / Johnson Showa Trim Manifold and Cylinder Subassembly - Part Number: 48503-92J04

A genuine Suzuki Showa hydraulic manifold and trim-cylinder subassembly used within the DF140 and Suzuki-built Johnson 140HP power trim and tilt unit. The Suzuki number cross-references directly with BRP / Johnson 5033934. This number identifies the hydraulic manifold subassembly rather than every bracket, motor and loose fitting supplied with a complete new trim unit.

⚙️ Key Features

• Genuine Suzuki Showa hydraulic trim subassembly
• Direct BRP / Johnson cross-reference 5033934
• Used on DF140 and Johnson 140HP four-stroke platforms
• Two-wire Showa hydraulic trim design
• Suitable for complete-unit repair or replacement when supplied with the pictured motor and cylinders

🚤 Compatibility

Commonly used on

• Suzuki DF140 four-stroke trim-cylinder assemblies
• Johnson 140HP Suzuki-built four-stroke power trim systems

Typically suits

• Engine models:
• Suzuki DF140 / DF140T / DF140Z - approximately 2002-2011
• Suzuki DF140 model families beginning with representative serial 14001F
• Johnson 140HP four-stroke - approximately 2003-2006
• Johnson BJ140L4SDR and related J140 four-stroke model codes
• Suzuki / Johnson installations whose trim-cylinder diagram specifies 48503-92J04 or 5033934
• HP Range: 140HP
• Engine Type: Suzuki-built inline four-cylinder EFI four-stroke outboard
• Year Range: Approximately 2002-2011

🔌 Function

The manifold routes pressurised hydraulic fluid between the electric pump, tilt piston, trim pistons, check valves and manual-release circuit. It allows the engine to raise, lower and remain locked at the selected angle.

⚠️ Common Signs of Failure

• Engine will not hold trim
• Hydraulic fluid leaking from the manifold or piston seals
• Slow or jerky movement
• Trim works in only one direction
• Internal bypass causing the engine to settle
• Corroded cylinder rods
• Manual-release valve leakage

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 48503-92J04 → Supersedes 48503-92J03
• 48503-92J03 → Supersedes 48503-92J02
• 48503-92J02 → Supersedes 48503-92J00
• 5033934 BRP / Johnson equivalent service reference

OEM / Related Numbers

• 48503-92J04
• 48503-92J03
• 48503-92J02
• 48503-92J00
• 5033934
• 05033934
• 5033933 related hydraulic assembly
• 5034627 related later Johnson trim reference
• 48401-92J00 piston subassembly
• 48121-92J00 tilt-cylinder shaft

Aftermarket / Verified Equivalents

• BRP / Johnson: 5033934 direct OEM cross-brand equivalent
• Five Star Marine: rebuild service for 48503-92J00 / 92J02 / 5033934
• Southcentral Outboards: rebuilt two-wire DF140 / Johnson 140 trim unit
• Aftermarket Showa seal kits for the 92J hydraulic manifold

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
