48503-93J12 Aftermarket Suzuki Power Trim Unit DT115, DT140G-Y, DF90-250 | Sawley's Select Marine Parts

🔧 Product Description

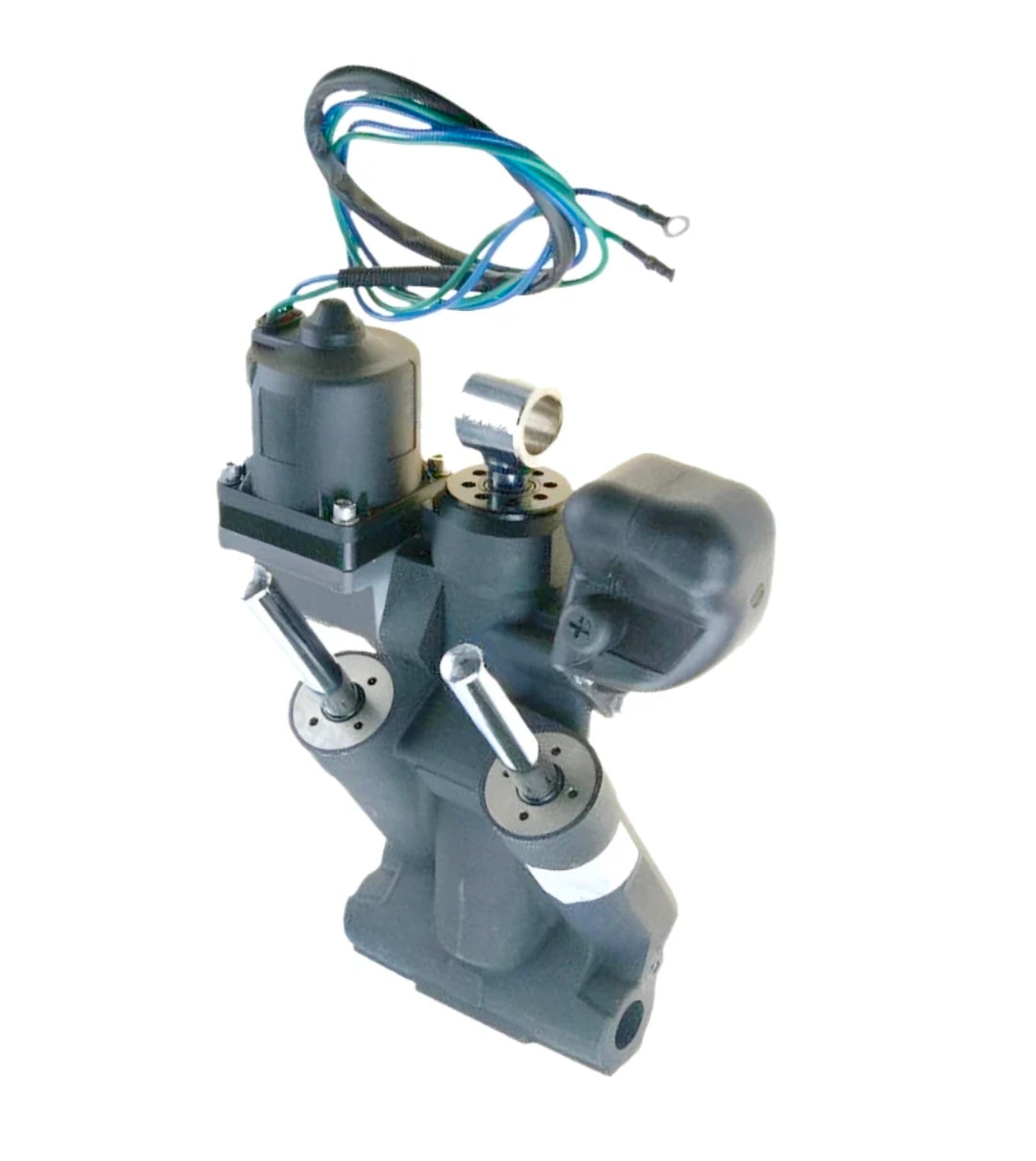

Aftermarket replacement Complete Three-Ram Power Trim & Tilt Unit - Replaces Part Number: 48503-93J12

New aftermarket complete Suzuki power trim and tilt assembly replacing 48503-93J12. It includes the hydraulic unit and electric motor for specified DT115/DT140 and DF90-DF250 outboards.

⚙️ Key Features

• Complete three-ram hydraulic trim unit

• Includes trim motor, pump, valve body and ram assembly

• Direct replacement for the 93J service family

• Supports selected two-stroke DT and four-stroke DF engines

• Supplied as a complete assembly rather than motor-only

🧰 Kit / Assembly Contents

• 1 × Complete power trim and tilt assembly - P/N 48503-93J12

• 1 × Integrated reversible trim motor

• 1 × Integrated hydraulic pump and valve body

• 1 × Main tilt ram and two trim rams

• External mounting pins, harness and bracket hardware are transferred unless included

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 48503-93J13 → Later service revision associated with 48503-93J12

• 48503-93J12 → Supersedes/cross-references 48503-93J10 and 48503-94900-0ED

OEM / Related Numbers:

• 48503-93J10

• 48503-93J13

• 48503-94900-0ED

Aftermarket / Verified Equivalents:

• Aftermarket Suzuki 93J complete trim unit

• Recmar-compatible 48503-93J12 assembly

🚤 Compatibility

Commonly used on:

• Suzuki three-ram outboard trim and tilt systems

Typically suits:

• Engine / Drive models:

• DT115 and DT140 G-Y model families

• DF90, DF100, DF115 and DF140 where the 93J unit is specified

• DF150, DF175, DF200, DF225 and DF250 applications matched by bracket and serial

• HP / Drive Range: 90HP - 250HP

• System Type: Complete outboard electric-hydraulic power trim and tilt assembly

• Year Range: Model- and serial-dependent

• Serial / Component Identification: Confirm mounting width, pin diameter, motor connector and complete unit number.

🔌 Function

The complete electric-hydraulic power trim and tilt unit uses a reversible motor, pump, valve body and hydraulic ram assembly to raise, lower and hold the outboard at the selected angle.

Common signs of failure / service requirement:

• Outboard will not raise, lower or hold position

• Motor runs but the hydraulic ram does not move

• Hydraulic fluid leaks around the motor, pump, valve body or ram

• Movement is slow, jerky or noisy

• Unit drifts down under engine weight

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
