🔧 Product Description

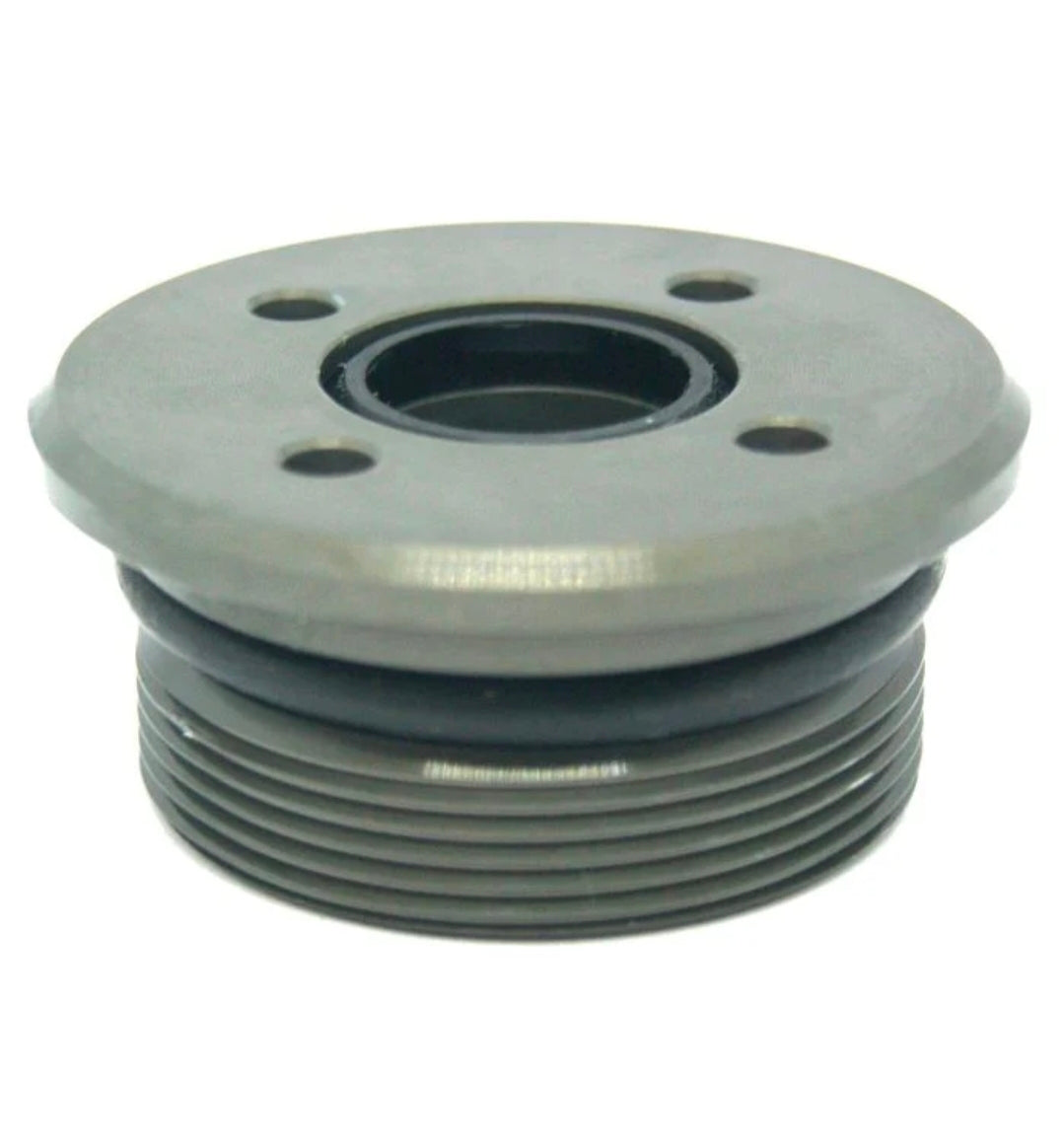

Aftermarket replacement Suzuki DT/DF Trim Cylinder Rod Guide - Replaces Part Number: 48630-94900

New aftermarket trim-cylinder rod guide replacing Suzuki 48630-94900. It closes and guides the piston rod in the DF60/DF70 and DT115/DT140 hydraulic trim unit.

⚙️ Key Features

• Direct replacement for the listed Suzuki rod-guide number

• Machined hydraulic cylinder head/gland

• Supports the piston rod and retains the rod seals

• Pin-spanner engagement for controlled removal and installation

• Use new seals and O-rings during cylinder service

🧰 Kit / Assembly Contents

• 1 × Trim-cylinder rod guide/head - P/N 48630-94900

• Rod seal, wiper, O-rings and backup rings are serviced separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 48630-94900 (Suzuki OEM rod-guide reference)

OEM / Related Numbers:

• 48630-94900

Aftermarket / Verified Equivalents:

• Aftermarket Suzuki 949 rod guide

• Recmar-compatible 48630-94900

🚤 Compatibility

Commonly used on:

• Suzuki DF60/DF70 and DT115/DT140

Typically suits:

• Engine / Drive models:

• DF60 and DF70 four-stroke outboards

• DT115 and DT140 approximately 1996-2001

• HP / Drive Range: Engine-model dependent

• System Type: Outboard hydraulic trim-cylinder rod guide

• Year Range: Model- and trim-unit-revision dependent

• Serial / Component Identification: Confirm the number stamped or listed for the original cylinder; externally similar guides can use different threads and seal grooves.

🔌 Function

The trim-cylinder rod guide closes the cylinder, supports the piston rod and retains the rod seal, wiper and backup components that prevent hydraulic-fluid leakage and water intrusion.

Common signs of failure / service requirement:

• Hydraulic fluid leaks around the piston rod

• Rod movement becomes rough or the guide is corroded

• Wiper no longer excludes saltwater and debris

• Guide threads or removal holes are damaged

• Cylinder cannot be resealed using the original head

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
