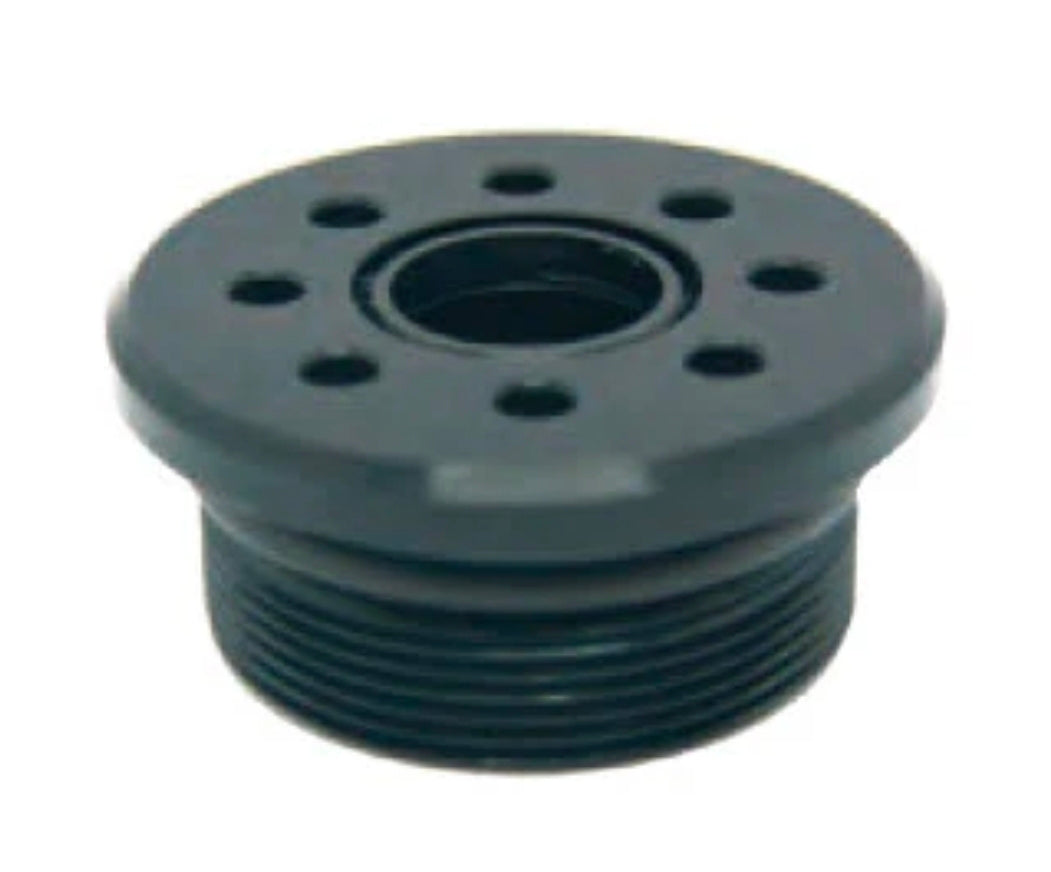

Aftermarket replacement Suzuki DF150/DF175 Trim Cylinder Rod Guide - Replaces Part Number: 48630-96J00


New aftermarket trim-cylinder rod guide replacing Suzuki 48630-96J00. It closes and guides the piston rod in the DF150 and DF175 hydraulic trim unit.


⚙️ Key Features


• Direct replacement for the listed Suzuki rod-guide number

• Machined hydraulic cylinder head/gland

• Supports the piston rod and retains the rod seals

• Pin-spanner engagement for controlled removal and installation

• Use new seals and O-rings during cylinder service


🧰 Kit / Assembly Contents


• 1 × Trim-cylinder rod guide/head - P/N 48630-96J00

• Rod seal, wiper, O-rings and backup rings are serviced separately unless supplied


🔄 Supersession & Cross Reference


OEM Supersession Chain:


• 48630-96J00 (Suzuki OEM rod-guide reference)


OEM / Related Numbers:


• 48630-96J01

• 48630-96J02

• 48630-96J03

• 48630-96J04


Aftermarket / Verified Equivalents:


• Aftermarket Suzuki 96J rod guide


🚤 Compatibility


Commonly used on:


• Suzuki DF150 and DF175


Typically suits:


• Engine / Drive models:

• DF150 and DF175 early 96J trim-cylinder applications

• Selected DF100A-DF250 installations using the original 96J00 revision

• HP / Drive Range: Engine-model dependent

• System Type: Outboard hydraulic trim-cylinder rod guide

• Year Range: Model- and trim-unit-revision dependent

• Serial / Component Identification: Confirm the number stamped or listed for the original cylinder; externally similar guides can use different threads and seal grooves.


🔌 Function


The trim-cylinder rod guide closes the cylinder, supports the piston rod and retains the rod seal, wiper and backup components that prevent hydraulic-fluid leakage and water intrusion.


Common signs of failure / service requirement:


• Hydraulic fluid leaks around the piston rod

• Rod movement becomes rough or the guide is corroded

• Wiper no longer excludes saltwater and debris

• Guide threads or removal holes are damaged

• Cylinder cannot be resealed using the original head


📦 Condition


• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
