🔧 Product Description

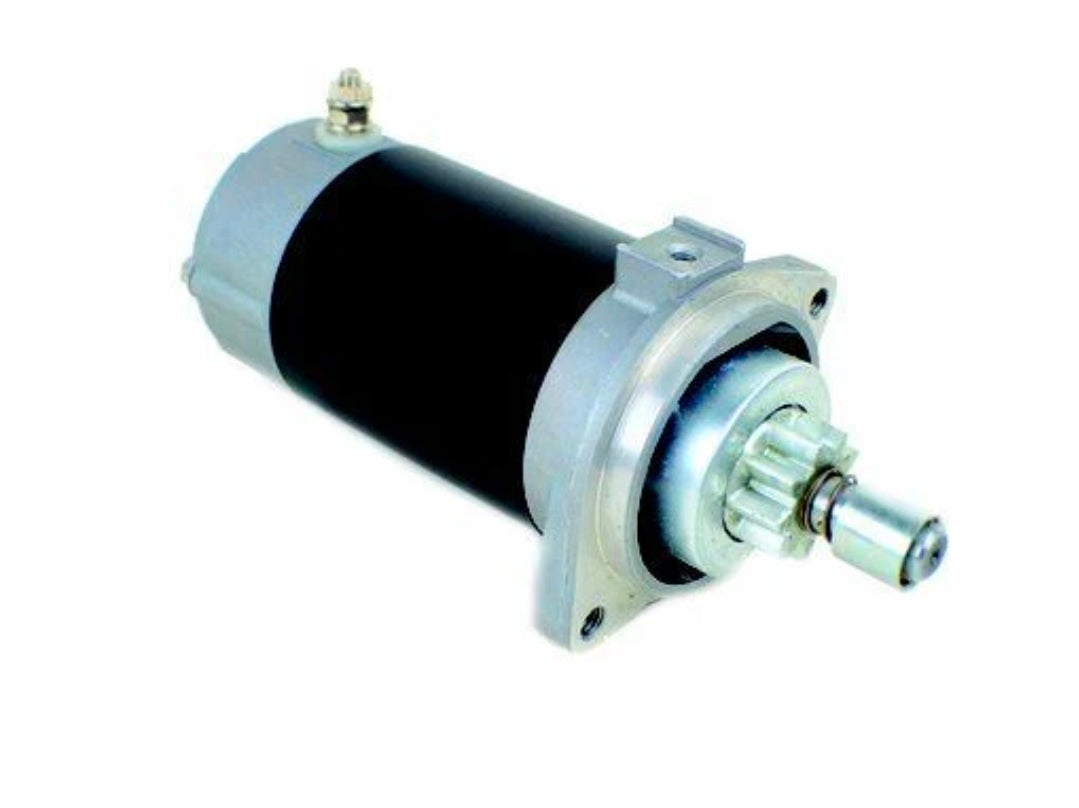

Aftermarket Mercury/Mariner/Tohatsu/Suzuki/Johnson outboard starter motor - Part Number: 50-8M0147039

A nine-tooth 12-volt starter used across selected small and mid-range outboard platforms shared between Mercury, Tohatsu, Suzuki and BRP/Johnson. The Mercury 50-8M0147039 reference has been replaced by 50-8M0188334 and cross-references directly to Tohatsu 3C8-76010-1 and BRP 5032026.

This is an outboard starter rather than a MerCruiser inboard starter. The shared application list spans two- and three-cylinder two- and four-stroke engines, so the original number and mounting must match exactly.

⚙️ Key Features

• 12V marine outboard starter

• Nine-tooth pinion

• Shared-platform replacement across Mercury, Tohatsu, Suzuki and Johnson

• Complete motor, solenoid and starter-drive assembly

• Current Mercury succession available as 8M0188334

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 50-8M0188334 → Supersedes 50-8M0147039

• 50-8M0147039 → Supersedes 50-853805T03

OEM / Related Numbers:

• Mercury/Mariner: 50-8M0147039

• Mercury/Mariner: 50-8M0188334

• Mercury/Mariner: 50-853805T03

• Tohatsu: 3C8-76010-1

• BRP/Evinrude/Johnson: 5032026

• BRP/Evinrude/Johnson: 5033145

• BRP/Evinrude/Johnson: 5040786

• Suzuki: 31100-94400

• Suzuki: 31100-94401

• Suzuki: 31100-94402

• Suzuki: 31100-96310

• Suzuki: 31100-96311

Aftermarket / Verified Equivalents:

• Recmar: REC50-8M0147039

🚤 Compatibility

Commonly used on:

• Shared Mercury/Mariner, Tohatsu, Suzuki and Johnson small/mid-range outboard platforms

Typically suits:

• Engine models:

• Mercury/Mariner 10HP, 15HP and 20HP two-cylinder carburetted four-stroke

• Mercury/Mariner 25HP and 30HP three-cylinder EFI four-stroke

• Japanese-built Mercury/Mariner 40HP and 50HP two-stroke engines using the 3C8 starter

• Tohatsu MFS9.9B/MFS9.9C, MFS15B/MFS15C, MFS18B, MFS20C

• Tohatsu MFS25A/B/C and MFS30A/B/C

• Tohatsu M40D2, M50D2 and selected M70C

• Suzuki DT20, DT25 and DT30

• Suzuki DF25, DF30 and selected DF40

• Johnson 9.9HP, 15HP, 25HP and 30HP four-stroke shared-platform models

• HP Range: 9.9HP-50HP as the core verified shared-platform range

• Engine Type: Two- or three-cylinder two-stroke and four-stroke outboard, model dependent

• Year Range: Approximately late 1990s-2010s

• Fitment Note: Confirm the nine-tooth pinion and one of the listed OEM references

🔌 Function

The starter engages the flywheel and cranks the outboard until the fuel and ignition systems begin combustion.

Common signs of failure:

• No starter operation

• Slow cranking under load

• Pinion does not engage or retract

• Intermittent hot-start failure

• Grinding from worn pinion or flywheel teeth

📦 Condition

• Brand-new aftermarket outboard starter motor

• Supplied as a complete nine-tooth assembly

• Confirm the original Mercury, Tohatsu, Suzuki or BRP number before installation
