5000470 BRP Shift Shaft | Genuine Used Part

🔧 Product Description

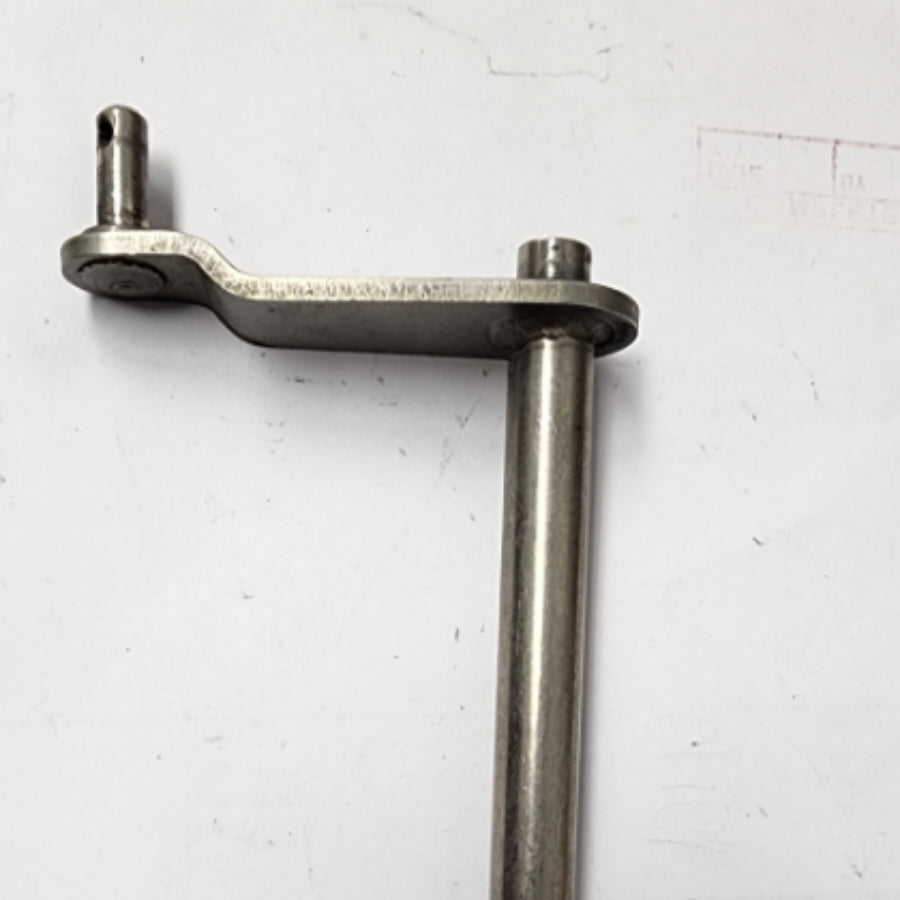

Genuine BRP Johnson Evinrude Shift Shaft and Arm Assembly - Part Number: 5000470

A genuine OMC / BRP shift-shaft and arm assembly for selected Johnson and Evinrude V4 and V6 two-stroke outboards.

The assembly is mounted within the cylinder-and-crankcase shift mechanism and transfers control-linkage movement to the vertical gearcase shift rod. Current service part 5000470 replaces earlier assemblies 0436822 and 0433476.

⚙️ Key Features

• Genuine BRP shift-shaft and arm assembly
• Correct part number 5000470
• Supersedes 0436822 and 0433476
• Factory arm angle and shaft geometry
• Used on selected V4 and V6 engines
• Suitable for carburetted and Ficht applications

🚤 Compatibility

Documented across selected approximately 1991-2003

• Johnson / Evinrude 90HP models where the applicable cylinder-and-crankcase diagram specifies 5000470
• Johnson / Evinrude 115HP V4
• Johnson / Evinrude 150HP V6
• Johnson / Evinrude 175HP V6
• 1991-1994 Evinrude 150HP and 175HP model families
• 1995 Johnson 150HP and Evinrude 115HP families
• 1996 Johnson 150 model J150ELEDB
• 1997 Evinrude 150HP
• 1998 Johnson 115HP Ficht
• 2001 Evinrude 115HP Ficht
• 2003 Evinrude 175HP Ficht
• Engine Type: OMC carburetted or direct-injection two-stroke outboard
• HP Range: Approximately 90HP-175HP
• Fitment Requirement: OMC fitment is determined by the complete engine model number rather than horsepower alone

🔌 Function

The arm receives movement from the throttle-and-shift linkage and rotates the shaft. The movement is transferred to the gearcase shift rod to select forward, neutral or reverse.

⚠️ Common Signs of Failure

• Excessive play in the shift control
• Forward or reverse does not engage completely
• Shaft is bent, seized or corroded
• Lever weld or retaining point is damaged
• Shift adjustment cannot achieve all three positions
• Gearcase jumps out of gear under load

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 5000470 → Supersedes 0436822
• 5000470 → Supersedes 0433476

OEM / Related Numbers

• 5000470
• 0436822
• 436822
• 0433476
• 433476
• Related shift link, retaining pin and lower shift rod
• 0433817 and 0436902 are related shift-lever assemblies for different engine families and are not direct equivalents

Aftermarket / Verified Equivalents

• Specialist used 5000470 / 0436822 assembly
• Reconditioned complete upper shift-linkage assembly
• Professionally repaired shaft only where lever alignment and weld integrity can be maintained
• No verified direct aftermarket assembly

📦 Condition

• Genuine used assembly
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Inspect pivot points, welds and shaft alignment before installation
