• 5001593 Evinrude Johnson 18-3059 Impeller Kit | Genuine OEM BRP Outboard Part
1 1

5001593 Evinrude Johnson 18-3059 Impeller Kit | Genuine OEM BRP Outboard Part

5001593 Evinrude Johnson 18-3059 Impeller Kit | Genuine OEM BRP Outboard Part

$75.94 AUD
$75.94 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

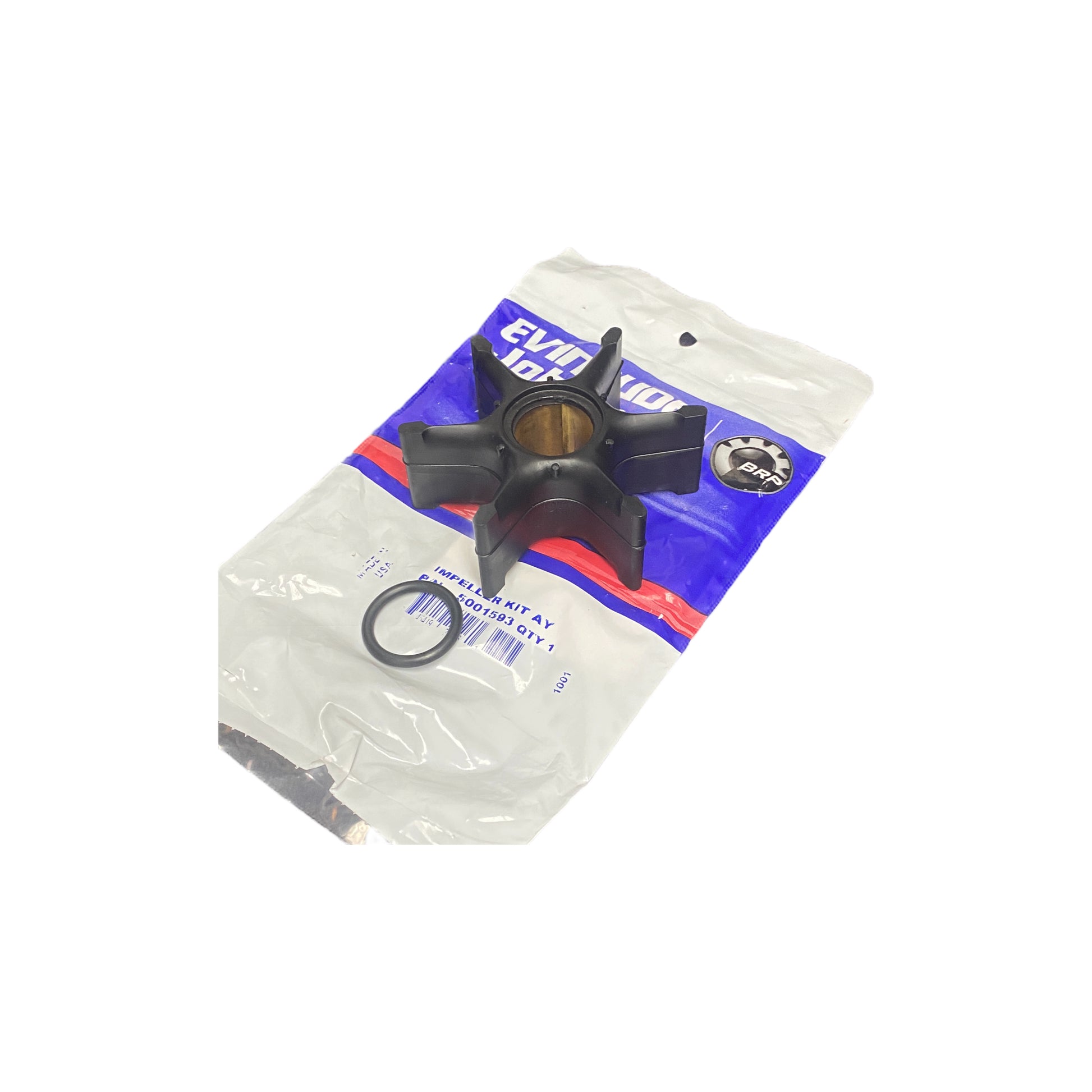

Genuine BRP Evinrude Johnson Large-Gearcase Water-Pump Impeller Kit - Part Number: 5001593

A genuine BRP water-pump impeller and key assembly for a broad selection of Johnson and Evinrude V4, V6, V8 and E-TEC outboards.

The large flexible impeller is used in numerous complete BRP water-pump kits, including 5001594, 5001595 and 5007556. It is supplied with or used alongside the correctly sized impeller drive key.

⚙️ Key Features

  • Genuine BRP large-gearcase impeller
  • Correct OEM reference 5001593
  • Supplied or installed with the matching drive key
  • Used across numerous 85HP-300HP gearcases
  • Extensive Sierra, GLM and Mallory cross-reference coverage

🚤 Compatibility

Commonly used on

  • Johnson and Evinrude large mechanical-shift gearcases
  • V4, V6 and V8 two-stroke outboards
  • Evinrude E-TEC large-gearcase water pumps

Typically suits

  • Engine models:
  • Johnson / Evinrude 85HP
  • 88HP and 90HP
  • 100HP, 105 Jet, 110HP and 115HP
  • 120HP, 125HP, 130HP and 135HP
  • 140HP, 150HP and 175HP
  • 185HP, 200HP, 225HP and 235HP
  • 250HP and 300HP
  • E-TEC engines whose water-pump kit specifies 5001593
  • HP Range: Approximately 85HP - 300HP
  • Engine Type: V4, V6 or V8 two-stroke outboard
  • Year Range: Late-1970s onward, depending on gearcase

🔌 Function

The impeller draws water through the gearcase intake and forces it through the water tube into the powerhead cooling system.

⚠️ Common Signs of Failure

  • Weak tell-tale flow
  • Engine overheats at idle
  • Blades are cracked, missing or permanently curved
  • Impeller hub is separated from the rubber
  • Drive key is worn or sheared
  • Pump cannot prime after launching
  • Cooling pressure falls at higher speed
  • Rubber fragments are found in the thermostat passages

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 5001593 → Replaces 0439948
  • 5001593 → Replaces 0435821
  • 5001593 → Replaces 0435748
  • 5001593 → Replaces 0397131
  • 5001593 → Replaces 0395864
  • 5001593 → Replaces 0394534
  • 5001593 → Replaces 0391538 and 0389289

OEM / Related Numbers

  • 5001593
  • 0439948
  • 0435821
  • 0435748
  • 0397131
  • 0395864
  • 0394534
  • 0391538
  • 0389289
  • Impeller key: 0331107
  • Sierra key: 18-3299

Aftermarket / Verified Equivalents

  • Sierra: 18-3059
  • Sierra impeller kit: 18-3211
  • GLM: 89570
  • Mallory: 9-45206
  • Included in Sierra kits 18-3315-2, 18-3390, 18-3392, 18-3472 and 18-3476

📦 Condition

  • Genuine BRP part
  • Brand new
  • Supplied in original or equivalent packaging

Shipping & Delivery

Flat-rate shipping Australia-wide — $14.99 per order, no matter how many parts you add. Orders dispatch from our Kadina, South Australia store. Need it urgently or want to collect in person? Call us on 0412 532 984 before ordering.

Returns & Warranty

14-day change-of-mind returns — if it's not right or you ordered the wrong part, send it back within 14 days in new, unused condition for a refund or exchange. Manufacturer warranties apply to new parts. Full details in our Refunds & Returns policy.

Not sure this fits?

Ask us before you buy — we check part numbers and fitment every day. Call 0412 532 984 (Mon–Fri 8.30am–4.30pm) or message us through the contact page with your engine or vehicle details.

View full details
