🔧 Product Description

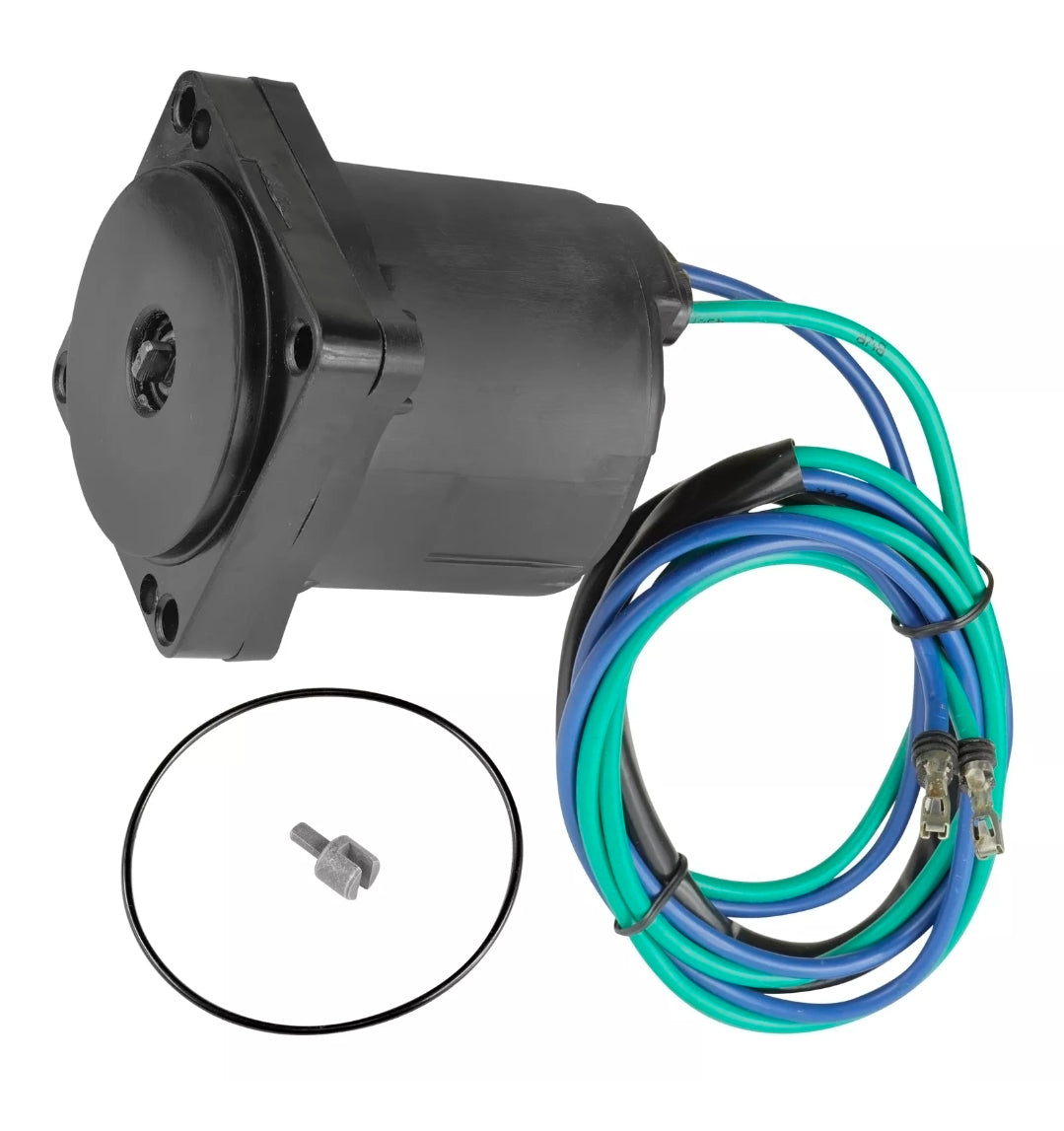

Aftermarket replacement Trim & Tilt Motor and O-Ring Assembly - Replaces Part Number: 5005254

New aftermarket reversible trim motor replacing BRP 5005254. This is a motor-and-seal assembly for the matching hydraulic unit, not the complete power trim unit.

⚙️ Key Features

• Direct replacement for BRP 5005254

• Two-wire reversible 12-volt motor

• Includes motor-to-pump O-ring

• Used across carburetted, direct-injection and E-TEC applications

• Marine corrosion-resistant housing and leads

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 5005254

• 1 × Motor-to-pump O-ring - supplied with the 5005254 assembly

• 1 × Integrated two-wire lead set

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 5005254 (BRP motor and O-ring assembly reference)

OEM / Related Numbers:

• ARCO 6238

• J&N 430-22023

Aftermarket / Verified Equivalents:

• ARCO: 6238

• J&N: 430-22023

• Recmar: REC5005254

🚤 Compatibility

Commonly used on:

• Johnson/Evinrude/BRP large-outboard trim systems

Typically suits:

• Engine / Drive models:

• 90HP-175HP carburetted and direct-injection models approximately 2002-2006

• 115HP 25-inch through 300HP E-TEC applications from approximately 2005 onward

• 200HP, 225HP and 250HP direct-injection engines approximately 1999-2006

• HP / Drive Range: 90HP - 300HP

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: Approximately 1999 onward; model-code dependent

• Serial / Component Identification: Confirm motor flange, wire terminals and OEM 5005254.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Pump works only after the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
