5005376 Aftermarket Bombardier Trim/Tilt Motor | Sawley's Select Marine Parts

🔧 Product Description

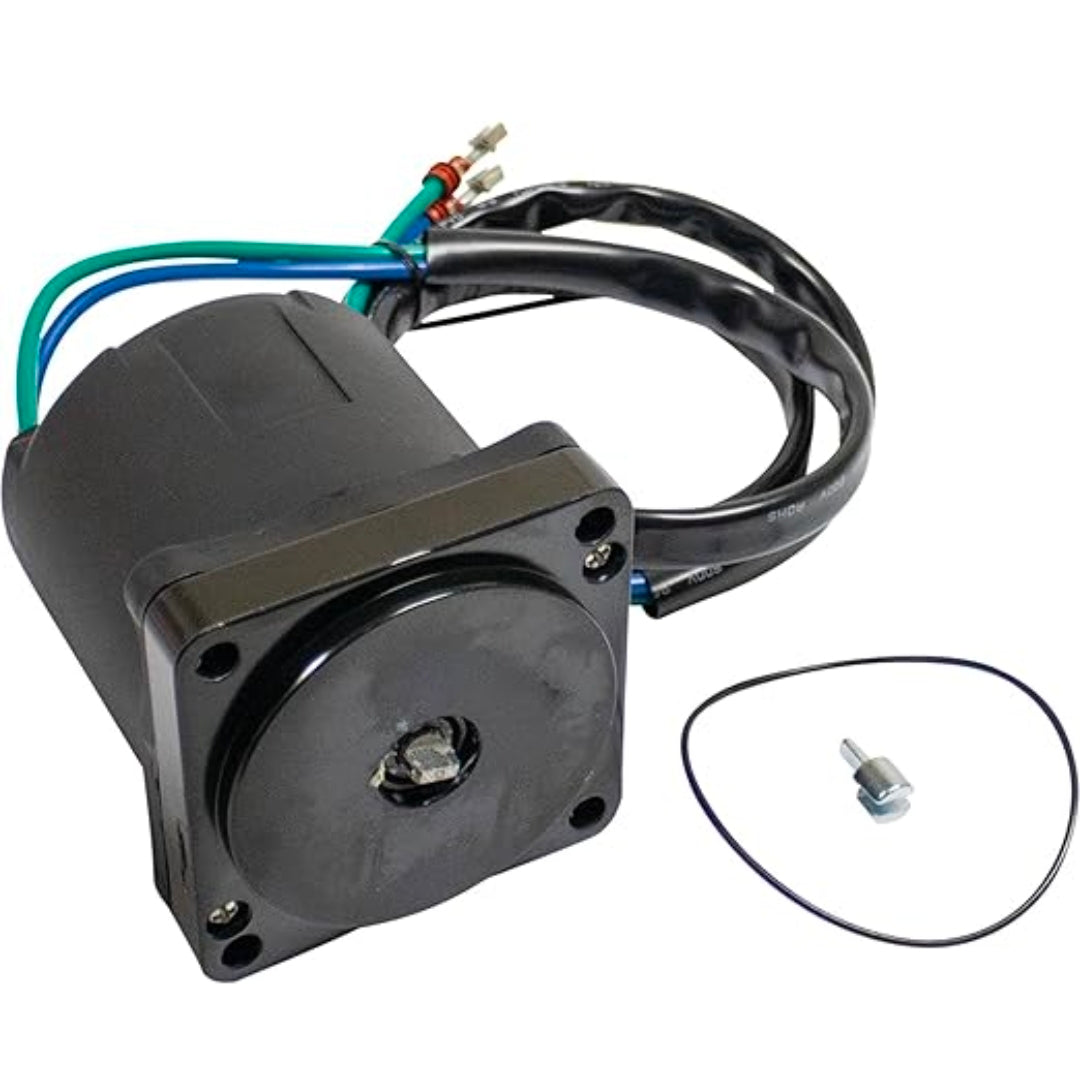

Aftermarket replacement FastTrak Trim & Tilt Motor - Replaces Part Number: 5005376

New aftermarket trim motor replacing BRP 5005376 and the earlier 434496/438529/438531 motor family.

⚙️ Key Features

• Direct replacement for BRP 5005376

• Two-wire reversible marine motor

• Designed for OMC FastTrak hydraulic units

• Broad V4 and V6 outboard coverage

• Direct-fit mounting flange and pump drive

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 5005376

• 1 × Integrated two-wire lead set

• 1 × Motor-to-pump seal - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 5005376 → Supersedes/cross-references 5005374, 438531, 438529 and 434496

OEM / Related Numbers:

• 5005374

• 438531

• 438529

• 434496

• ARCO 6241

Aftermarket / Verified Equivalents:

• ARCO: 6241

• Recmar: REC5005376

• Aftermarket FastTrak trim motor

🚤 Compatibility

Commonly used on:

• Johnson/Evinrude FastTrak power trim systems

Typically suits:

• Engine / Drive models:

• 90HP and 115HP crossflow approximately 1991-1996

• 120HP and 140HP approximately 1991-1994

• 130HP approximately 1995-2001

• 150HP-225HP V6 approximately 1991-2001

• Selected 65HP-225HP systems matched by OEM number

• HP / Drive Range: 65HP - 225HP

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: Principally 1991 - 2001

• Serial / Component Identification: Confirm original motor number and mounting flange.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Pump works only after the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
