5005428 0438528 Evinrude Trim Assembly | Genuine Used Part

🔧 Product Description

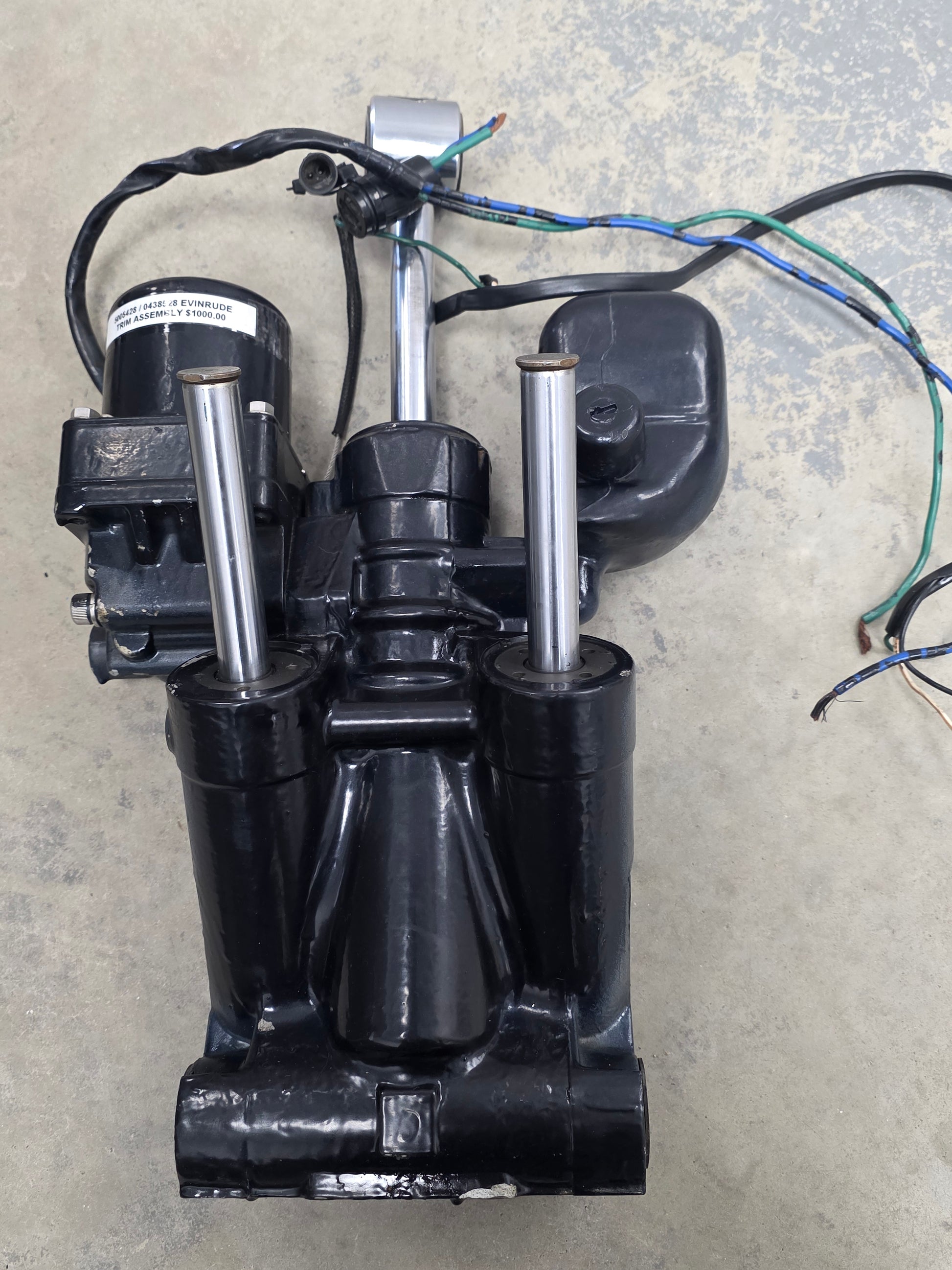

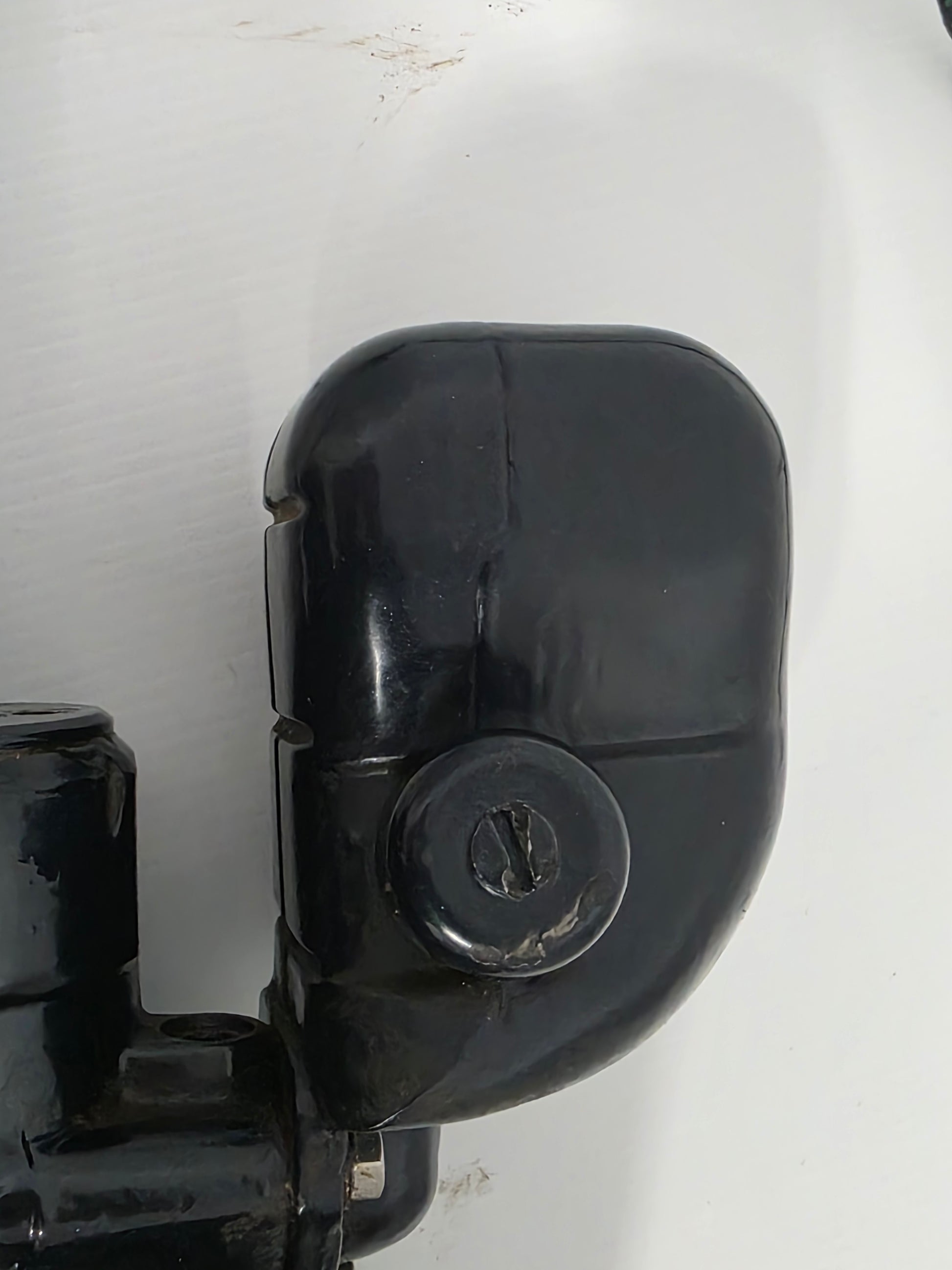

Genuine BRP / Evinrude FasTrak Three-Ram Power Trim Assembly - Part Number: 5005428

A genuine BRP / Evinrude FasTrak hydraulic power trim and tilt assembly used across selected three-, four- and six-cylinder Johnson and Evinrude outboards. The two-wire three-ram design was used from the early 1990s through later FICHT and first-generation E-TEC platforms. The 0438528 number is an earlier OEM reference replaced by 5005428.

⚙️ Key Features

• Genuine BRP / OMC FasTrak hydraulic trim assembly
• Current service number 5005428
• Supersedes 0438528 and earlier 0434395-series units

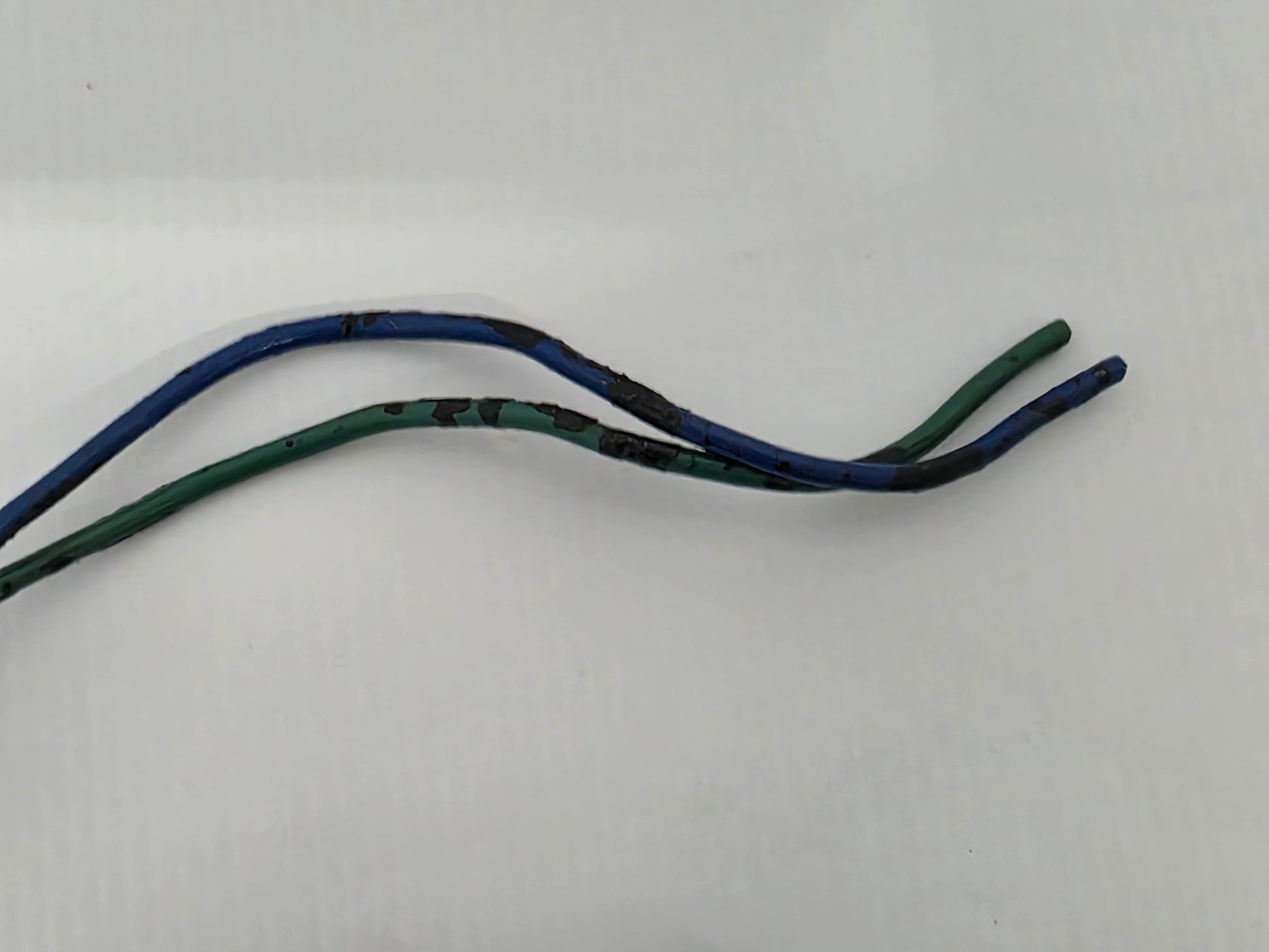

• Universal two-wire three-ram configuration for compatible FasTrak midsections
• Used on selected 60HP through 300HP Johnson and Evinrude outboards

🚤 Compatibility

Commonly used on

• Johnson / Evinrude FasTrak transom-bracket assemblies
• Carburetted, Ocean Pro, Ocean Runner, Intruder, FastStrike, FICHT and G1 E-TEC platforms using the universal two-wire unit

Typically suits

• Engine models:
• Johnson / Evinrude 60HP, 65HP and 70HP three-cylinder models
• Johnson / Evinrude 75HP, 80HP, 85HP, 88HP, 90HP, 100HP, 105HP, 112HP, 115HP, 120HP, 125HP and 130HP V4 models
• Johnson / Evinrude 135HP, 150HP, 175HP, 200HP, 225HP and 250HP V6 models
• Evinrude 200HP, 225HP, 250HP, 275HP and 300HP FICHT / E-TEC applications using the matching FasTrak midsection
• Representative 1994 Johnson 60HP application
• Representative 1998-2001 90HP hydraulic assembly applications
• Representative 1999 Johnson 90HP and 1999 Johnson 70HP diagrams
• HP Range: 60HP - 300HP
• Engine Type: Johnson / Evinrude two-stroke, FICHT and G1 E-TEC outboard
• Year Range: Approximately 1993 through the end of applicable G1 E-TEC production

🔌 Function

The electric motor and pump direct hydraulic pressure to the centre tilt ram and two outer trim rams. The system provides rapid tilt movement, fine running-trim control and hydraulic position holding.

⚠️ Common Signs of Failure

• Trim motor runs without engine movement
• Engine slowly falls after trimming
• Fluid leaks around ram seals or valve body
• Only UP or DOWN operates
• Slow movement under load
• Pitted ram rods
• Motor or relay current draw is excessive

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 5005428 → Supersedes 0438528
• 0438528 → Supersedes 0434395
• 0434395 earlier OEM hydraulic assembly
• 0434396 and 0438534 related production revisions

OEM / Related Numbers

• 5005428
• 05005428
• 0438528
• 438528
• 0434395
• 434395
• 0434396
• 434396
• 0438534
• 438534
• FasTrak two-wire three-ram hydraulic assembly

Aftermarket / Verified Equivalents

• Rareelectrical: complete 0438528 / 5005428 replacement trim assembly
• Southcentral Outboards: rebuilt FasTrak 5005428 trim unit
• Five Star Marine: professional FasTrak trim rebuild service
• Aftermarket OMC three-ram seal kits and replacement trim motors

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
