5006319 Aftermarket Bombardier E-TEC Trim Motor | Sawley's Select Marine Parts

🔧 Product Description

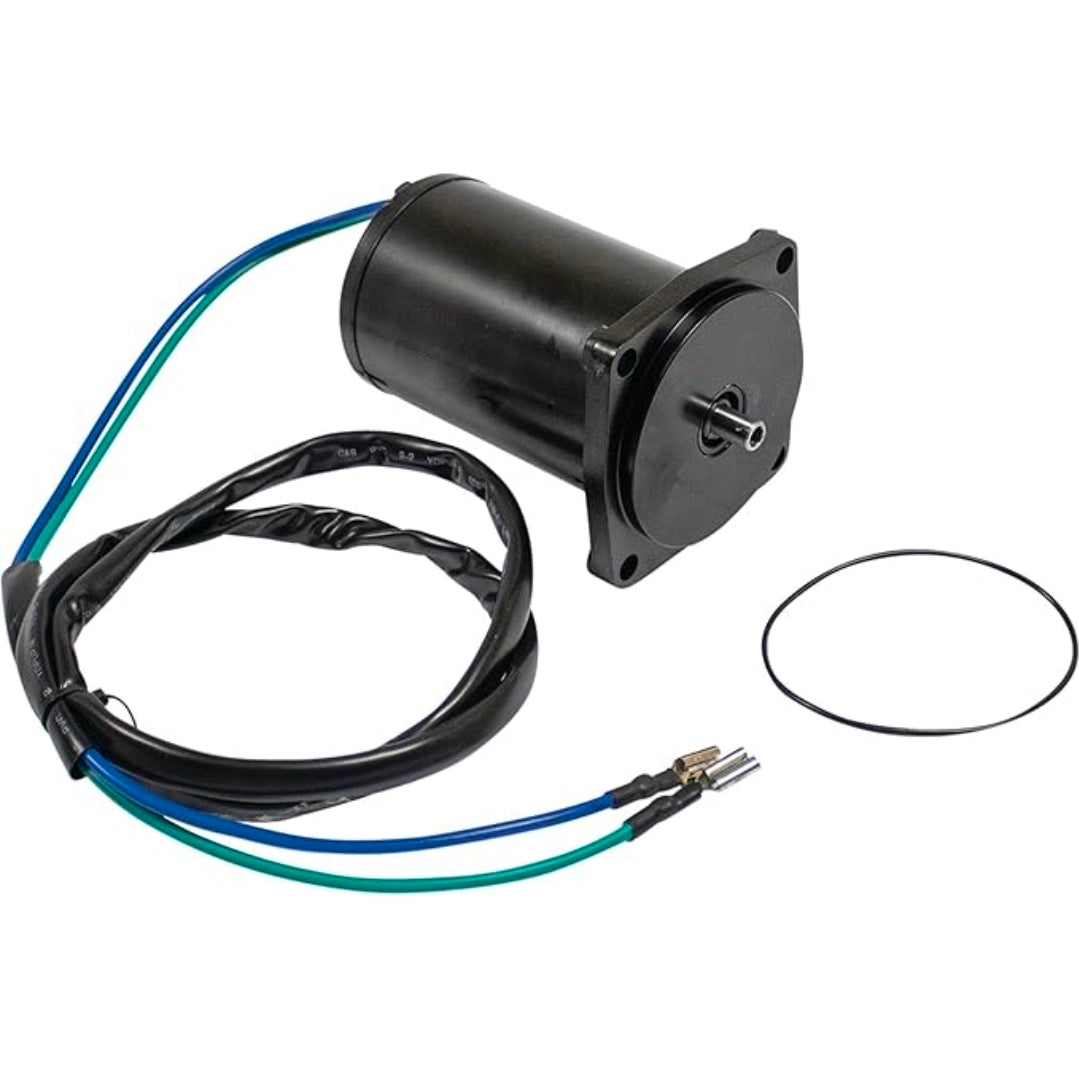

Aftermarket replacement E-TEC Mid-Range Trim & Tilt Motor - Replaces Part Number: 5006319

New aftermarket trim motor replacing BRP 5006319 for mid-range E-TEC hydraulic trim systems.

⚙️ Key Features

• Direct replacement for BRP 5006319

• Two-wire reversible motor

• Designed for E-TEC 70HP-130HP trim units

• Cross-references earlier 5005817 and 5005838

• Marine sealed housing and leads

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 5006319

• 1 × Integrated two-wire lead set

• 1 × Motor-to-pump O-ring - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 5006319 → Supersedes/cross-references 5005817 and 5005838

OEM / Related Numbers:

• 5005817

• 5005838

• ARCO 6247

• PH200-T061

Aftermarket / Verified Equivalents:

• ARCO: 6247

• Protorque/WSM: PH200-T061

• Recmar: REC5006319

🚤 Compatibility

Commonly used on:

• Evinrude E-TEC mid-range power trim systems

Typically suits:

• Engine / Drive models:

• 70HP and 90HP E-TEC approximately 2005-2009

• 115HP E-TEC approximately 2007-2009

• 130HP E-TEC from approximately 2009 where the listed motor is specified

• HP / Drive Range: 70HP - 130HP

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: Approximately 2005 onward; model-code dependent

• Serial / Component Identification: Confirm motor flange and OEM 5006319.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Pump works only after the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
