5007420 Evinrude Johnson Fuel Pump Kit | Genuine OEM BRP Outboard Part

🔧 Product Description

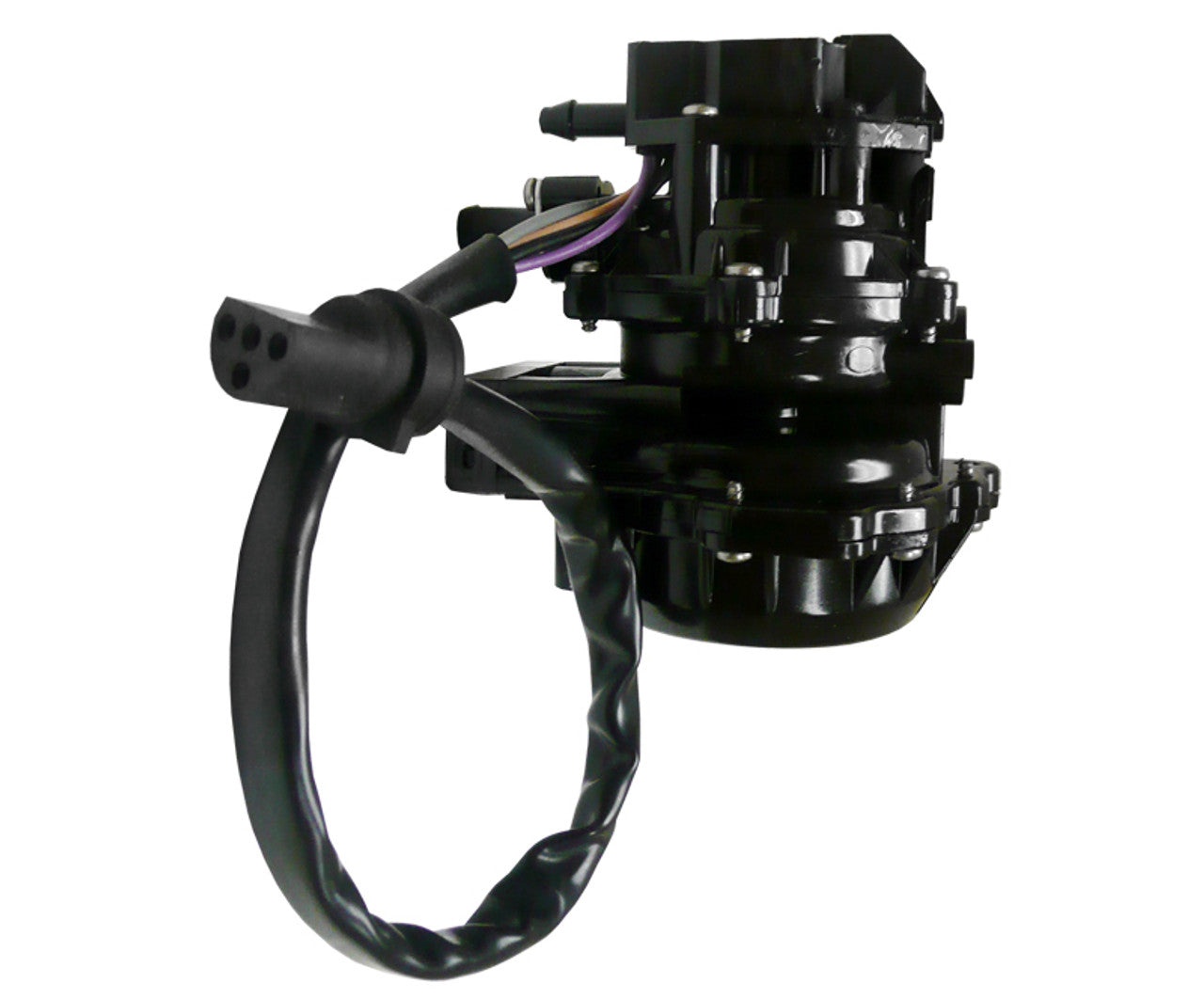

Genuine BRP Evinrude Johnson Four-Wire VRO Fuel and Oil Pump Kit - Part Number: 5007420

A genuine BRP VRO-style combined fuel and oil-injection pump for selected Johnson and Evinrude carburetted two-stroke outboards.

The pump is driven by crankcase pressure pulses and supplies petrol to the carburettors while metering two-stroke oil into the fuel stream. Its four-wire electrical connector supports low-oil-flow warning functions.

⚙️ Key Features

• Genuine BRP four-wire VRO pump assembly

• Correct OEM reference 5007420

• Combines fuel pumping and oil metering

• Includes warning-system electrical connection

• Direct VRO-style and fuel-only conversion alternatives available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 5007420 → Replaces 5004558

• 5004558 → Replaces selected 0438400-series VRO pumps

• 5007420 consolidates several earlier VRO pump references

OEM / Related Numbers:

• 5007420

• 5004558

• 0438400

• 438400

• 0438094

• 438094

• 0436203

• 436203

• 0435953

• 435953

• 0435560

• 435560

• 0435556

• 435556

• 0435558

• 435558

• 0435784

• 435784

• 0175109

• 175109

Aftermarket / Verified Equivalents:

• Machter four-wire VRO pump kit: OP-JH001

• Maxpeedingrods 5007420 VRO-style pump

• Aftermarket four-wire VRO pumps sold under 5007420

• EMP: 1399-07359 / 4-7359 - fuel-only conversion pump

• 5007422-related fuel-only conversion assemblies

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude carburetted V4 and V6 outboards

• Four-wire VRO2 fuel and oil systems

• Engines using crankcase-pulse-operated fuel pumps

Typically suits:

• Engine models:

• Selected 90HP and 100HP V4 engines

• Johnson / Evinrude 110HP and 115HP

• 120HP, 125HP, 130HP and 140HP

• 150HP, 155HP and 175HP V6 engines

• Selected 200HP, 225HP and 250HP engines

• Engines originally fitted with any superseded VRO number above

• HP Range: Primarily 90HP - 250HP

• Engine Type: Carburetted V4 or V6 two-stroke outboard

• Year Range: Primarily 1991-2001, with exact coverage determined by the original pump number

🔌 Function

The pump uses crankcase pressure pulses to draw petrol from the boat's fuel tank while simultaneously metering oil from the remote reservoir into the fuel stream.

Common signs of failure:

• Engine loses fuel supply at high rpm

• Fuel leaks from the pump body

• No-oil warning sounds

• Excessive or insufficient oil consumption

• Engine is difficult to prime or start

• Pump diaphragm is split

• Petrol enters the pulse hose

• Oil-side air leak develops

• Engine runs lean because fuel delivery is inadequate

📦 Condition

• Genuine BRP part

• Brand new

• Supplied in original or equivalent packaging
