5008164 Evinrude E30 Exhaust Housing | Genuine Used Part

🔧 Product Description

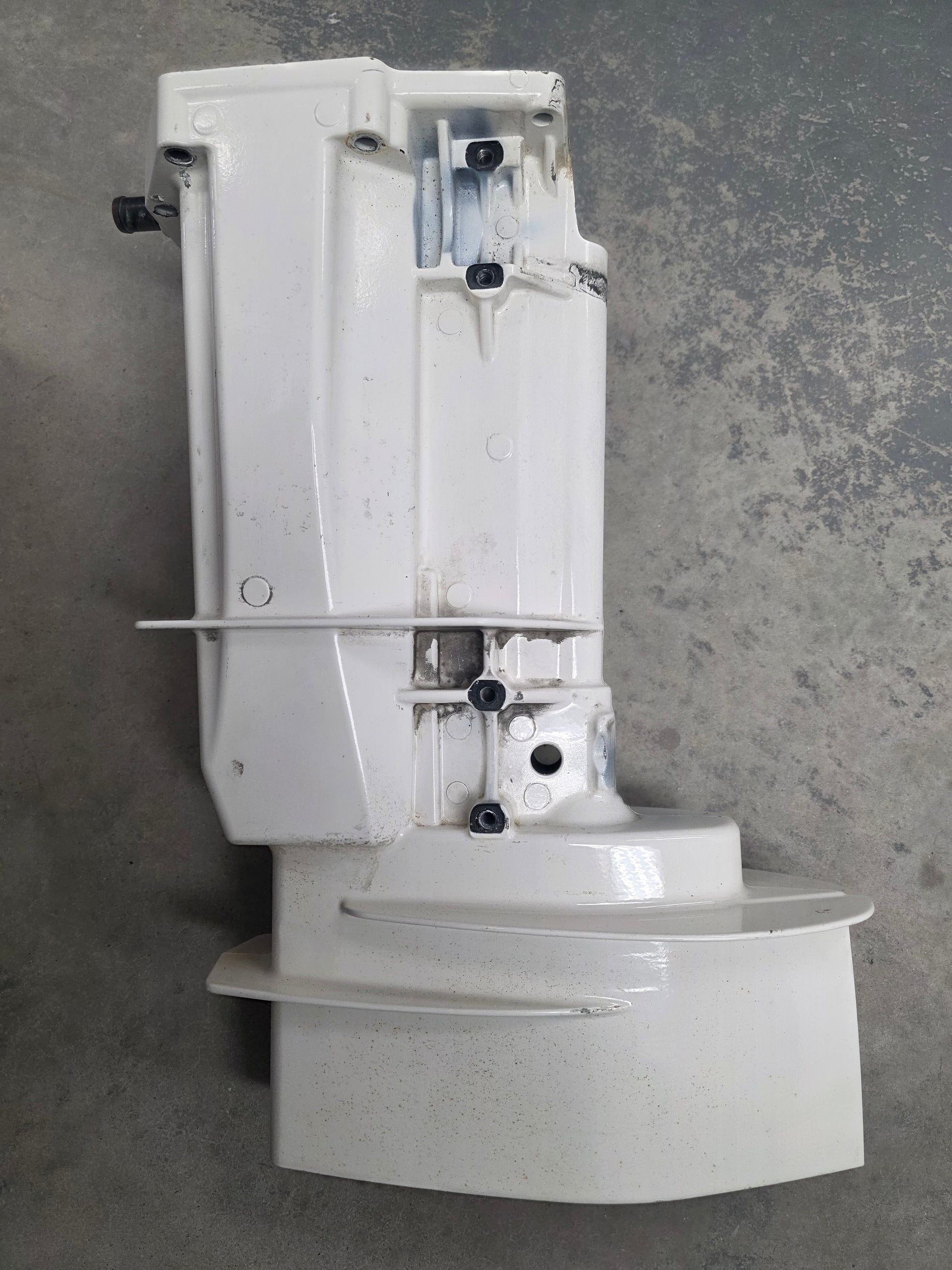

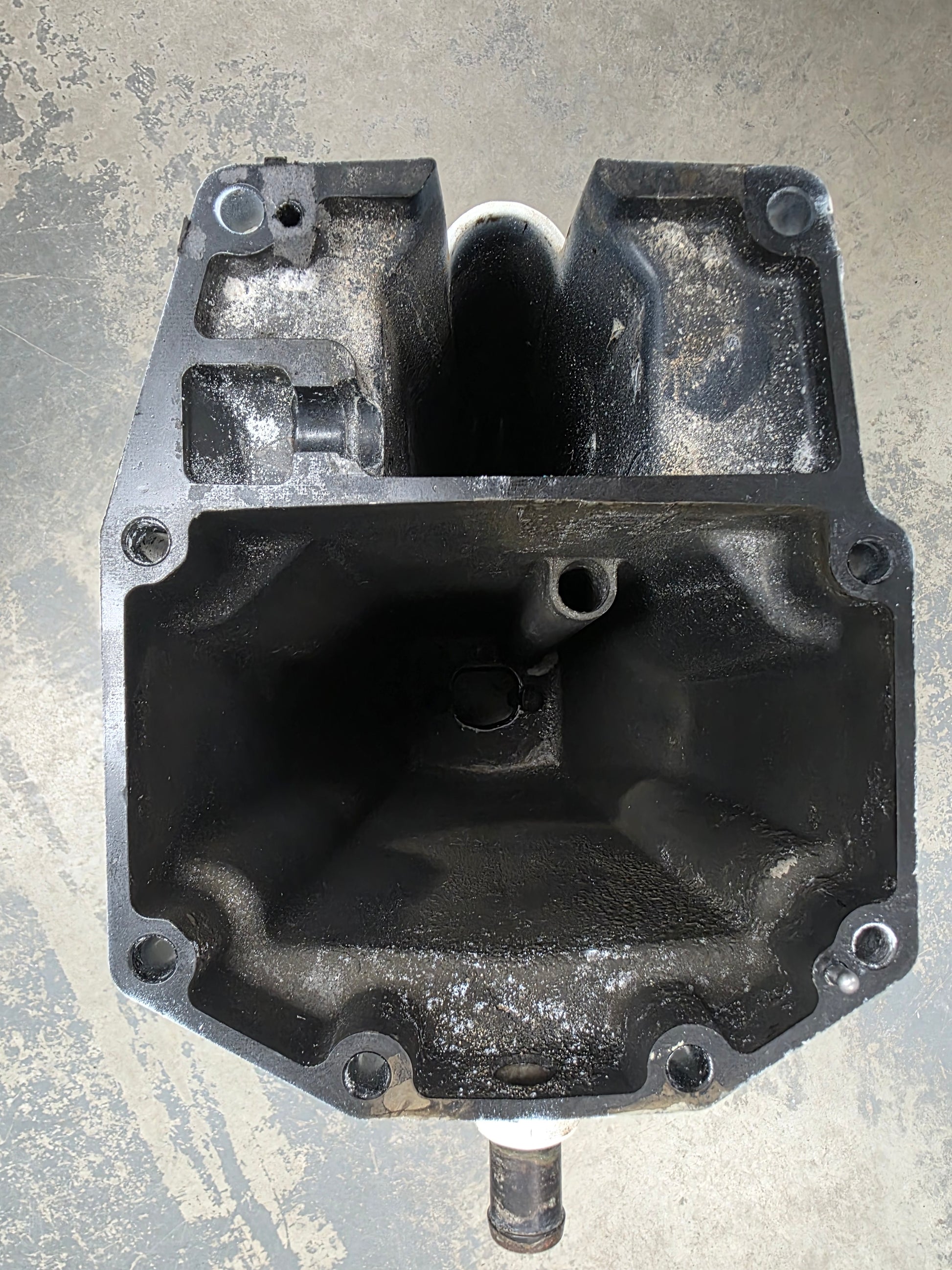

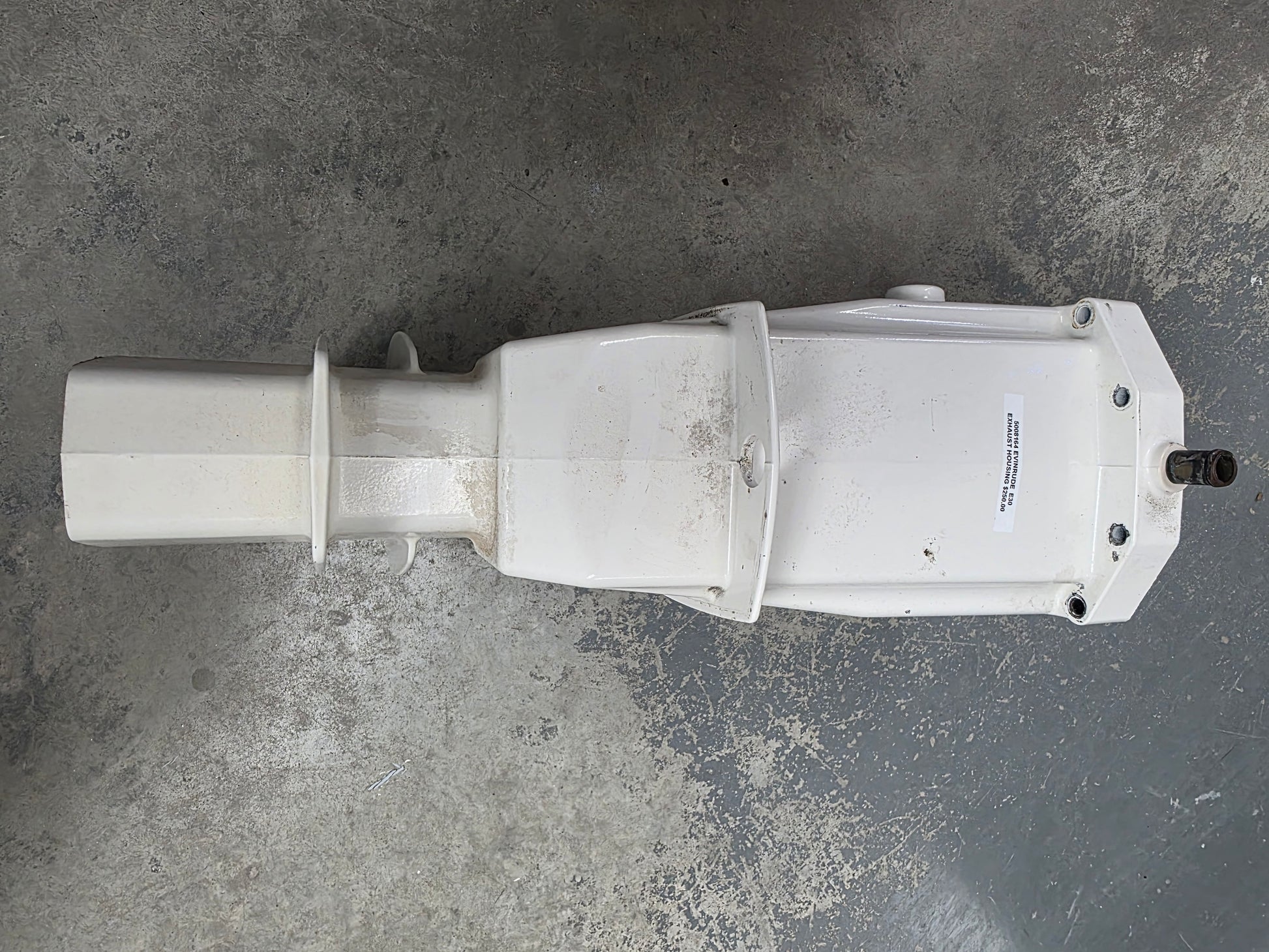

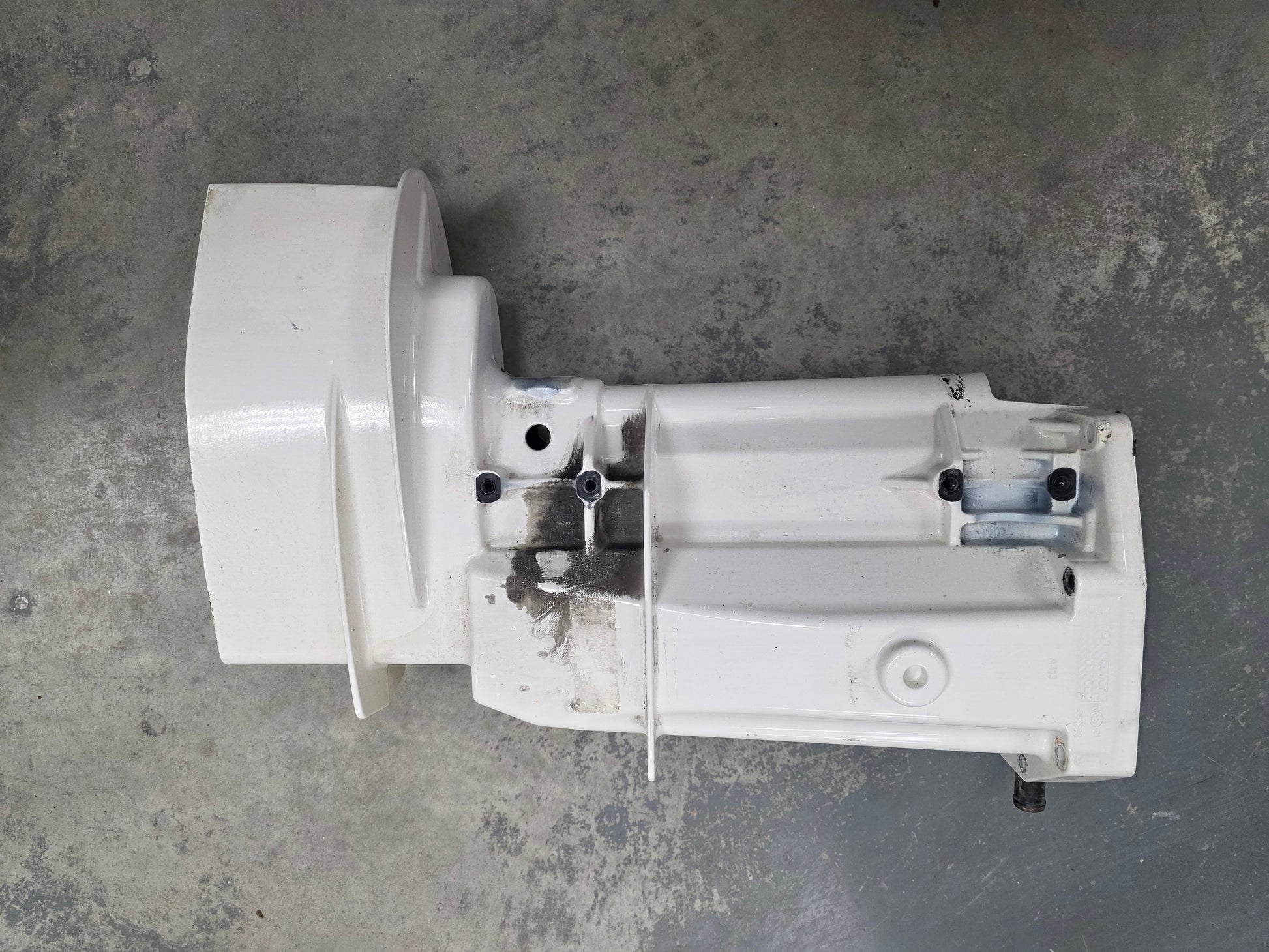

Genuine Evinrude E-TEC 20-Inch Exhaust Housing - Part Number: 5008164

A genuine Evinrude exhaust and driveshaft housing for selected 15HP, 25HP and 30HP two-cylinder E-TEC outboards with a 20-inch shaft.

The housing forms the main midsection between the powerhead and lower unit. It carries the exhaust gases and cooling-water passages while supporting the swivel bracket, steering arm, engine mounts and gearcase.

Part number 5008164 replaces the earlier 20-inch exhaust housing reference 5007341.

⚙️ Key Features

• Genuine Evinrude / BRP 20-inch exhaust housing
• Correct current part number 5008164
• Supersedes earlier exhaust housing 5007341
• Used on 15HP, 25HP and 30HP two-cylinder E-TEC outboards
• Supports the powerhead, steering bracket and lower unit

🚤 Compatibility

Commonly used on

• Evinrude E-TEC two-cylinder 20-inch midsections
• Rope-start, electric-start, tiller and remote-control models

Typically suits

• Engine models:
• Evinrude E-TEC 15HP two-cylinder 20-inch models
• Evinrude E-TEC 25HP two-cylinder 20-inch models
• Evinrude E-TEC 30HP two-cylinder 20-inch models
• E15HGL and E15HTGL model families
• E25DR, E25DT, E25DPL and E25DPS model families
• E30DR, E30DT, E30DPL, E30DPS and E30TE model families
• E25DTSLAAB
• E30TESLIIH
• E30DTELIIH
• 20-inch AB, AF, II and IN model-code families using housing 5008164
• HP Range: 15HP - 30HP
• Engine Type: Evinrude E-TEC two-cylinder direct-injected two-stroke outboard
• Shaft Length: 20-inch / long shaft
• Year Range: Approximately 2010 - 2019

🔌 Function

The exhaust housing connects the powerhead to the lower unit, carries exhaust and cooling-water flow and supports the steering, mounting and gearcase assemblies.

⚠️ Common Signs of Failure

• Cracks around the engine-mount or swivel-bracket areas
• Corrosion damages the exhaust or cooling passages
• Housing distorted after impact or grounding
• Mounting surfaces no longer align with the powerhead or gearcase
• Exhaust leakage or water leakage around the housing joints

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 5008164 → Supersedes 5007341
• 5007341 earlier Evinrude 20-inch exhaust housing reference

OEM / Related Numbers

• 5008164
• 5007341
• 5007443 related exhaust muffler
• 0355128 related inner exhaust housing
• 0355927 related exhaust megaphone
• 5007920 related upper engine-mount assembly
• 5007508 related lower engine mounts
• 0356963 related swivel bracket
• 5009612 related steering arm

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
