5009035 Evinrude E30 Tilt & Trim Assy | Genuine Used Part

🔧 Product Description

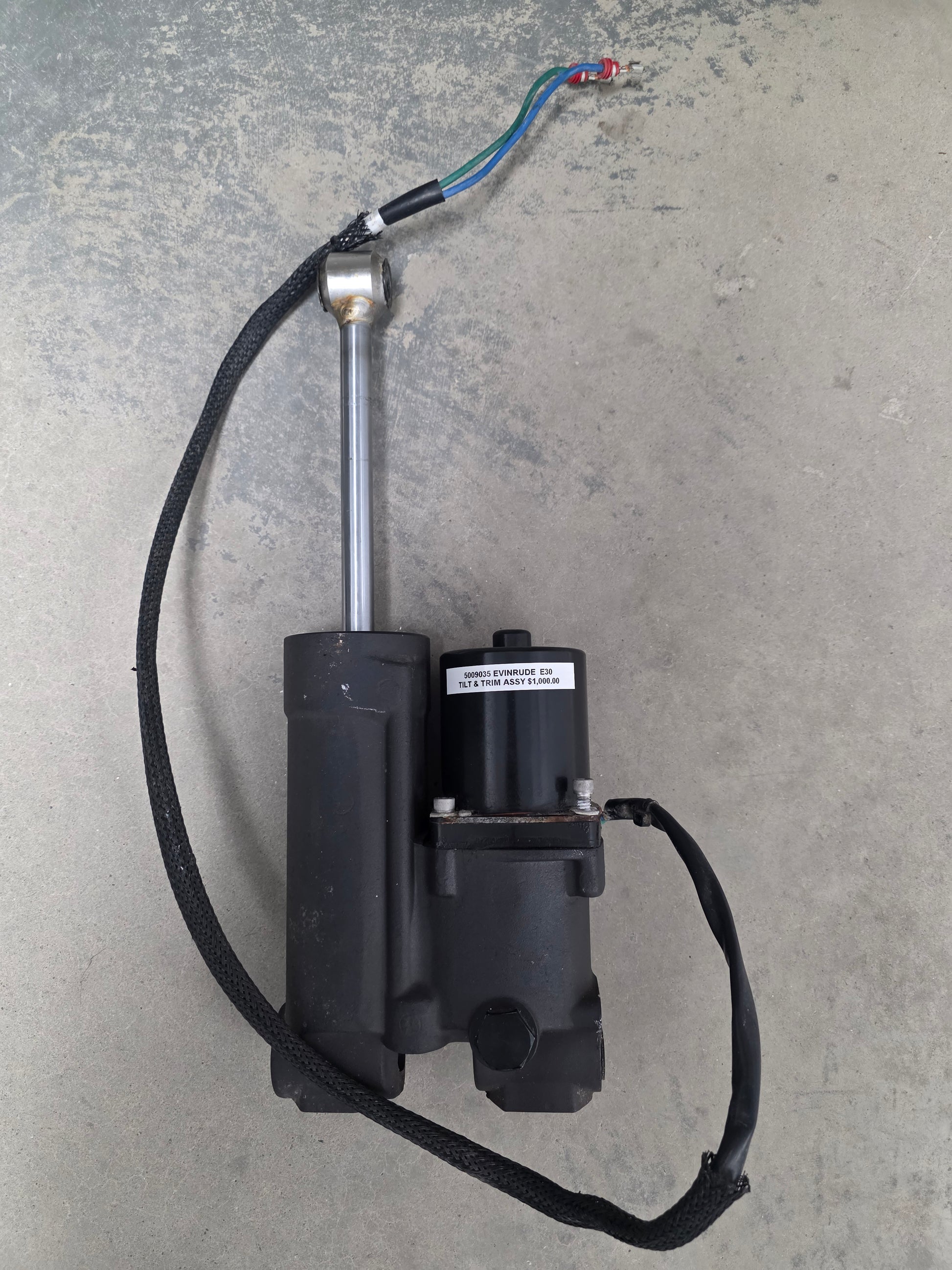

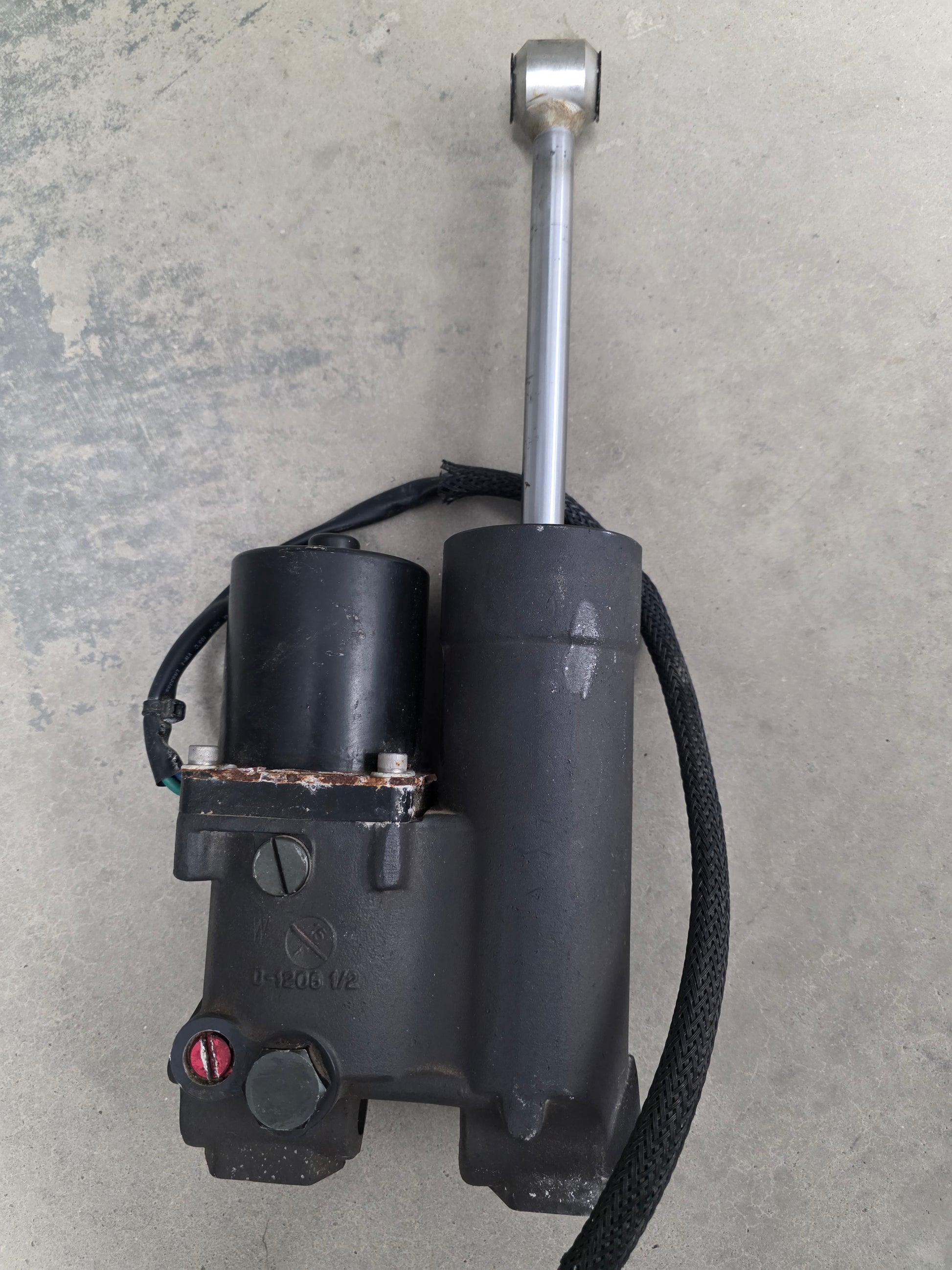

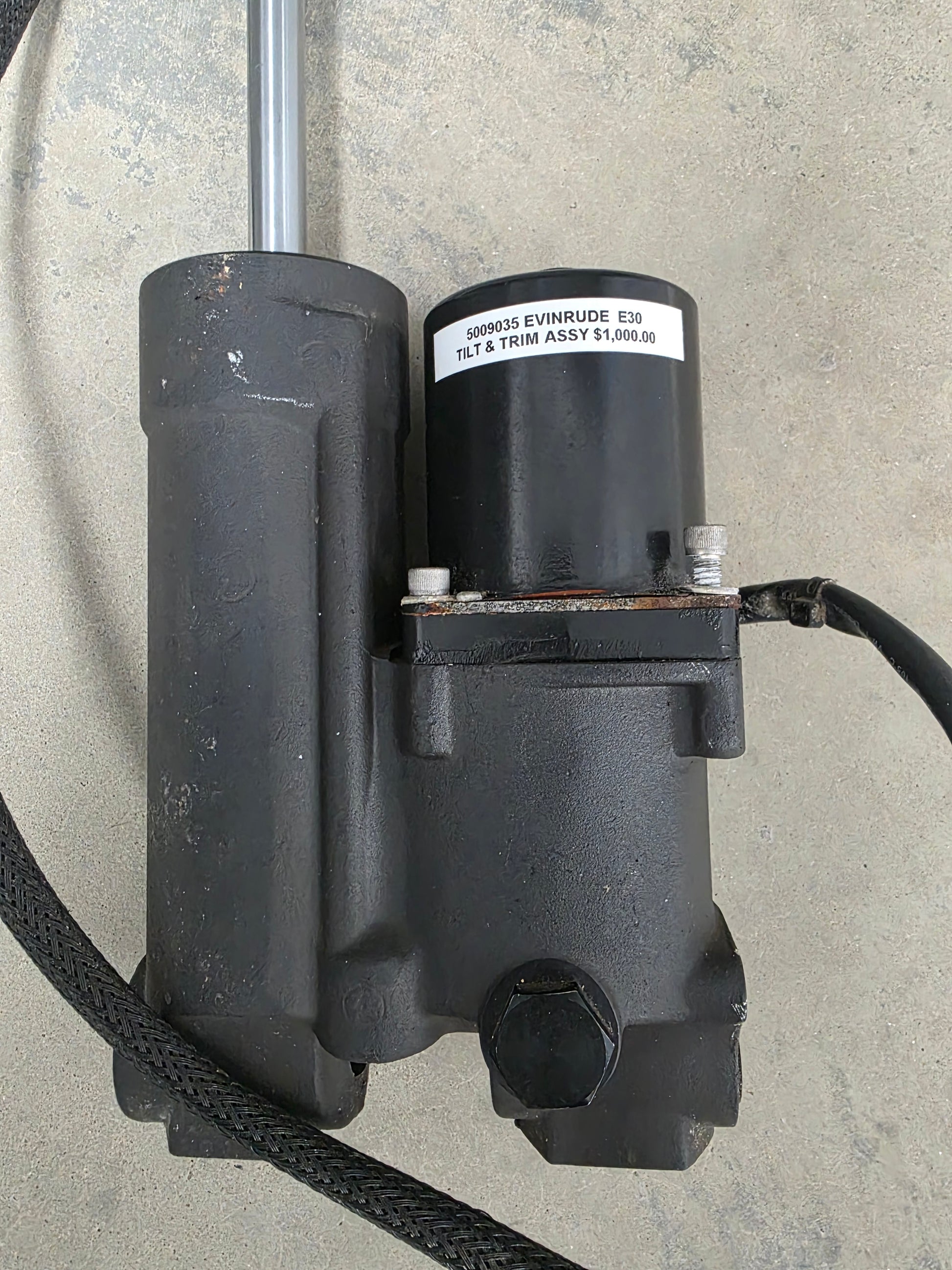

Genuine BRP / Evinrude Compact Hydraulic Lift Assembly - Part Number: 5009035

A genuine BRP compact hydraulic lift and power trim assembly for selected Evinrude E-TEC 25HP, 30HP and 40HP to 60HP outboards. The single-ram unit combines the electric motor, hydraulic pump, valve body, reservoir and lift cylinder in the E-TEC clamp-bracket assembly.

⚙️ Key Features

• Genuine BRP / Evinrude hydraulic lift assembly
• Correct current part number 5009035
• Supersedes 5007774 and 5005441
• Compact single-ram power tilt and trim design
• Used on selected E25, E30, E40, E50, E55 and E60 E-TEC families

🚤 Compatibility

Commonly used on

• Evinrude E-TEC compact clamp and swivel-bracket assemblies
• Remote-control and tiller-steer engines using the 5009035 hydraulic lift

Typically suits

• Engine models:
• Evinrude E25D / E25DSL / E25DRL
• Evinrude E30D / E30DSL / E30DRL
• Evinrude E40D / E40DPL / E40DSL
• Evinrude E50D / E50DPL / E50DSL
• Evinrude E55 commercial E-TEC applications
• Evinrude E60D / E60DPL / E60DSL
• Representative E40DPLAFA trim-and-tilt hydraulic assembly
• Representative E60DPLAAA trim-and-tilt hydraulic assembly
• HP Range: 25HP - 60HP
• Engine Type: Evinrude E-TEC inline two- and three-cylinder direct-injection outboard
• Year Range: Approximately 2004-2020, dependent on model code

🔌 Function

The electric motor drives the hydraulic pump to extend or retract the single lift ram. Internal valves control tilt speed, running trim and hydraulic holding pressure.

⚠️ Common Signs of Failure

• Unit will not raise or lower
• Motor spins but ram does not move
• Engine settles after trimming
• Hydraulic fluid leakage
• Slow movement or aerated fluid
• Operation in only one direction
• Corroded motor housing or damaged wiring

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 5009035 → Supersedes 5007774
• 5009035 → Supersedes 5005441
• 5007774 earlier 25HP / 30HP hydraulic lift assembly
• 5005441 earlier E-TEC hydraulic lift assembly

OEM / Related Numbers

• 5009035
• 05009035
• 5007774
• 05007774
• 5005441
• 05005441
• 5005730 related trim motor
• 5005831 related trim motor
• 5005822 and 5007775 related motor revisions

Aftermarket / Verified Equivalents

• Aftermarket complete replacement motors cross-referencing 5005441 / 5005730 / 5005831 / 5009035
• Professional rebuild service for BRP compact E-TEC hydraulic lift assemblies
• Aftermarket E-TEC single-ram seal and O-ring kits

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
