5009238 Evinrude E30 Recoil Starter Assy | Genuine Used Part

🔧 Product Description

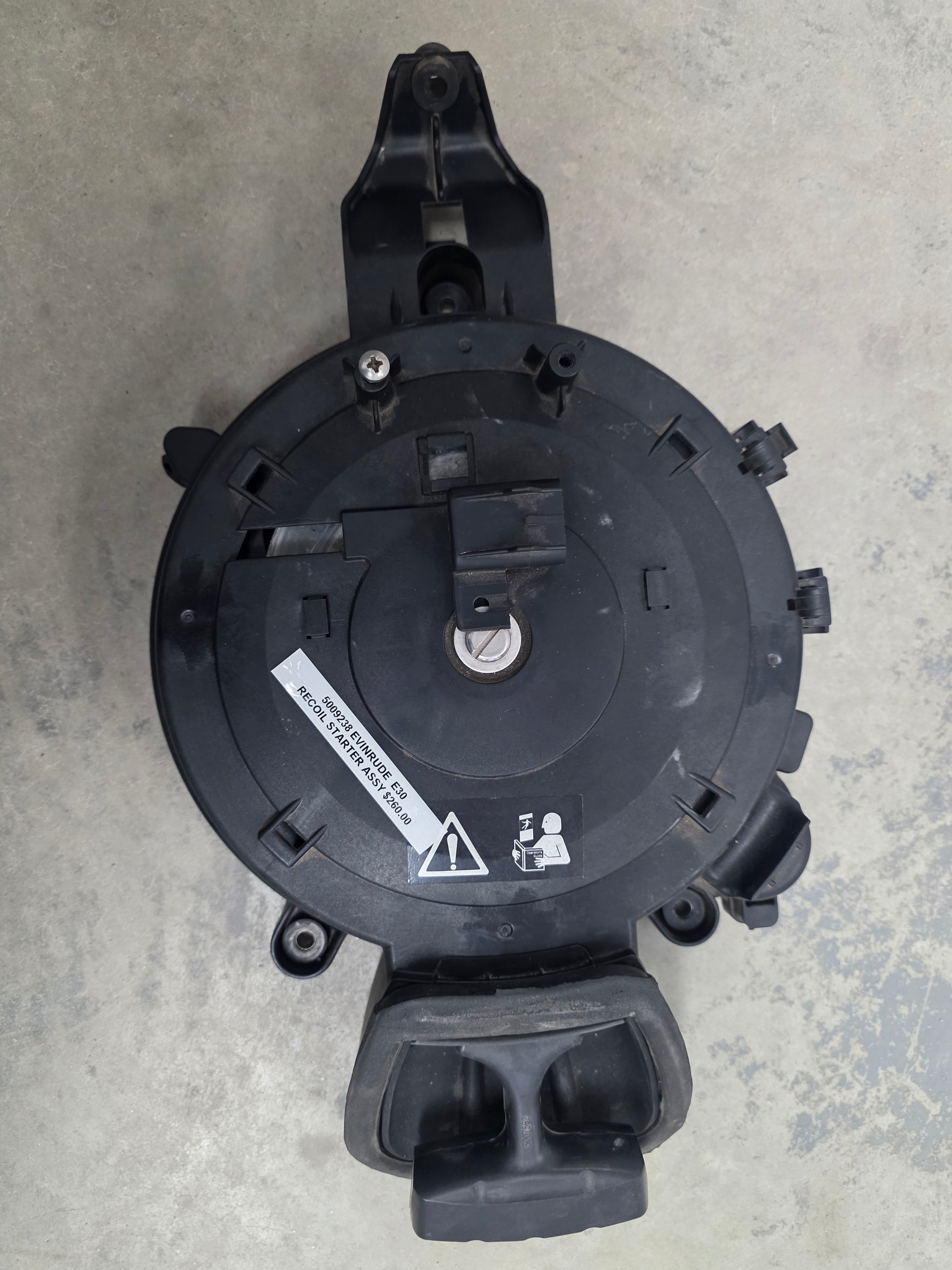

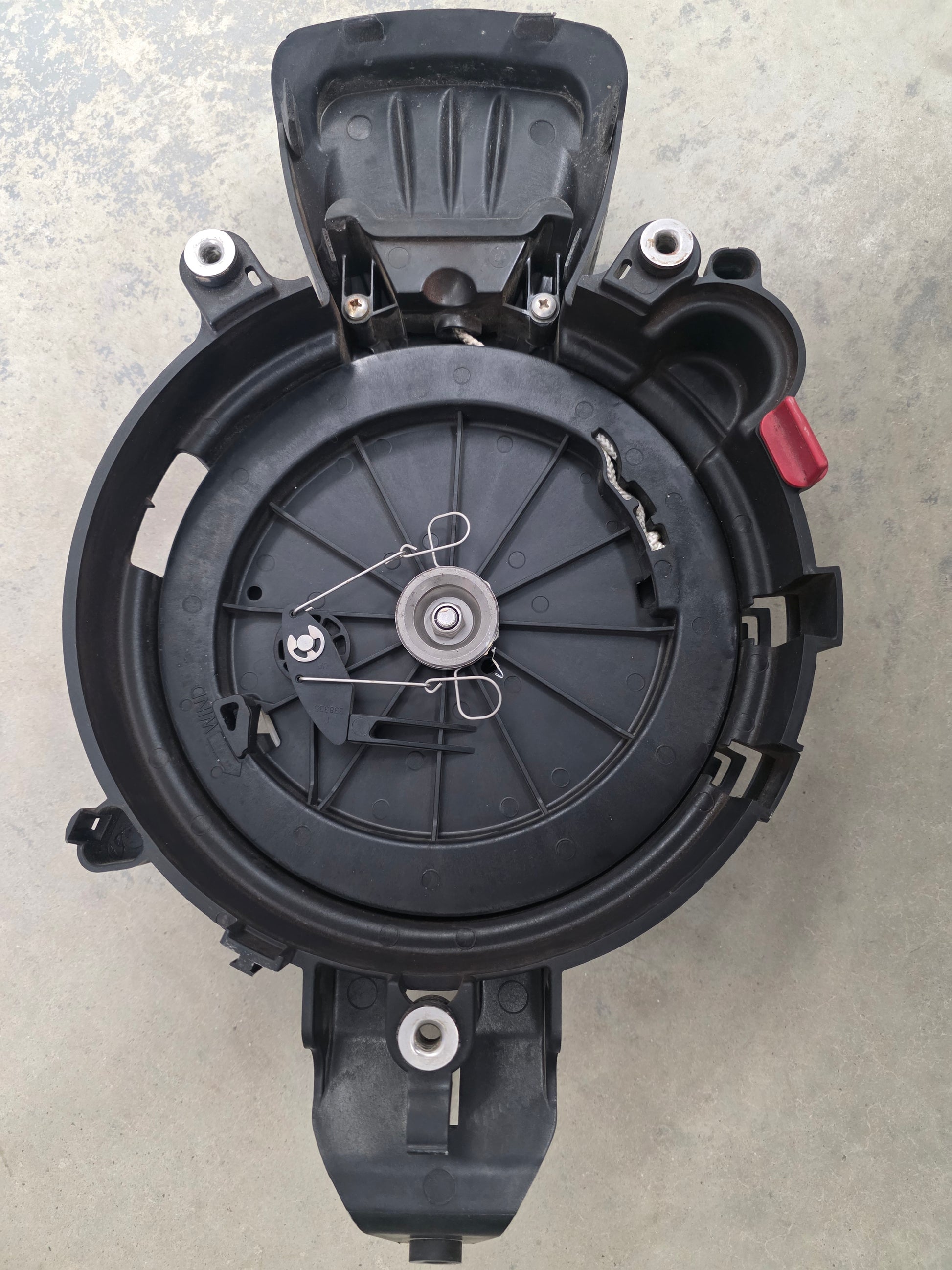

Genuine Evinrude Johnson Manual Recoil Starter Assembly - Part Number: 5009238

A genuine Evinrude Johnson manual recoil starter assembly used on E30 / 30HP two-stroke outboards. This complete pull-start assembly includes the housing style and internal starter mechanism required for manual engine cranking.

⚙️ Key Features

• Genuine Evinrude Johnson recoil starter assembly

• Correct OEM part number 5009238

• Manual pull-start assembly for 30HP outboards

• Includes housing and recoil starter mechanism family

• Used on E30 / 30HP manual-start configurations

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 5009238 Evinrude Johnson recoil starter assembly reference

OEM / Related Numbers:

• 5009238

• 05009238

• 0335905 related friction spring link

• 0338335 related starter pulley pawl

• 0203470 related retaining ring

• 0356908 related rope guide

• 5007562 related starter handle assembly

• 0353698 related starter handle cap

• 0353987 related rope housing seal

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Evinrude E30 manual-start outboards

• Johnson / Evinrude 30HP recoil starter assemblies using 5009238

Typically suits:

• Engine models:

• Evinrude E30 two-stroke manual-start applications

• Evinrude 30HP two-stroke recoil starter assemblies where 5009238 is specified

• Johnson 30HP two-stroke recoil starter assemblies where 5009238 is specified

• BRP / OMC 30HP manual-start models using the 5009238 recoil starter assembly diagram

• HP Range: commonly 30HP

• Engine Type: Evinrude Johnson two-stroke outboard

• Year Range: model-specific E30 / 30HP applications where the recoil starter diagram lists 5009238

• System Type: Manual recoil starter assembly

🔌 Function

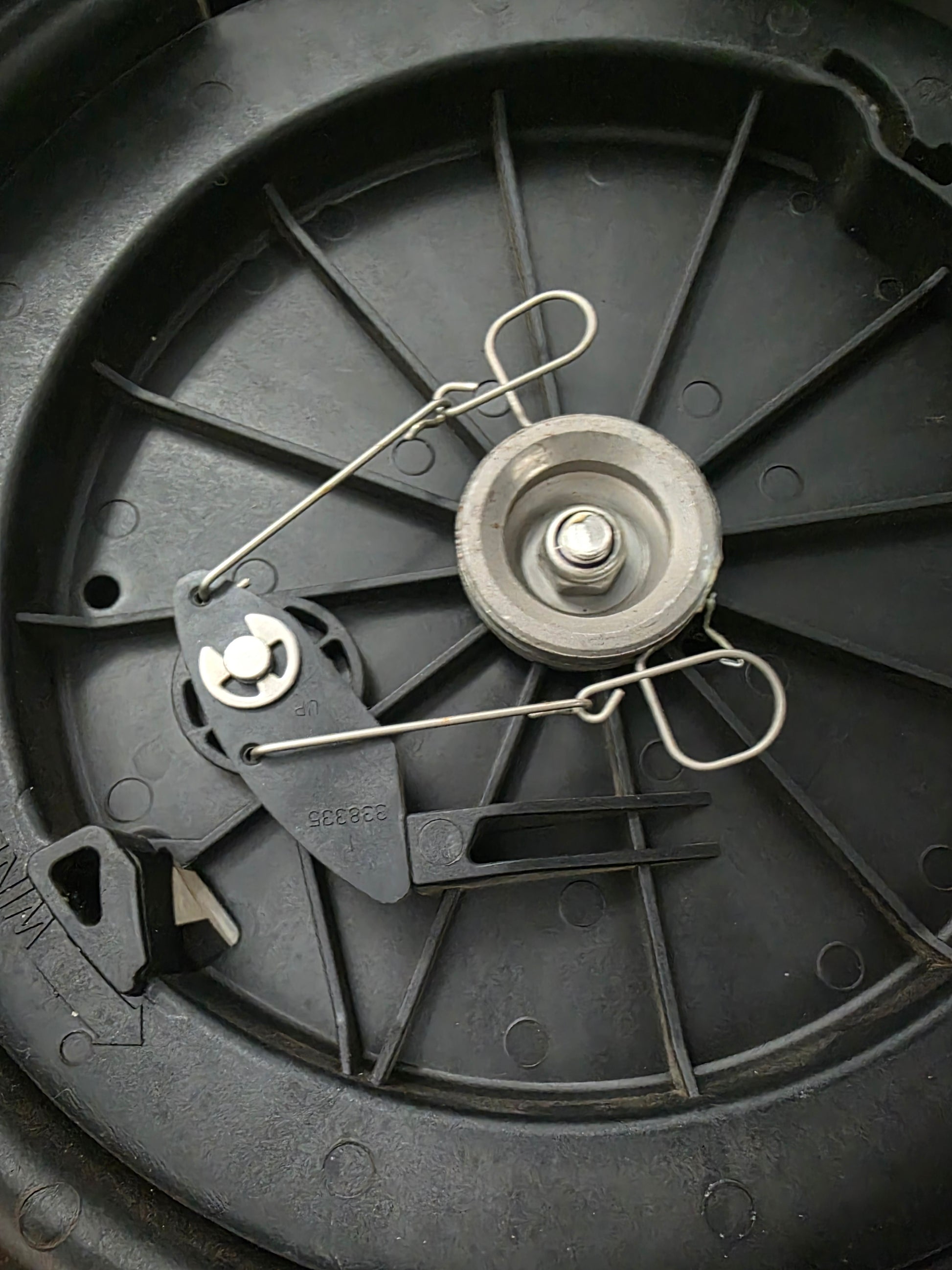

The recoil starter assembly allows the operator to manually crank the engine by pulling the starter rope. It engages the flywheel through the starter pawl and pulley mechanism.

Common signs of failure:

• Starter rope does not retract

• Pull-start slips and does not engage

• Broken recoil spring

• Worn starter pawls

• Cracked housing or damaged rope guide

• Starter handle, rope or pulley damage

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
