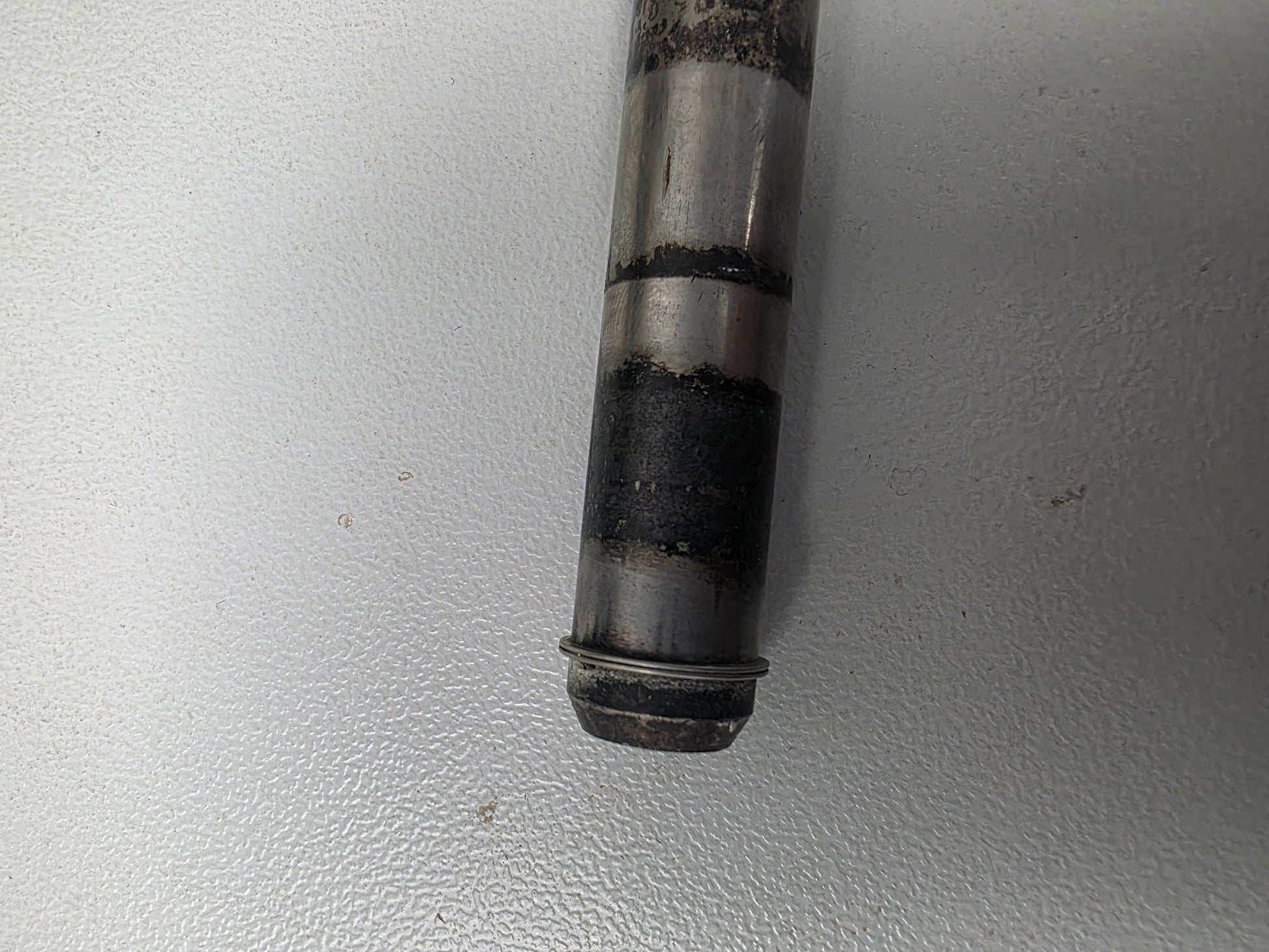

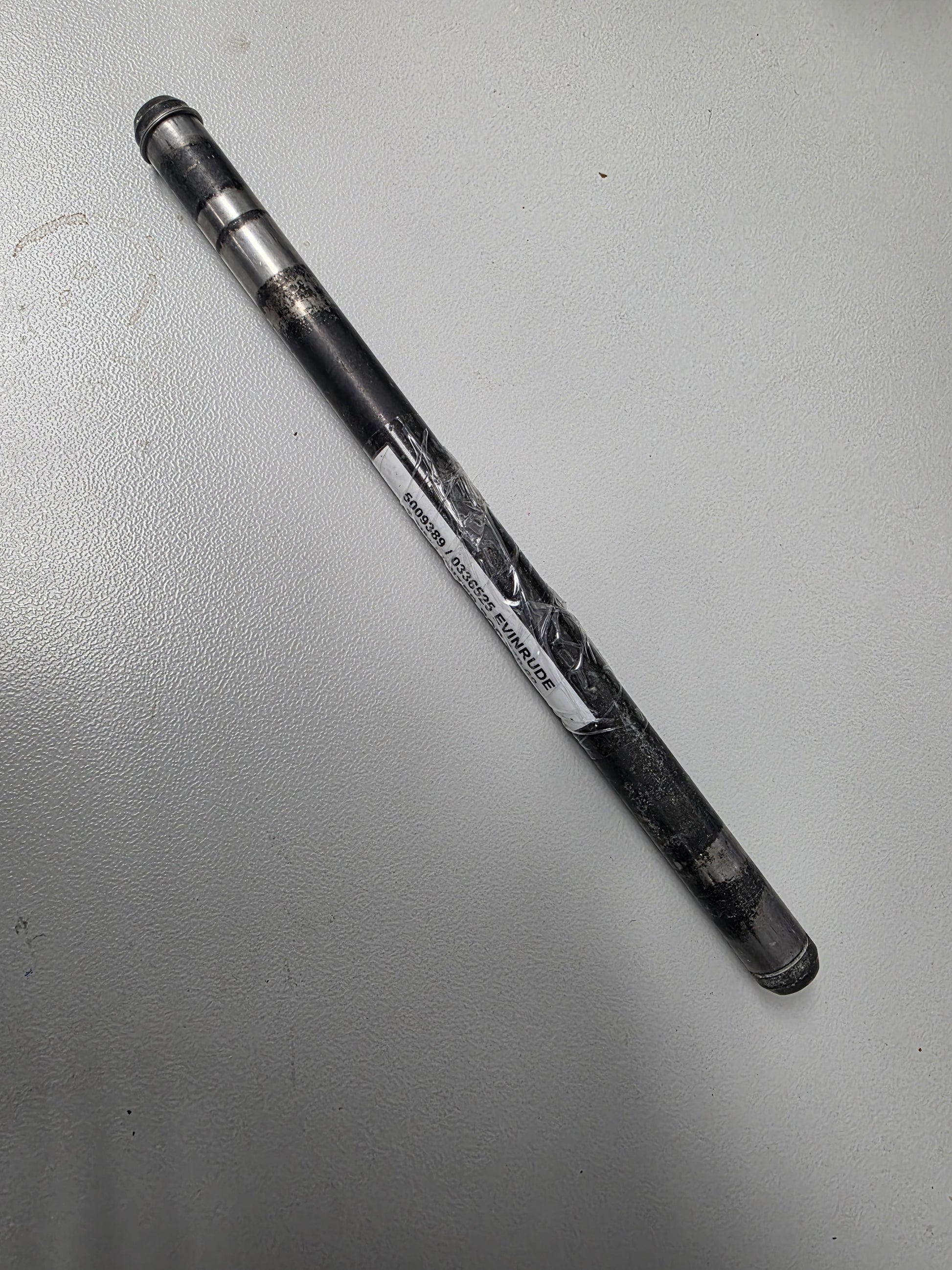

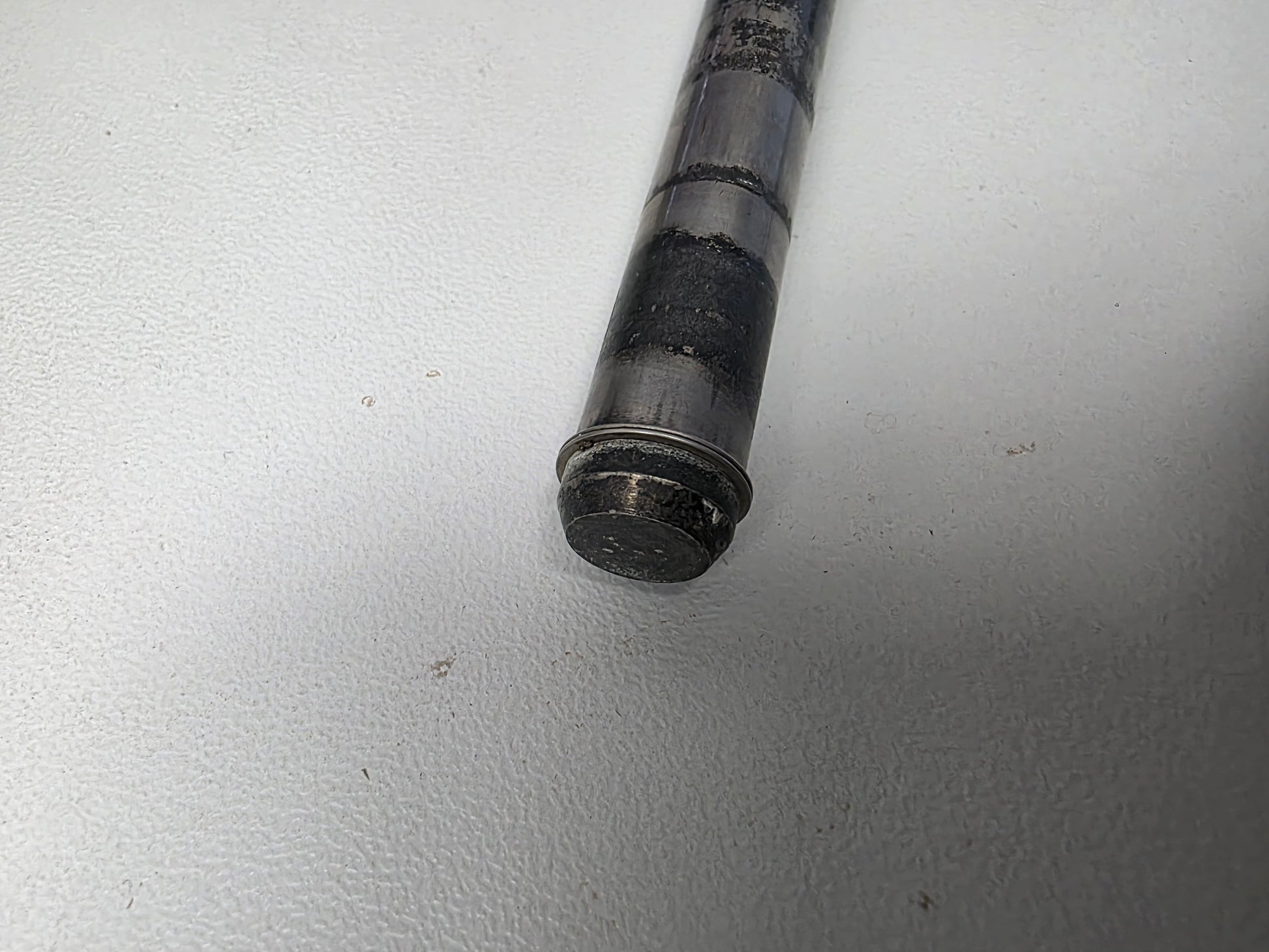

5009389 0336525 Evinrude Trim Limiter Rod | Genuine Used Part

🔧 Product Description

Genuine BRP / OMC Trim Limit Rod Kit - Part Number: 5009389

A genuine BRP trim-limit rod and nut kit for selected Johnson and Evinrude FasTrak V4 and V6 outboards. The rod is installed through one of the indexed holes in the stern brackets to limit the engine's maximum inward trim angle and prevent the lower unit or steering system from contacting the transom.

⚙️ Key Features

• Genuine BRP / OMC trim-limit rod kit
• Current kit number 5009389
• Supersedes the earlier rod reference 0336525
• Used with FasTrak stern brackets containing indexed limiter holes
• Includes the rod and retaining nut where supplied as a complete kit

🚤 Compatibility

Commonly used on

• Johnson and Evinrude FasTrak lower-engine-cover and stern-bracket assemblies
• V4 and V6 outboards with the corresponding trim-limiter holes

Typically suits

• Engine models:
• Johnson / Evinrude 60HP through 70HP three-cylinder FasTrak models
• Johnson / Evinrude 75HP, 90HP, 100HP, 115HP, 120HP, 125HP and 130HP V4 models
• Johnson / Evinrude 135HP, 150HP, 175HP, 200HP, 225HP and 250HP V6 models
• Selected 275HP and 300HP FICHT / E-TEC models using the same limiter-rod arrangement
• OMC model families produced approximately 1991-2006 where 0336525 or 5009389 is shown
• HP Range: Commonly 60HP - 300HP
• Engine Type: Johnson / Evinrude two-stroke, FICHT and E-TEC outboard
• Year Range: Approximately 1991-2006 for the principal applications

🔌 Function

The rod provides a physical stop for the transom bracket. Moving it between indexed holes changes the minimum trim-in position and protects the boat, steering components and gearcase from excessive inward travel.

⚠️ Common Signs of Failure

• Rod bent or missing
• Threads damaged or retaining nut seized
• Engine trims too far inward
• Lower unit or steering linkage contacts the transom
• Rod corroded into the stern bracket
• Uneven wear at the limiter holes

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 5009389 → Supersedes 0336525
• 0336525 earlier OEM trim-limiter rod
• 336525 unprefixed OEM reference

OEM / Related Numbers

• 5009389
• 05009389
• 0336525
• 336525
• FasTrak six-hole stern-bracket trim-limiter system
• Related retaining nut and bracket hardware

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
