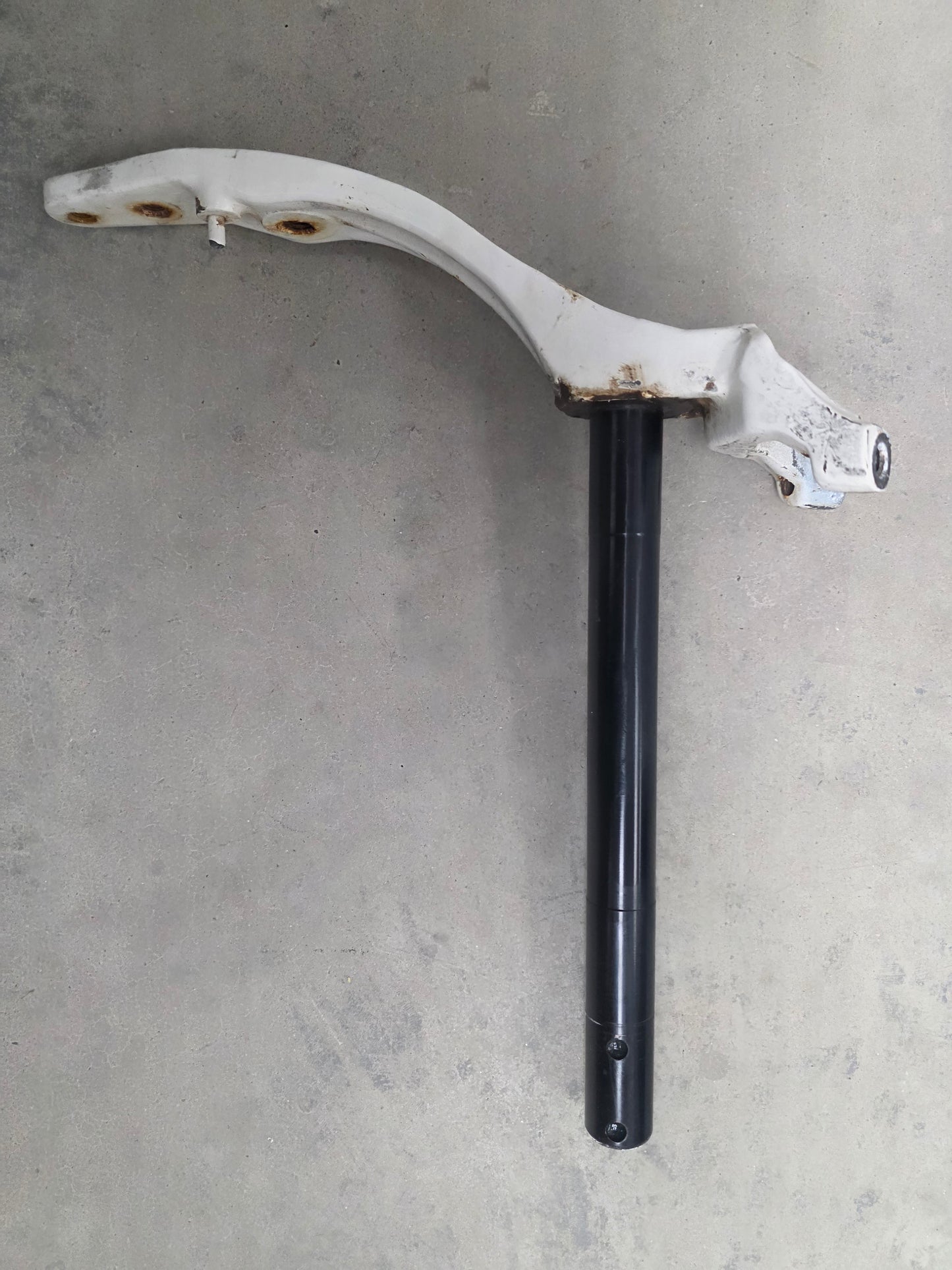

5009612 5007182 Evinrude E30 Steer Arm & Shaft | Genuine Used Part

5009612 5007182 Evinrude E30 Steer Arm & Shaft | Genuine Used Part

$150.00 AUD
$150.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

Genuine Evinrude E-TEC 15HP-30HP Steering Arm and Shaft Assembly - Current Part Number: 5009612

A genuine BRP steering-arm and vertical shaft assembly for small Evinrude E-TEC outboards. Current service number 5009612 replaces earlier assembly 5007182. The assembly transfers movement from the steering link or tiller system into the swivel bracket while carrying the engine's steering-axis loads.

⚙️ Key Features

  • Genuine Evinrude / BRP steering assembly
  • Current part number 5009612
  • Supersedes 5007182
  • Integrated steering arm and vertical shaft
  • Used on 15HP, 25HP and 30HP E-TEC midsections

🚤 Compatibility

  • Evinrude E-TEC 15HP two-cylinder outboards
  • Evinrude E-TEC 25HP two-cylinder outboards
  • Evinrude E-TEC 30HP two-cylinder outboards
  • Documented AA, AB and AF model families
  • Common model years: 2009-2015
  • Applicable long-shaft and selected short-shaft configurations using the same swivel-bracket system

🔌 Function

The assembly rotates inside the swivel bracket and transfers helm or tiller input to the engine while supporting the vertical steering axis.

⚠️ Common Signs of Failure

  • Steering becomes stiff
  • Vertical shaft is corroded or pitted
  • Steering arm is bent
  • Excessive side play develops
  • Bushings or seals wear
  • Arm-to-link mounting hole becomes elongated

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 5009612 → Supersedes 5007182
  • 5007182 is the original assembly used in early production
  • 5009612 is the current documented replacement

OEM / Related Numbers

  • 5009612
  • 5007182
  • Related steering bushings, seals and thrust washers
  • 5007920 related upper mounts
  • 5008164 related swivel / clamp-bracket assembly
  • Related steering-link rod and tiller hardware

Aftermarket / Verified Equivalents

  • No verified branded aftermarket complete arm-and-shaft assembly
  • Genuine BRP 5009612 is the direct replacement
  • Used 5007182 assemblies are interchangeable only where the original configuration is retained
  • Aftermarket steering-link rods do not replace the vertical shaft assembly

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
