50100-ZVL-010 Honda Mounting Frame (XL) | Genuine Used Part

🔧 Product Description

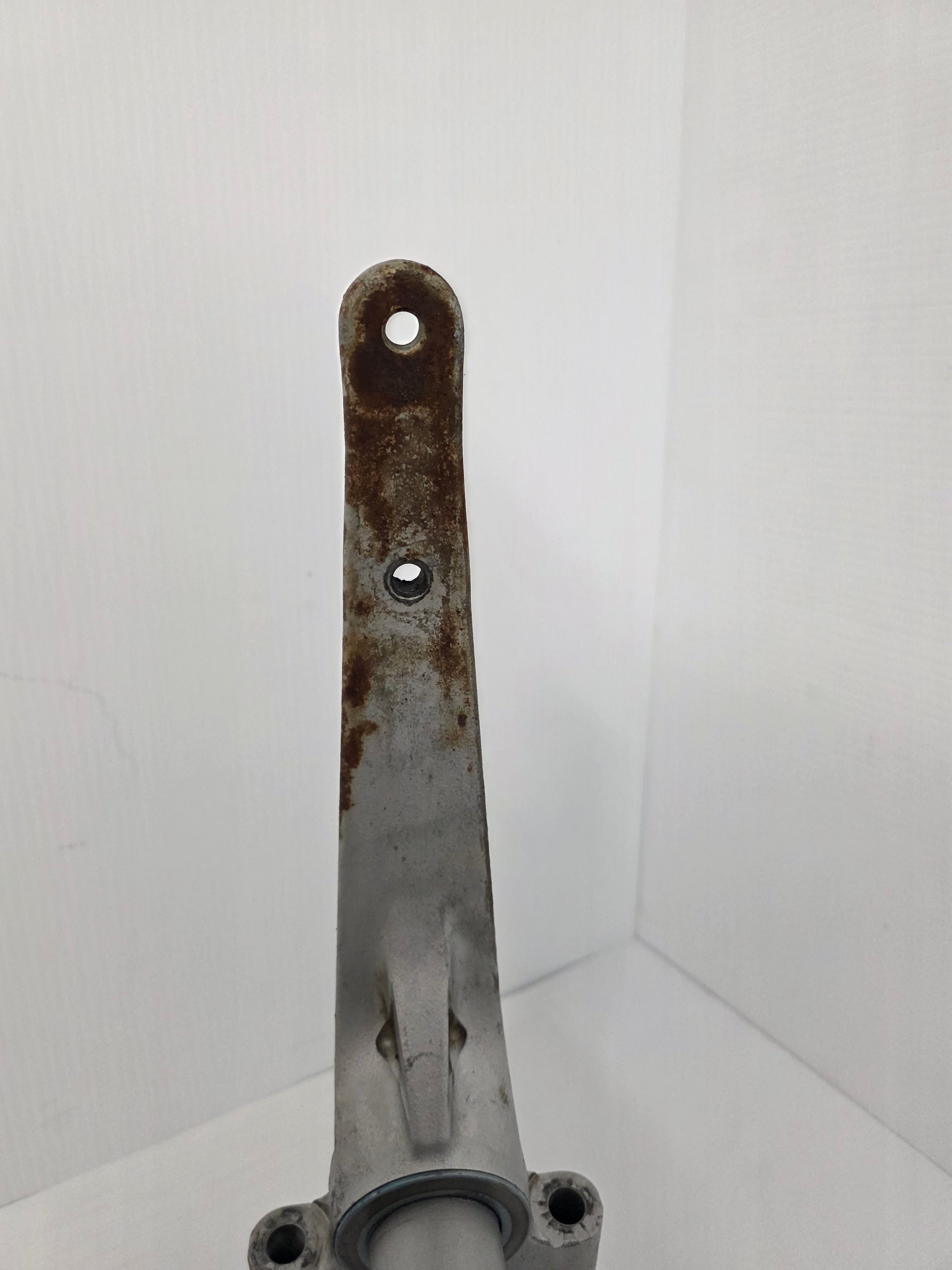

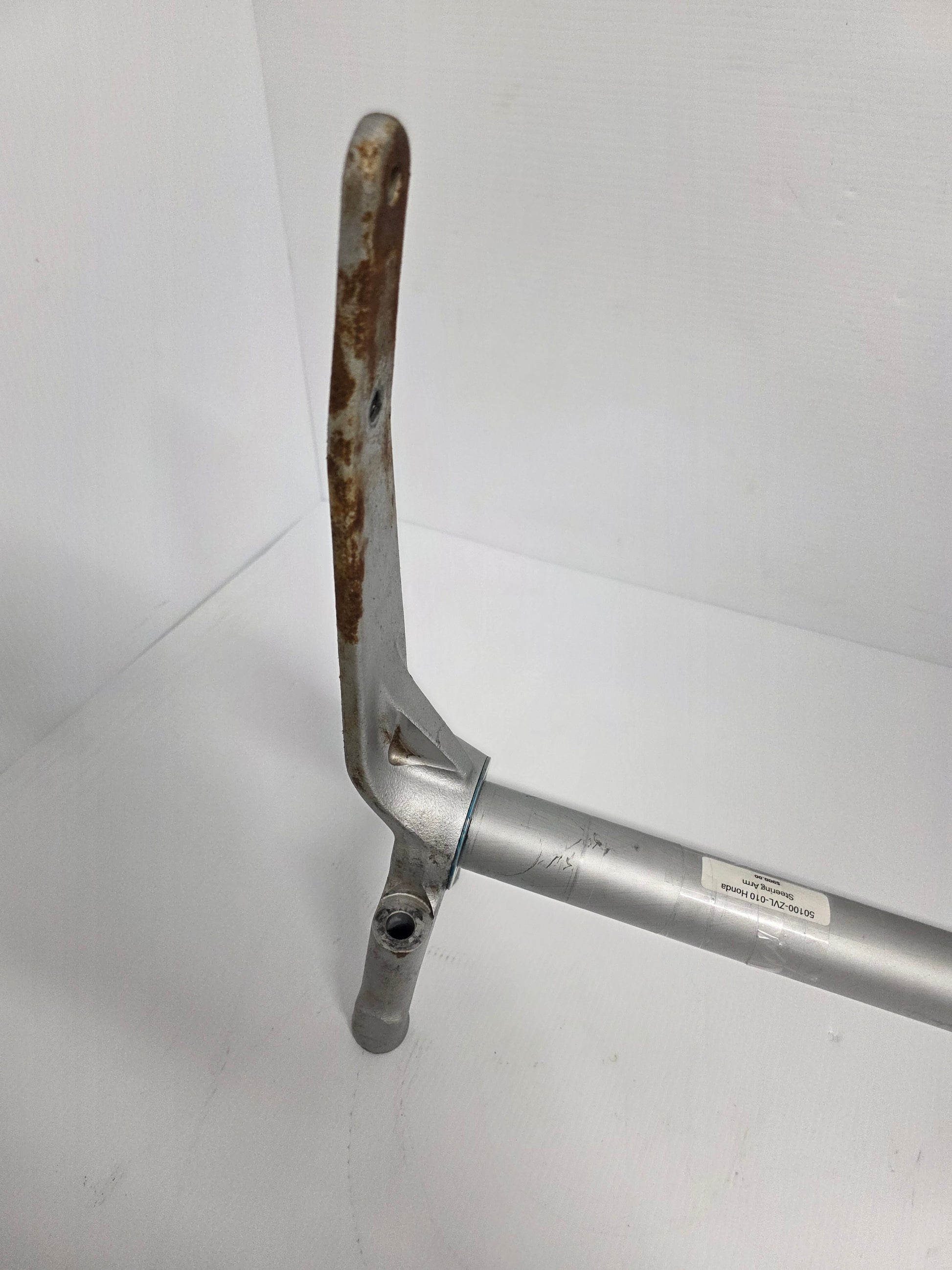

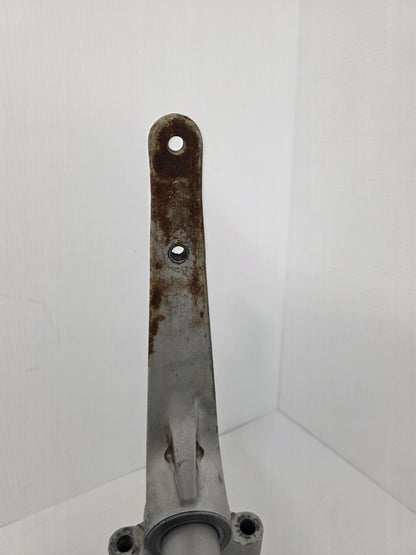

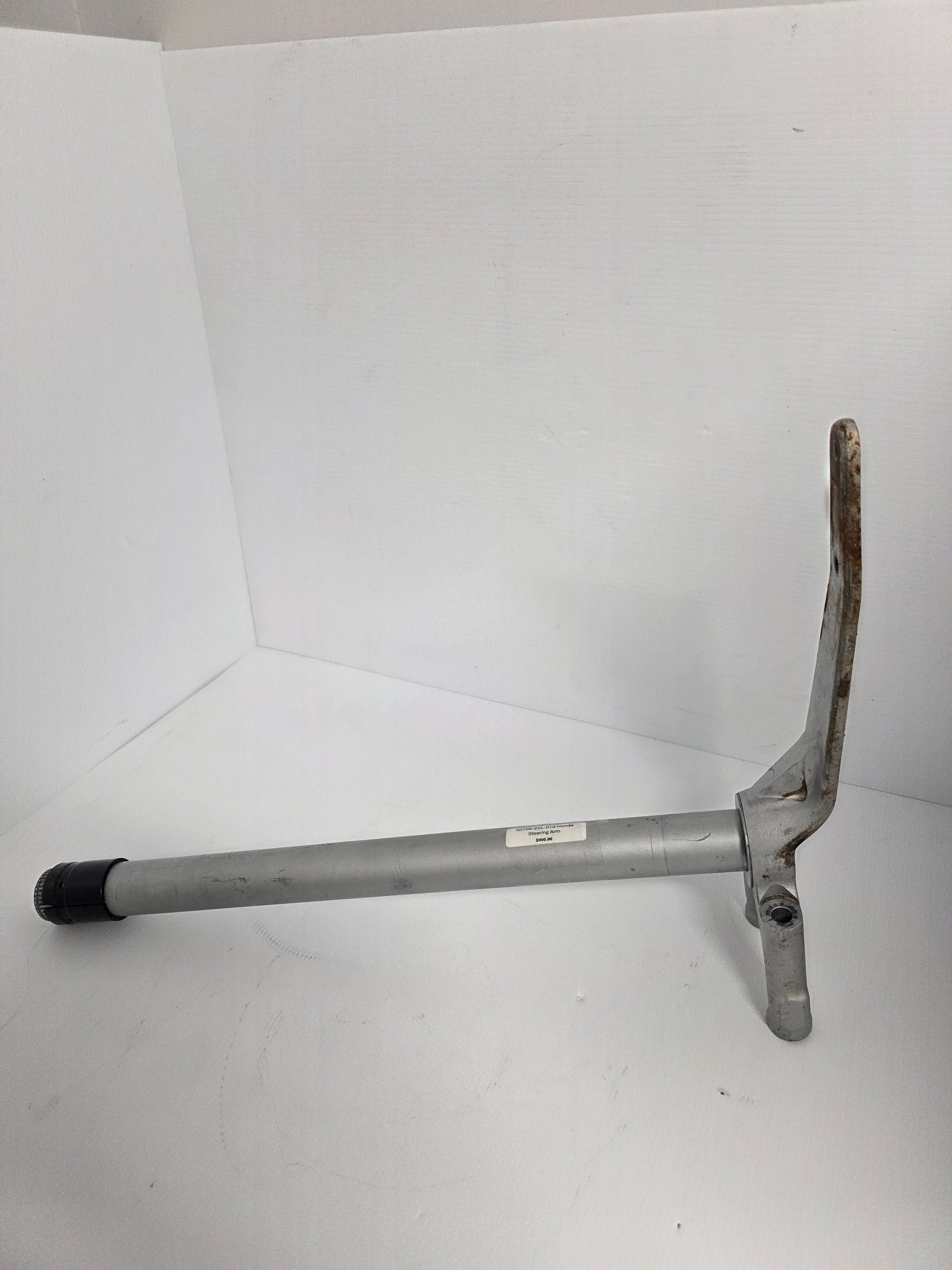

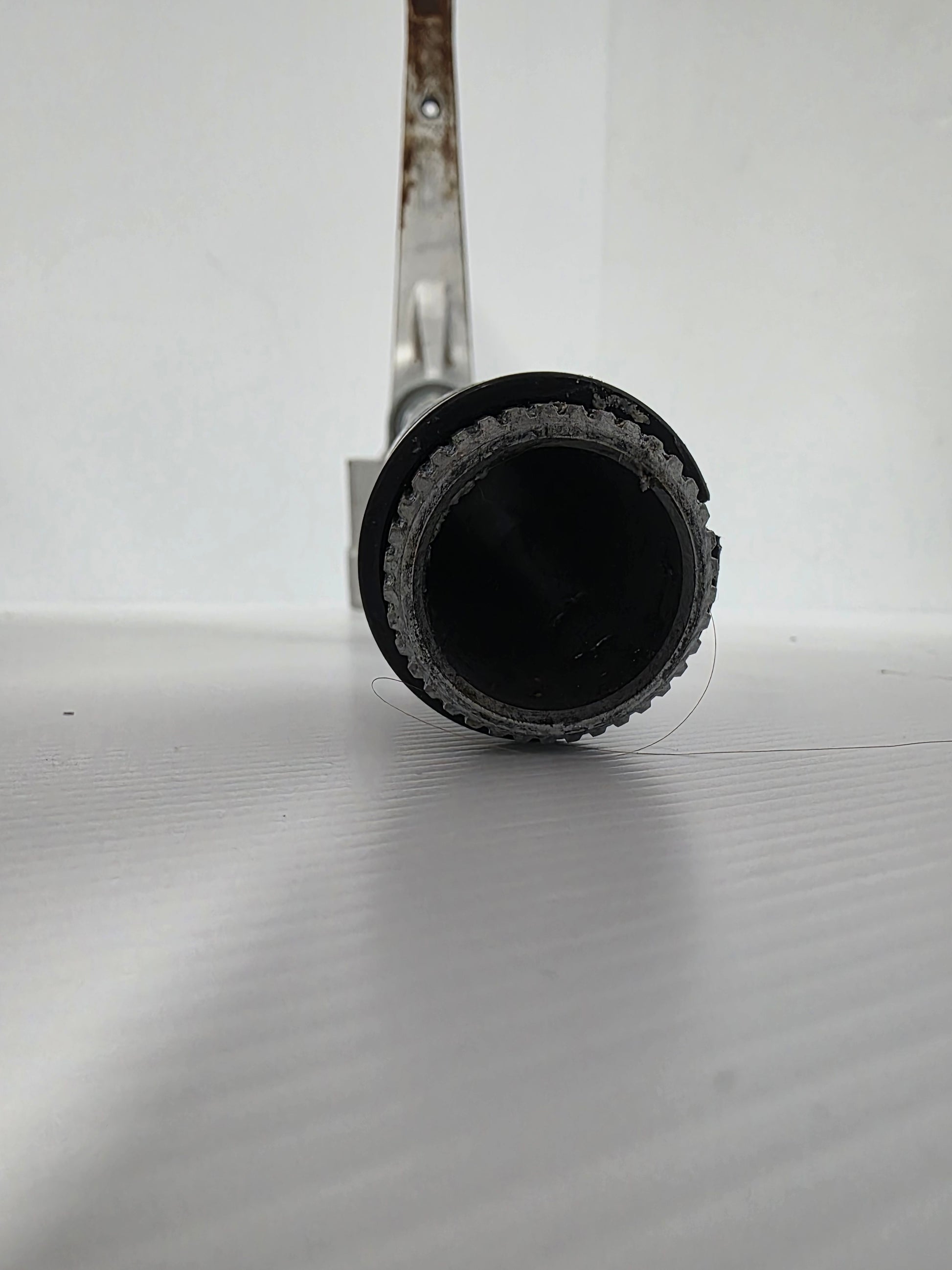

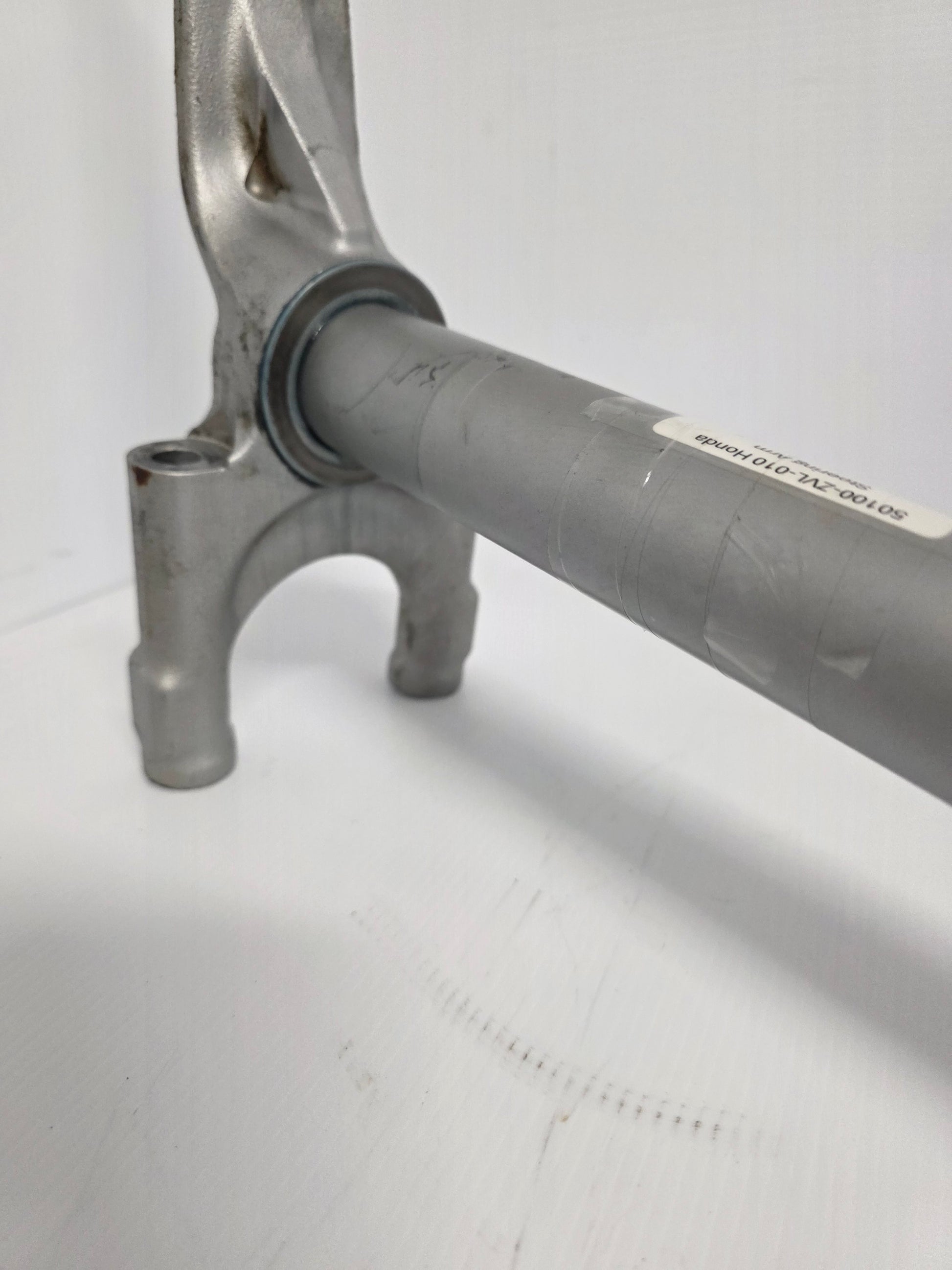

Genuine Honda BF175D-BF250D XL Mounting Frame Assembly - Part Number: 50100-ZVL-010

A genuine Honda mounting-frame assembly for extra-long-shaft later-generation V6 outboards. Honda identifies it as Frame, Mounting (XL), not a steering arm. It carries the upper mount housing, lower centre-mount housing, swivel case and stern-bracket loads. The separate steering rod kit is 06532-ZY3-U00.

⚙️ Key Features

• Genuine Honda OEM XL mounting frame
• Correct part number 50100-ZVL-010
• Used on later BF175D-BF250D V6 outboards
• Supports steering, swivel and engine-mount structures
• Serial-controlled replacement for earlier 50100-ZVL-000 on applicable models

🚤 Compatibility

• Honda BF175D XL variants from the documented serial break
• Honda BF200D XL variants from the documented serial break
• Honda BF225D and BF225DK1 XL variants
• Honda BF250D and BF250DK1 XL variants
• Applicable UDJ, URJ, XDJ, XRJ, XCDJ and XCRJ type codes according to serial
• Approximate application era: 2018 onward

🔌 Function

The mounting frame is the central structural member connecting the engine mounts, swivel case and stern brackets while maintaining the steering-axis and trim geometry.

⚠️ Common Signs of Failure

• Frame is bent from impact
• Mounting bores are worn
• Threads are stripped
• Corrosion develops around mount seats
• Engine alignment within the swivel assembly changes
• Steering or trim movement binds

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 50100-ZVL-010 follows 50100-ZVL-000 after model-specific serial breaks
• BF175D XL: 50100-ZVL-010 from serial 1010103 onward
• BF200D XL: 50100-ZVL-010 from serial 1012178 onward
• BF225D XL: 50100-ZVL-010 from serial 1011721 onward; selected XCD / XCR production from 8010658 onward
• BF250D XL: 50100-ZVL-010 from serial 1015479 onward
• 50100-ZVL-900 / 901 are long-shaft mounting frames and are not direct XL substitutes

OEM / Related Numbers

• 50100-ZVL-010
• 50100-ZVL-000 earlier XL frame
• 50100-ZVL-900 / 50100-ZVL-901 long-shaft frames
• 06532-ZY3-U00 separate steering rod kit
• 50109-ZVL-000 upper mounting housing
• 50161-ZY3-610 lower centre-mount housing
• 50201-ZVL-000ZC swivel case

Aftermarket / Verified Equivalents

• No verified aftermarket mounting frame
• Genuine Honda 50100-ZVL-010 is the direct replacement after the applicable serial break
• Earlier 50100-ZVL-000 must not be substituted across the serial break without verifying all attached components
• Used genuine frames require inspection for straightness, corrosion and intact threads

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
