🔧 Product Description

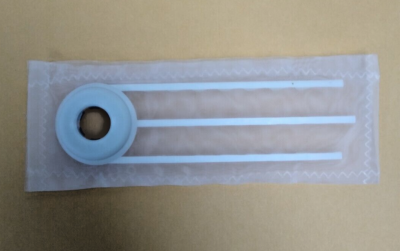

Genuine BRP Remote Oil Tank Pickup Filter - Part Number: 5010685

A genuine BRP oil filter for selected Evinrude and Johnson remote two-stroke oil-tank systems. The filter is fitted to the oil pickup assembly inside the remote reservoir and prevents contaminants from entering the oil hose, primer bulb, VRO pump or E-TEC oil-injection system.

Part number 5010685 replaces the earlier 0174377 filter and is itself replaced in current BRP service catalogues by 0177368.

⚙️ Key Features

  • Genuine BRP OEM remote oil-tank filter
  • Correct service part number 5010685
  • Supersedes original filter 0174377
  • Current replacement reference 0177368
  • Protects VRO, FICHT and E-TEC oil-delivery systems from reservoir contamination

🚤 Compatibility

Commonly used on

  • Evinrude and Johnson 1.8-gallon and 3.0-gallon remote oil reservoirs
  • VRO, FICHT and E-TEC remote oil-tank pickup assemblies
  • Two-stroke outboards using a separate boat-mounted oil reservoir

Typically suits

  • Engine models:
  • Johnson 40HP VRO - including 1989 J40ELCEC
  • Evinrude / Johnson 50HP VRO two-stroke
  • Evinrude / Johnson 60HP VRO two-stroke
  • Evinrude / Johnson 65HP and 65HP Commercial two-stroke
  • Evinrude / Johnson 70HP VRO two-stroke
  • Evinrude / Johnson 75HP two-stroke
  • Evinrude / Johnson 90HP V4 - including 1998 E90FSLECS
  • Evinrude / Johnson 100HP V4 two-stroke
  • Evinrude / Johnson 115HP V4 two-stroke
  • Evinrude / Johnson 120HP V4 two-stroke
  • Evinrude / Johnson 130HP V4 two-stroke
  • Evinrude / Johnson 135HP and 140HP V4 two-stroke
  • Evinrude / Johnson 150HP V6 two-stroke
  • Evinrude / Johnson 175HP V6 two-stroke
  • Evinrude / Johnson 200HP V6 two-stroke
  • Evinrude / Johnson 225HP V6 - including 1993 VE225TZETF and E225CZETA
  • Evinrude / Johnson 250HP V8 / V6 two-stroke applications using the remote tank filter
  • Evinrude / Johnson 300HP two-stroke applications using the remote tank filter
  • Evinrude E-TEC 65HP Pontoon - including E65SLAFC
  • Evinrude E-TEC outboards using BRP remote oil-tank kits with pickup filter 0177368
  • HP Range: 40HP - 300HP
  • Engine Type: Evinrude / Johnson VRO, FICHT and E-TEC oil-injected two-stroke outboard
  • Year Range: Approximately 1985-2020, dependent on remote reservoir assembly

🔌 Function

The filter screens two-stroke oil as it leaves the remote reservoir, preventing dirt, tank debris and degraded oil deposits from entering the oil hose and injection pump.

⚠️ Common Signs of Failure

  • Low-oil or no-oil warning despite oil being present in the tank
  • Restricted oil flow through the pickup hose
  • Primer bulb remains collapsed or does not refill
  • Filter visibly dark, contaminated or coated with deposits
  • Air bubbles appearing in the oil-supply hose
  • Reduced oil delivery to the engine

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0177368 → Supersedes 5010685
  • 5010685 → Supersedes 0174377
  • 0174377 earlier OEM oil-tank filter reference

OEM / Related Numbers

  • 5010685
  • 0174377
  • 174377
  • 0177368
  • 177368
  • 0765615
  • 765615
  • 745419040574
  • 753524427814

Aftermarket / Verified Equivalents

  • Aftermarket Service Replacement: 765615
  • Aftermarket Service Replacement: B765615

📦 Condition

  • Genuine BRP part
  • Brand new
  • Supplied in original or equivalent packaging
