🔧 Product Description

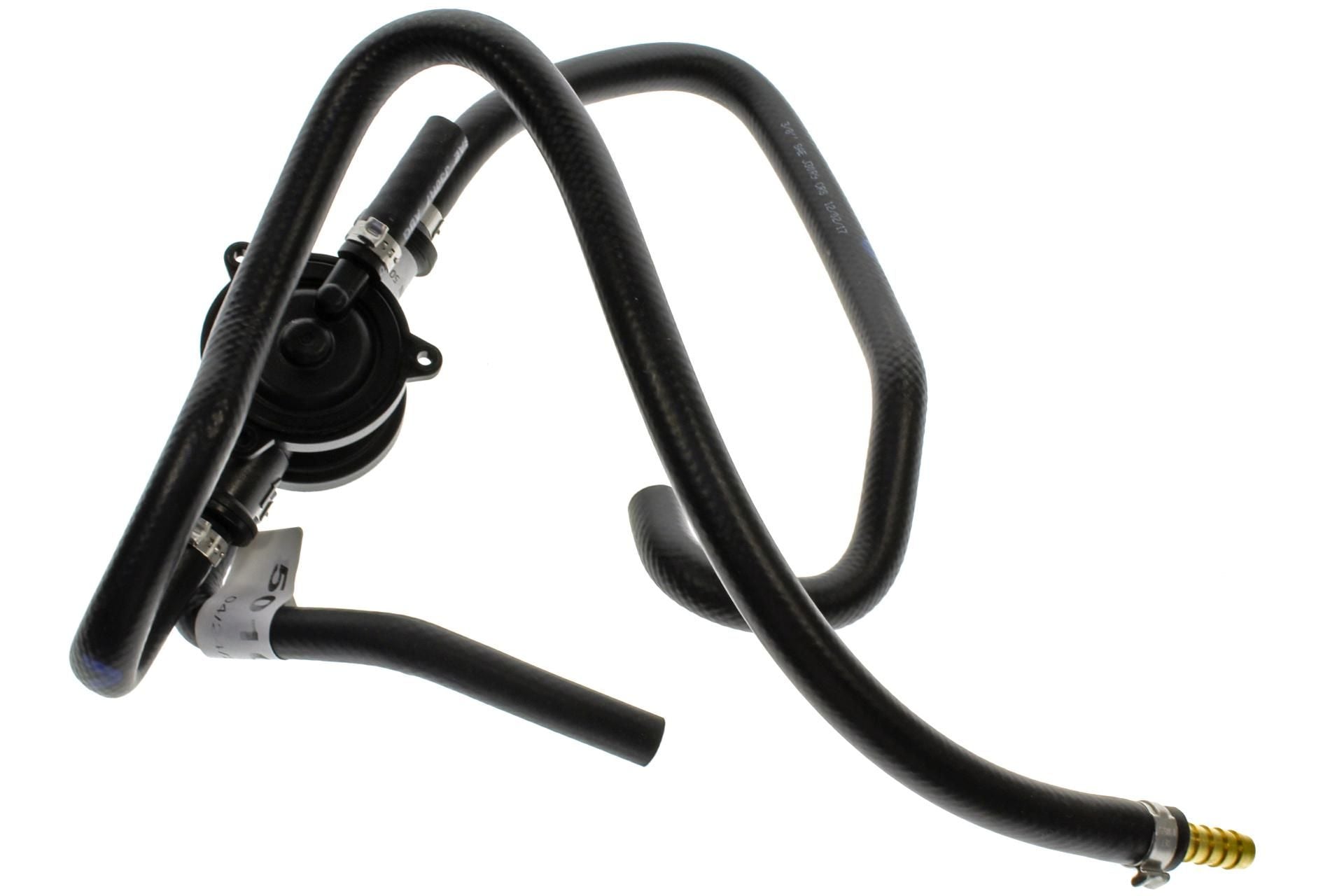

Genuine BRP E-TEC Fuel Lift Pump Assembly - Part Number: 5010744
A genuine BRP fuel lift-pump assembly for selected Evinrude E-TEC direct-injection outboard motors. The pump draws fuel from the boat's fuel tank and supplies it to the engine-mounted fuel filter and vapour-separator reservoir.
This assembly replaces BRP part number 5007727 and is used on selected 60-degree V4 and V6 E-TEC engines.
⚙️ Key Features
- Genuine BRP OEM fuel lift-pump assembly
- Correct Evinrude part number 5010744
- Supersedes earlier fuel pump 5007727
- Supplies the engine-mounted fuel filter and vapour separator
- Designed for selected 115HP to 200HP E-TEC outboards
🚤 Compatibility
Commonly used on
- Evinrude E-TEC 60-degree V4 and V6 low-pressure fuel systems
- Engine-mounted fuel filter and vapour-separator supply circuits
Typically suits
- Engine models:
- Evinrude E-TEC 115HP - including 2010 E115DBXISM
- Evinrude E-TEC 115 H.O. - selected model codes
- Evinrude E-TEC 130HP - selected model codes
- Evinrude E-TEC 135 H.O. - selected model codes
- Evinrude E-TEC 150HP - including 2009 E150DBXSEA
- Evinrude E-TEC 150HP - including 2010 E150DBXISF
- Evinrude E-TEC 150HP AA-series - including E150DCXAAA
- Evinrude E-TEC 150HP AB-series - including E150HGLABB
- Evinrude E-TEC 150 H.O. - selected model codes
- Evinrude E-TEC 175HP - selected 60-degree V6 models
- Evinrude E-TEC 200HP - selected 60-degree V6 models
- HP Range: 115HP - 200HP
- Engine Type: Evinrude E-TEC 60-degree V4 and V6 direct-injection two-stroke outboard
- Year Range: Approximately 2009-2012
🔌 Function
The lift pump creates the low-pressure fuel supply required to move petrol from the boat tank through the engine filter and into the vapour separator. The high-pressure electric pump inside the vapour separator then supplies the injectors.
⚠️ Common Signs of Failure
- Extended cranking before the engine starts
- Engine stalls when accelerating or operating under load
- Primer bulb does not remain firm
- Low fuel pressure at the vapour-separator inlet
- Engine runs briefly after manually priming, then stops
- Fuel leakage, cracked pump fittings or damaged diaphragm
- Lean-running or fuel-supply fault codes
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 5010744 → Supersedes 5007727
- 5007727 earlier OEM fuel lift-pump assembly
OEM / Related Numbers
- 5010744
- 5007727
- 5007727-1
- 5010744-1
- 50107441
Aftermarket / Verified Equivalents
- DAM Marine: DM_MA_5007727
- Aftermarket Fuel Pump Assembly: 5007727 / 5010744
📦 Condition
- Genuine BRP part
- Brand new
- Supplied in original or equivalent packaging
