50109-ZVL-000 Honda Upper Housing Mount | Genuine Used Part

50109-ZVL-000 Honda Upper Housing Mount | Genuine Used Part

$35.00 AUD
$35.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

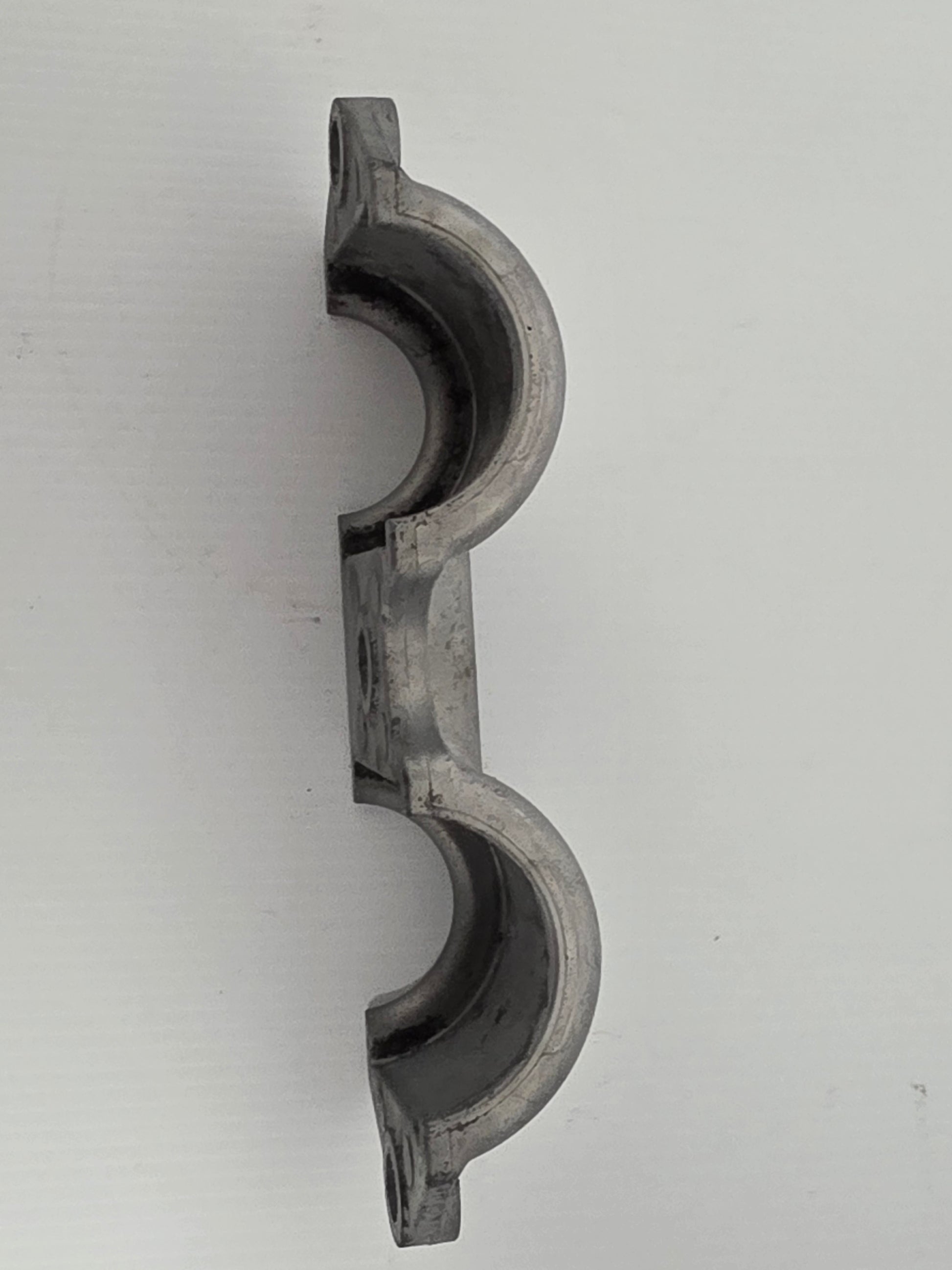

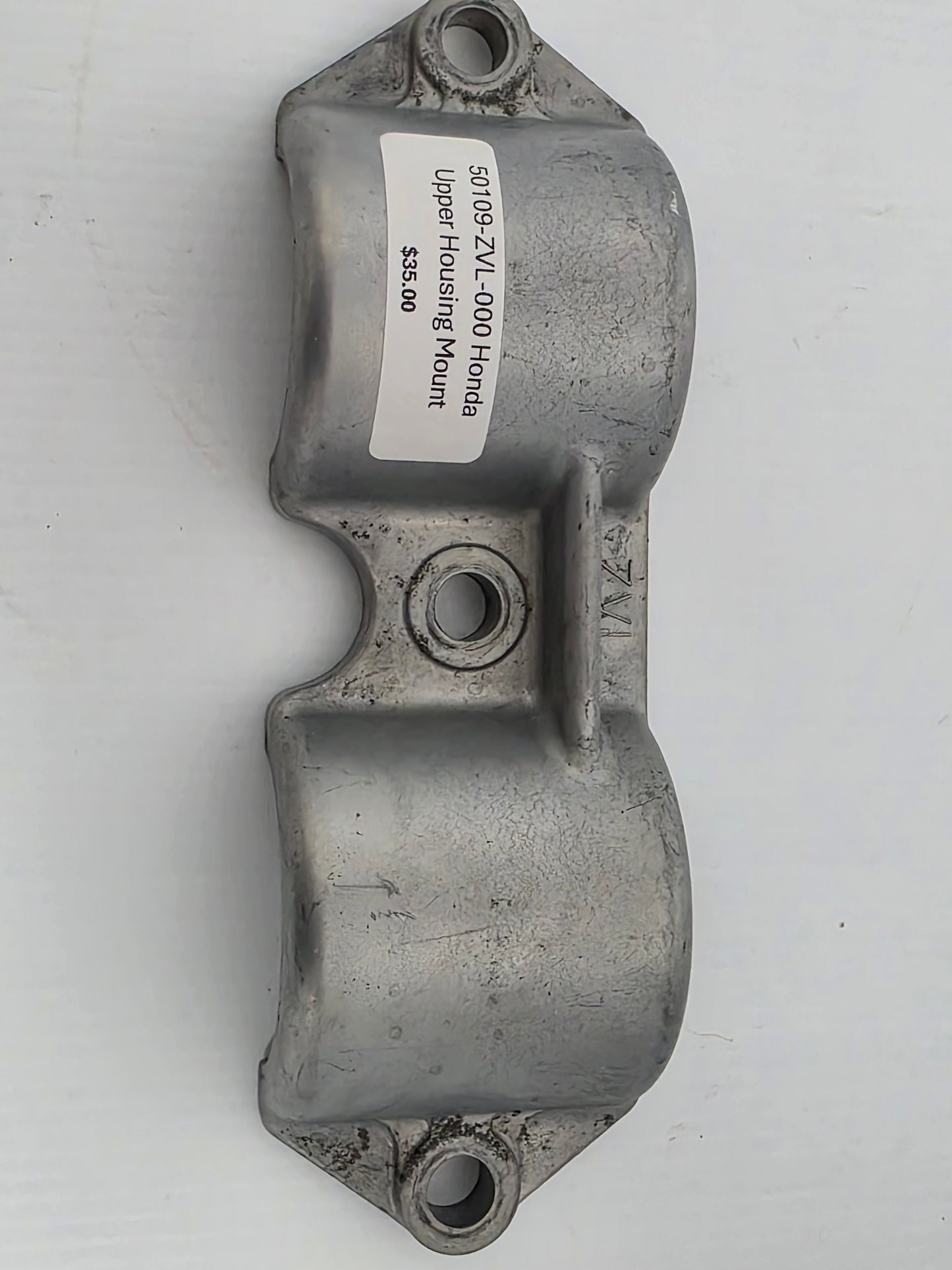

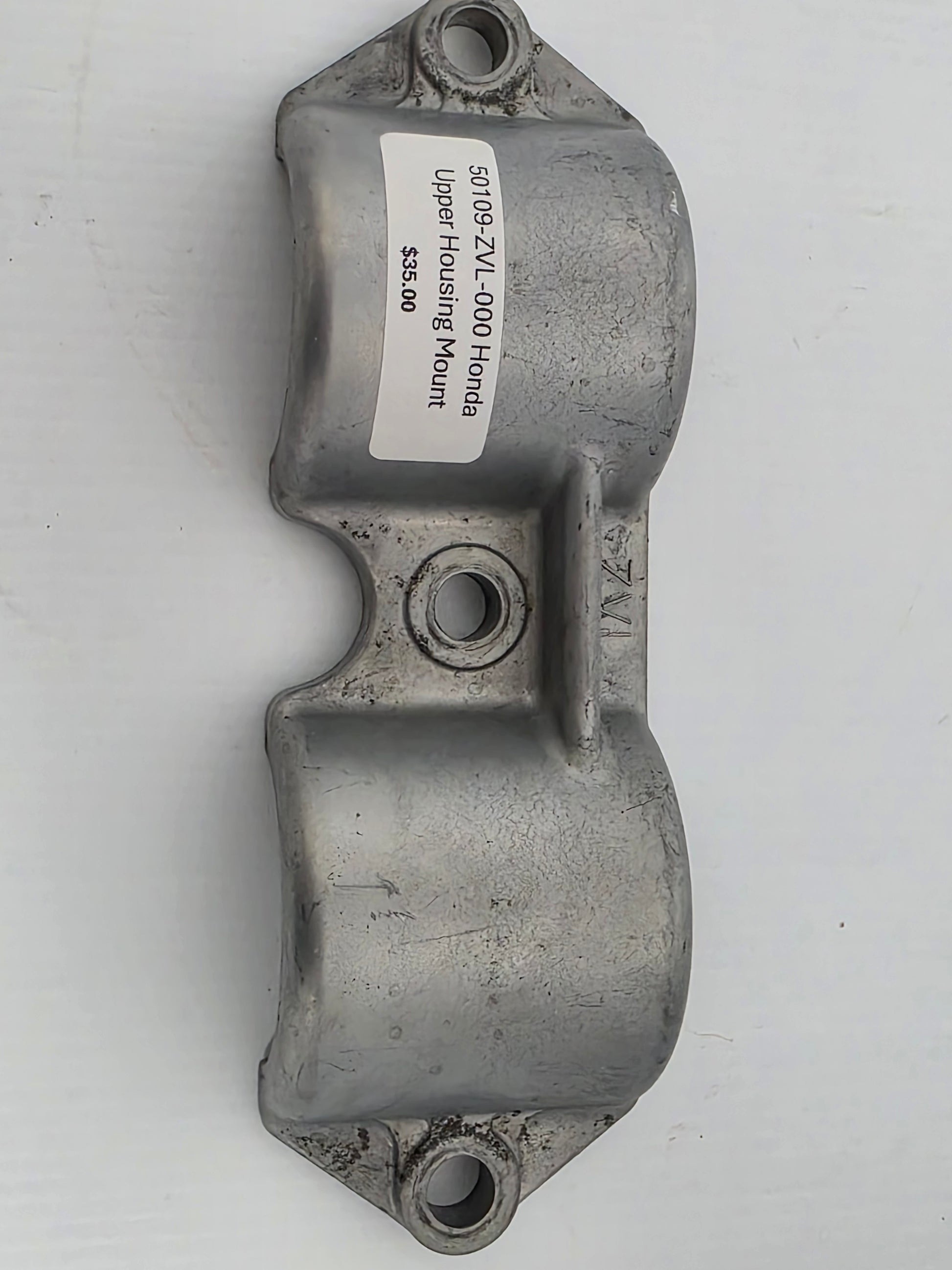

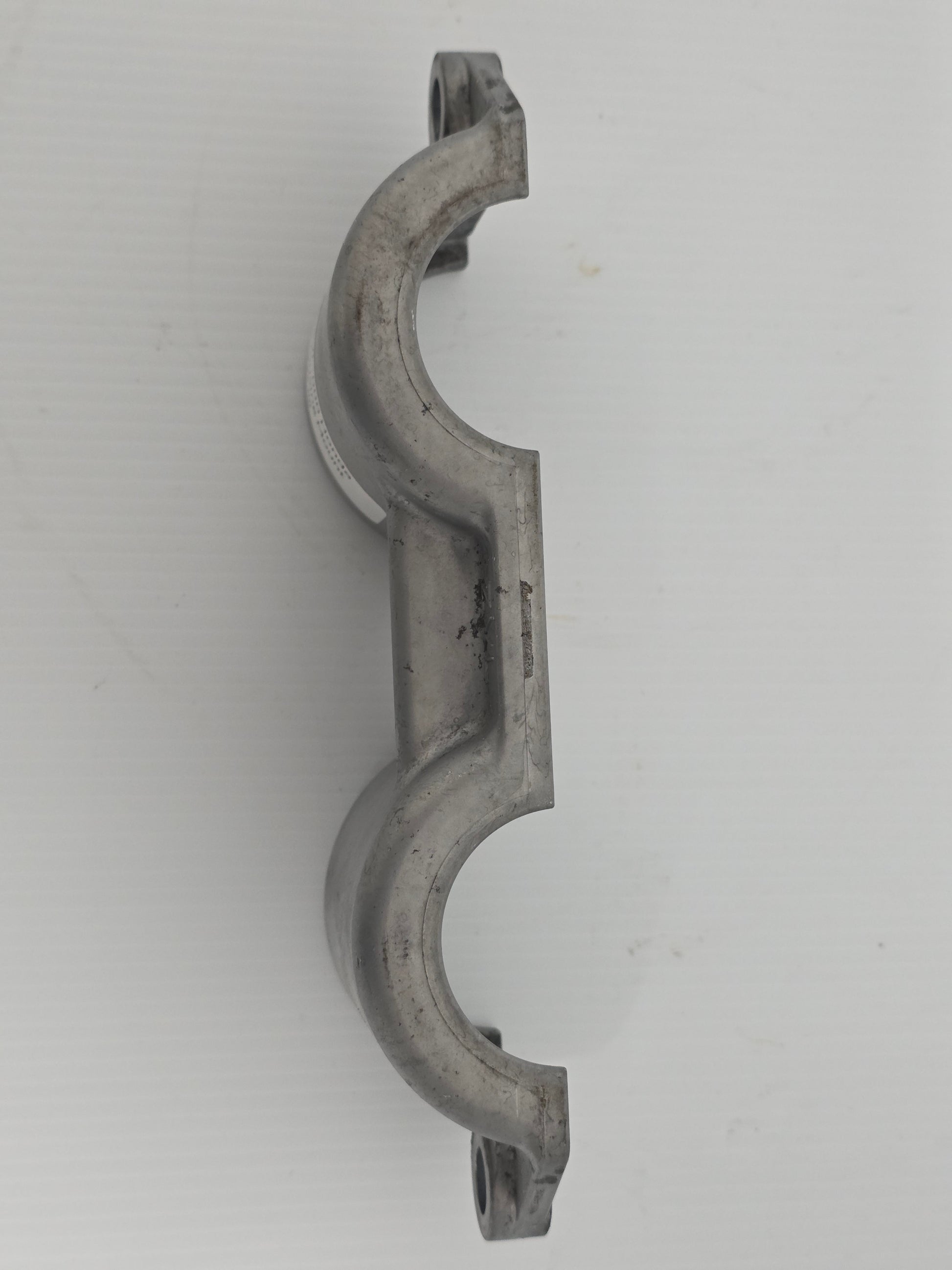

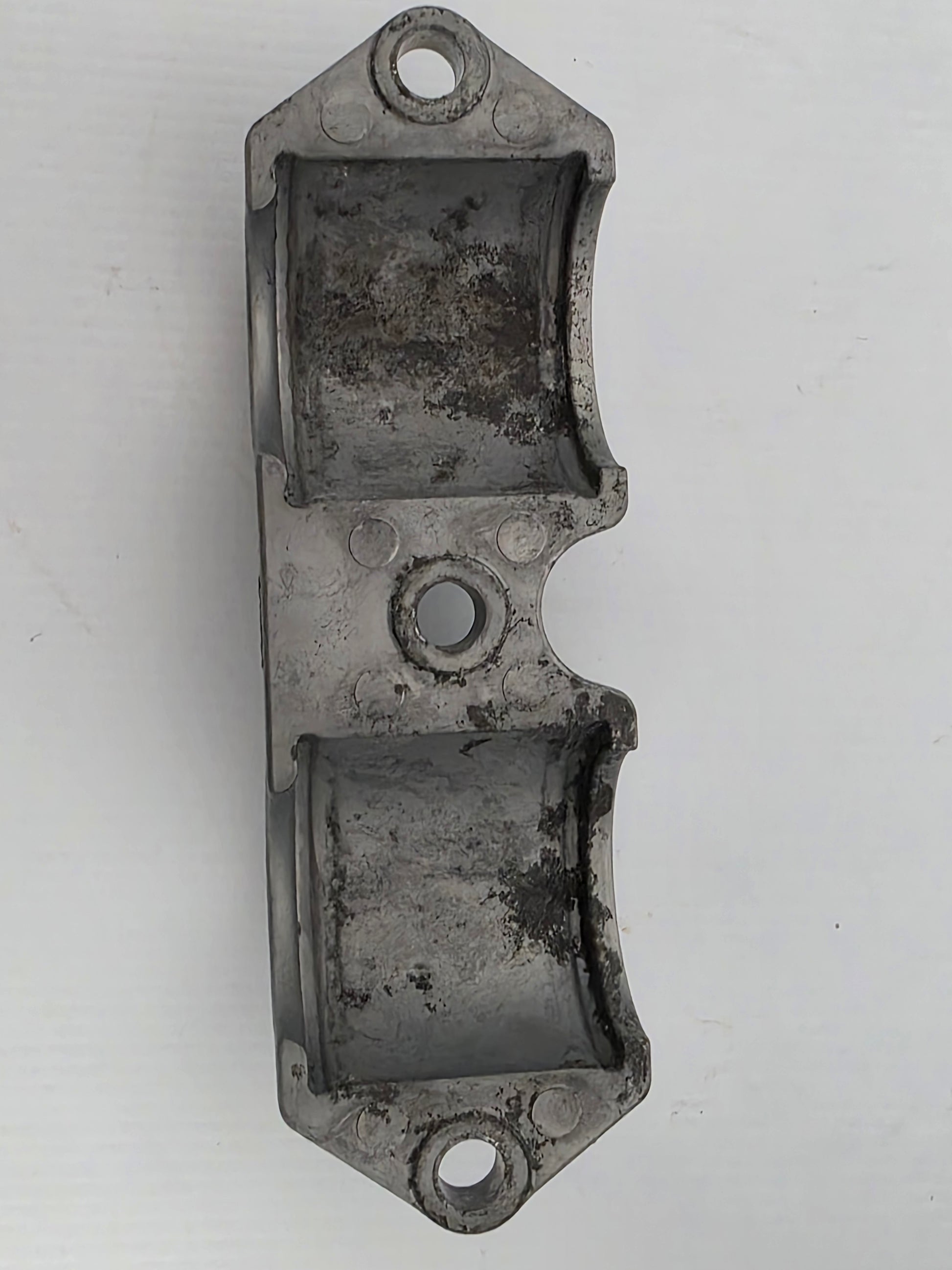

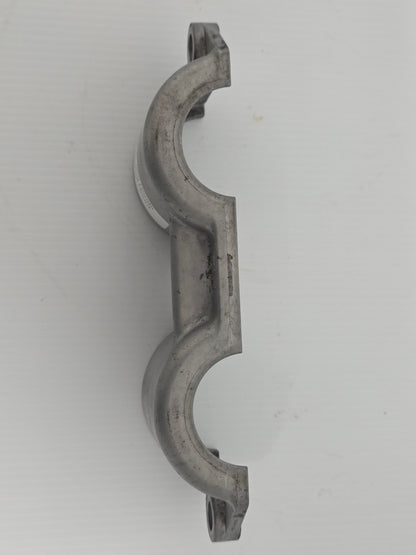

Genuine Honda BF175D-BF250D Upper Mounting Housing - Part Number: 50109-ZVL-000

A genuine Honda upper mounting housing for later BF175D, BF200D, BF225D and BF250D V6 outboards. It locates the pair of upper rubber mounts within the mounting frame and forms the upper structural connection between the engine and swivel-bracket system.

⚙️ Key Features

  • Genuine Honda OEM upper mounting housing
  • Correct part number 50109-ZVL-000
  • Used with two 50151-ZY3-000 upper rubber mounts
  • Later ZVL-generation V6 mounting system
  • Precision-machined structural housing

🚤 Compatibility

  • Honda BF175D
  • Honda BF200D and BF200DK1
  • Honda BF225D and BF225DK1
  • Honda BF250D and BF250DK1
  • L, X, XX and applicable counter-rotation / drive-by-wire configurations where 50109-ZVL-000 is listed
  • Representative serial families BBRJ, BBPJ and BBNJ
  • Approximate application era: 2018 onward

🔌 Function

The housing clamps and positions the upper rubber mounts, transmitting engine thrust into the mounting frame while allowing controlled vibration isolation.

⚠️ Common Signs of Failure

  • Mount bores become worn
  • Housing cracks around bolt bosses
  • Threads strip
  • Corrosion prevents mounts seating correctly
  • Upper mounts move or clunk
  • Engine vibration increases

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 50109-ZVL-000 is the documented later-generation housing
  • 50109-ZY3-000 is the related earlier A-series upper housing
  • The ZY3 and ZVL housings are not automatic substitutes because frame and mount revisions differ

OEM / Related Numbers

  • 50109-ZVL-000
  • 50109-ZY3-000 earlier related housing
  • 50151-ZY3-000 upper rubber mounts
  • 50153-ZY3-000 upper mount stoppers
  • 50100-ZVL-series mounting frames
  • Related mount bolts and cover components

Aftermarket / Verified Equivalents

  • No verified aftermarket upper mounting housing
  • Genuine Honda 50109-ZVL-000 is the direct replacement
  • Used genuine housings must have undamaged mount bores and threads
  • Aftermarket rubber mounts do not replace the housing

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
