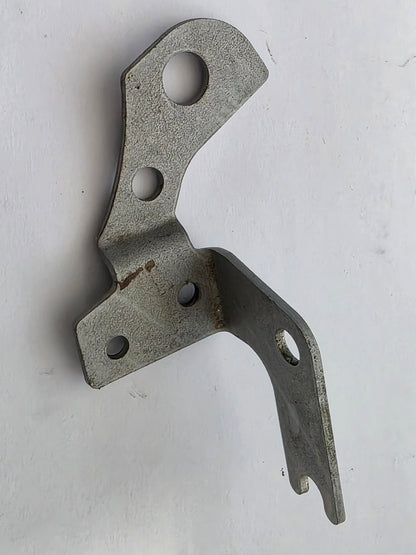

50222-ZVL-000 Honda Trim Limit Switch Bracket | Genuine Used Part

🔧 Product Description

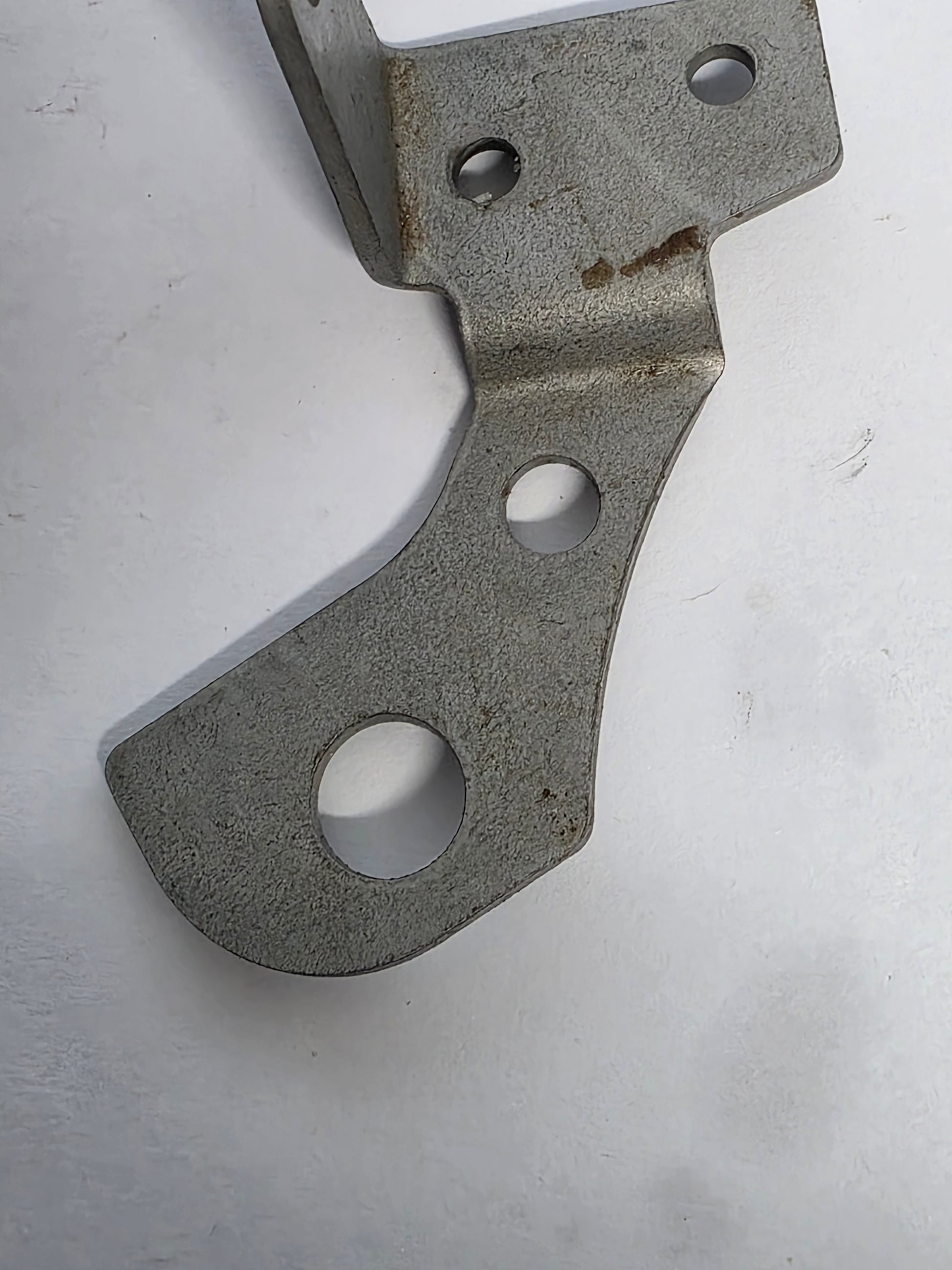

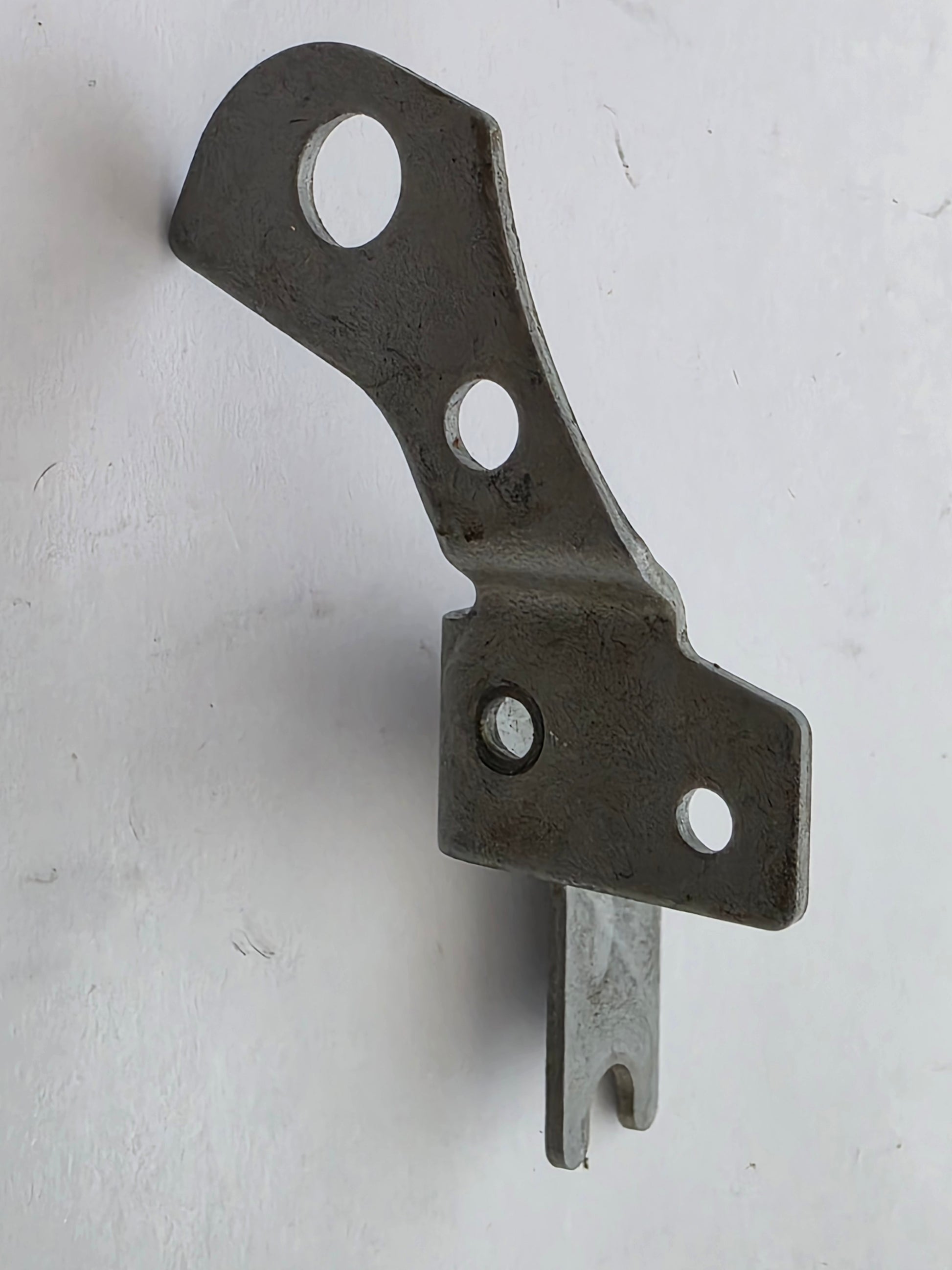

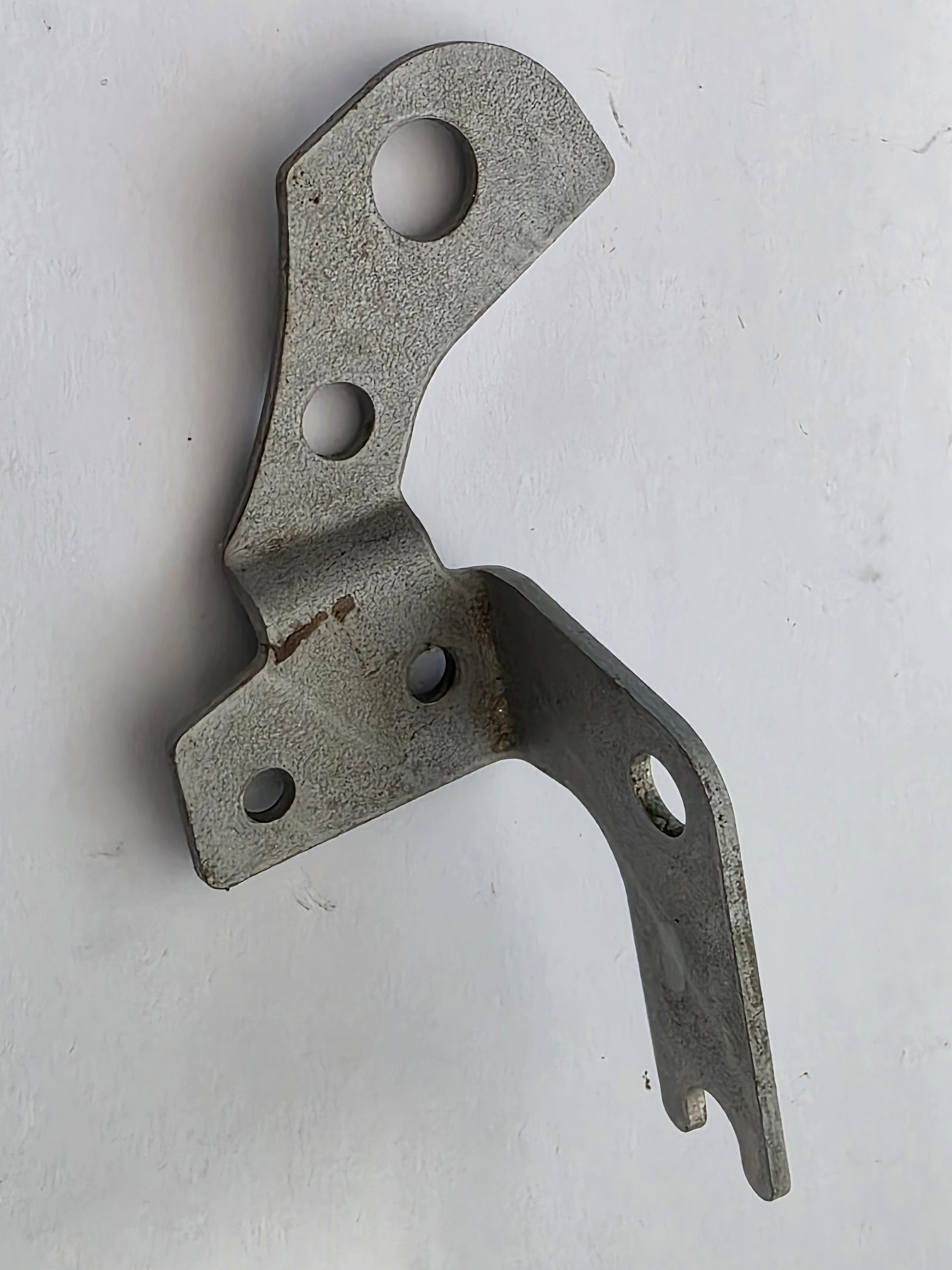

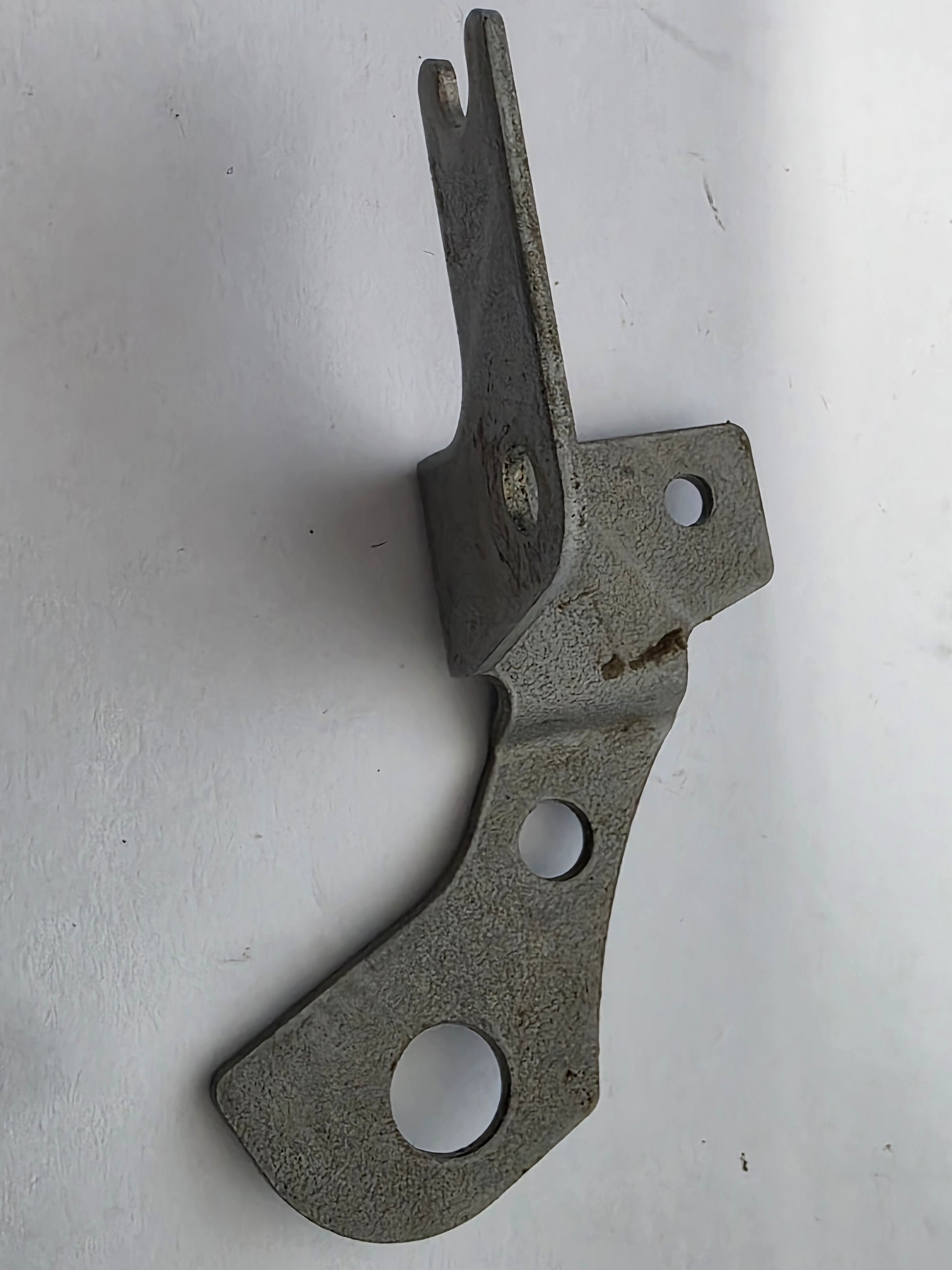

Genuine Honda BF175D-BF250D Tilt-Limit Switch Bracket - Part Number: 50222-ZVL-000

A genuine Honda bracket that positions the tilt-limit switch and adjustment cams on later V6 stern-bracket and swivel-case assemblies. It holds the switch at the correct angle so the power trim and tilt system can stop before the engine or rigging exceeds the configured upper tilt limit.

⚙️ Key Features

• Genuine Honda OEM tilt-limit bracket
• Correct part number 50222-ZVL-000
• Mounts the tilt-limit switch and angle cams
• Used on later BF175D-BF250D stern-bracket assemblies
• Small precision bracket with fixed OEM geometry

🚤 Compatibility

• Honda BF175D
• Honda BF200D
• Honda BF225D and BF225DK1
• Honda BF250D and BF250DK1
• Documented on L, X and selected counter-rotation / drive-by-wire stern-bracket assemblies
• Approximate application era: 2018 onward

🔌 Function

The bracket fixes the limit switch and adjustment cams in the correct position so the engine-management and trim system can prevent excessive upward tilt.

⚠️ Common Signs of Failure

• Bracket is bent
• Switch position changes
• Engine tilts beyond the set limit
• Tilt stops too early
• Mounting holes or threads are damaged
• Switch wiring rubs against the swivel case

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 50222-ZVL-000 is the documented original bracket
• 50222-ZVL-910 is a later related bracket used on selected DK1 / later configurations
• The 910 bracket is model- and serial-controlled rather than a universal supersession

OEM / Related Numbers

• 50222-ZVL-000
• 50222-ZVL-910 later related bracket
• 35745-ZZ3-743 tilt-limit switch assembly
• 50223-ZZ3-000 tilt-limit cam A
• 50224-ZZ3-000 tilt-limit cam B
• Related switch screws and wiring clips

Aftermarket / Verified Equivalents

• No verified aftermarket bracket
• Genuine Honda 50222-ZVL-000 is the direct replacement for original configurations
• The later 50222-ZVL-910 should only be used where the Honda catalogue specifies it
• Fabricated brackets can alter the limit angle and are not recommended

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
