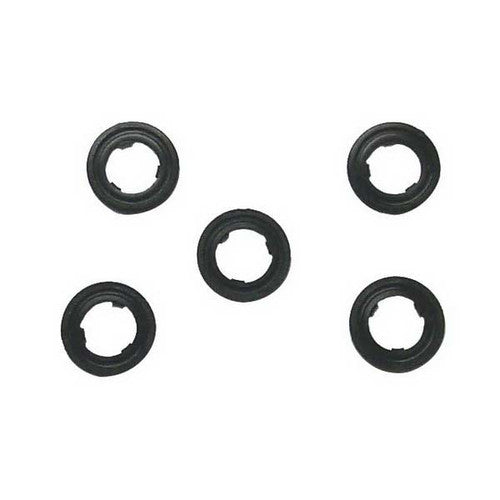

5030071 Suzuki Marine Gasket Washer | Genuine OEM Outboard Part

🔧 Product Description

Genuine BRP / Johnson / Evinrude Gearcase Drain-Plug Gasket - Part Number: 5030071

Genuine BRP sealing washer used on selected Suzuki-manufactured Johnson and Evinrude outboards. It cross-references Suzuki gearcase drain and fill plug gasket numbers 09168-10022 and 09168-10004.

This is a BRP OEM number rather than a Suzuki OEM part number.

⚙️ Key Features

• Genuine BRP gearcase sealing gasket
• Used beneath selected 10mm drain and fill plugs
• Compatible with applicable Suzuki-manufactured BRP outboards
• Single-use crush-style sealing component
• Replace whenever the plug is removed

🚤 Compatibility

Commonly used on

• Suzuki-manufactured Johnson and Evinrude four-stroke gearcases
• Suzuki gearcases specifying the corresponding 10mm drain-plug seal

Typically suits

• Engine models:
• Selected Johnson and Evinrude 2HP-225HP Suzuki-manufactured four-strokes
• Suzuki outboards whose parts diagram specifies 09168-10022 or 09168-10004
• Engine Type: Two-stroke and four-stroke outboards
• Model/Serial Note: Drain-plug size and washer material differ between gearcases. Confirm the original gasket number.

🔌 Function

The gasket compresses between the drain-plug flange and gearcase housing to retain lubricant and exclude water.

⚠️ Common Signs of Failure

• Gear oil seeps around the plug
• Water enters the lower unit
• Washer is flattened, split or deeply grooved
• Plug requires excessive torque to seal
• Gearcase fails a pressure or vacuum test

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 5030071 → Supersedes BRP 0766416 / 766416

OEM / Related Numbers

• BRP: 5030071
• BRP: 0766416 / 766416
• Suzuki: 09168-10022
• Suzuki: 09168-10004

Aftermarket / Verified Equivalents

• Sierra Marine: 18-8331
• Mallory Marine: 9-60202
• Pro Marine: 8331P
• RECMAR: REC09168-10022

📦 Condition

• Genuine BRP / Johnson / Evinrude part
• Brand new
• Supplied in original or equivalent protective packaging
