5030465 Evinrude Johnson Gasket Washer | Genuine OEM BRP Outboard Part

🔧 Product Description

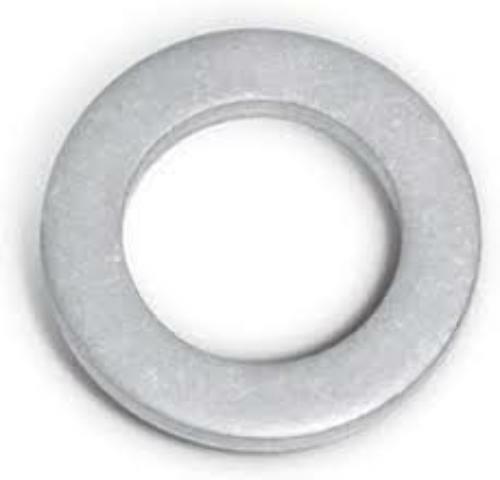

Genuine BRP Engine Oil Drain Plug Gasket Washer - Part Number: 5030465

A genuine BRP sealing washer for the engine-oil drain plug on selected Suzuki-built Johnson and Evinrude four-stroke outboards.

The washer is compressed between the drain plug and oil-pan housing to create an oil-tight seal. It cross-references with Suzuki part number 09168-12012 and should normally be replaced whenever the drain plug is removed.

⚙️ Key Features

• Genuine BRP OEM oil-drain plug gasket washer
• Correct Johnson / Evinrude part number 5030465
• Cross-references with Suzuki 09168-12012
• Approximate sealing size: 12.5mm x 20mm
• Suitable for selected 25HP to 225HP Suzuki-built four-stroke outboards

🚤 Compatibility

Commonly used on

• Suzuki-built Johnson and Evinrude four-stroke engine-oil drain plugs
• Suzuki DF-series four-stroke outboards using washer 09168-12012

Typically suits

• Engine models:
• Johnson 25HP four-stroke - 2000-2001 and 2004-2007
• Johnson 30HP four-stroke - 2000-2001 and 2004-2007
• Johnson 40HP four-stroke - 1999-2006
• Johnson 50HP four-stroke - 1999-2006
• Johnson 60HP four-stroke - 2002-2006
• Johnson 70HP four-stroke - 1998-2006
• Johnson 90HP four-stroke - 2003-2006
• Johnson 115HP four-stroke - 2003-2006
• Johnson 140HP four-stroke - 2003-2006
• Johnson 200HP four-stroke - 2004-2006
• Johnson 225HP four-stroke - 2004-2006
• Suzuki DF25 and DF30 four-stroke applications using 09168-12012
• Suzuki DF40 and DF50 four-stroke applications using 09168-12012
• Suzuki DF60 and DF70 four-stroke applications using 09168-12012
• Suzuki DF80, DF90 and DF100 four-stroke applications using 09168-12012
• Suzuki DF115 and DF140 four-stroke applications using 09168-12012
• Suzuki DF150 and DF175 four-stroke applications using 09168-12012
• Suzuki DF200, DF225 and DF250 four-stroke applications using 09168-12012
• Suzuki DF300 four-stroke applications using 09168-12012
• HP Range: Johnson / Evinrude 25HP - 225HP
• Engine Type: Suzuki-built Johnson / Evinrude and Suzuki DF four-stroke outboard
• Year Range: Approximately 1998-2007 for Johnson / Evinrude applications

🔌 Function

The gasket washer forms an oil-tight seal beneath the engine-oil drain plug. Its soft material deforms during tightening to fill small surface irregularities between the plug and housing.

⚠️ Common Signs of Failure

• Engine oil seeps around the drain plug
• Oil droplets appear beneath the powerhead after servicing
• Washer is flattened, cracked or deeply marked
• Drain plug must be overtightened to prevent leakage
• Oil leakage begins immediately after an oil change

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 5030465 current BRP service reference
• Suzuki 09168-12012 corresponding OEM reference

OEM / Related Numbers

• 5030465
• Suzuki: 09168-12012
• 0916812012
• 09168-12012-000
• 12.5 x 20mm drain-plug washer

Aftermarket / Verified Equivalents

• Recmar: REC09168-12012
• Aftermarket Drain Washer: 555-25
• Aftermarket Replacement: 09168-12012

📦 Condition

• Genuine BRP part
• Brand new
• Supplied in original or equivalent packaging
