5030623 Evinrude Johnson & Suzuki Annode Gasket Cover | Genuine OEM BRP Outboard Part
5030623 Evinrude Johnson & Suzuki Annode Gasket Cover | Genuine OEM BRP Outboard Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

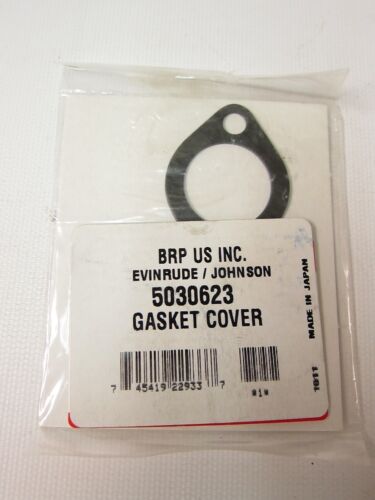

Genuine BRP Internal Anode Cover Gasket - Part Number: 5030623
A genuine BRP gasket for the internal engine-anode cover on selected Suzuki-built Johnson and Evinrude four-stroke outboards.
The gasket seals the removable anode cover to the cylinder-block cooling passage, preventing cooling-water leakage while allowing access to the internal sacrificial anode during inspection and replacement.
⚙️ Key Features
- Genuine BRP OEM internal-anode cover gasket
- Correct Johnson / Evinrude part number 5030623
- Cross-references with Suzuki 11265-87E10 and 11265-87E00
- Used on selected 25HP to 140HP Suzuki-built four-stroke outboards
- Recmar replacement gasket available
🚤 Compatibility
Commonly used on
- Suzuki-built Johnson and Evinrude four-stroke internal anode covers
- Suzuki DF-series cylinder-block anode access covers
Typically suits
- Engine models:
- Johnson 25HP four-stroke
- Johnson 30HP four-stroke
- Johnson 40HP four-stroke
- Johnson 50HP four-stroke
- Johnson 60HP four-stroke
- Johnson 65HP four-stroke
- Johnson 70HP four-stroke
- Johnson 90HP four-stroke
- Johnson 115HP four-stroke
- Johnson 140HP four-stroke
- Evinrude-branded Suzuki-built four-stroke models using gasket 5030623
- Suzuki DF25 four-stroke
- Suzuki DF30 four-stroke
- Suzuki DF40 four-stroke
- Suzuki DF50 four-stroke
- Suzuki DF60 four-stroke
- Suzuki DF70 four-stroke
- Suzuki DF90 four-stroke
- Suzuki DF100 four-stroke
- Suzuki DF115 four-stroke
- Suzuki DF140 four-stroke
- HP Range: 25HP - 140HP
- Engine Type: Suzuki-built Johnson / Evinrude and Suzuki DF four-stroke outboard
- Year Range: Approximately 1999-2007 for Johnson / Evinrude applications
🔌 Function
The gasket seals the internal sacrificial-anode access cover to the engine block. It prevents cooling-water leakage and ensures water flows through the intended internal passages.
⚠️ Common Signs of Failure
- Cooling water seeps around the anode cover
- Salt or mineral deposits appear at the cover joint
- Gasket tears during anode inspection
- Corrosion develops around the cover mating surface
- The cover will not reseal after anode replacement
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 5030623 current BRP service reference
- Suzuki 11265-87E10 current corresponding OEM reference
- Suzuki 11265-87E00 earlier corresponding gasket reference
OEM / Related Numbers
- 5030623
- Suzuki: 11265-87E10
- Suzuki: 11265-87E00
- 1126587E10
- 1126587E00
Aftermarket / Verified Equivalents
- Recmar: REC11265-87E10
- Aftermarket Replacement: 11265-87E10
- Aftermarket Replacement: 11265-87E00
📦 Condition
- Genuine BRP part
- Brand new
- Supplied in original or equivalent packaging
