5030725 Evinrude Johnson BRP Gasket | Genuine OEM BRP Outboard Part
5030725 Evinrude Johnson BRP Gasket | Genuine OEM BRP Outboard Part
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
🔧 Product Description

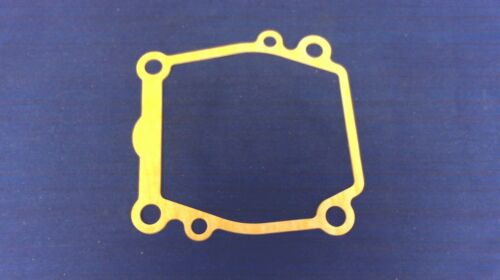

Genuine BRP Water Pump Housing Gasket - Part Number: 5030725
A genuine BRP water-pump housing gasket for selected Suzuki-built Johnson and Evinrude four-stroke outboards.
The gasket seals the water-pump housing and wear-plate assembly within the lower unit, preventing cooling-water bypass around the impeller. It cross-references with Suzuki gasket 17472-87E10.
⚙️ Key Features
- Genuine BRP OEM water-pump gasket
- Correct Johnson / Evinrude part number 5030725
- Cross-references with Suzuki 17472-87E10
- Used in selected 60HP and 70HP Johnson four-stroke lower units
- Recmar replacement gasket and Sierra / GLM complete pump kits available
🚤 Compatibility
Commonly used on
- Suzuki-built Johnson / Evinrude lower-unit water pumps
- Suzuki DF and DT gearcases using gasket 17472-87E10
Typically suits
- Engine models:
- Johnson 60HP four-stroke - approximately 2003-2005
- Johnson 70HP four-stroke - approximately 1998-2005
- Evinrude-branded Suzuki-built 60HP and 70HP four-stroke applications using 5030725
- Suzuki DF60 four-stroke - approximately 1998-2006
- Suzuki DF70 four-stroke - approximately 1998-2006
- Suzuki DF90 / DT90 gearcase applications using 17472-87E10
- Suzuki DF100 / DT100 gearcase applications using 17472-87E10
- Lower units using Suzuki water-pump kit 17400-87E00
- Lower units using Suzuki water-pump kit 17400-87E01
- Lower units using Suzuki water-pump kit 17400-87E02
- Lower units using Suzuki water-pump kit 17400-87E03
- Lower units using Suzuki water-pump kit 17400-87E04
- HP Range: Johnson / Evinrude 60HP - 70HP; corresponding Suzuki gearcases up to 100HP
- Engine Type: Suzuki-built Johnson / Evinrude and Suzuki DF / DT outboard
- Year Range: Approximately 1998-2006, dependent on model and gearcase
🔌 Function
The gasket seals the water-pump housing and plate joint so the rotating impeller can draw and pressurise cooling water without leakage around the pump base.
⚠️ Common Signs of Failure
- Weak cooling-water tell-tale
- Engine overheats at idle or under load
- Water bypasses the pump housing
- Gasket is torn, compressed or displaced during servicing
- Pump housing will not seal after impeller replacement
- Corrosion or debris prevents the gasket from seating flat
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 5030725 current BRP service reference
- Suzuki 17472-87E10 current corresponding OEM reference
- Suzuki 17472-87E00 earlier corresponding gasket reference
OEM / Related Numbers
- 5030725
- Suzuki: 17472-87E10
- Suzuki: 17472-87E00
- Suzuki: 17472-87E00-H17
- 1747287E10
- 5030723 related impeller
- Suzuki 17461-87E12 related impeller
- 5030724 related wear plate
- Suzuki 17471-92J00 related wear plate
- 5030591 related impeller key
- Suzuki 09420-04009 related impeller key
- 5031731 related complete water-pump kit
- 5030971 related water-pump kit
- 0766487 related BRP service kit
- Suzuki 17400-87E04 related complete water-pump kit
Aftermarket / Verified Equivalents
- Recmar: REC17472-87E10
- Sierra: 18-3254 - complete water-pump kit containing the equivalent gasket
- GLM: 12257 - complete water-pump kit containing the equivalent gasket
- Aftermarket Gasket: 17472-87E10
- Aftermarket Gasket: 17472-87E00
📦 Condition
- Genuine BRP part
- Brand new
- Supplied in original or equivalent packaging
