🔧 Product Description

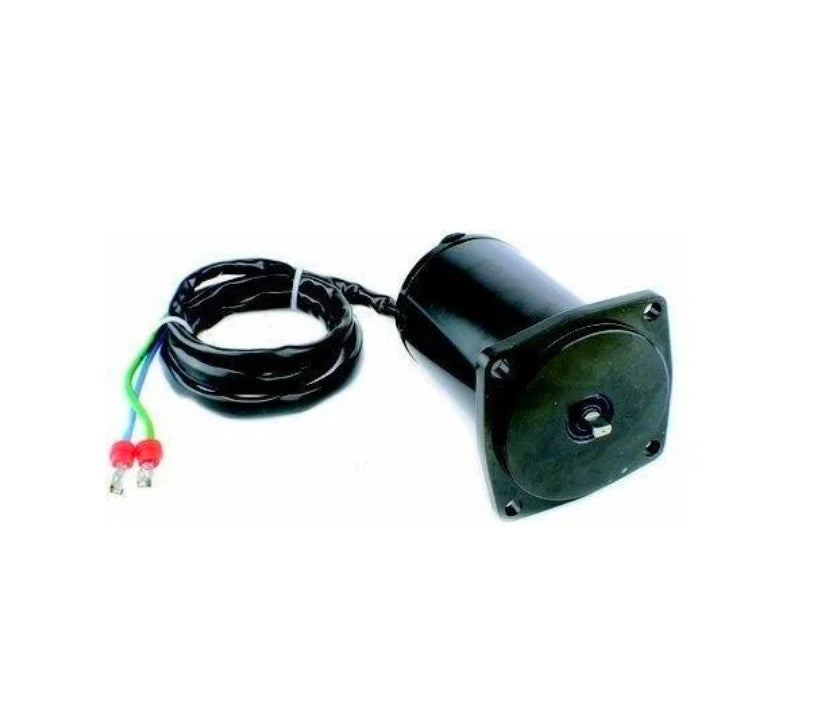

Aftermarket replacement Suzuki-Built 40HP/50HP Trim & Tilt Motor - Replaces Part Number: 5031482

New aftermarket trim motor replacing BRP 5031482 for Suzuki-built Johnson/Evinrude 40HP and 50HP four-stroke outboards.

⚙️ Key Features

• Correct replacement for BRP 5031482

• Suzuki 87J-pattern two-wire motor

• Supports Suzuki-built OMC four-stroke outboards

• Cross-references later 5032670/5036081

• Not a MerCruiser trim motor

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 5031482

• 1 × Integrated two-wire lead set

• 1 × Motor mounting seal - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 5032670 / 5036081 → Later service references associated with 5031482

• 5031482 ↔ Suzuki 38100-87J00/10/11/12/20/21

OEM / Related Numbers:

• 5032670

• 5036081

• 38100-87J00

• 38100-87J10

• 38100-87J11

• 38100-87J12

• 38100-87J20

• 38100-87J21

Aftermarket / Verified Equivalents:

• ARCO: 6239 application family

• Suzuki-compatible 87J trim motor

• Recmar: REC5031482

🚤 Compatibility

Commonly used on:

• Suzuki-built Johnson/Evinrude four-stroke outboard trim systems

Typically suits:

• Engine / Drive models:

• Johnson/Evinrude 40HP and 50HP Suzuki-built four-strokes

• Suzuki DF40 and DF50 applications using the 87J motor family

• HP / Drive Range: 40HP - 50HP

• System Type: Outboard electric-hydraulic power trim motor

• Year Range: Approximately late-1990s through 2000s

• Serial / Component Identification: Corrected from the supplied MerCruiser title; confirm BRP 5031482 or Suzuki 87J number.

🔌 Function

The reversible 12-volt trim motor drives the hydraulic pump in both directions so the outboard or sterndrive can be raised, lowered and trimmed under load.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Pump works only after the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
