5033727 Johnson 18137-77E00 Suzuki IAC Valve | Genuine Used Part

🔧 Product Description

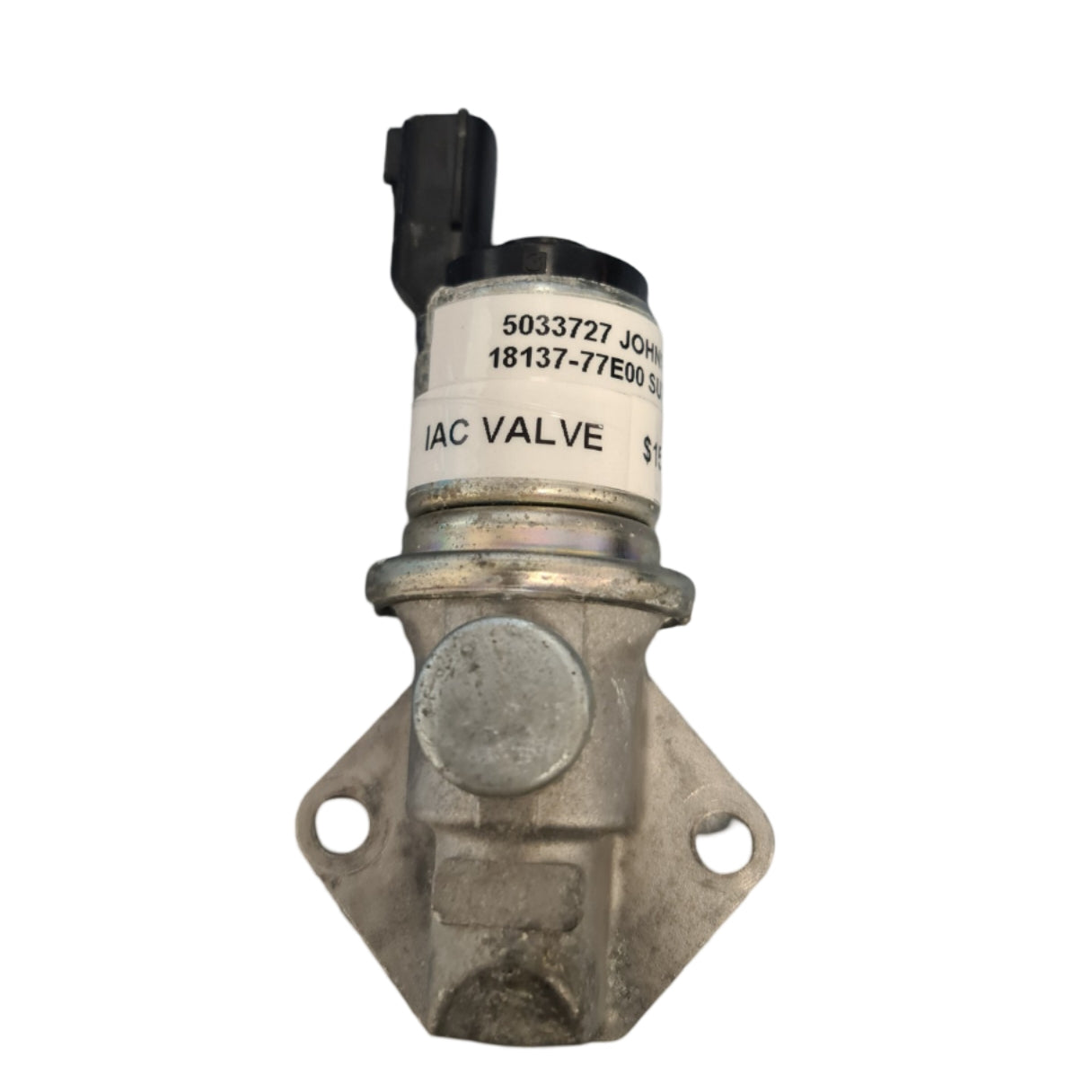

Genuine Johnson / Suzuki Idle Air Control Valve - Part Numbers: 5033727 / 18137-77E00

A genuine idle air control valve used on selected Suzuki-built Johnson and Suzuki four-stroke outboards.

The IAC valve mounts to the intake manifold and regulates the amount of bypass air entering the engine when the throttle plates are closed. The engine control module adjusts the valve to maintain a stable idle during starting, warm-up, gear engagement and changing electrical loads.

Johnson / BRP part number 5033727 and Suzuki part number 18137-77E00 identify the same Suzuki-platform IAC valve. These are cross-brand OEM equivalents rather than a supersession chain.

⚙️ Key Features

• Genuine Johnson / BRP and Suzuki OEM IAC valve
• Johnson / BRP reference 5033727
• Suzuki OEM equivalent 18137-77E00
• Electronically regulates intake bypass air at idle
• Verified WSM aftermarket replacement available

🚤 Compatibility

Commonly used on

• Suzuki original-generation inline four-cylinder four-stroke outboards
• Suzuki-manufactured Johnson four-stroke outboards
• Intake manifolds using IAC valve 18137-77E00 or 5033727

Typically suits

• Johnson / Evinrude models:
• Johnson 90HP four-stroke - approximately 2003-2006
• Johnson 115HP four-stroke - approximately 2003-2006
• Johnson 140HP four-stroke - approximately 2003-2006
• Suzuki-platform Evinrude applications where 5033727 is specified
• Suzuki models:
• Suzuki DF90 - approximately 2001-2008
• Suzuki DF100 applications whose parts catalogue specifies 18137-77E00
• Suzuki DF115 - approximately 2001-2021
• Suzuki DF140 - approximately 2002-2021
• Standard- and counter-rotation configurations using the same intake manifold
• HP Range: 90HP - 140HP
• Engine Type: Suzuki / Johnson inline four-cylinder fuel-injected four-stroke outboard
• Year Range: Approximately 2001 - 2021, dependent on brand, model and serial number

🔌 Function

The IAC valve controls intake bypass air while the throttle is closed, allowing the ECM to maintain the correct idle speed without mechanically opening the throttle plates.

⚠️ Common Signs of Failure

• Rough, surging or unstable idle
• Engine stalls when shifted into gear
• Engine starts but will not remain running without throttle
• Idle speed remains excessively high
• IAC or idle-control fault code stored in the ECM
• Valve sticks because of carbon, oil vapour or salt contamination
• Intake leak around gasket 18134-77E00

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 5033727 Johnson / BRP service reference
• 18137-77E00 Suzuki OEM cross-brand equivalent
• No confirmed supersession between these numbers

OEM / Related Numbers

• Johnson / BRP: 5033727
• Suzuki: 18137-77E00
• Suzuki formatted number: 18137-77E00-000
• Suzuki: 18134-77E00 related IAC mounting gasket
• Suzuki formatted gasket number: 18134-77E00-0000
• Matching IAC mounting screws and intake-manifold components

The corresponding gasket should normally be inspected or replaced whenever the valve is removed, as an intake leak at the gasket can produce symptoms similar to a defective IAC valve.

Aftermarket / Verified Equivalents

• WSM: 779-160
• WSM 779-160 replaces Johnson / BRP 5033727 and Suzuki 18137-77E00
• Protorque replacement gasket available for Suzuki 18134-77E00
• Unbranded automotive-style IAC valves are not included as verified marine equivalents

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
