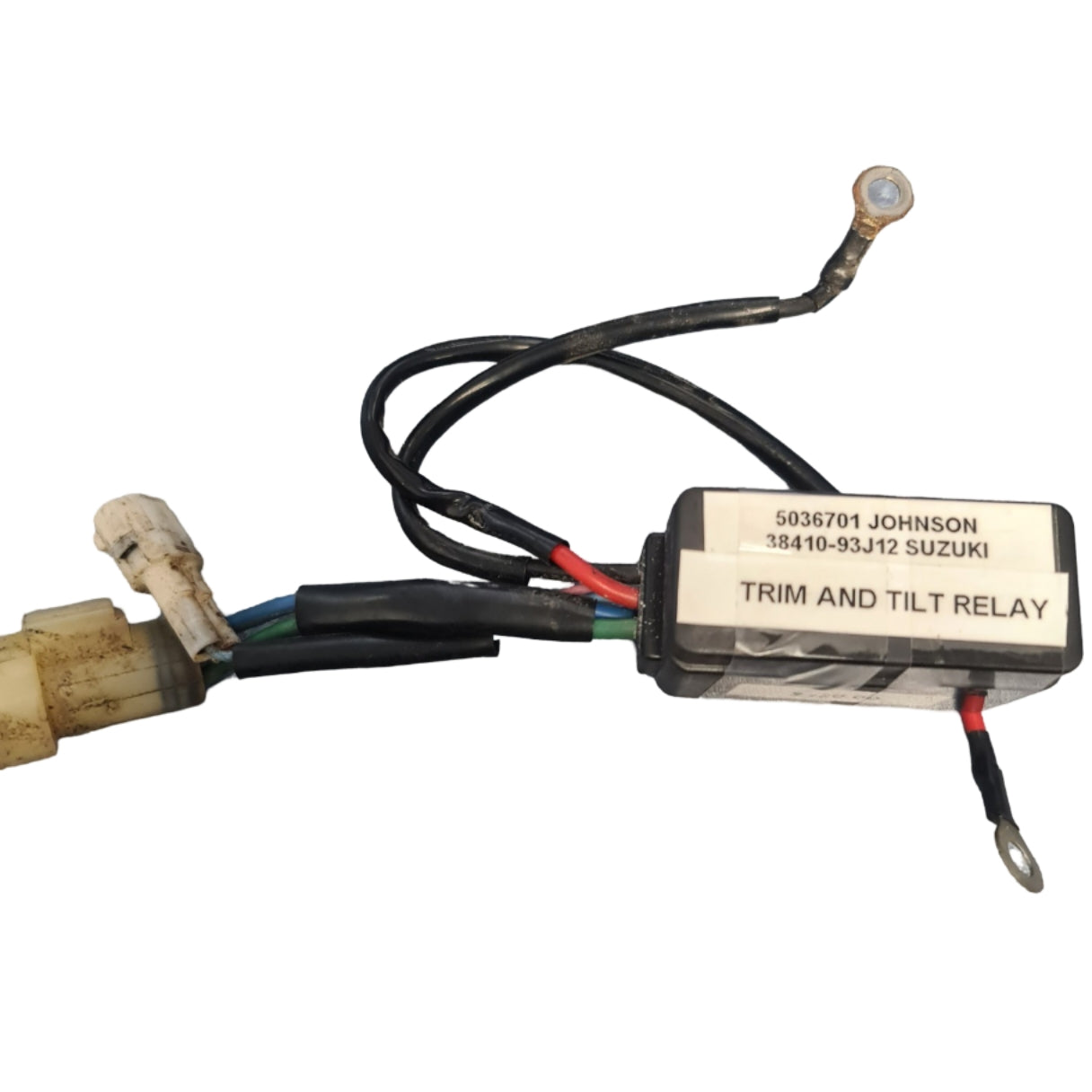

5036701 Johnson 38410-93J12 Suzuki Trim and Tilt Relay | Genuine Used Part

5036701 Johnson 38410-93J12 Suzuki Trim and Tilt Relay | Genuine Used Part

$120.00 AUD
$120.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 4 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

Genuine Suzuki / Johnson Power Trim & Tilt Relay Assembly - Part Numbers: 38410-93J12 and 5036701

A genuine Suzuki-built power trim and tilt relay assembly used on selected Suzuki and Suzuki-built Johnson four-stroke outboards. This relay assembly switches high-current power to the trim / tilt motor so the engine can raise and lower from the helm or cowl trim switch.

⚙️ Key Features

  • Genuine Suzuki / Johnson trim and tilt relay assembly
  • Suzuki part number 38410-93J12
  • Johnson / BRP cross-reference 5036701
  • Supersedes earlier Suzuki 38410-93J00 / 38410-93J10 / 38410-93J11 relay references
  • Suits selected Suzuki and Suzuki-built Johnson power trim and tilt systems

🚤 Compatibility

Commonly used on

  • Suzuki and Suzuki-built Johnson power trim / tilt electrical systems

Typically suits

  • Engine models:
  • Suzuki DF40
  • Suzuki DF40A
  • Suzuki DF50
  • Suzuki DF50A
  • Suzuki DF50AV
  • Suzuki DF60
  • Suzuki DF60A
  • Suzuki DF70
  • Suzuki DF70A
  • Suzuki DF80
  • Suzuki DF80A
  • Suzuki DF90
  • Suzuki DF90A
  • Suzuki DF100
  • Suzuki DF100A
  • Suzuki DF115
  • Suzuki DF115A
  • Suzuki DF140
  • Suzuki DF140A
  • Suzuki DF150
  • Suzuki DF175
  • Suzuki DF200
  • Suzuki DF225
  • Suzuki DF250
  • Suzuki DF250A
  • Suzuki DF300
  • Suzuki DF300A
  • Johnson Suzuki-built four-stroke models using 5036701
  • HP Range: commonly 40HP - 300HP
  • Engine Type: Suzuki / Suzuki-built Johnson four-stroke outboard trim and tilt system
  • Year Range: Model and serial-number controlled
  • Serial Note: Match by exact Suzuki serial number or Johnson / BRP model number, relay plug style, relay housing layout and trim motor wiring.

🔌 Function

The relay assembly switches high-current power to the trim / tilt motor in the up and down directions when commanded by the trim switch.

⚠️ Common Signs of Failure

  • Trim motor does not run
  • Trim works in one direction only
  • Relay clicks but motor does not move
  • Intermittent trim or tilt operation
  • Burnt relay contacts
  • Melted or corroded relay plug
  • Trim motor tests correctly but relay output is missing

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 38410-93J13 later Suzuki power trim & tilt relay reference
  • 38410-93J12 listed Suzuki power trim & tilt relay reference
  • 38410-93J11 earlier Suzuki power trim & tilt relay reference
  • 38410-93J10 earlier Suzuki power trim & tilt relay reference
  • 38410-93J00 earlier Suzuki power trim & tilt relay reference
  • 5036701 Johnson / BRP cross-reference for Suzuki-built application

OEM / Related Numbers

  • 38410-93J12
  • 3841093J12
  • 38410-93J12-000
  • 38410-93J13
  • 3841093J13
  • 38410-93J11
  • 3841093J11
  • 38410-93J10
  • 3841093J10
  • 38410-93J00
  • 3841093J00
  • 5036701
  • Power trim & tilt relay assembly
  • PTT relay assembly
  • Trim relay assembly

Aftermarket / Verified Equivalents

  • Recmar: REC38410-93J12

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
