51122-88L00 Suzuki DF60A Mount Cover Case | Genuine Used Part

51122-88L00 Suzuki DF60A Mount Cover Case | Genuine Used Part

$50.00 AUD
$50.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

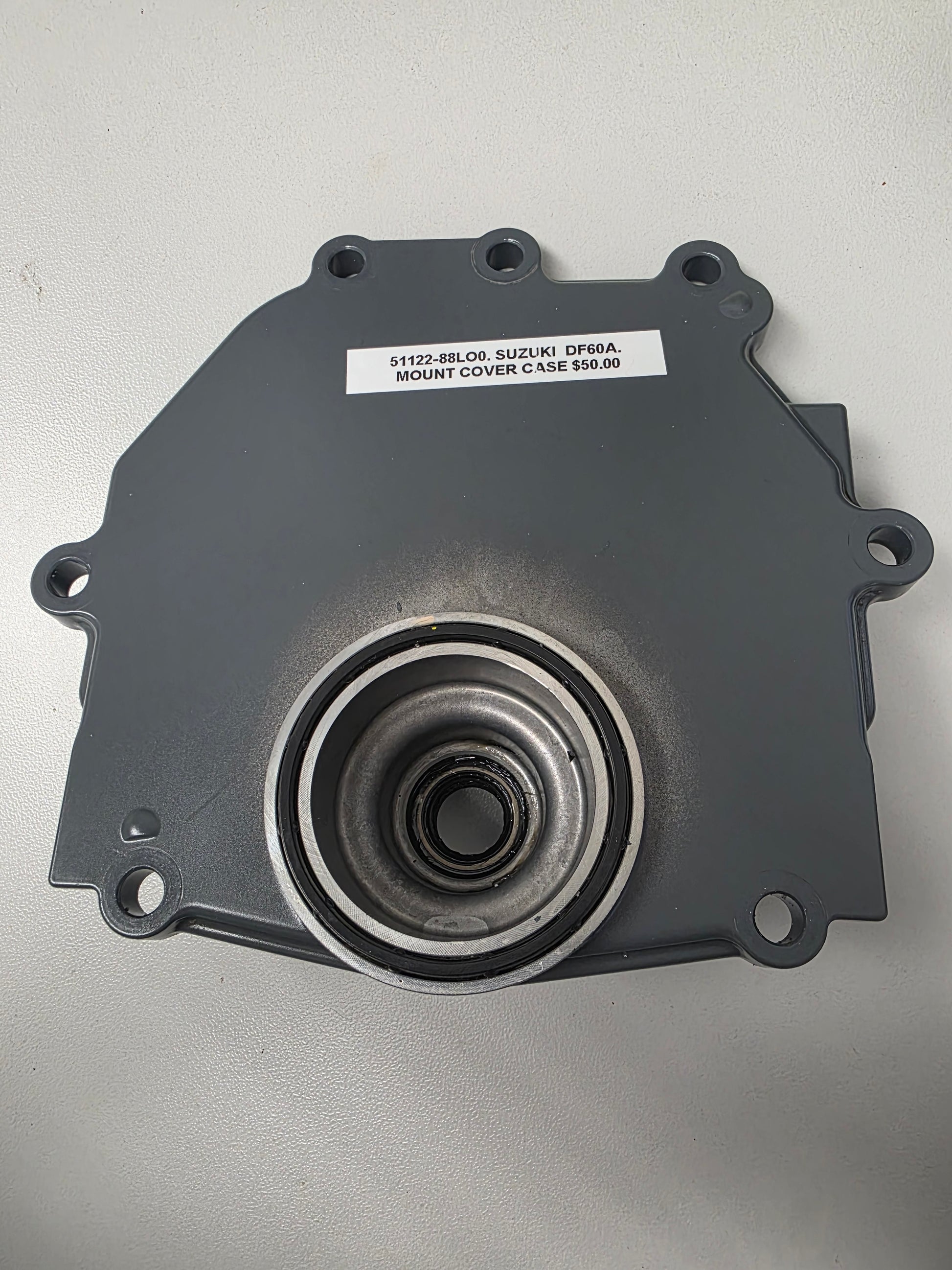

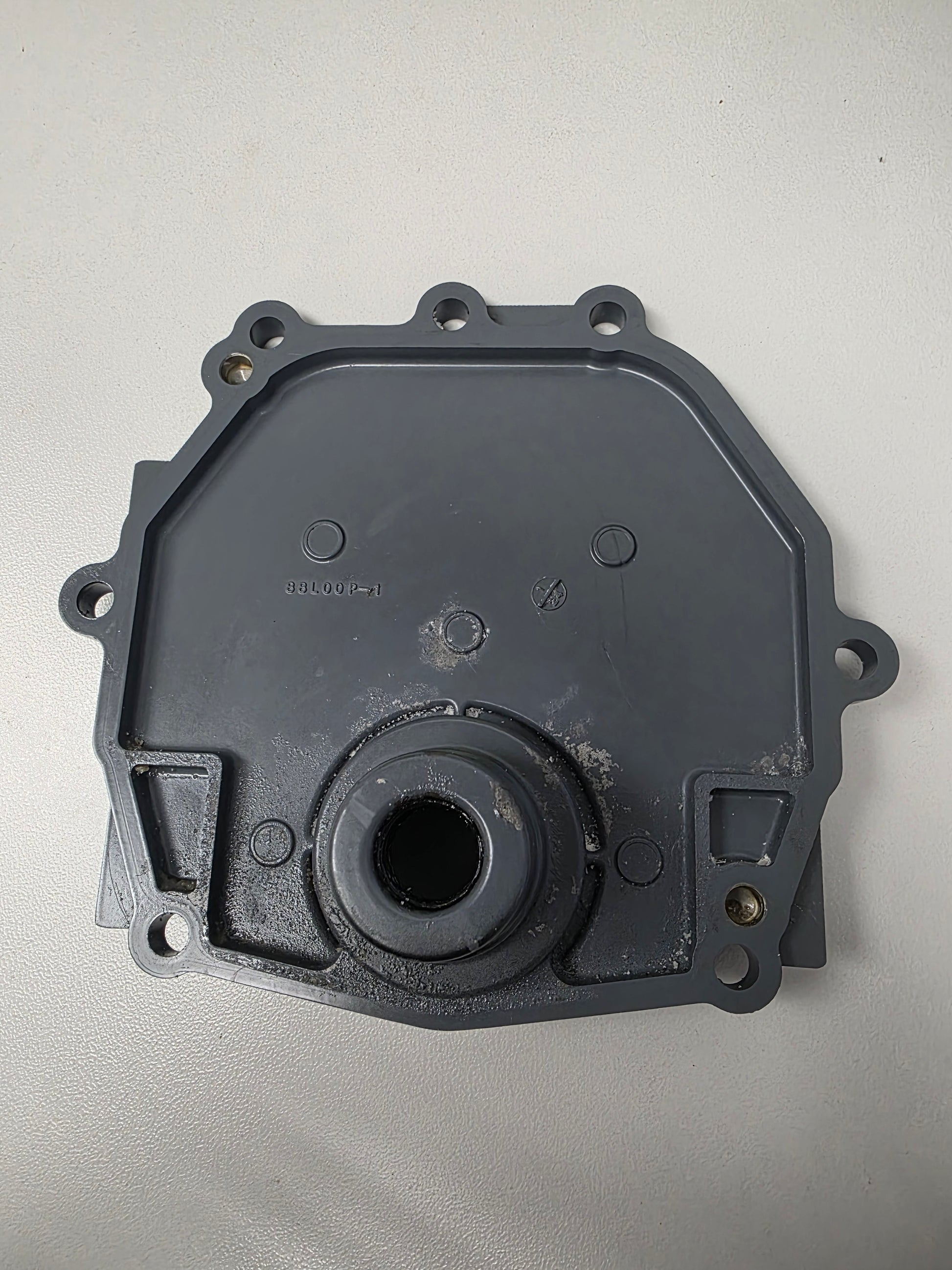

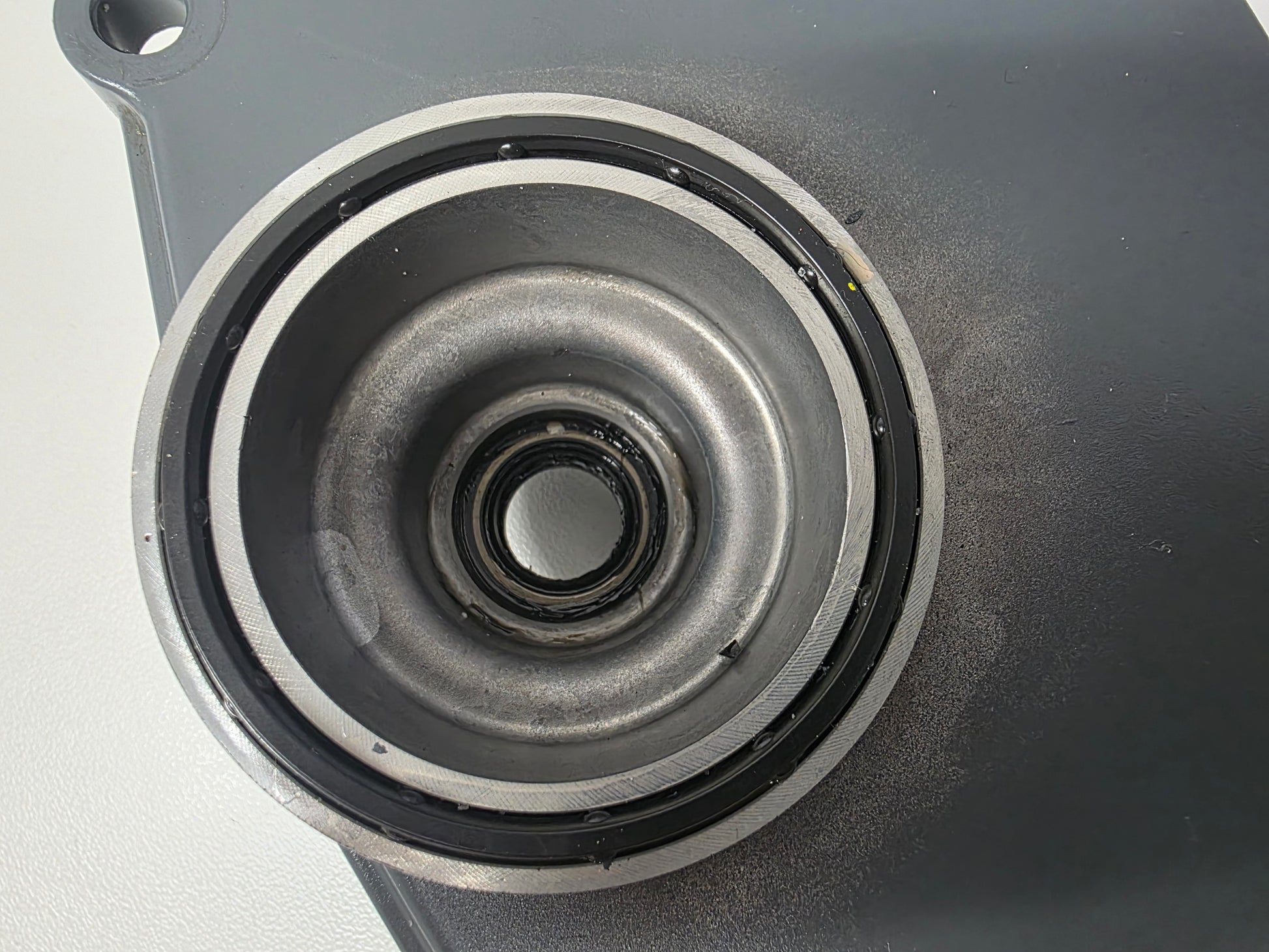

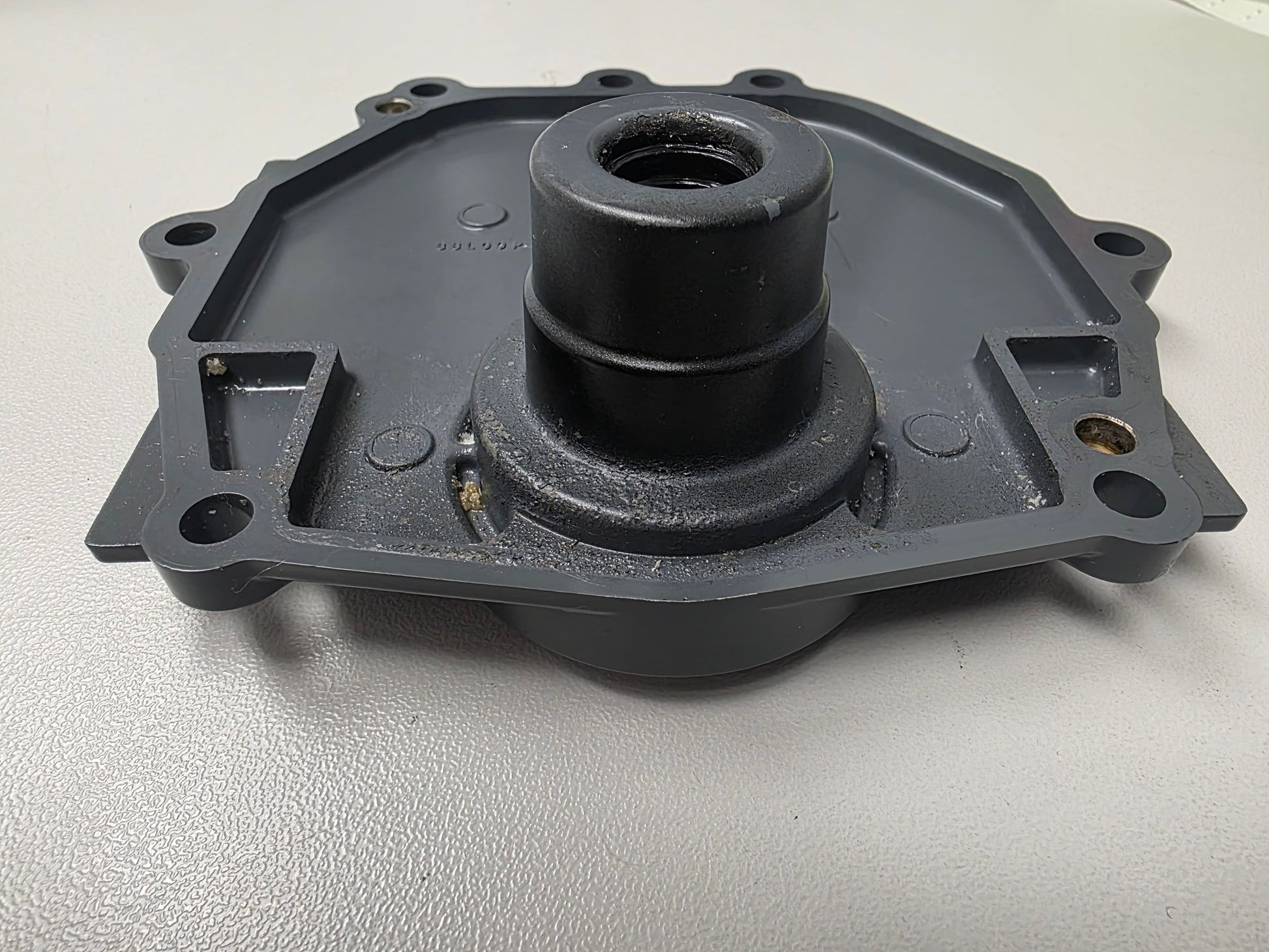

Genuine Suzuki DF40A / DF50A / DF60A Mount-Case Cover - Part Number: 51122-88L00

A genuine Suzuki mount-case cover fitted to the engine-holder assembly of DF40A, DF50A and DF60A outboards. The cover closes the mounting cavity and works with gasket 51123-88L00 to protect the upper mount and internal passages from water, salt and debris.

⚙️ Key Features

  • Genuine Suzuki OEM mount-case cover
  • Correct part number 51122-88L00
  • Used across DF40A, DF50A and DF60A model families
  • Seals with gasket 51123-88L00
  • Long-running part used across multiple model years

🚤 Compatibility

  • Suzuki DF40A and DF40AST model families
  • Suzuki DF50A and DF50ATH model families
  • Suzuki DF60A, DF60AV and high-thrust variants
  • Documented from 2010 production through 2026 catalogues
  • Representative VIN families include 04003F / 04004F, 05003F / 05004F and 06002F / 06003F
  • Applies where the engine-holder diagram lists 51122-88L00

🔌 Function

The cover closes the mount cavity, retains the sealing gasket and protects the upper mounting structure and internal engine-holder passages.

⚠️ Common Signs of Failure

  • Cover is warped
  • Sealing surface corrodes
  • Bolt holes crack
  • Water enters the mount cavity
  • Gasket will not seal
  • Mount-area corrosion accelerates

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 51122-88L00 is the current documented cover reference
  • 51122-88L00-000 and 51122-88L00-0000 are formatted ordering versions
  • No direct superseding Suzuki number has been verified

OEM / Related Numbers

  • 51122-88L00
  • 51122-88L00-000
  • 51123-88L00 mount-case-cover gasket
  • 09202-08006 locating pin
  • 01550-0825A / related cover bolts
  • 51110-88L00 / 88L10 engine holders
  • 54137-88L00 upper mount cover

Aftermarket / Verified Equivalents

  • No verified aftermarket complete cover
  • Genuine Suzuki 51122-88L00 is the direct replacement
  • Aftermarket gasket material should not replace the shaped 51123-88L00 gasket
  • Used covers are suitable when flat and free of corrosion

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
