🔧 Product Description

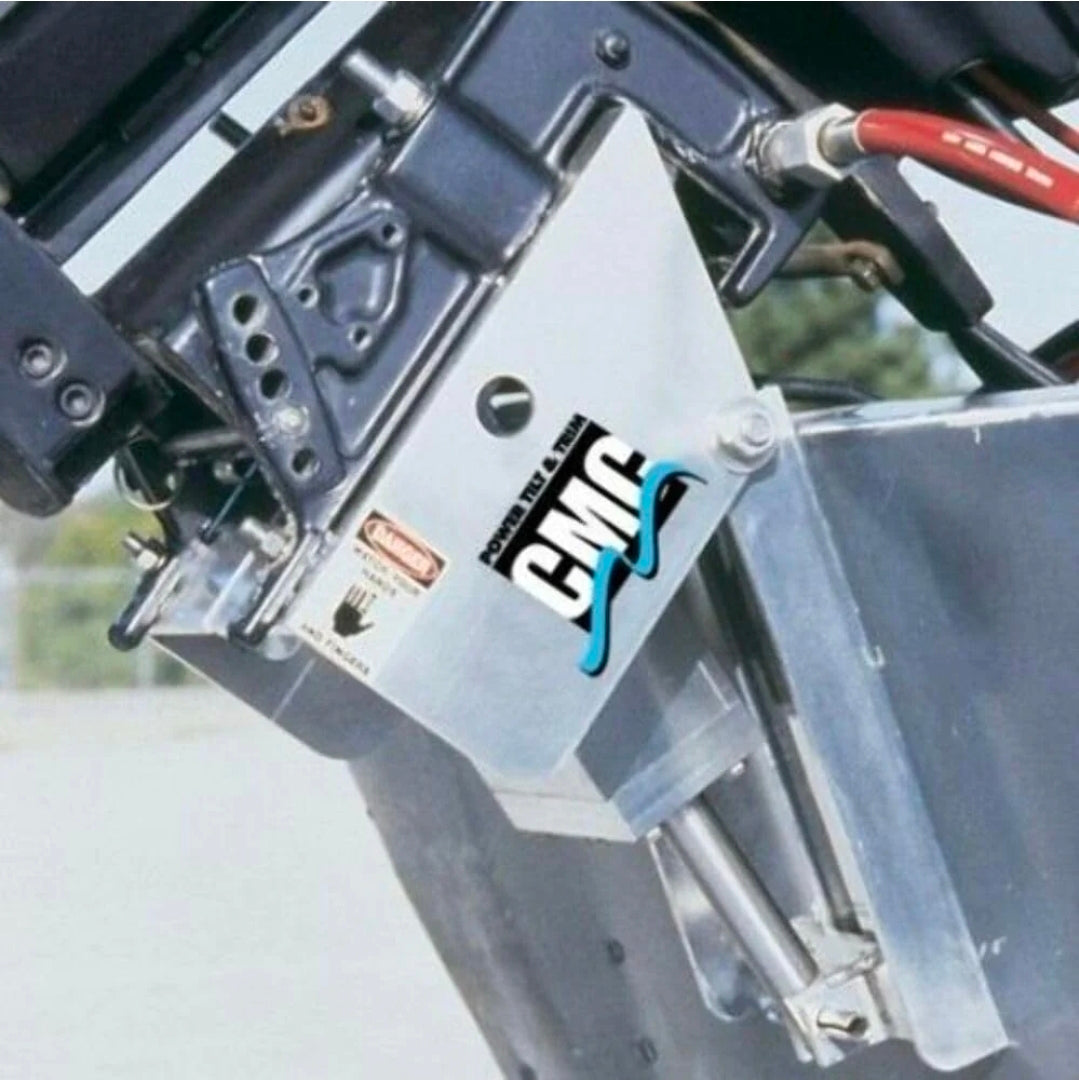

Aftermarket replacement CMC PT-35 Complete Trim & Tilt Unit - Replaces Part Number: 52100D

New aftermarket CMC PT-35-style trim and tilt unit corresponding with CMC P/N 52100. It adds electric trim and tilt to small outboards and provides approximately 5-1/2 inches/140mm of setback.

⚙️ Key Features

• Complete auxiliary trim and tilt bracket

• Rated for outboards up to 35HP

• Approximately 5-1/2-inch / 140mm setback

• Electric-hydraulic high-speed actuator

• Suitable for clamp-on or bolt-on small-outboard installations after transom verification

🧰 Kit / Assembly Contents

• 1 × Complete PT-35 trim and tilt bracket assembly - CMC P/N 52100 family

• 1 × High-speed hydraulic actuator - service P/N 7342 / earlier actuator family where specified

• 1 × Wiring harness and trim switch package - supplied according to unit manufacturer

• 1 × Transom and engine mounting hardware set - supplied according to package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 52100D (distributor/catalogue suffix) ↔ CMC PT-35 assembly P/N 52100

OEM / Related Numbers:

• CMC 52100

• CMC 7342

Aftermarket / Verified Equivalents:

• CMC: PT-35 / 52100

• Aftermarket PT-35-compatible trim unit

🚤 Compatibility

Commonly used on:

• Small outboards requiring an auxiliary transom-mounted trim and tilt bracket

Typically suits:

• Engine / Drive models:

• Two-stroke and four-stroke outboards up to 35HP

• Clamp-on or bolt-on engines within the unit's weight and transom-rating limits

• HP / Drive Range: Up to 35HP

• System Type: Auxiliary electric-hydraulic outboard trim and tilt bracket

• Year Range: Universal application; installation-dependent

• Serial / Component Identification: Confirm engine weight, clamp spacing, transom strength, steering clearance and 5-1/2-inch setback.

🔌 Function

The complete electric-hydraulic power trim and tilt unit uses a reversible motor, pump, valve body and hydraulic ram assembly to raise, lower and hold the outboard at the selected angle.

Common signs of failure / service requirement:

• Outboard will not raise, lower or hold position

• Motor runs but the hydraulic ram does not move

• Hydraulic fluid leaks around the motor, pump, valve body or ram

• Movement is slow, jerky or noisy

• Unit drifts down under engine weight

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
