54120-88L01 Suzuki DF60A Upper Thrust Mount Assy | Genuine Used Part

54120-88L01 Suzuki DF60A Upper Thrust Mount Assy | Genuine Used Part

$150.00 AUD
$150.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

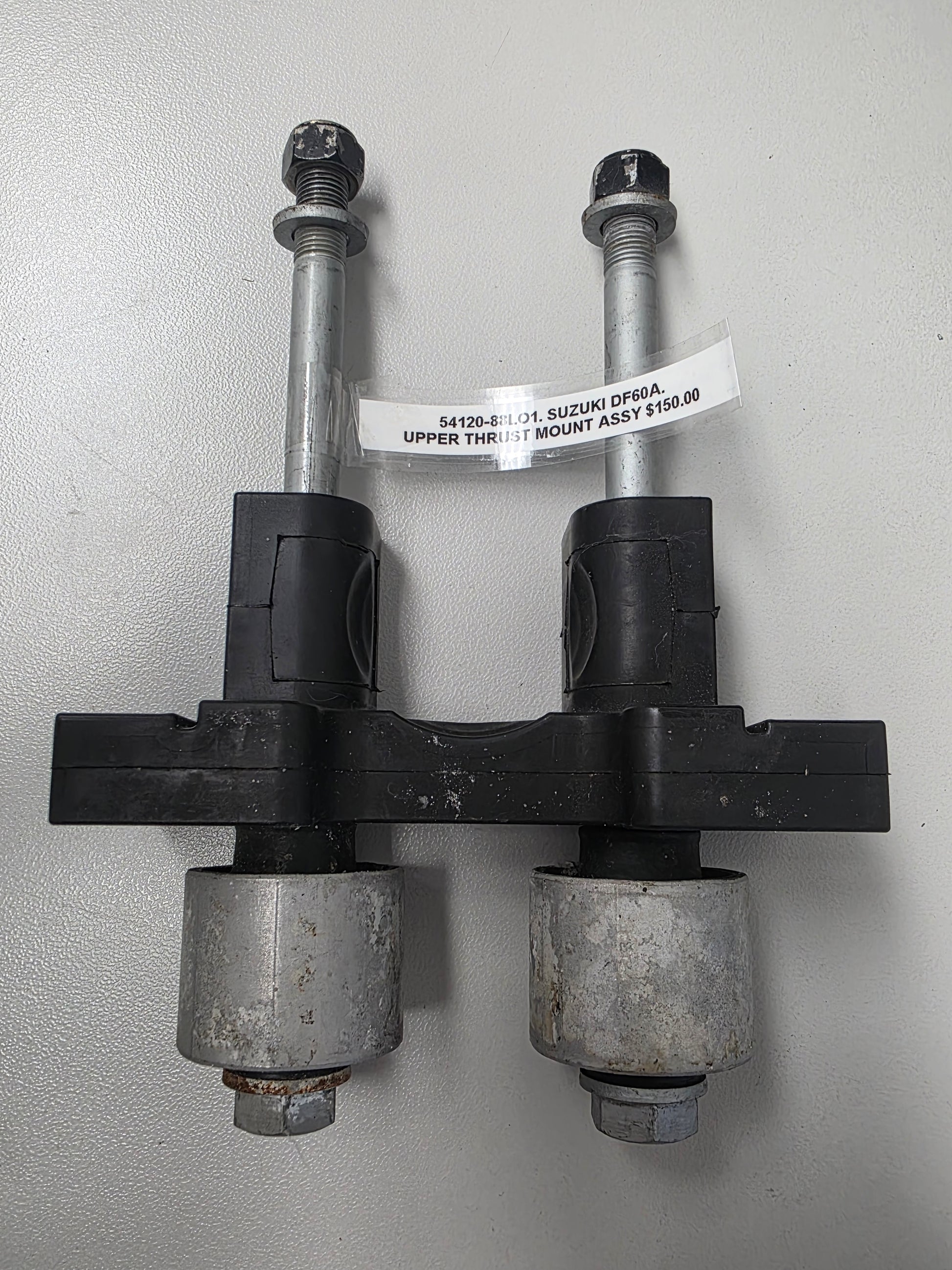

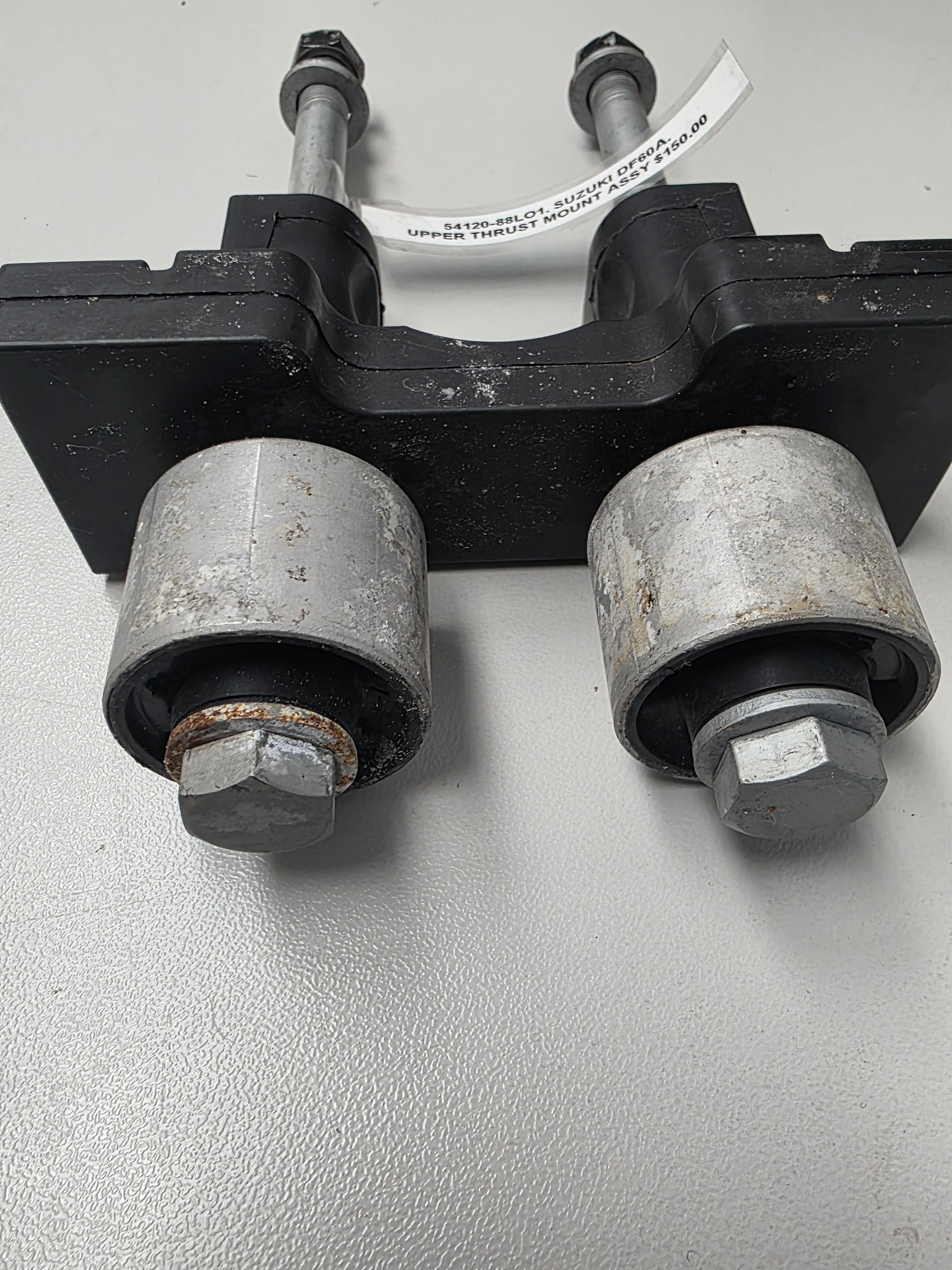

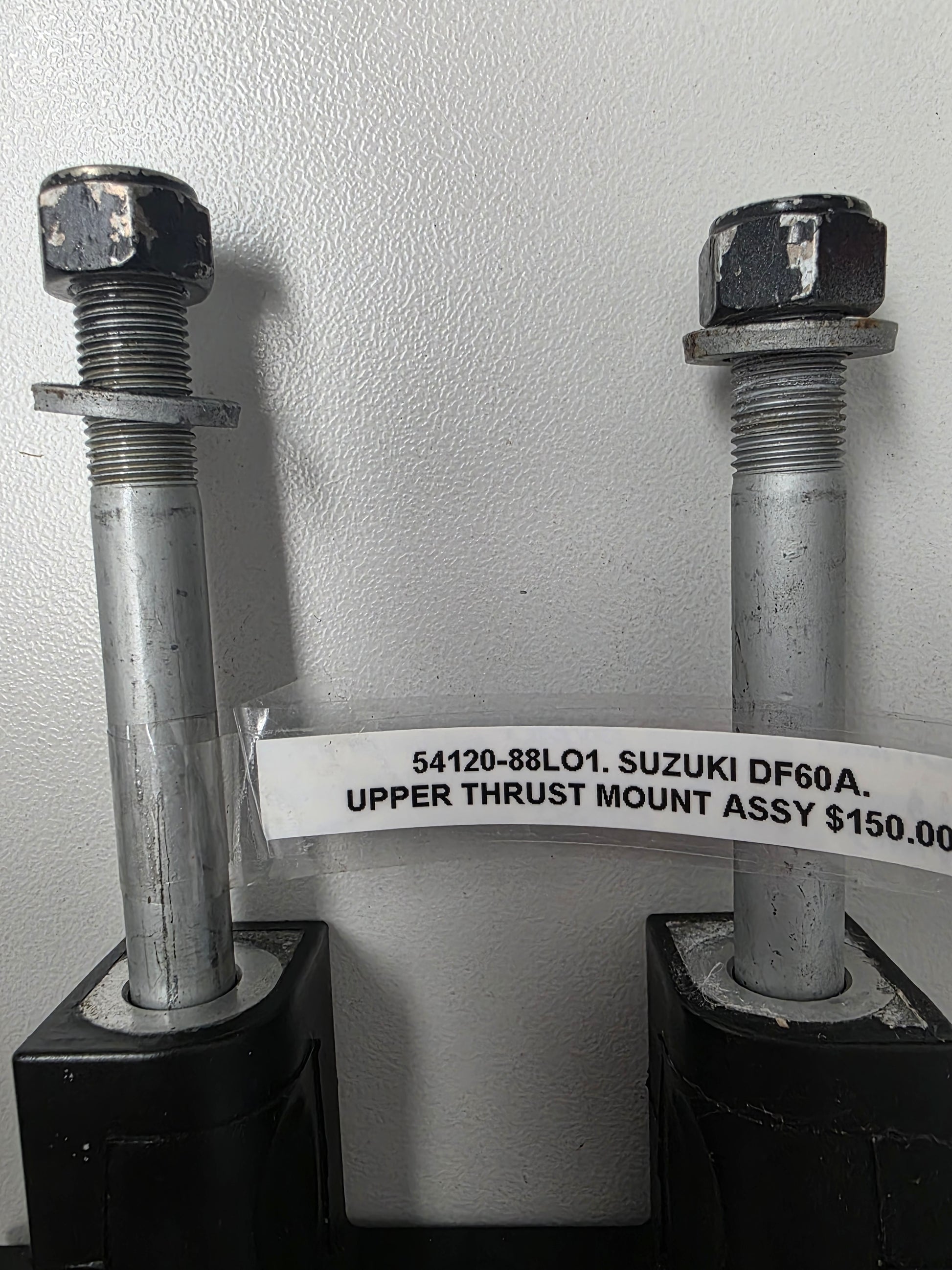

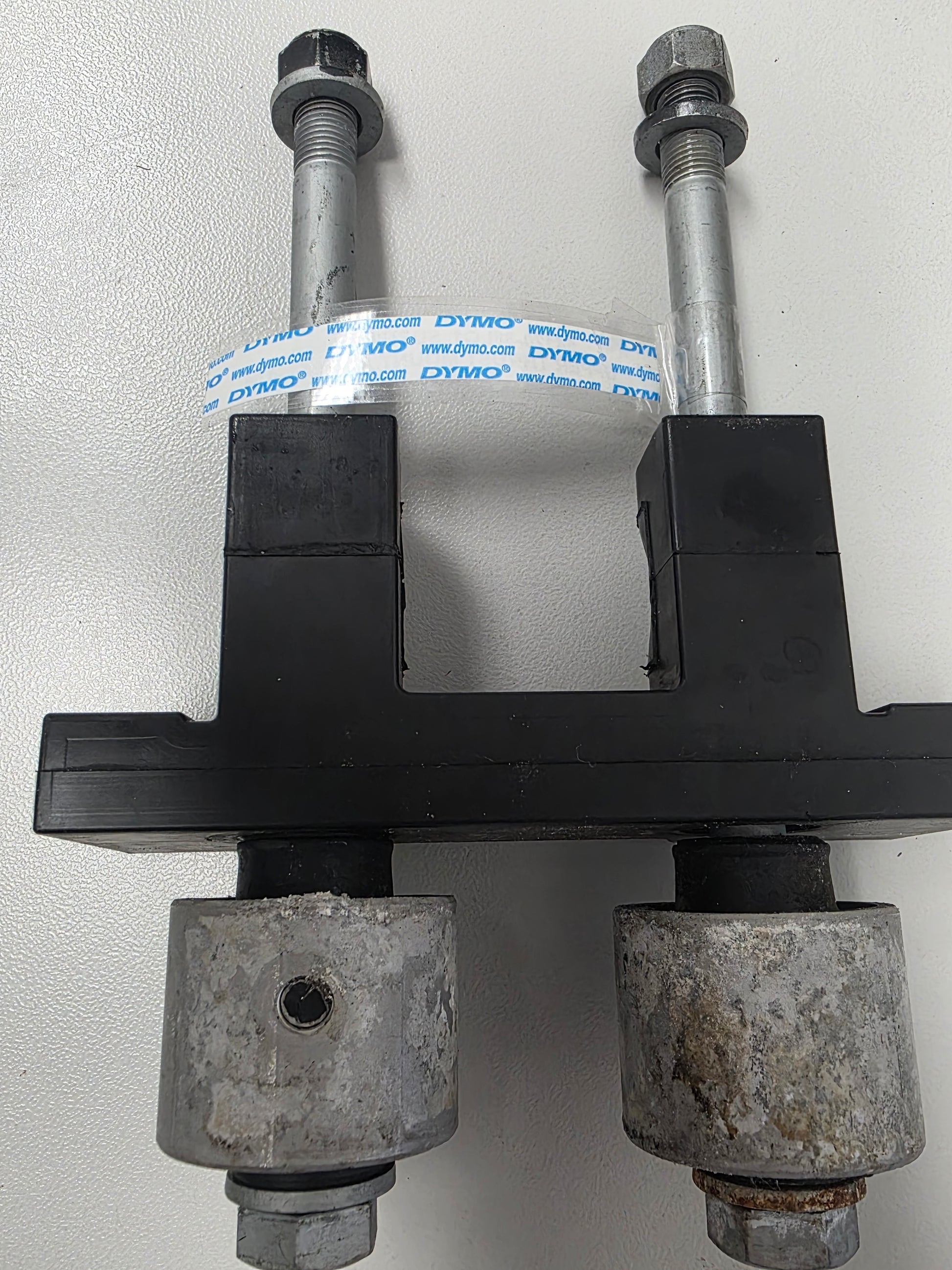

Genuine Suzuki DF40A / DF50A / DF60A Upper Thrust Mount - Part Number: 54120-88L01

A genuine Suzuki upper thrust mount used in the engine-holder assembly of DF40A, DF50A and DF60A four-stroke outboards. The bonded mount absorbs fore-and-aft propulsion loads and isolates engine vibration before those loads pass into the clamp and swivel bracket.

⚙️ Key Features

  • Genuine Suzuki OEM upper thrust mount
  • Correct part number 54120-88L01
  • Used on DF40A-DF60A engine-holder assemblies
  • Bonded rubber-and-metal construction
  • Works with upper mount and cover components

🚤 Compatibility

  • Suzuki DF40A and DF40AST
  • Suzuki DF50A and DF50ATH
  • Suzuki DF60A, DF60AV and high-thrust variants
  • Documented in 2010-2024 engine-holder catalogues and later applications
  • Representative VIN families include 04003F / 04004F, 05003F / 05004F and 06002F / 06003F

🔌 Function

The mount absorbs forward and reverse thrust and controls powerhead movement while reducing vibration transferred into the stern and clamp brackets.

⚠️ Common Signs of Failure

  • Rubber separates from the metal
  • Engine rocks under acceleration
  • Clunking occurs during gear engagement
  • Upper mount cover shows impact marks
  • Mount bolt loosens
  • Vibration increases at idle or cruise

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 54120-88L01 is the current documented upper-thrust-mount reference
  • No confirmed universal supersession from an earlier 88L number has been established
  • 54130-88L00 is the related upper mount and is a separate component

OEM / Related Numbers

  • 54120-88L01
  • 54120-88L01-000
  • 54130-88L00 related upper mount
  • 54137-88L00 upper mount cover
  • 51110-88L-series engine holder
  • Related thrust-mount bolts, washers and nuts

Aftermarket / Verified Equivalents

  • No verified branded aftermarket upper thrust mount
  • Genuine Suzuki 54120-88L01 is the direct replacement
  • Used genuine mounts must retain firm bonded rubber
  • Generic rubber mounts are not suitable substitutes for propulsion-thrust loads

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
