54151-88L00 Suzuki DF60A Lower Thrust Mount | Genuine Used Part

🔧 Product Description

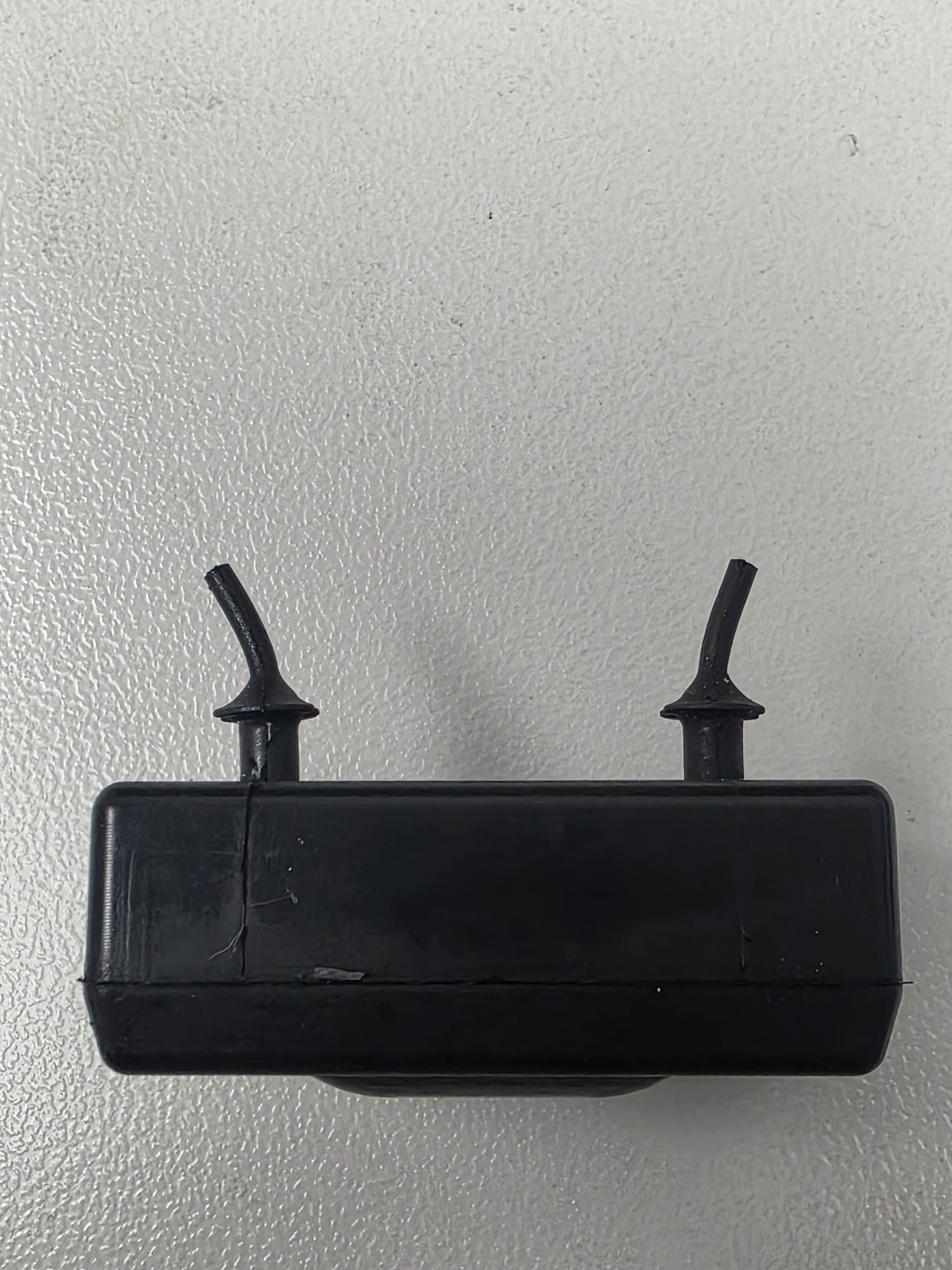

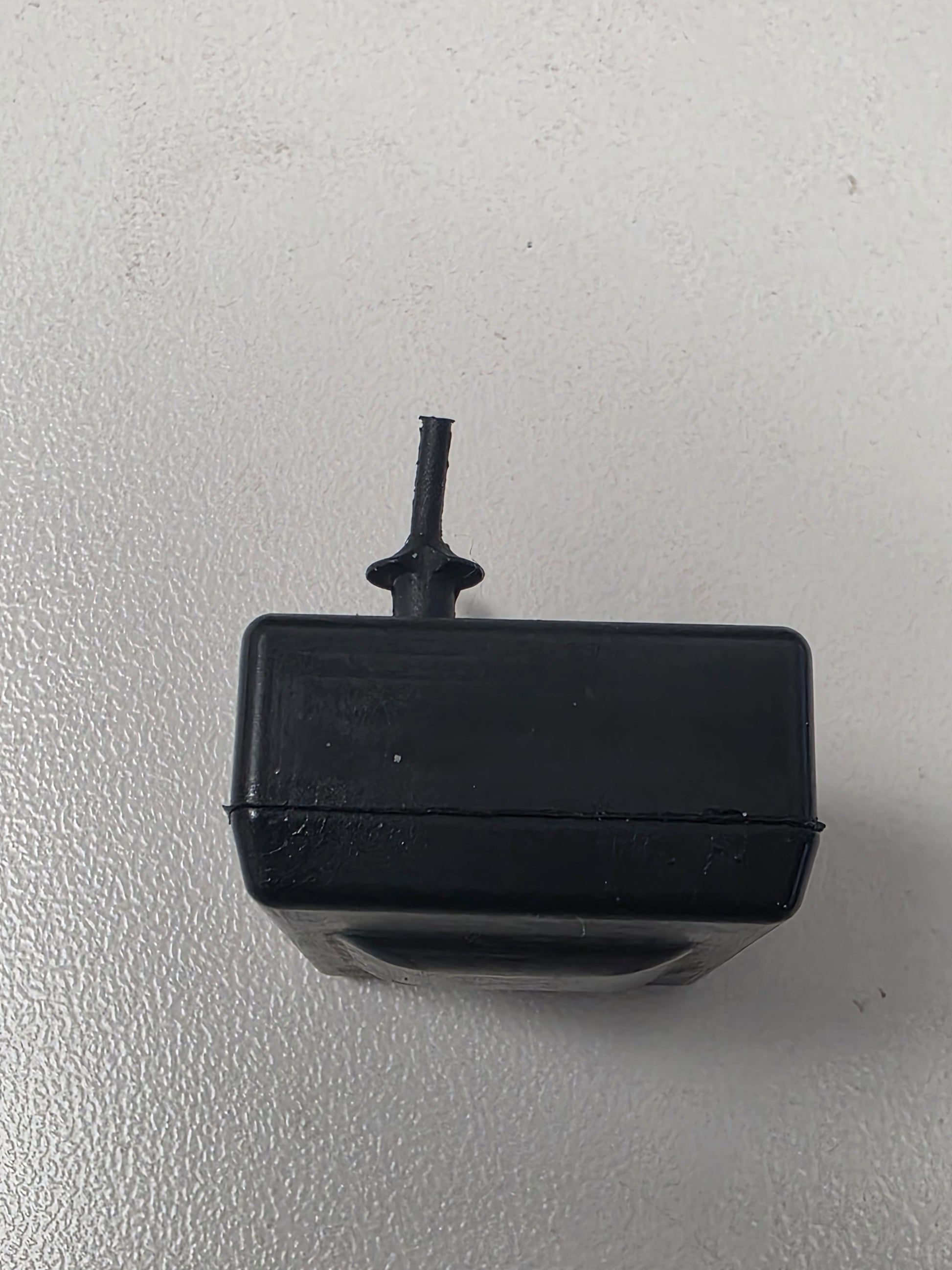

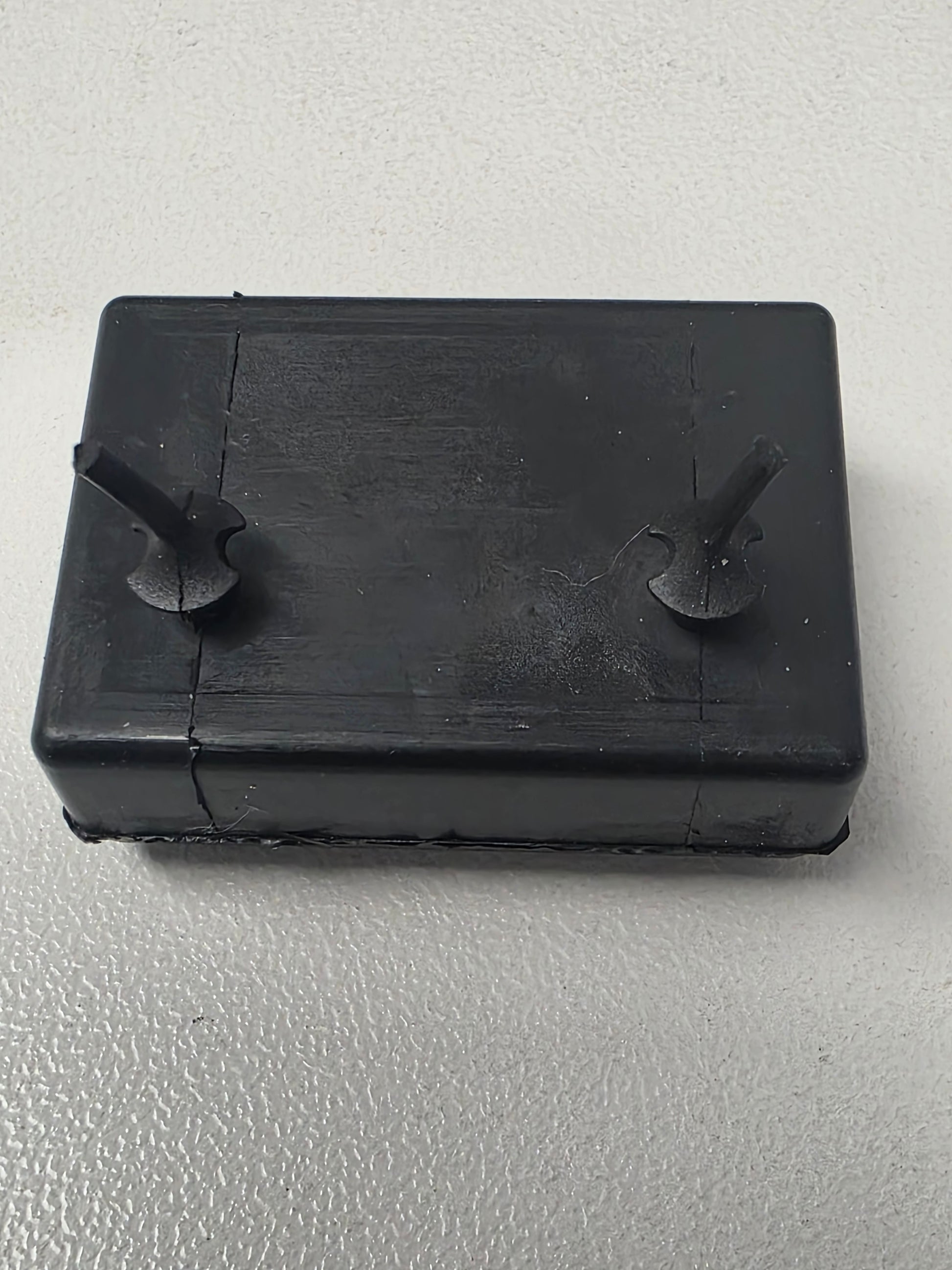

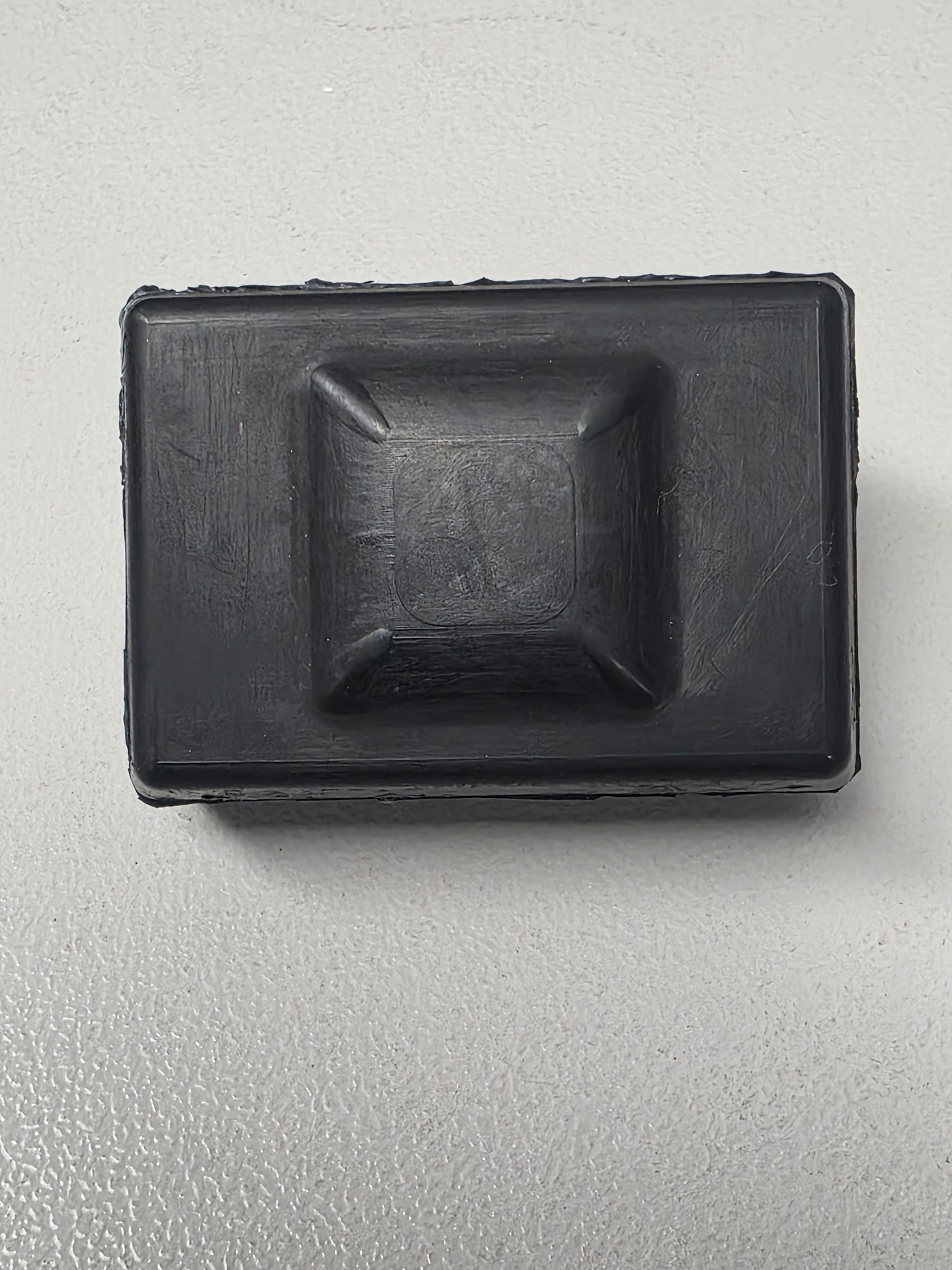

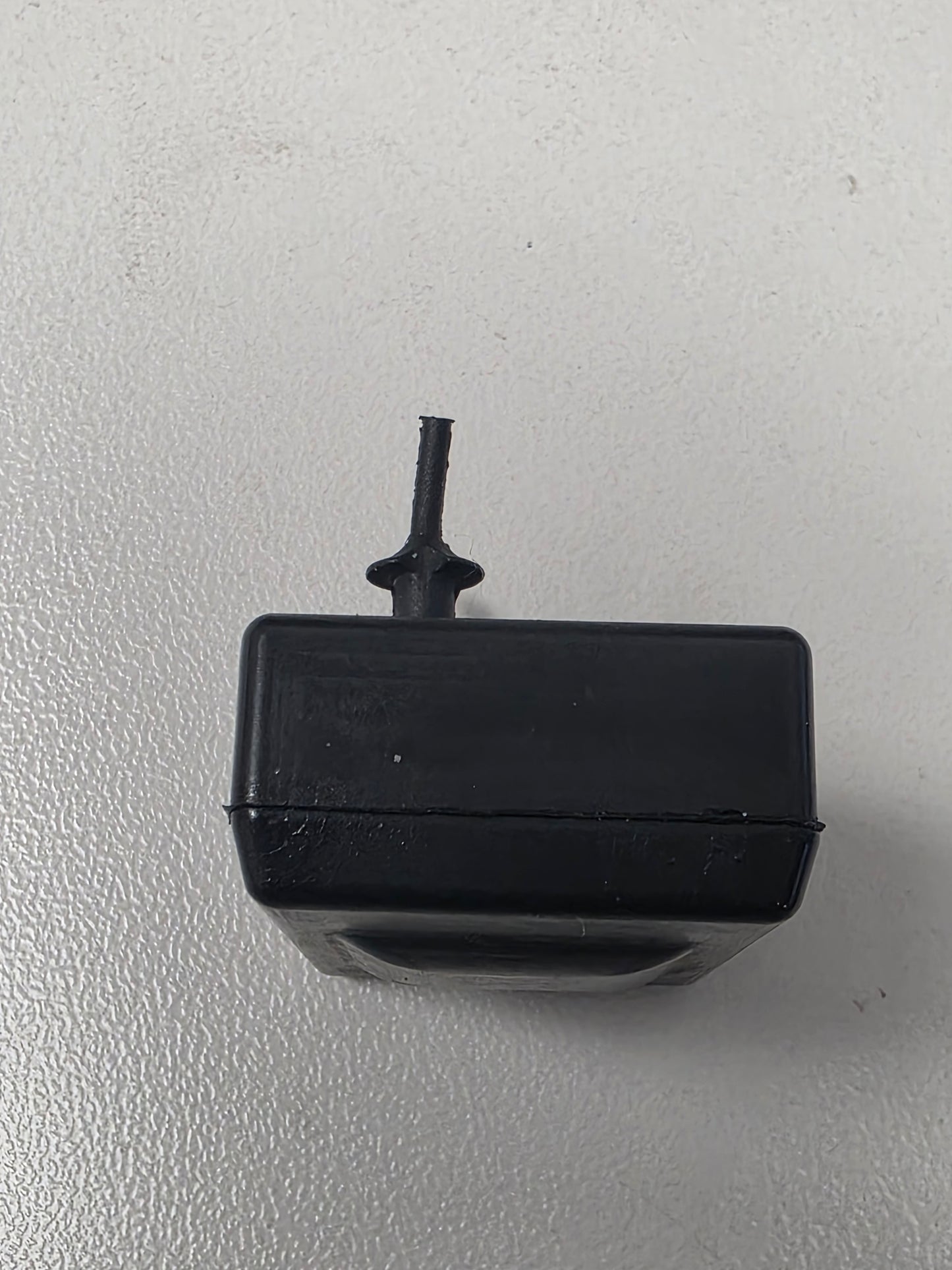

Genuine Suzuki DF40A / DF50A / DF60A Lower Thrust Mount - Part Number: 54151-88L00

A genuine Suzuki lower thrust mount used in selected DF40A, DF50A and DF60A driveshaft-housing assemblies. Earlier listings also showed 545151-88L00, a typographical error; the valid Suzuki part number is 54151-88L00. The mount works with the lower rubber mount and forward / reverse dampers to control propulsion loads in the midsection.

⚙️ Key Features

• Genuine Suzuki OEM lower thrust mount
• Correct part number 54151-88L00
• Corrects mistyped reference 545151-88L00
• Used on standard and high-thrust DF40A-DF60A configurations
• Supports lower mount and thrust-damper system

🚤 Compatibility

• Suzuki DF40A and DF40AST selected driveshaft housings
• Suzuki DF50A and DF50ATH selected driveshaft housings
• Suzuki DF60A and DF60AV / AVT high-thrust variants
• Documented on 2011-2015 and later high-thrust diagrams
• Later production commonly specifies 54151-88L01 from approximately 2016 onward
• Exact use depends on standard or high-thrust lower-housing configuration

🔌 Function

The thrust mount cushions forward and reverse propulsion loads at the lower midsection and prevents metal-to-metal impact between the engine housing and mounting structure.

⚠️ Common Signs of Failure

• Rubber is split or compressed
• Engine clunks during gear changes
• Lower mount housing shows impact marks
• Excessive fore-and-aft movement develops
• Mount separates from its metal insert
• Vibration increases under load

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 54151-88L00 is the original documented reference
• 54151-88L01 supersedes 54151-88L00 in applicable later model catalogues
• The L01 revision is especially documented on later DF60AVT / high-thrust production from approximately 2016

OEM / Related Numbers

• 54151-88L00
• 54151-88L00-000
• 54151-88L01 later revision
• 54160-88L00 / 54160-88L10 lower mounts
• 54167-87L01 lower side mount
• 54180-88L00 / 54180-88L01 forward damper
• Related lower-mount bolt and nut

Aftermarket / Verified Equivalents

• No verified branded aftermarket lower thrust mount
• Genuine Suzuki 54151-88L01 is the later OEM replacement where the catalogue supersedes the L00 version
• Used genuine L00 mounts are suitable for original assemblies when undamaged
• Generic rubber or polyurethane blocks are not direct replacements

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
