54211-87J30-0EP 54211-87J10-0EP Suzuki DF60A Lower Mount Bracket | Genuine Used Part

🔧 Product Description

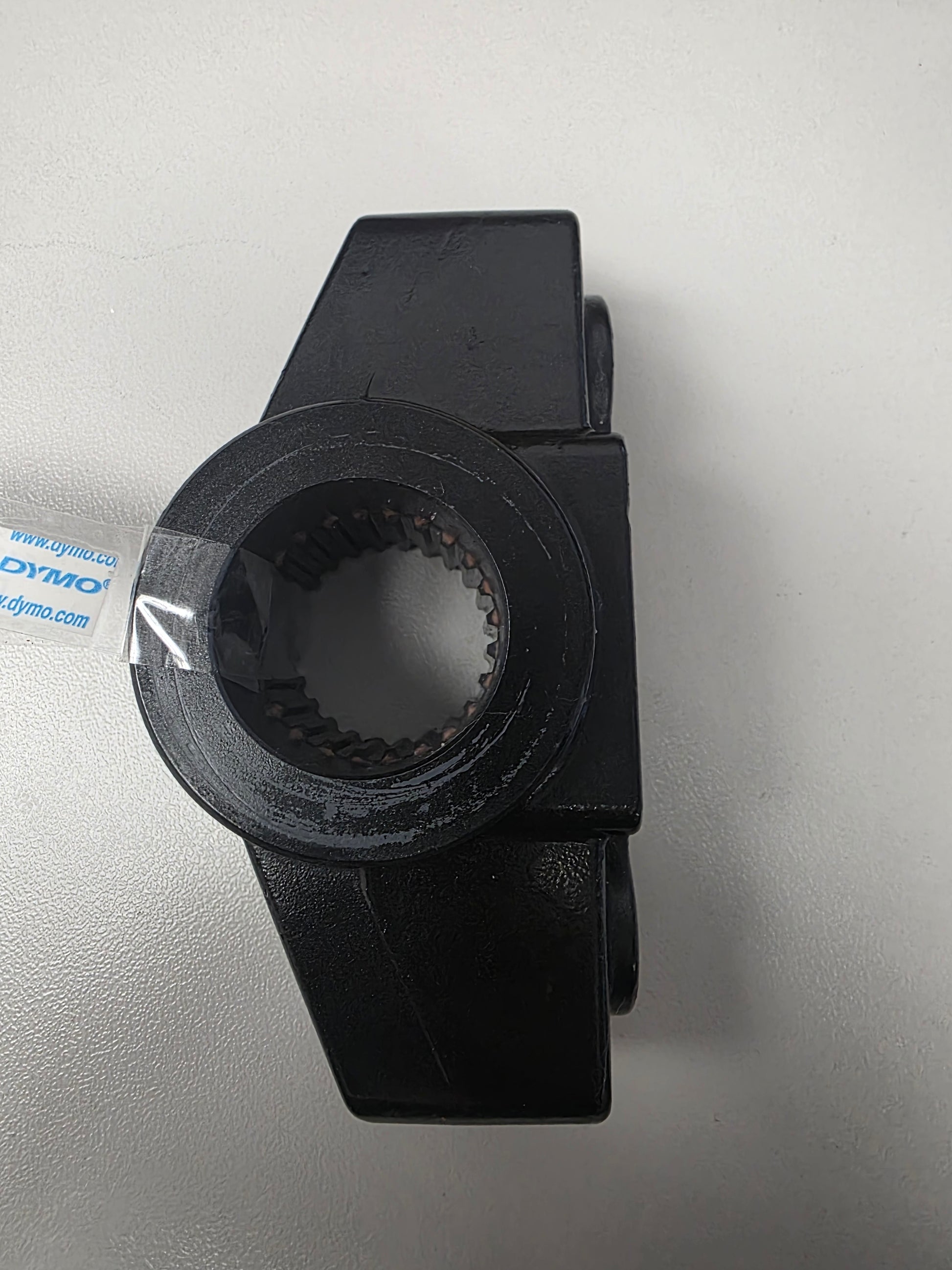

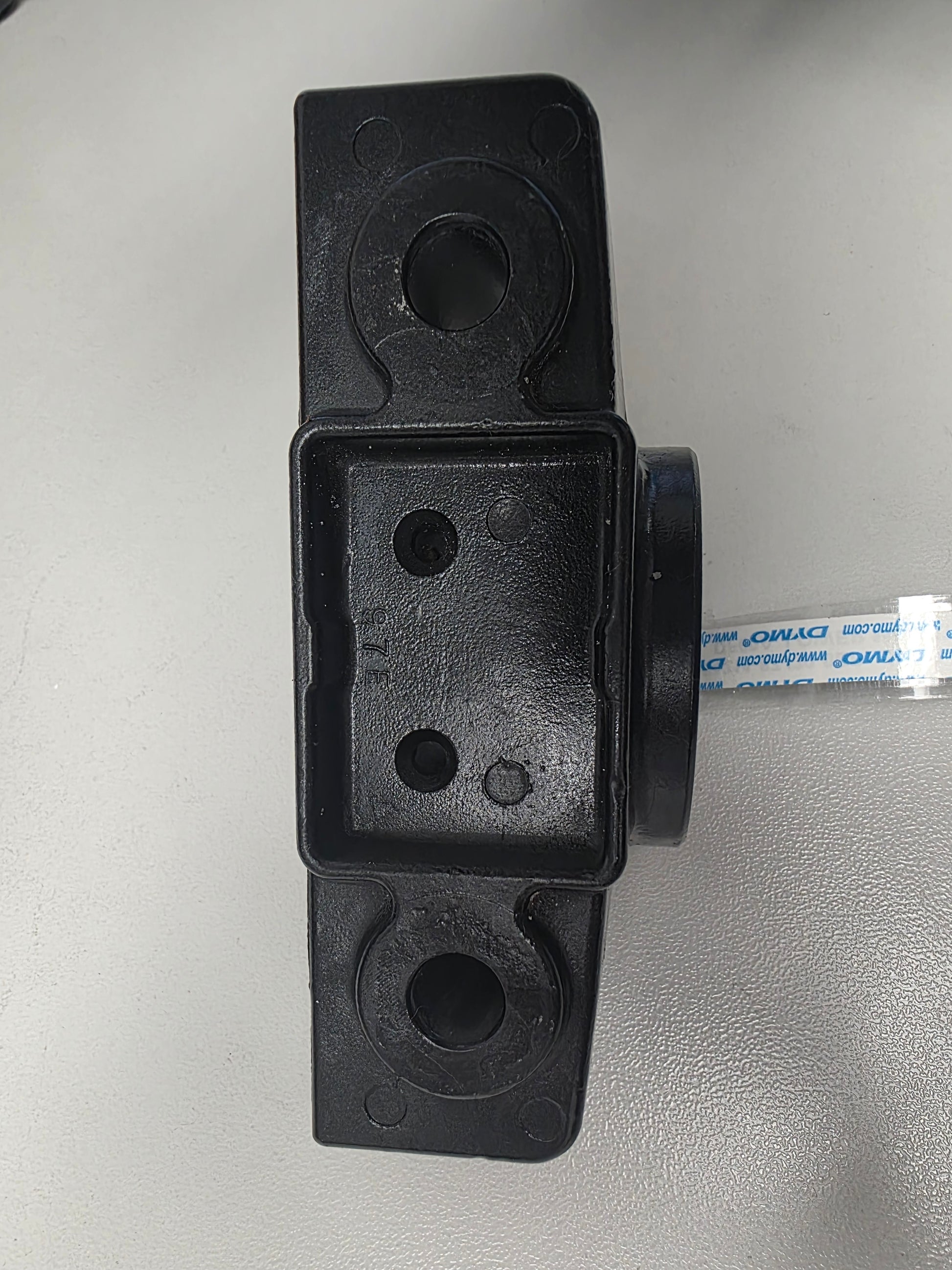

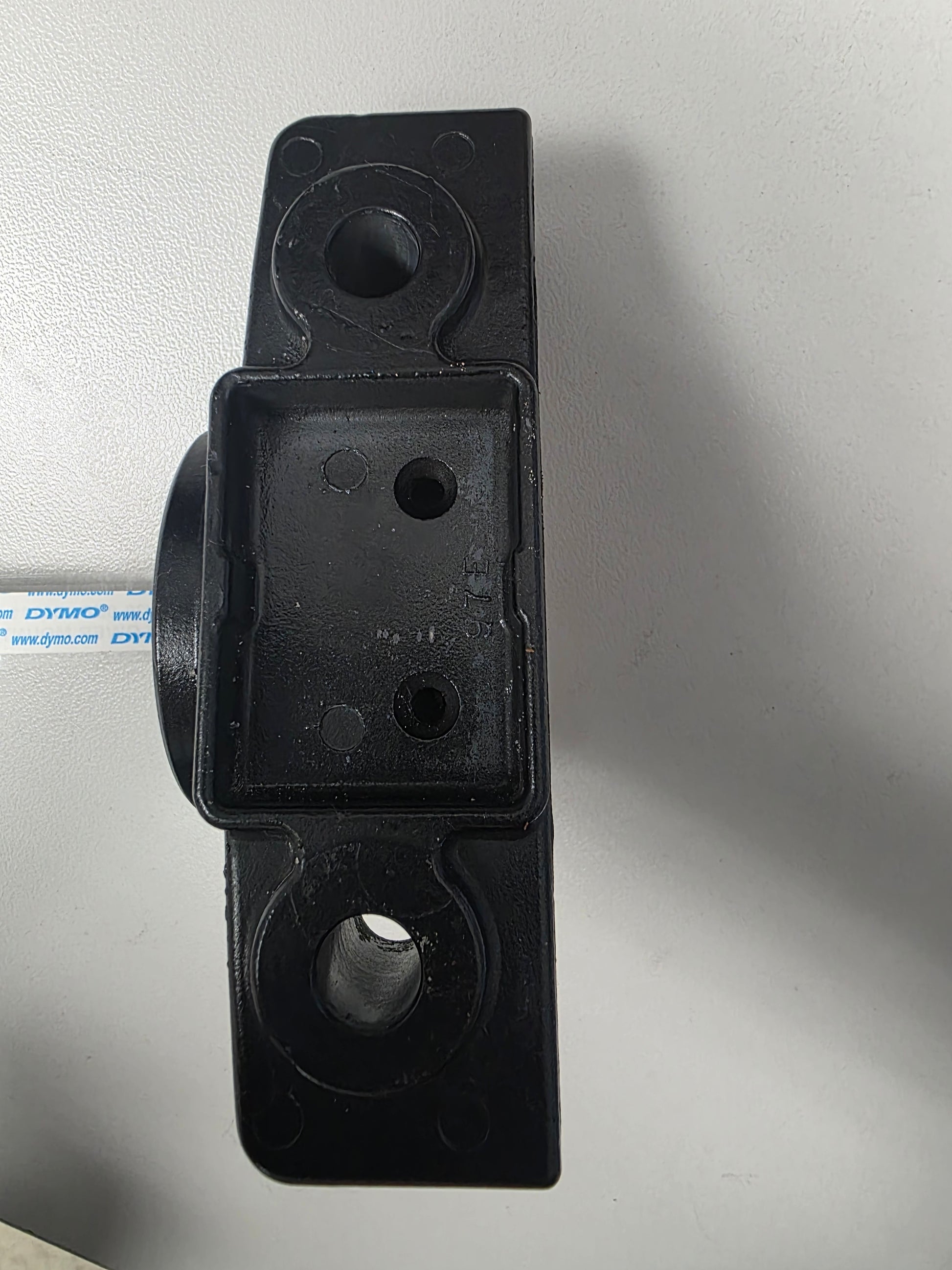

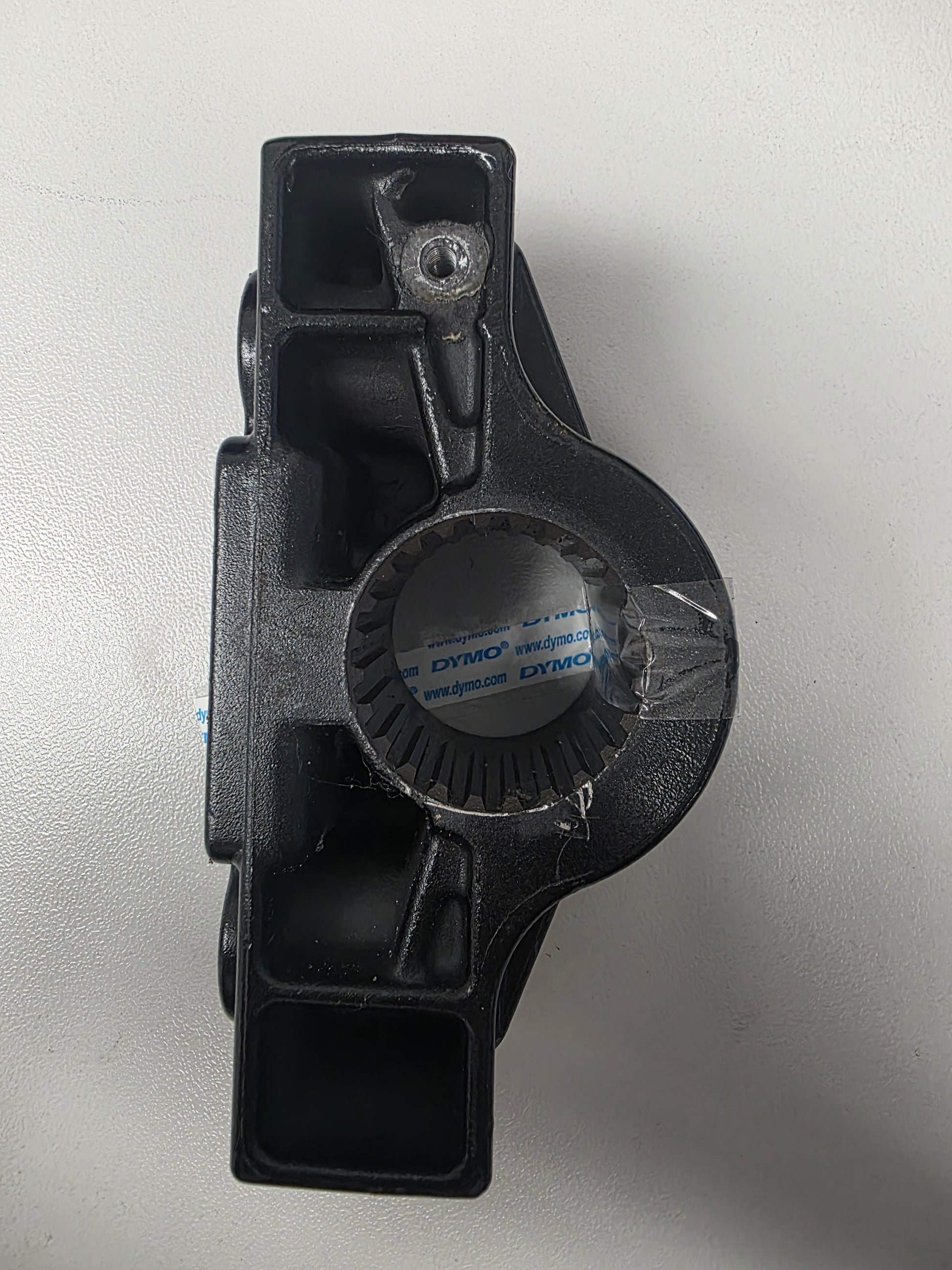

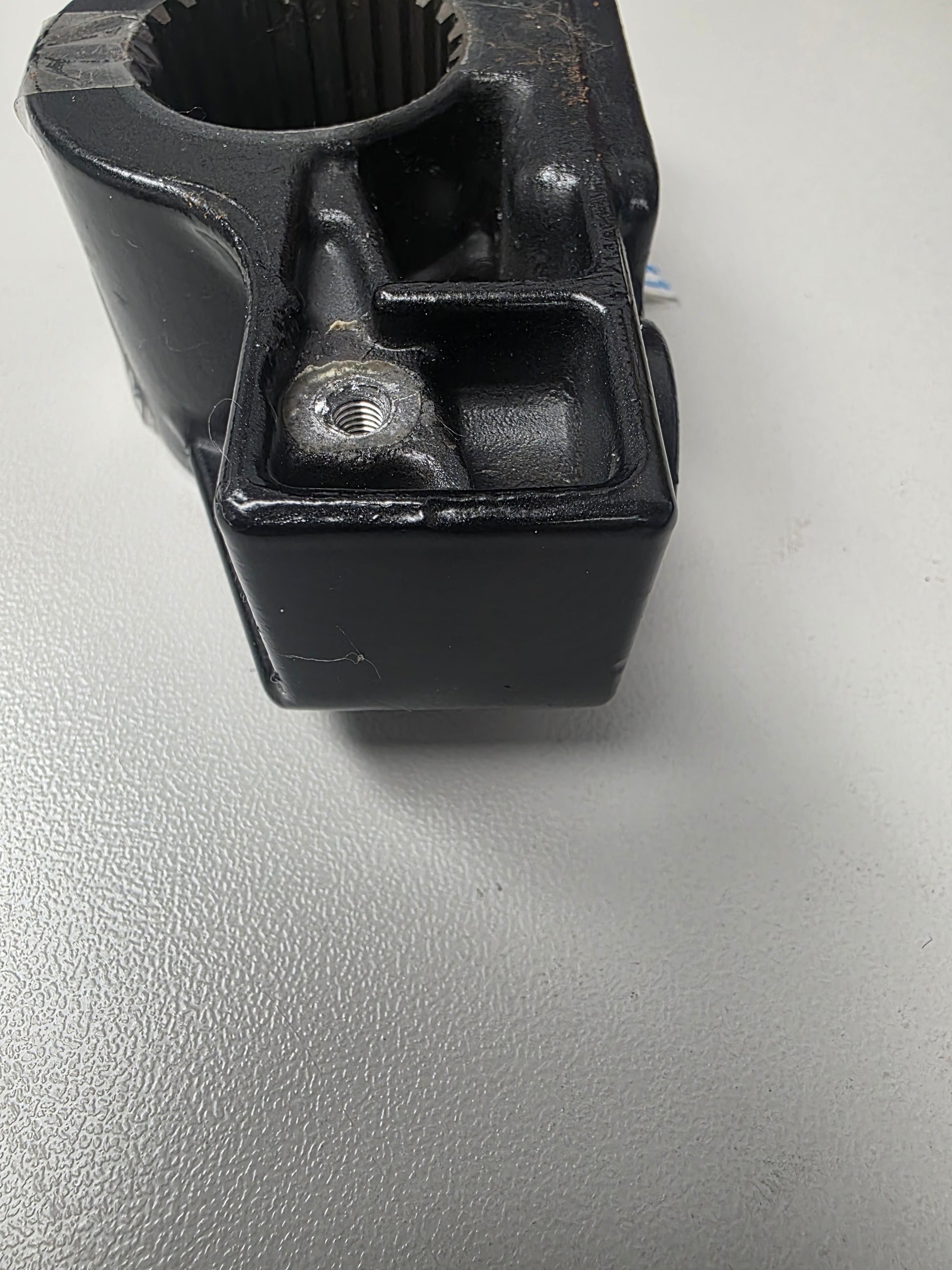

Genuine Suzuki Lower Engine-Mount Bracket - Part Numbers: 54211-87J30-0EP / 54211-87J10-0EP

A genuine used black Suzuki lower mount bracket for selected DF40, DF50 and DF60-family four-stroke outboards. The bracket forms the lower structural connection between the steering or swivel assembly and the engine's lower rubber mounts. Suzuki 54211-87J30-0EP is the later equivalent of 54211-87J10-0EP.

⚙️ Key Features

• Genuine Suzuki Marine lower mount bracket
• Current black-finish reference 54211-87J30-0EP
• Equivalent earlier reference 54211-87J10-0EP
• Supports the lower engine-mount and steering assembly
• Factory casting with model-specific mounting centres

🚤 Compatibility

Commonly used on

• Suzuki DF40 and DF50 three-cylinder four-stroke mounting systems
• Selected Suzuki DF40A, DF50A, DF50AV and DF60A-family installations
• Lower steering-arm and mount-bracket assemblies using the 87J casting family

Typically suits

• Confirmed used-part applications include DF50AV and 2006-and-later DF40 / DF50 three-cylinder engines
• Selected DF60A installations may use this bracket where the original casting is 54211-87J10-0EP or 54211-87J30-0EP
• Verify the engine model, beginning serial number and lower-mount diagram before ordering
• HP Range: Approximately 40HP - 60HP
• Engine Type: Suzuki inline-three four-stroke outboard
• Year Range: Approximately 2006 onward, dependent on model
• Fitment Requirement: Match casting number, colour suffix, mount spacing and steering-bracket layout

🔌 Function

The bracket transfers engine thrust and steering loads through the lower rubber mounts while supporting the bottom of the swivel or steering assembly.

⚠️ Common Signs of Failure

• Cracking around the lower-mount bolt holes
• Severe corrosion or paint loss
• Elongated or damaged mounting holes
• Excessive engine movement caused by bracket or mount wear
• Impact damage or distorted mating surfaces

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 54211-87J30-0EP → Replaces or is equivalent to 54211-87J10-0EP
• 54211-87J10-0EP earlier black lower-mount-bracket reference
• Both references are discontinued or limited-service items in several catalogues

OEM / Related Numbers

• 54211-87J30-0EP
• 5421187J300EP
• 54211-87J10-0EP
• 5421187J100EP
• Related lower rubber mounts, mounting bolts and steering-bracket hardware vary by engine serial
• 55320-94900 related clamp-bracket sacrificial anode on larger Suzuki mounting systems

Aftermarket / Verified Equivalents

• No direct aftermarket cast bracket verified
• Used genuine Suzuki 54211-87J30-0EP or 54211-87J10-0EP brackets are the practical replacements
• Aftermarket rubber mounts and mounting hardware may be available separately but do not replace the bracket

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
